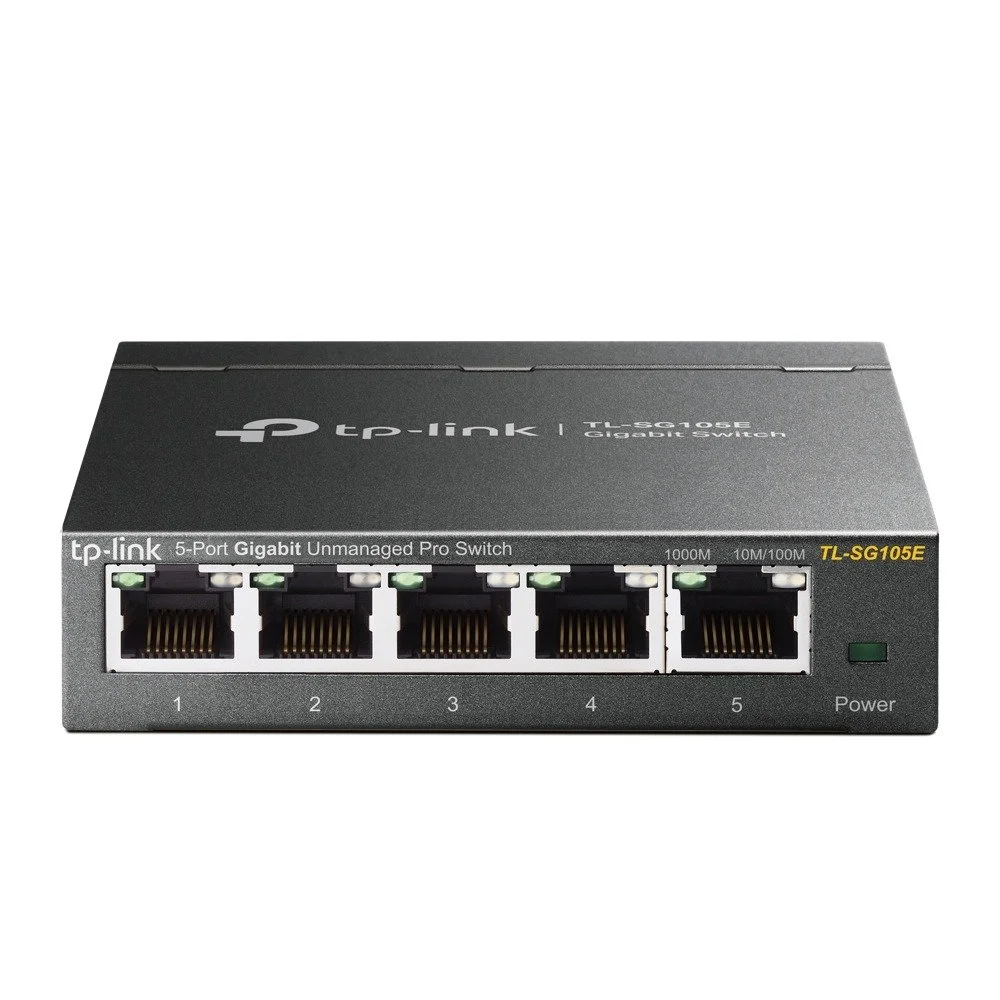

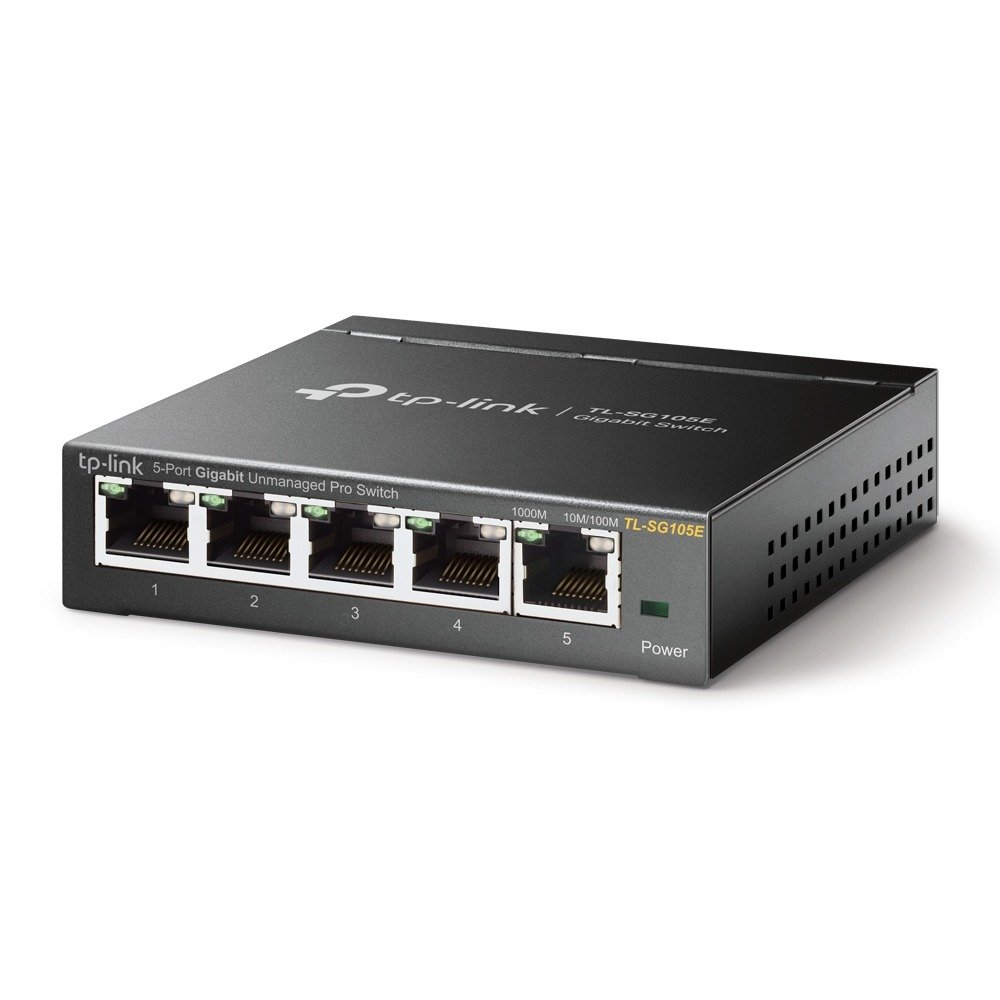

5‑Port Gigabit Desktop Switch
Overview A compact, high-performance solution for small offices and home networks. This 5‑port Gigabit desktop switch delivers reliable, full‑duplex Gigabit connectivity in a durable steel enclosure—perfect for expanding wired networks where space, durability, and steady throughput matter.
Key Features
Ports: 5 × Gigabit RJ45 ports (10/100/1000 Mbps auto‑negotiation)
Form Factor: Desktop, compact footprint
Case: Rugged steel housing for enhanced durability and thermal performance
Plug‑and‑Play: No configuration required; auto MDI/MDI‑X on all ports
LED Indicators: Per‑port link/activity LEDs and system status LED
Energy Efficient: Supports IEEE 802.3az Energy Efficient Ethernet to reduce power consumption during low activity
Fanless Design: Silent operation ideal for office and home environments
Auto‑Speed and Duplex: Automatic detection and matching of connected device capabilities
Backplane: Non‑blocking architecture for full wire‑speed forwarding across all ports
Power: External power adapter (included)
Performance and Reliability Designed to handle simultaneous multi‑device traffic, the switch provides wire‑speed forwarding and low latency for VoIP, video streaming, and data transfers. The steel case improves heat dissipation and mechanical resilience for continuous 24/7 operation.
Use Cases
Small office network expansion
Home offices and remote work setups
Network closets for SOHO and retail environments
Connecting IP phones, wireless access points, network printers, and NAS devices
Physical and Environmental
Dimensions: Compact desktop size (exact dimensions vary by model)
Weight: Lightweight yet robust due to steel construction
Operating Temperature: Typical commercial range for indoor use
Certifications: CE, FCC, RoHS compliant (model specifics may vary)
Package Contents
5‑Port Gigabit Desktop Switch (steel case)
External power adapter
Quick start guide
Ordering and Support Available in standard gray or black finishes. Includes limited hardware warranty and access to technical support for setup assistance and troubleshooting.
Specifications Summary
Ports: 5 × 10/100/1000 Mbps RJ45
Case: Steel desktop chassis
Power: External adapter (included)
LEDs: Per‑port link/activity, system indicator
Energy Efficiency: IEEE 802.3az support
Operation: Plug‑and‑Play, fanless, non‑blocking forwarding
5‑Port Gigabit Desktop Switch
Overview A compact, high-performance solution for small offices and home networks. This 5‑port Gigabit desktop switch delivers reliable, full‑duplex Gigabit connectivity in a durable steel enclosure—perfect for expanding wired networks where space, durability, and steady throughput matter.
Key Features
Ports: 5 × Gigabit RJ45 ports (10/100/1000 Mbps auto‑negotiation)
Form Factor: Desktop, compact footprint
Case: Rugged steel housing for enhanced durability and thermal performance
Plug‑and‑Play: No configuration required; auto MDI/MDI‑X on all ports
LED Indicators: Per‑port link/activity LEDs and system status LED
Energy Efficient: Supports IEEE 802.3az Energy Efficient Ethernet to reduce power consumption during low activity
Fanless Design: Silent operation ideal for office and home environments
Auto‑Speed and Duplex: Automatic detection and matching of connected device capabilities
Backplane: Non‑blocking architecture for full wire‑speed forwarding across all ports
Power: External power adapter (included)
Performance and Reliability Designed to handle simultaneous multi‑device traffic, the switch provides wire‑speed forwarding and low latency for VoIP, video streaming, and data transfers. The steel case improves heat dissipation and mechanical resilience for continuous 24/7 operation.
Use Cases
Small office network expansion
Home offices and remote work setups
Network closets for SOHO and retail environments
Connecting IP phones, wireless access points, network printers, and NAS devices
Physical and Environmental
Dimensions: Compact desktop size (exact dimensions vary by model)
Weight: Lightweight yet robust due to steel construction
Operating Temperature: Typical commercial range for indoor use
Certifications: CE, FCC, RoHS compliant (model specifics may vary)
Package Contents
5‑Port Gigabit Desktop Switch (steel case)
External power adapter
Quick start guide
Ordering and Support Available in standard gray or black finishes. Includes limited hardware warranty and access to technical support for setup assistance and troubleshooting.
Specifications Summary
Ports: 5 × 10/100/1000 Mbps RJ45
Case: Steel desktop chassis
Power: External adapter (included)
LEDs: Per‑port link/activity, system indicator
Energy Efficiency: IEEE 802.3az support
Operation: Plug‑and‑Play, fanless, non‑blocking forwarding
For procurement or technical inquiries, contact your Zorins Technologies sales representative or authorized reseller.

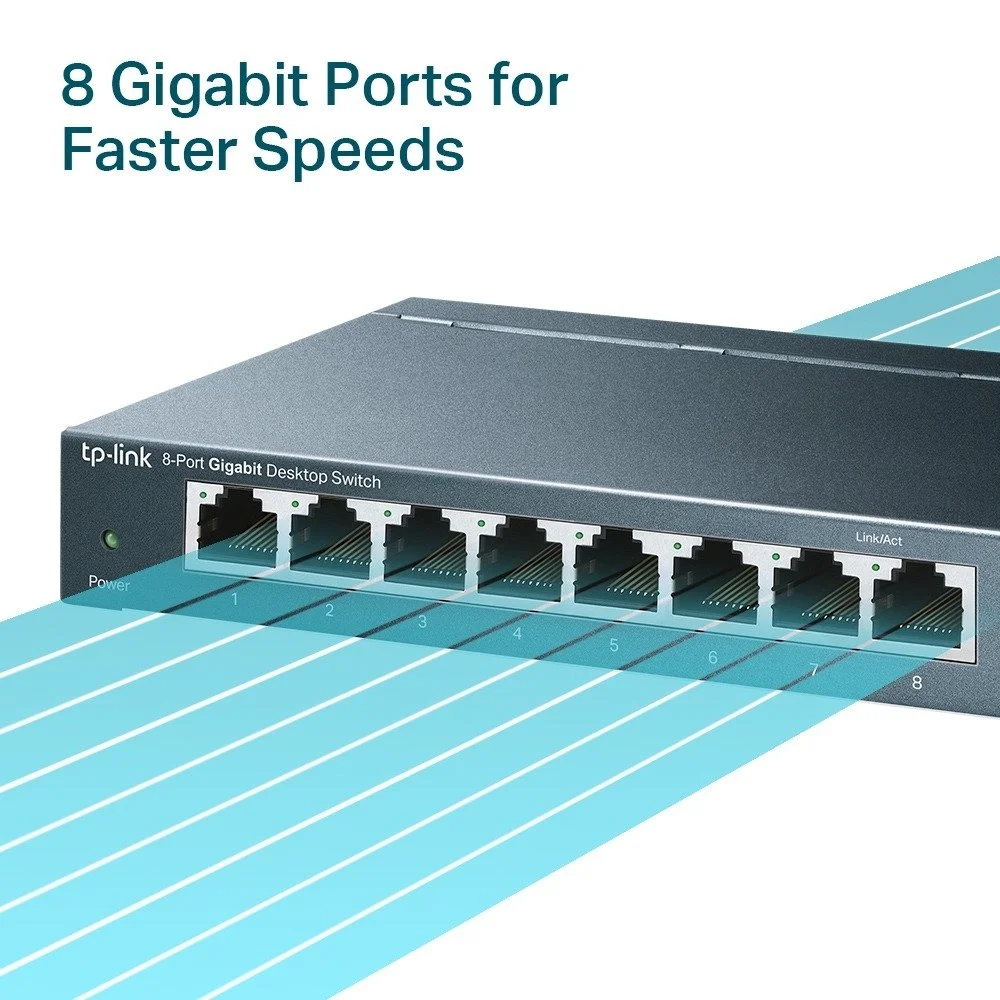

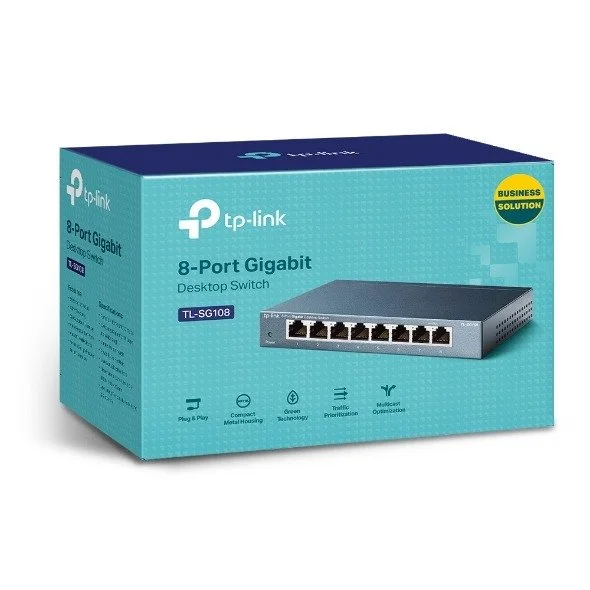

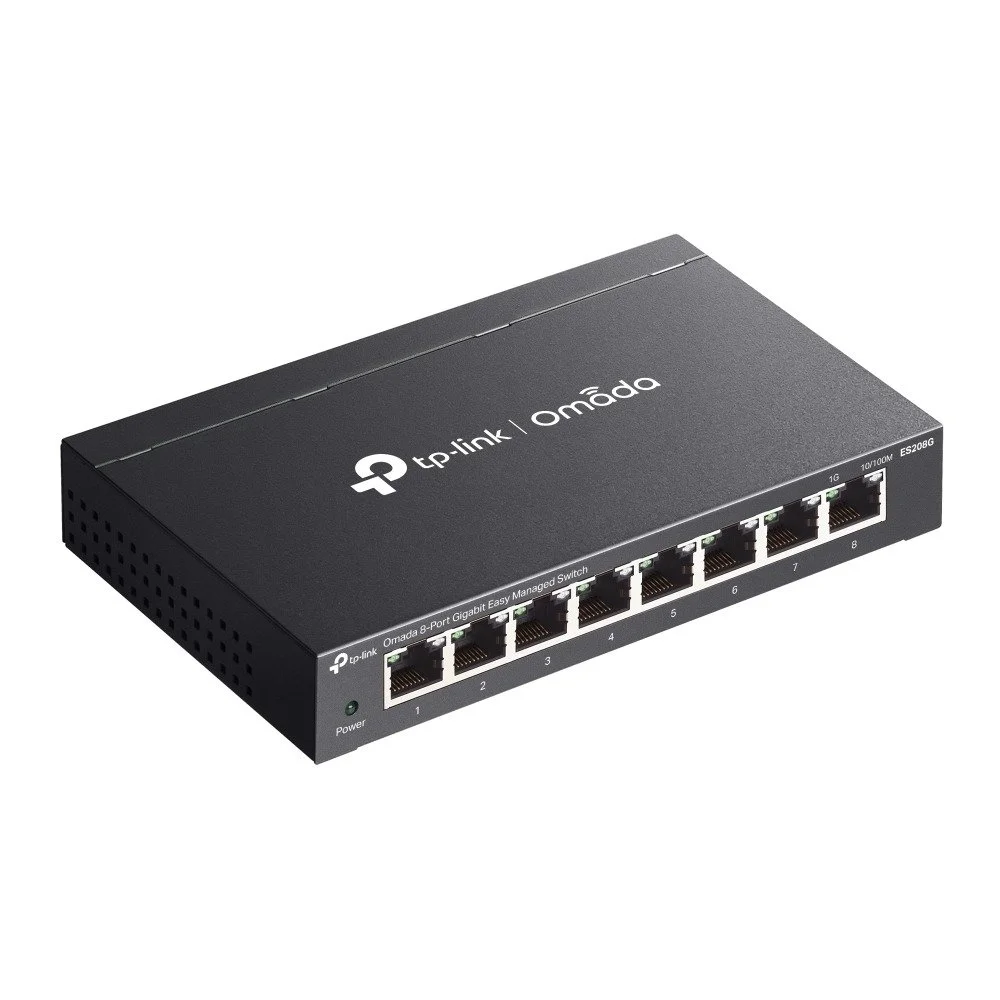

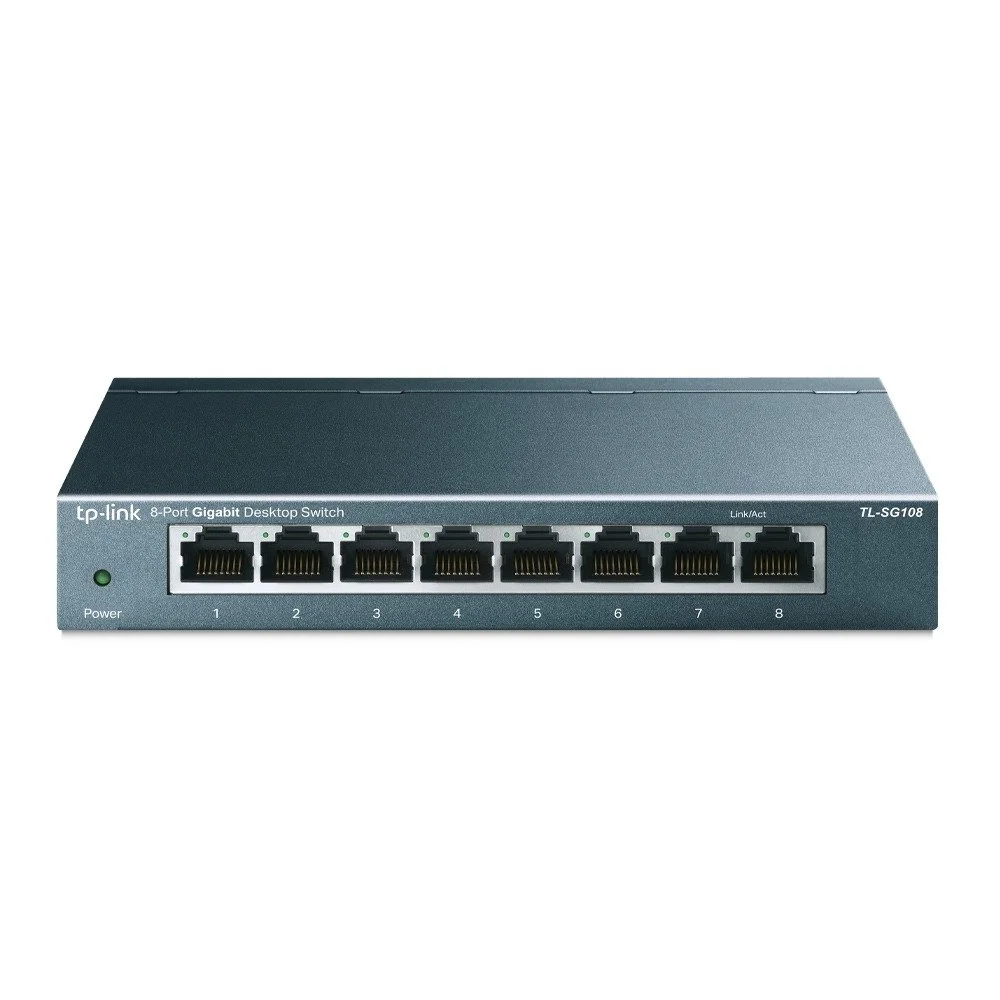

8-Port Gigabit Desktop Switch
Overview A compact, high-performance Gigabit switch designed for small offices, home networks, and edge deployments. The 8-Port Gigabit Desktop Switch delivers reliable 1 Gbps connectivity across eight RJ45 ports in a sleek, durable plastic desktop enclosure. Ideal for expanding wired networks where low latency, energy efficiency, and simple setup are priorities.
Key Specifications
Ports: 8 × Gigabit RJ45 (10/100/1000 Mbps auto-negotiation)
Form factor: Desktop, plastic case
Forwarding Capacity: Line-rate switching across all ports
MAC Address Table: Large table to support multiple simultaneous devices
Power: External AC adapter (included)
Dimensions & Weight: Compact footprint for desktop placement; lightweight
Principal Features
Plug and Play: No configuration or software required. Connect devices and power on for immediate network expansion.
Auto MDI/MDIX: Eliminates the need for crossover cables on uplink or device connections.
Energy Efficient: IEEE 802.3az Energy Efficient Ethernet support reduces power consumption during low activity periods.
Quiet Operation: Fanless design for silent operation in office or home environments.
LED Indicators: Per-port LEDs for link/activity and speed status for straightforward diagnostics.
Robust Build: Durable plastic chassis with non-slip feet for stable desktop placement.
Use Cases
Small office network expansion: Add wired connections for PCs, VoIP phones, printers, and access points.
Home office: Reliable, low-latency connectivity for video conferencing, storage, and media streaming.
Edge/SMB deployments: Cost-effective port density for branch locations, retail, or kiosk environments.
Temporary setups: Fast, tool-free deployment for events, labs, or test environments.
What’s in the Box
8
8-Port Gigabit Desktop Switch
Overview A compact, high-performance Gigabit switch designed for small offices, home networks, and edge deployments. The 8-Port Gigabit Desktop Switch delivers reliable 1 Gbps connectivity across eight RJ45 ports in a sleek, durable plastic desktop enclosure. Ideal for expanding wired networks where low latency, energy efficiency, and simple setup are priorities.
Key Specifications
Ports: 8 × Gigabit RJ45 (10/100/1000 Mbps auto-negotiation)
Form factor: Desktop, plastic case
Forwarding Capacity: Line-rate switching across all ports
MAC Address Table: Large table to support multiple simultaneous devices
Power: External AC adapter (included)
Dimensions & Weight: Compact footprint for desktop placement; lightweight
Principal Features
Plug and Play: No configuration or software required. Connect devices and power on for immediate network expansion.
Auto MDI/MDIX: Eliminates the need for crossover cables on uplink or device connections.
Energy Efficient: IEEE 802.3az Energy Efficient Ethernet support reduces power consumption during low activity periods.
Quiet Operation: Fanless design for silent operation in office or home environments.
LED Indicators: Per-port LEDs for link/activity and speed status for straightforward diagnostics.
Robust Build: Durable plastic chassis with non-slip feet for stable desktop placement.
Use Cases
Small office network expansion: Add wired connections for PCs, VoIP phones, printers, and access points.
Home office: Reliable, low-latency connectivity for video conferencing, storage, and media streaming.
Edge/SMB deployments: Cost-effective port density for branch locations, retail, or kiosk environments.
Temporary setups: Fast, tool-free deployment for events, labs, or test environments.
What’s in the Box
8-Port Gigabit Desktop Switch
External power adapter
Quick start guide
Warranty & Support
Manufacturer warranty and technical support (terms vary by region). Contact your vendor for coverage details.
The 8-Port Gigabit Desktop Switch combines straightforward plug-and-play usability with Gigabit performance and an efficient, quiet design—an elegant, practical solution for expanding wired networks without complexity.
8-Port Gigabit Desktop Switch
Overview An elegant, reliable solution for small offices, home networks, and workgroups — the 8-Port Gigabit Desktop Switch delivers full Gigabit performance for wired Ethernet devices in a compact, durable steel enclosure. Designed for plug-and-play simplicity, it provides high-speed connectivity with minimal setup and enterprise-grade build quality.
Key Specifications
Ports: 8 × Gigabit RJ45 (10/100/1000 Mbps), auto-negotiation and auto-MDI/MDIX
Form Factor: Desktop, rugged steel case for heat dissipation and long service life
Power: External power adapter (included)
Switching Capacity: Non-blocking architecture to support full-duplex Gigabit throughput
Forwarding Rate: Wire-speed forwarding to minimize latency and packet loss
MAC Address Table: Hardware-based MAC learning for efficient traffic switching
Features
Plug and Play: Immediate operation with no configuration required — connect devices and traffic flows automatically.
Durable Steel Case: Robust metal chassis protects internal components, improves thermal stability, and fits professional environments.
Energy Efficient: Built-in energy-saving mechanisms reduce power draw when ports are idle or connected to low-power devices.
LED Indicators: Per-port LEDs for link/activity and speed status, plus power indicator for easy monitoring.
Quiet Operation: Fanless design ensures silent operation suitable for desktop or office placement.
Broad Compatibility: Works with PCs, printers, IP phones, access points, media players, network storage, and more.
Applications
Small office network expansion
Home offices and remote work setups
Point-of-sale and retail networks
Conference rooms and meeting spaces
Network lab and device testing benches
What’s in the Box
8-Port Gigabit Desktop Switch (steel case)
External power adapter
Quick start guide
Rubber feet for desktop placement
Why Choose This Switch Combining simplicity with robust construction, this 8-port Gigabit switch provides dependable, wire-speed connectivity in a compact footprint. It’s ideal for users who need straightforward, high-performance switching without the complexity of managed features — built to blend into professional environments and run quietly and efficiently.
Technical Notes
For optimal performance, use Cat5e or higher Ethernet cabling.
Auto-negotiation ensures compatibility across mixed-speed networks; full Gigabit performance requires Gigabit-capable endpoints and cabling.
Not a managed switch; advanced routing, VLANs, or QoS configuration are not supported.
Ordering Information Available as a single-unit SKU. Contact your Zorins Technologies representative for volume pricing, extended warranty options, and enterprise purchasing arrangements.
8-Port Gigabit Switch
Overview A compact, high-performance Gigabit switch designed for reliable connectivity in small to medium network deployments. Housed in a 1U, 13-inch rack-mountable steel case, this device delivers eight Gigabit RJ45 ports in a robust, space-saving form factor ideal for office racks, NOC cabinets, and edge networking installations.
Key Specifications
Ports: 8 × Gigabit RJ45 ports (10/100/1000 Mbps auto-negotiation)
Form Factor: 1U, 13-inch rack-mountable steel chassis
Throughput: Full wire-speed switching on all ports
MAC Address Table: Hardware-based forwarding table for efficient traffic handling
Jumbo Frame Support: Up to 9 KB (where applicable)
Power: Internal AC power supply with standard IEC inlet
Cooling: Quiet, efficient thermal design suitable for rack environments
LEDs: Per-port link/activity and speed indicators; system power/status LED
Dimensions (approx.): 13" width × 1.72" height (1U) × depth suited for standard shallow racks
Operating Temperature: Commercial range for office and data center use
Safety & Compliance: Built to applicable safety and emissions standards
Features
Plug and Play: Simple, immediate deployment—no configuration required. Auto MDI/MDIX on each port eliminates the need for crossover cables.
Reliability: Rugged steel construction and industrial-grade components for consistent operation in populated rack spaces.
Performance: Gigabit throughput on all ports ensures smooth file transfers, VoIP, video conferencing, and surveillance traffic.
Energy Efficient: Intelligent power usage to reduce consumption without compromising performance.
Versatile Mounting: 1U rack ears included for quick installation in shallow or standard cabinets; can also be used free-standing in desktop or shelf deployments.
Low Latency: Hardware switching delivers minimal latency for real-time applications.
Use Cases
Small office and branch connectivity consolidation
PoE camera backhaul when used with separate power injectors (non-PoE switch model)
Edge aggregation for wireless access points and IP phones
Rack-mountable extension for network closets and micro data centers
What’s in the Box
8-Port Gigabit Switch (1U, 13-inch steel case)
Rack-mount ears and mounting hardware
User quick-start guide
Power cord
Support & Warranty Backed by Zorins Technologies’ technical support and warranty coverage to ensure dependable operation and fast resolution if issues arise.
Ordering Codes & Options Available as standard non-PoE and optional PoE variants; contact sales for model numbers, bulk pricing, and custom configuration for OEM
8-Port Gigabit Switch
Overview A compact, high-performance Gigabit switch designed for reliable connectivity in small to medium network deployments. Housed in a 1U, 13-inch rack-mountable steel case, this device delivers eight Gigabit RJ45 ports in a robust, space-saving form factor ideal for office racks, NOC cabinets, and edge networking installations.
Key Specifications
Ports: 8 × Gigabit RJ45 ports (10/100/1000 Mbps auto-negotiation)
Form Factor: 1U, 13-inch rack-mountable steel chassis
Throughput: Full wire-speed switching on all ports
MAC Address Table: Hardware-based forwarding table for efficient traffic handling
Jumbo Frame Support: Up to 9 KB (where applicable)
Power: Internal AC power supply with standard IEC inlet
Cooling: Quiet, efficient thermal design suitable for rack environments
LEDs: Per-port link/activity and speed indicators; system power/status LED
Dimensions (approx.): 13" width × 1.72" height (1U) × depth suited for standard shallow racks
Operating Temperature: Commercial range for office and data center use
Safety & Compliance: Built to applicable safety and emissions standards
Features
Plug and Play: Simple, immediate deployment—no configuration required. Auto MDI/MDIX on each port eliminates the need for crossover cables.
Reliability: Rugged steel construction and industrial-grade components for consistent operation in populated rack spaces.
Performance: Gigabit throughput on all ports ensures smooth file transfers, VoIP, video conferencing, and surveillance traffic.
Energy Efficient: Intelligent power usage to reduce consumption without compromising performance.
Versatile Mounting: 1U rack ears included for quick installation in shallow or standard cabinets; can also be used free-standing in desktop or shelf deployments.
Low Latency: Hardware switching delivers minimal latency for real-time applications.
Use Cases
Small office and branch connectivity consolidation
PoE camera backhaul when used with separate power injectors (non-PoE switch model)
Edge aggregation for wireless access points and IP phones
Rack-mountable extension for network closets and micro data centers
What’s in the Box
8-Port Gigabit Switch (1U, 13-inch steel case)
Rack-mount ears and mounting hardware
User quick-start guide
Power cord
Support & Warranty Backed by Zorins Technologies’ technical support and warranty coverage to ensure dependable operation and fast resolution if issues arise.
Ordering Codes & Options Available as standard non-PoE and optional PoE variants; contact sales for model numbers, bulk pricing, and custom configuration for OEM and enterprise deployments.
Specifications subject to change; consult product datasheet for exact dimensions, power ratings, and environmental limits.
16-Port Gigabit Desktop Switch
Overview A high-performance, reliable 16-port Gigabit desktop switch engineered for small offices, workgroups, and edge deployments. Built with a robust steel chassis and simple plug-and-play operation, this switch delivers full Gigabit throughput for demanding networked applications while maintaining an unobtrusive desktop footprint.
Key Specifications
Ports: 16 × Gigabit RJ45 ports (10/100/1000 Mbps auto-negotiation)
Form factor: Desktop steel case — durable, low-noise, professional appearance
Switching capacity: Non-blocking architecture for wire-speed forwarding on all ports
MAC address table: Large multi-thousand entry table for stable learning and forwarding
Forwarding rate: High packet-forwarding performance suitable for mixed traffic (small and large packets)
Power: Internal/external power options depending on model (IEC or external adapter)
LEDs: Per-port link/activity/speed indicators and system status LEDs
Cooling: Fanless design for silent operation (models with fan available for extended temperature ranges)
Safety & compliance: Meets relevant safety and EMI/EMC standards for commercial deployments
Features
Plug and Play: No configuration required — install, connect, and operate immediately.
Auto MDI/MDIX: Eliminates need for crossover cables, simplifying connections to PCs, servers, and uplinks.
Auto-negotiation: Automatically selects the optimal speed and duplex for each link.
Energy-efficient design: Intelligent power management reduces energy use for lower link utilization and short cables.
Durable construction: Steel enclosure protects internal components and provides reliable mechanical stability.
Desktop friendly: Compact footprint and rubber feet for secure placement on desks or shelves.
Use Cases
Small office networks requiring reliable Gigabit switching for workstations, VoIP phones, and wireless access points.
Conference rooms and meeting spaces where silent, unobtrusive networking is essential.
Edge aggregation for fiber or router uplinks to distribute Gigabit connectivity to multiple devices.
Temporary or permanent deployments in retail, classrooms, and small branch sites.
Physical & Environmental
Dimensions: Compact desktop form factor (exact dimensions vary by model)
Weight: Rugged steel case adds stability (model-dependent)
Operating temperature: Typical commercial range; extended-temperature models available
Mounting: Desktop with optional rack or wall-mount kits on select models
Why Choose This Switch
Simplicity: True plug-and-play operation gets your network online instantly with no configuration overhead.
Performance: Full Gigabit ports and non-blocking switching capacity ensure smooth file transfers, video, and VoIP.
Reliability: Steel chassis and quality components deliver a long service life in professional environments.
Quiet operation: Fanless design (standard) keeps workspaces free from distracting noise.
Ordering Information Available in standard and extended-temperature variants, with optional mounting kits and power
16-Port Gigabit Desktop Switch
Overview A high-performance, reliable 16-port Gigabit desktop switch engineered for small offices, workgroups, and edge deployments. Built with a robust steel chassis and simple plug-and-play operation, this switch delivers full Gigabit throughput for demanding networked applications while maintaining an unobtrusive desktop footprint.
Key Specifications
Ports: 16 × Gigabit RJ45 ports (10/100/1000 Mbps auto-negotiation)
Form factor: Desktop steel case — durable, low-noise, professional appearance
Switching capacity: Non-blocking architecture for wire-speed forwarding on all ports
MAC address table: Large multi-thousand entry table for stable learning and forwarding
Forwarding rate: High packet-forwarding performance suitable for mixed traffic (small and large packets)
Power: Internal/external power options depending on model (IEC or external adapter)
LEDs: Per-port link/activity/speed indicators and system status LEDs
Cooling: Fanless design for silent operation (models with fan available for extended temperature ranges)
Safety & compliance: Meets relevant safety and EMI/EMC standards for commercial deployments
Features
Plug and Play: No configuration required — install, connect, and operate immediately.
Auto MDI/MDIX: Eliminates need for crossover cables, simplifying connections to PCs, servers, and uplinks.
Auto-negotiation: Automatically selects the optimal speed and duplex for each link.
Energy-efficient design: Intelligent power management reduces energy use for lower link utilization and short cables.
Durable construction: Steel enclosure protects internal components and provides reliable mechanical stability.
Desktop friendly: Compact footprint and rubber feet for secure placement on desks or shelves.
Use Cases
Small office networks requiring reliable Gigabit switching for workstations, VoIP phones, and wireless access points.
Conference rooms and meeting spaces where silent, unobtrusive networking is essential.
Edge aggregation for fiber or router uplinks to distribute Gigabit connectivity to multiple devices.
Temporary or permanent deployments in retail, classrooms, and small branch sites.
Physical & Environmental
Dimensions: Compact desktop form factor (exact dimensions vary by model)
Weight: Rugged steel case adds stability (model-dependent)
Operating temperature: Typical commercial range; extended-temperature models available
Mounting: Desktop with optional rack or wall-mount kits on select models
Why Choose This Switch
Simplicity: True plug-and-play operation gets your network online instantly with no configuration overhead.
Performance: Full Gigabit ports and non-blocking switching capacity ensure smooth file transfers, video, and VoIP.
Reliability: Steel chassis and quality components deliver a long service life in professional environments.
Quiet operation: Fanless design (standard) keeps workspaces free from distracting noise.
Ordering Information Available in standard and extended-temperature variants, with optional mounting kits and power options. Contact your distributor or representative for model numbers, datasheets, and ordering codes.
16-Port Gigabit Switch
Overview A compact, high-performance 16-port Gigabit switch engineered for modern networks that demand reliability, speed, and simplicity. Housed in a 1U, 13-inch rack-mountable steel case, this switch delivers enterprise-grade connectivity in a small footprint — ideal for data closets, branch offices, labs, or anywhere space is at a premium.
Key Specifications
Ports: 16 × Gigabit RJ45 ports (10/100/1000 Mbps)
Form Factor: 1U, 13-inch rack-mountable steel chassis
Power: Internal power supply (standard AC input)
Throughput: Non-blocking switching fabric optimized for full-duplex Gigabit performance
MAC Address Table: Large MAC table to support dense device deployments
Cooling: Quiet, efficient thermal design suitable for rack installation
Features
Plug and Play: No configuration required — connect devices and begin transmitting immediately. Ideal for rapid deployment and low-maintenance environments.
Durable Steel Enclosure: Rugged 1U steel case built for consistent performance and physical protection in rack environments.
Space-Efficient Design: 13-inch width conserves rack space while delivering full Gigabit connectivity.
Reliable Connectivity: Auto MDI/MDIX on all ports eliminates the need for crossover cables; auto-negotiation ensures optimal link speed.
Energy Efficient: Power-saving features reduce consumption without compromising performance.
Robust Performance: Prioritizes low-latency forwarding and stable throughput for voice, video, and data traffic.
Recommended Use Cases
Small and medium business networks
Branch offices and retail locations
Network edge or access layer in enterprise deployments
Lab, test, and development environments
IP telephony and surveillance camera aggregation
Physical & Environmental
Chassis: 1U, 13-inch steel rack-mount case
Dimensions: Compact rack depth suited to shallow cabinets (exact dimensions available on spec sheet)
Mounting: Includes rack ears for 1U installation
Operating Temperature:
16-Port Gigabit Switch
Overview A compact, high-performance 16-port Gigabit switch engineered for modern networks that demand reliability, speed, and simplicity. Housed in a 1U, 13-inch rack-mountable steel case, this switch delivers enterprise-grade connectivity in a small footprint — ideal for data closets, branch offices, labs, or anywhere space is at a premium.
Key Specifications
Ports: 16 × Gigabit RJ45 ports (10/100/1000 Mbps)
Form Factor: 1U, 13-inch rack-mountable steel chassis
Power: Internal power supply (standard AC input)
Throughput: Non-blocking switching fabric optimized for full-duplex Gigabit performance
MAC Address Table: Large MAC table to support dense device deployments
Cooling: Quiet, efficient thermal design suitable for rack installation
Features
Plug and Play: No configuration required — connect devices and begin transmitting immediately. Ideal for rapid deployment and low-maintenance environments.
Durable Steel Enclosure: Rugged 1U steel case built for consistent performance and physical protection in rack environments.
Space-Efficient Design: 13-inch width conserves rack space while delivering full Gigabit connectivity.
Reliable Connectivity: Auto MDI/MDIX on all ports eliminates the need for crossover cables; auto-negotiation ensures optimal link speed.
Energy Efficient: Power-saving features reduce consumption without compromising performance.
Robust Performance: Prioritizes low-latency forwarding and stable throughput for voice, video, and data traffic.
Recommended Use Cases
Small and medium business networks
Branch offices and retail locations
Network edge or access layer in enterprise deployments
Lab, test, and development environments
IP telephony and surveillance camera aggregation
Physical & Environmental
Chassis: 1U, 13-inch steel rack-mount case
Dimensions: Compact rack depth suited to shallow cabinets (exact dimensions available on spec sheet)
Mounting: Includes rack ears for 1U installation
Operating Temperature: Designed for standard office and data center environments
Why Choose This Switch This 16-port Gigabit switch balances simplicity and professional-grade build quality. Its plug-and-play operation reduces deployment time and operational overhead, while the compact steel chassis ensures durability and a neat rack presence. It’s an efficient, dependable choice for organizations that need straightforward Gigabit connectivity without the complexity of managed switches.
For ordering, technical details, or compatibility questions, contact your Zorins Technologies representative or consult the product datasheet.
16-Port Gigabit Switch
Overview A high-performance, rack-ready Gigabit switch designed for enterprise and data center deployments requiring reliable, low-latency connectivity in a compact 1U footprint.
Key Specifications
Ports: 16 × Gigabit RJ45 ports (10/100/1000 Mbps auto-negotiation)
Form Factor: 1U, 19‑inch rack-mountable steel case
MAC Address Table: Standard capacity for small- to medium-size network aggregation
Forwarding Rate: Wire-speed switching on all ports
Power: Internal AC power supply with standard IEC input
LED Indicators: Per-port link/activity and speed LEDs; system power/status LED
Operating Temperature: Typical commercial range (check model-specific datasheet for precise limits)
Dimensions & Weight: 1U rack depth optimized for standard cabinets (refer to product datasheet for exact measurements)
Features
Plug and Play: No configuration required; automatically senses link speed and duplex for each connected device for fast, hassle-free deployment.
Robust Construction: Durable steel chassis engineered for continuous operation in rack environments.
Energy Efficient: Supports energy-saving Ethernet features to reduce power consumption when port links are idle.
Quiet Operation: Low-noise cooling suitable for equipment rooms and shared workspaces.
Flexible Deployment: Ideal as an access-layer switch for office networks, VoIP, surveillance cameras, and small server clusters.
Use Cases
Enterprise access switch for deskside connectivity and departmental aggregation.
Connectivity for IP telephony, wireless access points, and security cameras.
Edge switch for small data centers and branch offices requiring reliable Gigabit ports in a compact rack unit.
Package Contents
16-Port Gigabit Switch (1U rack-mountable)
Rack-mount ears and screws
Power cord (region-specific)
Quick start guide
Compliance & Warranty
Meets applicable safety and electromagnetic compatibility standards (model-specific certifications apply).
Backed by Zorins Technologies support and warranty; consult product documentation for warranty period and support options.
For exact technical limits (MTBF, buffer size, VLAN support, QoS capabilities, and environmental specifications
16-Port Gigabit Switch
Overview A high-performance, rack-ready Gigabit switch designed for enterprise and data center deployments requiring reliable, low-latency connectivity in a compact 1U footprint.
Key Specifications
Ports: 16 × Gigabit RJ45 ports (10/100/1000 Mbps auto-negotiation)
Form Factor: 1U, 19‑inch rack-mountable steel case
MAC Address Table: Standard capacity for small- to medium-size network aggregation
Forwarding Rate: Wire-speed switching on all ports
Power: Internal AC power supply with standard IEC input
LED Indicators: Per-port link/activity and speed LEDs; system power/status LED
Operating Temperature: Typical commercial range (check model-specific datasheet for precise limits)
Dimensions & Weight: 1U rack depth optimized for standard cabinets (refer to product datasheet for exact measurements)
Features
Plug and Play: No configuration required; automatically senses link speed and duplex for each connected device for fast, hassle-free deployment.
Robust Construction: Durable steel chassis engineered for continuous operation in rack environments.
Energy Efficient: Supports energy-saving Ethernet features to reduce power consumption when port links are idle.
Quiet Operation: Low-noise cooling suitable for equipment rooms and shared workspaces.
Flexible Deployment: Ideal as an access-layer switch for office networks, VoIP, surveillance cameras, and small server clusters.
Use Cases
Enterprise access switch for deskside connectivity and departmental aggregation.
Connectivity for IP telephony, wireless access points, and security cameras.
Edge switch for small data centers and branch offices requiring reliable Gigabit ports in a compact rack unit.
Package Contents
16-Port Gigabit Switch (1U rack-mountable)
Rack-mount ears and screws
Power cord (region-specific)
Quick start guide
Compliance & Warranty
Meets applicable safety and electromagnetic compatibility standards (model-specific certifications apply).
Backed by Zorins Technologies support and warranty; consult product documentation for warranty period and support options.
For exact technical limits (MTBF, buffer size, VLAN support, QoS capabilities, and environmental specifications), refer to the model-specific datasheet or contact Zorins Technologies technical sales for configuration and ordering information.
24-Port Gigabit Switch
Overview A compact, high-performance 24-port Gigabit switch engineered for reliable network aggregation in small-to-medium enterprise environments. Housed in a durable 1U 13-inch steel chassis, this switch delivers full-duplex Gigabit connectivity, low-latency forwarding, and easy deployment with plug-and-play simplicity.
Key Features
Ports: 24 × Gigabit RJ45 ports (10/100/1000 Mbps auto-negotiation)
Form Factor: 1U, 13-inch rack-mountable steel case — fits compact racks and network cabinets
Installation: Plug and play — no configuration required; auto MDI/MDIX on all ports
Performance: Wire-speed forwarding with full-duplex support and non-blocking architecture
Reliability: Durable steel construction, passive cooling for silent operation, and enterprise-grade components
Power: Internal AC power supply with standard IEC inlet (specify voltage options per region)
LEDs: Per-port status LEDs for link/activity and speed; system power LED
Management: Unmanaged switch for zero-configuration operation; ideal for edge aggregation and simple expansions
Safety & Compliance: Built to meet relevant safety and EMC standards (consult model-specific datasheet for certifications)
Technical Specifications (Typical)
Switching capacity: 48 Gbps (wire-speed)
Forwarding rate: Up to 35.7 Mpps
MAC address table: 8K entries
Jumbo frames: Up to 9,000 bytes
Buffer memory: 1 MB (shared)
Latency: < 10 µs (64-byte frame, full-duplex)
Power consumption: < 20 W (typical; depends on load)
Operating temperature: 0°C to 40°C
Storage temperature: -40°C to 70°C
Humidity: 10% to 90% non-condensing
Dimensions (W×D×H): 13.0 in × 6.7 in × 1.7 in (approx.)
Weight: ~3.5 lbs (approx.)
Use Cases
Small office / branch office network aggregation
Classroom and lab network deployments
Edge connectivity for PoE-less access points, cameras, and VoIP phones (non-PoE)
Temporary or permanent rack-mounted network expansion
What’s in the Box
24-Port Gigabit Switch (1U 13-inch steel chassis)
Rack-mount ears and mounting hardware
Power cord
24-Port Gigabit Switch
Overview A compact, high-performance 24-port Gigabit switch engineered for reliable network aggregation in small-to-medium enterprise environments. Housed in a durable 1U 13-inch steel chassis, this switch delivers full-duplex Gigabit connectivity, low-latency forwarding, and easy deployment with plug-and-play simplicity.
Key Features
Ports: 24 × Gigabit RJ45 ports (10/100/1000 Mbps auto-negotiation)
Form Factor: 1U, 13-inch rack-mountable steel case — fits compact racks and network cabinets
Installation: Plug and play — no configuration required; auto MDI/MDIX on all ports
Performance: Wire-speed forwarding with full-duplex support and non-blocking architecture
Reliability: Durable steel construction, passive cooling for silent operation, and enterprise-grade components
Power: Internal AC power supply with standard IEC inlet (specify voltage options per region)
LEDs: Per-port status LEDs for link/activity and speed; system power LED
Management: Unmanaged switch for zero-configuration operation; ideal for edge aggregation and simple expansions
Safety & Compliance: Built to meet relevant safety and EMC standards (consult model-specific datasheet for certifications)
Technical Specifications (Typical)
Switching capacity: 48 Gbps (wire-speed)
Forwarding rate: Up to 35.7 Mpps
MAC address table: 8K entries
Jumbo frames: Up to 9,000 bytes
Buffer memory: 1 MB (shared)
Latency: < 10 µs (64-byte frame, full-duplex)
Power consumption: < 20 W (typical; depends on load)
Operating temperature: 0°C to 40°C
Storage temperature: -40°C to 70°C
Humidity: 10% to 90% non-condensing
Dimensions (W×D×H): 13.0 in × 6.7 in × 1.7 in (approx.)
Weight: ~3.5 lbs (approx.)
Use Cases
Small office / branch office network aggregation
Classroom and lab network deployments
Edge connectivity for PoE-less access points, cameras, and VoIP phones (non-PoE)
Temporary or permanent rack-mounted network expansion
What’s in the Box
24-Port Gigabit Switch (1U 13-inch steel chassis)
Rack-mount ears and mounting hardware
Power cord (region-specific)
Quick installation guide and safety instructions
Ordering Notes
Available in regional AC voltage options. Confirm local power requirements.
For Power over Ethernet (PoE) needs or managed features, consult alternate models with PoE/mgmt capability.
Zorins Technologies — Product support and warranty details available upon request.
24-Port Gigabit Switch
Overview A professional-grade 24-Port Gigabit Switch engineered for reliable, high-performance network deployments. Housed in a 1U 19-inch rack-mountable steel case, this switch delivers robust wired connectivity for offices, data closets, and edge networking environments.
Key Features
Ports: 24 × Gigabit RJ45 ports (10/100/1000 Mbps) for full-rate Ethernet connectivity
Form Factor: 1U, 19-inch rack-mountable steel chassis — durable, compact, and suitable for standard racks
Operation: True plug-and-play installation — power up and connect devices with no configuration required
Auto MDI/MDIX: Eliminates the need for crossover cables on uplinks or device connections
Energy Efficient: Low-power design and intelligent power management for reduced energy consumption
Compatibility: Works seamlessly with IEEE 802.3, 802.3u, and 802.3ab standards
Fanless option available on models designed for quieter deployments (confirm model selection)
Performance and Reliability
Wire-speed switching on all 24 ports to minimize bottlenecks
MAC address table and hardware-based switching to ensure low latency and stable throughput
Rugged steel housing provides EMI resistance and physical protection in rack environments
Installation and Management
Mounting kit included for quick 1U rack installation
No software setup required — ideal for fast deployments, branch offices, classrooms, and small-to-medium businesses
Optional LED status indicators per port for link/activity and speed diagnostics
Typical Applications
Small and medium business networks
Wiring closets and edge aggregation
Network expansion in branch locations
CCTV and PoE camera aggregation (use a PoE model if power over Ethernet required)
What’s in the Box
24-Port Gigabit Switch (1U, 19-inch rack-mountable steel case)
Rack-mount ears and screws
Power cord
Quick start guide
Specifications (Summary)
Ports: 24 × Gigabit RJ45 (10/100/1000 Mbps)
Dimensions: 1U height, 19-inch rack width (depth varies by model)
Chassis: Steel
Installation: Rack-mountable (1U)
Operation: Plug and Play (no configuration)
Standards: IEEE 802.3/802.3u/802.3ab
For enterprise-grade reliability in a clean, rack-friendly package, this 24-Port Gigabit Switch provides a straightforward, high-performance solution to expand wired network capacity quickly and efficiently
24-Port Gigabit Switch
Overview A professional-grade 24-Port Gigabit Switch engineered for reliable, high-performance network deployments. Housed in a 1U 19-inch rack-mountable steel case, this switch delivers robust wired connectivity for offices, data closets, and edge networking environments.
Key Features
Ports: 24 × Gigabit RJ45 ports (10/100/1000 Mbps) for full-rate Ethernet connectivity
Form Factor: 1U, 19-inch rack-mountable steel chassis — durable, compact, and suitable for standard racks
Operation: True plug-and-play installation — power up and connect devices with no configuration required
Auto MDI/MDIX: Eliminates the need for crossover cables on uplinks or device connections
Energy Efficient: Low-power design and intelligent power management for reduced energy consumption
Compatibility: Works seamlessly with IEEE 802.3, 802.3u, and 802.3ab standards
Fanless option available on models designed for quieter deployments (confirm model selection)
Performance and Reliability
Wire-speed switching on all 24 ports to minimize bottlenecks
MAC address table and hardware-based switching to ensure low latency and stable throughput
Rugged steel housing provides EMI resistance and physical protection in rack environments
Installation and Management
Mounting kit included for quick 1U rack installation
No software setup required — ideal for fast deployments, branch offices, classrooms, and small-to-medium businesses
Optional LED status indicators per port for link/activity and speed diagnostics
Typical Applications
Small and medium business networks
Wiring closets and edge aggregation
Network expansion in branch locations
CCTV and PoE camera aggregation (use a PoE model if power over Ethernet required)
What’s in the Box
24-Port Gigabit Switch (1U, 19-inch rack-mountable steel case)
Rack-mount ears and screws
Power cord
Quick start guide
Specifications (Summary)
Ports: 24 × Gigabit RJ45 (10/100/1000 Mbps)
Dimensions: 1U height, 19-inch rack width (depth varies by model)
Chassis: Steel
Installation: Rack-mountable (1U)
Operation: Plug and Play (no configuration)
Standards: IEEE 802.3/802.3u/802.3ab
For enterprise-grade reliability in a clean, rack-friendly package, this 24-Port Gigabit Switch provides a straightforward, high-performance solution to expand wired network capacity quickly and efficiently.
48-Port Gigabit Switch
Overview A high-density, rack-ready Gigabit switch engineered for enterprise and data center edge deployments. Designed for reliability and straightforward integration, this 48-port switch delivers full wire-speed performance across all RJ45 ports within a compact 1U, 19-inch steel chassis.
Key Specifications
Ports: 48 × Gigabit RJ45 ports (10/100/1000 Mbps auto-negotiation)
Form factor: 1U, 19-inch rack-mountable steel case
Switching capacity: Full wire-speed switching across all ports
Forwarding rate: Line-rate performance for simultaneous multi-port traffic
Power: Internal power supply (AC), standard rack power footprint
Cooling: Front-to-back airflow with low-noise fans for stable thermal management
LEDs: Per-port link/activity and speed indicators; system and power status
Features
Plug and Play: Ready out of the box for immediate deployment. No complex configuration required—ideal for fast provisioning of access-layer networks.
High-density connectivity: 48 RJ45 Gigabit ports provide abundant copper uplinks for servers, workstations, wireless APs, and IP devices.
Rack-optimized design: 1U steel chassis for durable installation in standard 19-inch racks and cabinets.
Robust build quality: Industrial-grade steel housing and professional-grade components for long-term reliability in demanding environments.
Energy efficient: Optimized power usage and thermal design reduce operational costs while maintaining performance.
Diagnostic LEDs: Quick visual status checks for link, activity, and per-port speed simplify troubleshooting.
Typical Applications
Enterprise access layer for office floors and branch locations
SMB and campus network aggregation
IP telephony and surveillance camera infrastructures
Wireless access point aggregation and PoE switch uplinks
Data center top-of-rack or middle-of-row access deployments
What’s Included
48-Port Gigabit Switch (1U, 19-inch, steel case)
Rack-mount brackets and mounting hardware
Power cord
Quick start guide and basic documentation
Why Choose This Switch Engineered for straightforward deployment and dependable operation, this 48-port Gigabit switch balances high port density with a compact, rack-friendly footprint. Its plug-and-play simplicity accelerates installation, while the rugged steel chassis and efficient cooling ensure continuous,
48-Port Gigabit Switch
Overview A high-density, rack-ready Gigabit switch engineered for enterprise and data center edge deployments. Designed for reliability and straightforward integration, this 48-port switch delivers full wire-speed performance across all RJ45 ports within a compact 1U, 19-inch steel chassis.
Key Specifications
Ports: 48 × Gigabit RJ45 ports (10/100/1000 Mbps auto-negotiation)
Form factor: 1U, 19-inch rack-mountable steel case
Switching capacity: Full wire-speed switching across all ports
Forwarding rate: Line-rate performance for simultaneous multi-port traffic
Power: Internal power supply (AC), standard rack power footprint
Cooling: Front-to-back airflow with low-noise fans for stable thermal management
LEDs: Per-port link/activity and speed indicators; system and power status
Features
Plug and Play: Ready out of the box for immediate deployment. No complex configuration required—ideal for fast provisioning of access-layer networks.
High-density connectivity: 48 RJ45 Gigabit ports provide abundant copper uplinks for servers, workstations, wireless APs, and IP devices.
Rack-optimized design: 1U steel chassis for durable installation in standard 19-inch racks and cabinets.
Robust build quality: Industrial-grade steel housing and professional-grade components for long-term reliability in demanding environments.
Energy efficient: Optimized power usage and thermal design reduce operational costs while maintaining performance.
Diagnostic LEDs: Quick visual status checks for link, activity, and per-port speed simplify troubleshooting.
Typical Applications
Enterprise access layer for office floors and branch locations
SMB and campus network aggregation
IP telephony and surveillance camera infrastructures
Wireless access point aggregation and PoE switch uplinks
Data center top-of-rack or middle-of-row access deployments
What’s Included
48-Port Gigabit Switch (1U, 19-inch, steel case)
Rack-mount brackets and mounting hardware
Power cord
Quick start guide and basic documentation
Why Choose This Switch Engineered for straightforward deployment and dependable operation, this 48-port Gigabit switch balances high port density with a compact, rack-friendly footprint. Its plug-and-play simplicity accelerates installation, while the rugged steel chassis and efficient cooling ensure continuous, low-maintenance service in enterprise and edge environments.
For ordering, compatibility, PoE options, or managed-switch variants, consult your Zorins Technologies network solutions specialist.
5-Port 2.5G Multi-Gigabit Desktop Switch
Overview A compact, high-performance desktop switch designed for modern small offices, home labs, and multimedia workspaces. Delivers multi-gigabit bandwidth across five 2.5G RJ45 ports in a durable steel chassis for reliable, low-latency connectivity where you need it most.
Key Specifications
Ports: 5 × 2.5G RJ45 ports (auto-negotiation with legacy 10/100/1000 Mbps)
Form factor: Desktop
Chassis: Robust steel case for improved heat dissipation and long-term durability
Power: External DC adapter (included)
Fanless design for silent operation
MAC address table: High-capacity table for stable performance in mixed-device environments
Forwarding rate: Supports full wire-speed switching on all ports
LEDs: Per-port status/activity and link-speed indicators
Features
Plug and Play: Simple, zero-configuration setup—connect devices and get multi-gigabit performance immediately.
Multi-Gigabit Performance: 2.5G throughput on each port to accommodate faster NAS, Wi-Fi 6/6E access points, PCs, and media servers without rewiring to fiber or 10G.
Backward Compatibility: Effectively interoperates with Gigabit and Fast Ethernet devices via auto-negotiation.
Durable Steel Construction: Steel desktop case offers mechanical strength, shielding, and passive cooling for reliable 24/7 operation.
Silent, Fanless Operation: Ideal for noise-sensitive environments such as home offices, studios, and conference rooms.
Energy Efficient: Low power consumption with intelligent power management to reduce operational costs.
Ideal Use Cases
Upgrading small office and home networks to support Wi-Fi 6/6E access points and multi-gig clients
Connecting high-speed NAS and media servers for smooth 4K/8K streaming and large file transfers
Building compact multi-gigabit edge networks for small labs, maker spaces, and content creation suites
Expanding available ports where a simple, reliable, and silent switch is required
What’s in the Box
5-Port 2.5G Multi-Gigabit Desktop Switch (steel case)
External DC power adapter
Quick start guide
Warranty and Support
Manufacturer warranty and technical support available. Contact your reseller or Zorins Technologies support for warranty terms and assistance.
Technical Notes
For full 2.5G performance, use quality Cat5e or Cat6 cabling; Cat6 recommended for optimal margin and longer runs.
Port LEDs indicate link status and negotiated speed to simplify troubleshooting.
This model is unmanaged—advanced features such as VLANs, QoS, or SNMP are not included.
Elevate your network edge with reliable, multi-gigabit connectivity in a compact, silent, and
5-Port 2.5G Multi-Gigabit Desktop Switch
Overview A compact, high-performance desktop switch designed for modern small offices, home labs, and multimedia workspaces. Delivers multi-gigabit bandwidth across five 2.5G RJ45 ports in a durable steel chassis for reliable, low-latency connectivity where you need it most.
Key Specifications
Ports: 5 × 2.5G RJ45 ports (auto-negotiation with legacy 10/100/1000 Mbps)
Form factor: Desktop
Chassis: Robust steel case for improved heat dissipation and long-term durability
Power: External DC adapter (included)
Fanless design for silent operation
MAC address table: High-capacity table for stable performance in mixed-device environments
Forwarding rate: Supports full wire-speed switching on all ports
LEDs: Per-port status/activity and link-speed indicators
Features
Plug and Play: Simple, zero-configuration setup—connect devices and get multi-gigabit performance immediately.
Multi-Gigabit Performance: 2.5G throughput on each port to accommodate faster NAS, Wi-Fi 6/6E access points, PCs, and media servers without rewiring to fiber or 10G.
Backward Compatibility: Effectively interoperates with Gigabit and Fast Ethernet devices via auto-negotiation.
Durable Steel Construction: Steel desktop case offers mechanical strength, shielding, and passive cooling for reliable 24/7 operation.
Silent, Fanless Operation: Ideal for noise-sensitive environments such as home offices, studios, and conference rooms.
Energy Efficient: Low power consumption with intelligent power management to reduce operational costs.
Ideal Use Cases
Upgrading small office and home networks to support Wi-Fi 6/6E access points and multi-gig clients
Connecting high-speed NAS and media servers for smooth 4K/8K streaming and large file transfers
Building compact multi-gigabit edge networks for small labs, maker spaces, and content creation suites
Expanding available ports where a simple, reliable, and silent switch is required
What’s in the Box
5-Port 2.5G Multi-Gigabit Desktop Switch (steel case)
External DC power adapter
Quick start guide
Warranty and Support
Manufacturer warranty and technical support available. Contact your reseller or Zorins Technologies support for warranty terms and assistance.
Technical Notes
For full 2.5G performance, use quality Cat5e or Cat6 cabling; Cat6 recommended for optimal margin and longer runs.
Port LEDs indicate link status and negotiated speed to simplify troubleshooting.
This model is unmanaged—advanced features such as VLANs, QoS, or SNMP are not included.
Elevate your network edge with reliable, multi-gigabit connectivity in a compact, silent, and robust desktop switch.
8‑Port 2.5G Multi‑Gigabit Desktop Switch
Elevate small-office and high-performance home networks with a compact, durable switch engineered for today’s bandwidth demands. This 8‑port 2.5G Multi‑Gigabit Desktop Switch delivers reliable, low-latency connectivity for multiple devices—without complex setup.
Key Specifications
Ports: 8 × 2.5G RJ45 ports — multi‑gigabit speeds up to 2.5 Gbps per port
Form factor: Desktop steel case — rugged, thermally efficient, and compact
Power: External power adapter (included)
Features & Benefits
Plug and Play: No configuration required. Install the switch, connect devices, and enjoy immediate multi‑gigabit performance.
Multi‑Gig Performance: Upgrade existing Cat5e/Cat6 cabling to 2.5G speeds where needed—ideal for NAS, high‑end workstations, access points, gaming consoles, and media servers.
Durable Steel Enclosure: Sturdy construction offers better heat dissipation and physical protection for reliable 24/7 operation in office or lab environments.
Low Latency & High Throughput: Optimized for smooth file transfers, video streaming, VoIP, and low-jitter networked applications.
Energy Efficient: Intelligent power management reduces consumption during low-traffic periods.
Silent Operation: Fanless design for noiseless performance, suitable for desktops, meeting rooms, and media workstations.
Ideal Use Cases
Small office networks requiring aggregated multi‑gigabit access
Content creators and studios transferring large media files
Home labs and prosumers running NAS and virtual machines
High‑density Wi‑Fi 6/6E deployments needing multi‑gig uplinks
What’s in the Box
8‑Port 2.5G Multi‑Gigabit Desktop Switch (steel case)
Power adapter
Quick start guide
Rubber feet for desktop placement
Technical Notes
Supports auto-negotiation and auto MDI/MDIX on all ports
Backplane capacity and forwarding rate designed to accommodate full-duplex traffic at line rate across all ports
Compatible with existing Ethernet standards (IEEE 802.3/802.3u/802.3ab/802.3bz)
A compact, robust upgrade path to multi
8‑Port 2.5G Multi‑Gigabit Desktop Switch
Elevate small-office and high-performance home networks with a compact, durable switch engineered for today’s bandwidth demands. This 8‑port 2.5G Multi‑Gigabit Desktop Switch delivers reliable, low-latency connectivity for multiple devices—without complex setup.
Key Specifications
Ports: 8 × 2.5G RJ45 ports — multi‑gigabit speeds up to 2.5 Gbps per port
Form factor: Desktop steel case — rugged, thermally efficient, and compact
Power: External power adapter (included)
Features & Benefits
Plug and Play: No configuration required. Install the switch, connect devices, and enjoy immediate multi‑gigabit performance.
Multi‑Gig Performance: Upgrade existing Cat5e/Cat6 cabling to 2.5G speeds where needed—ideal for NAS, high‑end workstations, access points, gaming consoles, and media servers.
Durable Steel Enclosure: Sturdy construction offers better heat dissipation and physical protection for reliable 24/7 operation in office or lab environments.
Low Latency & High Throughput: Optimized for smooth file transfers, video streaming, VoIP, and low-jitter networked applications.
Energy Efficient: Intelligent power management reduces consumption during low-traffic periods.
Silent Operation: Fanless design for noiseless performance, suitable for desktops, meeting rooms, and media workstations.
Ideal Use Cases
Small office networks requiring aggregated multi‑gigabit access
Content creators and studios transferring large media files
Home labs and prosumers running NAS and virtual machines
High‑density Wi‑Fi 6/6E deployments needing multi‑gig uplinks
What’s in the Box
8‑Port 2.5G Multi‑Gigabit Desktop Switch (steel case)
Power adapter
Quick start guide
Rubber feet for desktop placement
Technical Notes
Supports auto-negotiation and auto MDI/MDIX on all ports
Backplane capacity and forwarding rate designed to accommodate full-duplex traffic at line rate across all ports
Compatible with existing Ethernet standards (IEEE 802.3/802.3u/802.3ab/802.3bz)
A compact, robust upgrade path to multi‑gigabit networking—no configuration, just faster, more reliable connectivity.
8-Port 10G Multi-Gigabit Switch
Overview A compact, enterprise-grade 8-port 10G multi-gigabit switch engineered for high-throughput environments where density, reliability, and ease of deployment matter. Housed in a 1U, 13-inch rack-mountable steel chassis, this switch delivers full 10G RJ45 connectivity across all ports with plug-and-play simplicity—ideal for data centers, server rooms, AV installations, and advanced SMB networks.
Key Specifications
Ports: 8 × 10G RJ45 ports (multi-gigabit autonegotiation)
Form Factor: 1U, 13-inch rack-mountable steel case
Throughput: Full line-rate 10 Gbps per port
Switching Capacity: Non-blocking fabric suited for concurrent 8×10G traffic
Latency: Low-latency switching for real-time applications
Power: Internal high-efficiency power supply (standard 100–240 VAC)
Cooling: Front-to-back airflow with quiet, enterprise-grade fans
LEDs: Per-port link/activity/10G status indicators; system and power LEDs
Dimensions: 1U height, 13-inch depth—rack-friendly for shallow cabinets
Safety & Compliance: CE, FCC, RoHS compliant
Features & Benefits
Plug and Play: No configuration required. Auto MDI/MDIX and speed negotiation simplify installation for rapid deployment.
Multi-Gig Flexibility: RJ45 ports support 1G/2.5G/5G/10G speeds, maximizing compatibility with mixed-generation devices without needing fiber transceivers.
Compact Rack Design: 13-inch depth fits tight rack and wall-mount enclosures, allowing deployment where space is limited.
Reliable Construction: Robust steel chassis and enterprise cooling deliver long-term stability under sustained loads.
Quiet Operation: Optimized fan profile for reduced noise—suitable for office-adjacent equipment rooms.
Energy Efficient: Power-saving features minimize operational costs while maintaining full performance.
Typical Use Cases
Server aggregation for small racks and edge data centers
High-bandwidth workgroup and shared-storage connectivity
AV over IP distribution and production environments
High-density multi-gig uplinks in branch offices and co-location cages
Physical & Deployment Notes
Rack-mount kit included for 1U installation in standard 19-inch racks; optional brackets for shallow or non-standard enclosures.
Front-panel LEDs and status indicators provide quick operational checks; rear power and fan access for straightforward maintenance.
Designed for straightforward integration into existing copper-based networks—no SFP modules required for 10G connectivity.
What’s in the Box
8-Port 10G Multi-Gigabit Switch (1U, 13-inch steel chassis)
Rack-mount ears and screws
AC power cord
Quick start guide
Supported Environment
Operating temperature range suitable for standard equipment rooms
Suitable for continuous 24/7 operation with enterprise workloads
Zorins Technologies — A Network Leader in Global Industry A refined balance of performance, compactness, and deployment simplicity, this 8-port 10G switch brings multi-gigabit speed to constrained rack spaces without operational complexity. For ordering, customization, or volume deployment assistance, contact your Zor
8-Port 10G Multi-Gigabit Switch
Overview A compact, enterprise-grade 8-port 10G multi-gigabit switch engineered for high-throughput environments where density, reliability, and ease of deployment matter. Housed in a 1U, 13-inch rack-mountable steel chassis, this switch delivers full 10G RJ45 connectivity across all ports with plug-and-play simplicity—ideal for data centers, server rooms, AV installations, and advanced SMB networks.
Key Specifications
Ports: 8 × 10G RJ45 ports (multi-gigabit autonegotiation)
Form Factor: 1U, 13-inch rack-mountable steel case
Throughput: Full line-rate 10 Gbps per port
Switching Capacity: Non-blocking fabric suited for concurrent 8×10G traffic
Latency: Low-latency switching for real-time applications
Power: Internal high-efficiency power supply (standard 100–240 VAC)
Cooling: Front-to-back airflow with quiet, enterprise-grade fans
LEDs: Per-port link/activity/10G status indicators; system and power LEDs
Dimensions: 1U height, 13-inch depth—rack-friendly for shallow cabinets
Safety & Compliance: CE, FCC, RoHS compliant
Features & Benefits
Plug and Play: No configuration required. Auto MDI/MDIX and speed negotiation simplify installation for rapid deployment.
Multi-Gig Flexibility: RJ45 ports support 1G/2.5G/5G/10G speeds, maximizing compatibility with mixed-generation devices without needing fiber transceivers.
Compact Rack Design: 13-inch depth fits tight rack and wall-mount enclosures, allowing deployment where space is limited.
Reliable Construction: Robust steel chassis and enterprise cooling deliver long-term stability under sustained loads.
Quiet Operation: Optimized fan profile for reduced noise—suitable for office-adjacent equipment rooms.
Energy Efficient: Power-saving features minimize operational costs while maintaining full performance.
Typical Use Cases
Server aggregation for small racks and edge data centers
High-bandwidth workgroup and shared-storage connectivity
AV over IP distribution and production environments
High-density multi-gig uplinks in branch offices and co-location cages
Physical & Deployment Notes
Rack-mount kit included for 1U installation in standard 19-inch racks; optional brackets for shallow or non-standard enclosures.
Front-panel LEDs and status indicators provide quick operational checks; rear power and fan access for straightforward maintenance.
Designed for straightforward integration into existing copper-based networks—no SFP modules required for 10G connectivity.
What’s in the Box
8-Port 10G Multi-Gigabit Switch (1U, 13-inch steel chassis)
Rack-mount ears and screws
AC power cord
Quick start guide
Supported Environment
Operating temperature range suitable for standard equipment rooms
Suitable for continuous 24/7 operation with enterprise workloads
Zorins Technologies — A Network Leader in Global Industry A refined balance of performance, compactness, and deployment simplicity, this 8-port 10G switch brings multi-gigabit speed to constrained rack spaces without operational complexity. For ordering, customization, or volume deployment assistance, contact your Zorins Technologies representative.
5‑Port Gigabit Easy Smart Switch
Overview A compact, high-performance switching solution designed for small offices, home labs, and edge deployments. This 5‑port Gigabit Easy Smart Switch combines robust Layer 2 management features with simple setup and a durable desktop steel chassis—delivering reliable connectivity, efficient traffic control, and easy administration.
Key Specifications
Ports: 5 × Gigabit RJ45 (10/100/1000 Mbps)
Form Factor: Desktop, steel case for enhanced durability and heat dissipation
Power: External power adapter (models and regional options available)
Throughput: Wire‑speed switching on all ports
Fanless design for silent operation
Core Features
VLAN Support: MTU/Port/Tag‑based VLANs allow flexible segmentation of network traffic for security and performance isolation.
QoS (Quality of Service): Priority queuing and traffic classification ensure latency‑sensitive applications (voice, video, critical services) receive preferential treatment.
IGMP Snooping: Efficiently manages multicast traffic for IPTV, conferencing, and streaming by limiting multicast delivery only to interested ports.
Management:
Web GUI for intuitive configuration and monitoring
Utility management for discovery and bulk settings
Plug and Play for basic deployment without configuration
Security: Basic access controls and management authentication to help protect switch configuration and segregated traffic flows.
Energy Efficiency: Low‑power design suitable for continuous operation in small environments.
Use Cases
Small office LANs requiring dependable Gigabit connectivity and traffic segmentation.
Home offices or studios running VOIP, video streaming, and cloud services.
Edge aggregation for IoT and surveillance devices that benefit from VLAN isolation and multicast control.
Classroom or meeting-room setups where simple management and quiet operation matter.
Physical & Environmental
Dimensions: Compact desktop footprint (specifications vary by model)
Construction: Steel housing for durability and improved thermal performance
Operating Temperature: Typical commercial range for small-network equipment
Mounting: Desktop; optional brackets for wall mounting where supported
Management Summary For administrators who need more control than an unmanaged switch but prefer a simpler alternative to fully managed switches, this Easy Smart Switch provides a refined balance: straightforward web/utility management for VLANs, QoS, and IGMP snooping, plus plug-and-play convenience for quick installations.
Package Contents
5‑Port Gigabit Easy Smart Switch (steel case)
External power adapter
Quick installation guide
Rubber feet; optional mounting hardware depending on region
Zorins Technologies — A Network Leader in Global Industry Reliable, efficient, and elegantly simple—this switch delivers essential smart features in a compact, professional package suitable for modern small-network deployments.
5‑Port Gigabit Easy Smart Switch
Overview A compact, high-performance switching solution designed for small offices, home labs, and edge deployments. This 5‑port Gigabit Easy Smart Switch combines robust Layer 2 management features with simple setup and a durable desktop steel chassis—delivering reliable connectivity, efficient traffic control, and easy administration.
Key Specifications
Ports: 5 × Gigabit RJ45 (10/100/1000 Mbps)
Form Factor: Desktop, steel case for enhanced durability and heat dissipation
Power: External power adapter (models and regional options available)
Throughput: Wire‑speed switching on all ports
Fanless design for silent operation
Core Features
VLAN Support: MTU/Port/Tag‑based VLANs allow flexible segmentation of network traffic for security and performance isolation.
QoS (Quality of Service): Priority queuing and traffic classification ensure latency‑sensitive applications (voice, video, critical services) receive preferential treatment.
IGMP Snooping: Efficiently manages multicast traffic for IPTV, conferencing, and streaming by limiting multicast delivery only to interested ports.
Management:
Web GUI for intuitive configuration and monitoring
Utility management for discovery and bulk settings
Plug and Play for basic deployment without configuration
Security: Basic access controls and management authentication to help protect switch configuration and segregated traffic flows.
Energy Efficiency: Low‑power design suitable for continuous operation in small environments.
Use Cases
Small office LANs requiring dependable Gigabit connectivity and traffic segmentation.
Home offices or studios running VOIP, video streaming, and cloud services.
Edge aggregation for IoT and surveillance devices that benefit from VLAN isolation and multicast control.
Classroom or meeting-room setups where simple management and quiet operation matter.
Physical & Environmental
Dimensions: Compact desktop footprint (specifications vary by model)
Construction: Steel housing for durability and improved thermal performance
Operating Temperature: Typical commercial range for small-network equipment
Mounting: Desktop; optional brackets for wall mounting where supported
Management Summary For administrators who need more control than an unmanaged switch but prefer a simpler alternative to fully managed switches, this Easy Smart Switch provides a refined balance: straightforward web/utility management for VLANs, QoS, and IGMP snooping, plus plug-and-play convenience for quick installations.
Package Contents
5‑Port Gigabit Easy Smart Switch (steel case)
External power adapter
Quick installation guide
Rubber feet; optional mounting hardware depending on region
Zorins Technologies — A Network Leader in Global Industry Reliable, efficient, and elegantly simple—this switch delivers essential smart features in a compact, professional package suitable for modern small-network deployments.
8-Port Gigabit Easy Smart Switch
Overview A compact, robust solution for small offices, meeting rooms, and edge deployments that require reliable Gigabit connectivity with essential management features. Housed in a steel desktop chassis, this 8-port switch combines plug-and-play simplicity with easy-to-use smart functions—VLAN, QoS, IGMP snooping, and both web and utility management—delivering predictable performance and network segmentation without complexity.
Key Features
Ports: 8 × Gigabit RJ45 ports (10/100/1000 Mbps auto-negotiation)
Chassis: Durable desktop steel case with low-profile footprint
VLAN: MTU-, port-, and tag-based VLAN support for flexible traffic segmentation and isolation
QoS: Priority queuing and traffic classification to ensure critical applications receive bandwidth precedence
IGMP Snooping: Efficient multicast management to reduce unnecessary multicast flooding
Management: Intuitive web UI and dedicated utility for configuration, monitoring, and firmware updates
Plug and Play: Basic connectivity works out of the box; smart features available when needed
LED Indicators: Per-port link/activity and speed LEDs for quick diagnostics
Energy Efficiency: Complies with power-saving practices to reduce operating costs
Mounting: Desktop placement; optional brackets available for alternative mounting
Technical Specifications
Ports: 8 × RJ45 10/100/1000 Mbps
Switching Capacity: [Typical for class] 16 Gbps switching fabric
Forwarding Rate: [Approx.] 11.9 Mpps
MAC Address Table: 8K entries
Jumbo Frame Support: Up to 9 KB MTU
VLAN Support: Port-based VLAN, IEEE 802.1Q tag-based VLAN, MTU-based VLAN
QoS: 4-level priority queues, DSCP and 802.1p remarking
IGMP: IGMP Snooping v1/v2/v3
Management Interfaces: Web-based GUI, Windows utility
Security: Port isolation, MAC address filtering, storm control
Power: External power adapter (specify local variant); typical power consumption low for desktop use
Operating Temperature: 0°C to 40°C (32°F to 104°F)
Storage Temperature: -40°C to 70°C (-40°F to 158°F)
Humidity: 10%–90% non-condensing
Dimensions (W×D×H): Compact desktop form factor
Weight: Lightweight steel chassis for durability
Use Cases
Small office networks requiring segmentation between departments or guest Wi‑Fi
Conference rooms and classrooms handling both unicast and multicast traffic
Edge aggregation for PoE cameras and access points (non-PoE model suitable for switch stacking with powered devices)
Simple branch deployments where ease-of-use and occasional management are required
What’s in the Box
8-Port Gigabit Easy Smart Switch (desktop steel case)
External power adapter (region-specific)
Quick installation guide
Rubber feet for desktop placement
Management and Support
Simple web GUI and Windows utility for configuration, monitoring, and firmware management
Firmware upgrade support through the utility or web interface
Documentation and technical support available from Zorins Technologies
Ordering Notes Specify region for correct power adapter and regulatory compliance. Contact Zorins Technologies sales for volume pricing, extended warranty, and optional accessories (rack/
8-Port Gigabit Easy Smart Switch
Overview A compact, robust solution for small offices, meeting rooms, and edge deployments that require reliable Gigabit connectivity with essential management features. Housed in a steel desktop chassis, this 8-port switch combines plug-and-play simplicity with easy-to-use smart functions—VLAN, QoS, IGMP snooping, and both web and utility management—delivering predictable performance and network segmentation without complexity.
Key Features
Ports: 8 × Gigabit RJ45 ports (10/100/1000 Mbps auto-negotiation)
Chassis: Durable desktop steel case with low-profile footprint
VLAN: MTU-, port-, and tag-based VLAN support for flexible traffic segmentation and isolation
QoS: Priority queuing and traffic classification to ensure critical applications receive bandwidth precedence
IGMP Snooping: Efficient multicast management to reduce unnecessary multicast flooding
Management: Intuitive web UI and dedicated utility for configuration, monitoring, and firmware updates
Plug and Play: Basic connectivity works out of the box; smart features available when needed
LED Indicators: Per-port link/activity and speed LEDs for quick diagnostics
Energy Efficiency: Complies with power-saving practices to reduce operating costs
Mounting: Desktop placement; optional brackets available for alternative mounting
Technical Specifications
Ports: 8 × RJ45 10/100/1000 Mbps
Switching Capacity: [Typical for class] 16 Gbps switching fabric
Forwarding Rate: [Approx.] 11.9 Mpps
MAC Address Table: 8K entries
Jumbo Frame Support: Up to 9 KB MTU
VLAN Support: Port-based VLAN, IEEE 802.1Q tag-based VLAN, MTU-based VLAN
QoS: 4-level priority queues, DSCP and 802.1p remarking
IGMP: IGMP Snooping v1/v2/v3
Management Interfaces: Web-based GUI, Windows utility
Security: Port isolation, MAC address filtering, storm control
Power: External power adapter (specify local variant); typical power consumption low for desktop use
Operating Temperature: 0°C to 40°C (32°F to 104°F)
Storage Temperature: -40°C to 70°C (-40°F to 158°F)
Humidity: 10%–90% non-condensing
Dimensions (W×D×H): Compact desktop form factor
Weight: Lightweight steel chassis for durability
Use Cases
Small office networks requiring segmentation between departments or guest Wi‑Fi
Conference rooms and classrooms handling both unicast and multicast traffic
Edge aggregation for PoE cameras and access points (non-PoE model suitable for switch stacking with powered devices)
Simple branch deployments where ease-of-use and occasional management are required
What’s in the Box
8-Port Gigabit Easy Smart Switch (desktop steel case)
External power adapter (region-specific)
Quick installation guide
Rubber feet for desktop placement
Management and Support
Simple web GUI and Windows utility for configuration, monitoring, and firmware management
Firmware upgrade support through the utility or web interface
Documentation and technical support available from Zorins Technologies
Ordering Notes Specify region for correct power adapter and regulatory compliance. Contact Zorins Technologies sales for volume pricing, extended warranty, and optional accessories (rack/desk brackets).
Zorins Technologies — A Network Leader in Global Industry.
16‑Port Gigabit Easy Smart Switch
Overview A refined, business-ready switching solution engineered for small to medium office networks. The 16‑Port Gigabit Easy Smart Switch delivers reliable gigabit connectivity in a compact desktop steel chassis with essential smart features—VLANs, QoS, IGMP snooping and multiple management options—making it ideal for segmented networks, VoIP, IP cameras and multimedia streaming.
Key Features
Ports: 16 × Gigabit RJ45 (10/100/1000 Mbps) autonegotiation
Form Factor: Desktop steel case with durable finish and rubber feet for stable placement
VLAN: MTU/Port/Tag‑based VLAN support for flexible network segmentation and traffic isolation
QoS: Traffic prioritization based on port, 802.1p, and DSCP to ensure voice and video quality
IGMP Snooping: Multicast optimization for efficient IPTV and streaming delivery
Management: Web GUI and Utility (Windows) management for configuration, monitoring and firmware updates
Deployment: Plug-and-play for basic operation; smart management features available when configured
LED Indicators: Per‑port link/activity and speed LEDs; system and power indicators
Security: Basic port security features (MAC filtering, broadcast storm control)
Performance: Wire‑speed switching with non‑blocking architecture and store-and-forward forwarding
Power: External power adapter (included); low‑power design for energy efficiency
Certifications: Meets industry safety and EMC standards
Technical Specifications
Ports: 16 × RJ45 Gigabit Ethernet ports (Auto MDI/MDIX)
Switching Capacity: [Typically 32 Gbps non‑blocking] (specify model-dependent)
Forwarding Rate: [Typically up to 23.8 Mpps] (model-dependent)
MAC Address Table: 8K addresses (typical)
Jumbo Frames: Support up to 9 KB MTU (model-dependent)
VLANs: MTU/Port/Tag‑based VLAN, up to 4K VLAN IDs (model-dependent)
QoS: 802.1p, DSCP, port‑based priority, queue scheduling
Multicast: IGMP Snooping v1/v2/v3
Management: Intuitive web-based GUI, Utility for batch management, SNMP support (model-dependent)
Power Consumption: Low power consumption; external power adapter rating depends on regional model
Operating Temperature: 0°C to 40°C (32°F to 104°F)
Humidity: 10%–90% non‑condensing
Dimensions: Compact desktop size (model-dependent)
Weight: Lightweight steel chassis (model-dependent)
Warranty: Limited hardware warranty and technical support (term depends on region)
Use Cases
Small office networks needing reliable gigabit connectivity with VLAN segmentation
VoIP deployments requiring QoS prioritization
IP camera systems and NVR networks benefiting from IGMP snooping
Conference rooms and multimedia spaces where plug-and-play simplicity is preferred with the option for advanced management
What’s in the Box
16‑Port Gigabit Easy Smart Switch (desktop steel case)
External power adapter
Quick installation guide
Rubber feet
Utility CD (where applicable) or instructions for web/utility download
Notes
Some capacity and feature specifics (switching capacity, forwarding rate, MAC table size, maximum VLAN count) vary by exact model SKU—refer to the product label or ordering information for model‑specific values.
For environments requiring rack mounting, check for compatible rack-mount accessory options.
Zorins Technologies — Network Leader in Global Industry. A compact, capable smart
16‑Port Gigabit Easy Smart Switch
Overview A refined, business-ready switching solution engineered for small to medium office networks. The 16‑Port Gigabit Easy Smart Switch delivers reliable gigabit connectivity in a compact desktop steel chassis with essential smart features—VLANs, QoS, IGMP snooping and multiple management options—making it ideal for segmented networks, VoIP, IP cameras and multimedia streaming.
Key Features
Ports: 16 × Gigabit RJ45 (10/100/1000 Mbps) autonegotiation
Form Factor: Desktop steel case with durable finish and rubber feet for stable placement
VLAN: MTU/Port/Tag‑based VLAN support for flexible network segmentation and traffic isolation
QoS: Traffic prioritization based on port, 802.1p, and DSCP to ensure voice and video quality
IGMP Snooping: Multicast optimization for efficient IPTV and streaming delivery
Management: Web GUI and Utility (Windows) management for configuration, monitoring and firmware updates
Deployment: Plug-and-play for basic operation; smart management features available when configured
LED Indicators: Per‑port link/activity and speed LEDs; system and power indicators
Security: Basic port security features (MAC filtering, broadcast storm control)
Performance: Wire‑speed switching with non‑blocking architecture and store-and-forward forwarding
Power: External power adapter (included); low‑power design for energy efficiency
Certifications: Meets industry safety and EMC standards
Technical Specifications
Ports: 16 × RJ45 Gigabit Ethernet ports (Auto MDI/MDIX)
Switching Capacity: [Typically 32 Gbps non‑blocking] (specify model-dependent)
Forwarding Rate: [Typically up to 23.8 Mpps] (model-dependent)
MAC Address Table: 8K addresses (typical)
Jumbo Frames: Support up to 9 KB MTU (model-dependent)
VLANs: MTU/Port/Tag‑based VLAN, up to 4K VLAN IDs (model-dependent)
QoS: 802.1p, DSCP, port‑based priority, queue scheduling
Multicast: IGMP Snooping v1/v2/v3
Management: Intuitive web-based GUI, Utility for batch management, SNMP support (model-dependent)
Power Consumption: Low power consumption; external power adapter rating depends on regional model
Operating Temperature: 0°C to 40°C (32°F to 104°F)
Humidity: 10%–90% non‑condensing
Dimensions: Compact desktop size (model-dependent)
Weight: Lightweight steel chassis (model-dependent)
Warranty: Limited hardware warranty and technical support (term depends on region)
Use Cases
Small office networks needing reliable gigabit connectivity with VLAN segmentation
VoIP deployments requiring QoS prioritization
IP camera systems and NVR networks benefiting from IGMP snooping
Conference rooms and multimedia spaces where plug-and-play simplicity is preferred with the option for advanced management
What’s in the Box
16‑Port Gigabit Easy Smart Switch (desktop steel case)
External power adapter
Quick installation guide
Rubber feet
Utility CD (where applicable) or instructions for web/utility download
Notes
Some capacity and feature specifics (switching capacity, forwarding rate, MAC table size, maximum VLAN count) vary by exact model SKU—refer to the product label or ordering information for model‑specific values.
For environments requiring rack mounting, check for compatible rack-mount accessory options.
Zorins Technologies — Network Leader in Global Industry. A compact, capable smart switch designed to bring dependable gigabit performance and essential management controls to your network.
16‑Port Gigabit Easy Smart Switch
Overview A compact, high-performance switching solution designed for small-to-medium business networks, branch offices, and rack-dense environments. The 16‑Port Gigabit Easy Smart Switch combines full Gigabit throughput with essential smart features—delivered in a 1U, 13‑inch rack‑mountable steel chassis for secure, space‑efficient deployment.
Key Specifications
Ports: 16 × Gigabit RJ45 ports (10/100/1000 Mbps auto‑negotiation)
Form Factor: 1U, 13‑inch rack‑mountable steel case
Performance: Wire‑speed switching on all ports with non‑blocking architecture
Management: Easy Smart management via web GUI and utility software; plug‑and‑play basic operation
Power: Standard internal power supply (AC); low power consumption design
Features
VLAN Flexibility: MTU/Port/Tag‑based VLAN support enables segmentation by port, by 802.1Q tag, or by MTU to isolate traffic for security and traffic management.
Quality of Service (QoS): Port and VLAN
16‑Port Gigabit Easy Smart Switch
Overview A compact, high-performance switching solution designed for small-to-medium business networks, branch offices, and rack-dense environments. The 16‑Port Gigabit Easy Smart Switch combines full Gigabit throughput with essential smart features—delivered in a 1U, 13‑inch rack‑mountable steel chassis for secure, space‑efficient deployment.
Key Specifications
Ports: 16 × Gigabit RJ45 ports (10/100/1000 Mbps auto‑negotiation)
Form Factor: 1U, 13‑inch rack‑mountable steel case
Performance: Wire‑speed switching on all ports with non‑blocking architecture
Management: Easy Smart management via web GUI and utility software; plug‑and‑play basic operation
Power: Standard internal power supply (AC); low power consumption design
Features
VLAN Flexibility: MTU/Port/Tag‑based VLAN support enables segmentation by port, by 802.1Q tag, or by MTU to isolate traffic for security and traffic management.
Quality of Service (QoS): Port and VLAN QoS with multiple priority queues to prioritize voice, video, and latency‑sensitive applications.
IGMP Snooping: Efficient multicast forwarding for IPTV and other
24‑Port Gigabit Easy Smart Switch
Overview A compact, reliable 24‑port gigabit switch engineered for small to medium network deployments that demand performance, manageability, and efficient rack utilization. Housed in a 1U 13‑inch steel chassis, this Easy Smart Switch blends plug‑and‑play simplicity with essential managed features for traffic control and security.
Key Features
Ports: 24 × Gigabit RJ45 ports for full duplex 10/100/1000 Mbps connectivity.
Form Factor: 1U, 13‑inch rack‑mountable steel case — ideal for space‑constrained racks and telecommunication enclosures.
VLAN Support: MTU/Port/Tag‑based VLAN configuration to segment network traffic, improve security, and simplify broadcast domain management.
QoS: Quality of Service controls to prioritize voice, video, and mission‑critical data for predictable performance.
IGMP Snooping: Efficient multicast handling to reduce unnecessary traffic and optimize streaming across the network.
Management: Intuitive Web GUI and utility‑based management for configuration, monitoring, and diagnostics. Supports both simple plug‑and‑play operation and advanced setup when needed.
Installation: Plug and play for quick deployment; rack ears included for 1U mounting.
Technical Specifications (Highlights)
Ports: 24 × 10/100/1000 Mbps RJ45
Switching Capacity: Gigabit wire‑speed forwarding on all ports
VLAN Types: Port‑based, Tag‑based (802.1Q), MTU‑aware VLAN options
QoS: Layer 2/Layer 3 QoS with traffic classification and priority queues
Multicast: IGMP Snooping v1/v2/v3 support
Management Interfaces: Web GUI, Local utility (CLI/Windows utility where applicable)
Physical: 1U, 13‑inch steel case; front RJ45 ports; rear power
Power: Internal power supply (AC input); low power consumption design
Mounting: Rack ears included for 1U installation; optional desktop placement
LEDs: Per‑port status/activity and system indicators for simple troubleshooting
Environmental: Operating temperature and humidity ranges suitable for standard server room environments
Use Cases
Branch offices and small data closets where rack space is limited
VoIP and video deployments requiring QoS and multicast efficiency
Network segmentation for departments, guest access, or security zones using VLANs
Quick expansions where ease of deployment and basic management are required
Why Choose This Switch This 24‑port Easy Smart Switch provides a balanced solution between unmanaged simplicity and full managed complexity. It delivers gigabit performance, essential traffic controls (VLANs, QoS, IGMP Snooping), and flexible management options in a compact 1U steel chassis—making it a practical choice for professional networks that require reliability, efficiency, and straightforward operation.
Included Accessories
Rack mounting ears and screws
Power cord
Quick start guide
Compliance & Warranty
Designed to meet applicable safety and EMC standards for networking equipment
Manufacturer limited warranty and professional support options available upon request
For ordering and configuration assistance, please contact your Zorins Technologies representative.
Omada 5‑Port Gigabit Easy Managed Switch
Overview A compact, high-performance networking switch designed for small offices, meeting rooms, and edge deployments where reliability, security, and centralized management matter. The Omada 5‑Port Gigabit Easy Managed Switch delivers five full Gigabit RJ45 ports in a durable desktop steel case, with advanced L2 features and seamless integration into the Omada SDN Controller for unified monitoring and policy control.
Key Specifications
Ports: 5 × Gigabit RJ45 ports (10/100/1000 Mbps)
Form Factor: Desktop, steel chassis
Power: External power adapter (included)
Throughput: Wire-speed switching for all ports
Management: Easy Managed via local web UI and full integration with Omada SDN Controller
LEDs: Link/activity and speed indicators per port
Dimensions & Weight: Compact footprint for desktop or shelf placement
Operating Temperature: Commercial operating range suitable for office environments
Certifications: Regulatory and safety certifications as required for commercial deployments
Core Features
Omada SDN Controller Integration: Centralized provisioning, topology visualization, firmware management, and policy enforcement across multiple Omada devices for streamlined network operations.
Flow Control: Per‑port flow control to prevent packet loss during temporary congestion and ensure smooth traffic delivery for sensitive applications.
Loopback Detection: Automatic detection and mitigation of network loops to maintain stability without manual intervention.
Port Isolation: Segregate ports at Layer 2 to restrict direct communication between specified ports while allowing uplink access—useful for guest setups or shared environments.
Port Mirroring: Mirror traffic from one or multiple source ports to a target port for monitoring and troubleshooting with packet analyzers or IDS systems.
LAG (Link Aggregation): Combine multiple ports into an aggregated logical link to increase bandwidth and provide redundancy between switches or to a server (IEEE 802.3ad static/LACP).
VLAN Support: 802.1Q VLAN tagging and port-based VLANs enable traffic segmentation and secure multi-tenant or departmental separation.
IGMP Snooping: Optimizes multicast traffic delivery for IPTV and conferencing by dynamically learning multicast group memberships.
QoS (Quality of Service): Priority queuing and DSCP/802.1p marking allow bandwidth prioritization for voice, video, and mission‑critical traffic.
Storm Control: Detects and suppresses broadcast, multicast, and unicast traffic storms to protect overall network performance.
Ideal Use Cases
Small office and home office networks requiring reliable Gigabit connectivity and centralized management.
Conference rooms and branch point-of-presence deployments needing VLANs, QoS, and multicast optimization.
Guest or shared-access environments where port isolation improves security without complex configuration.
Edge aggregation for small deployments where LAG and port mirroring are needed for redundancy and diagnostics.
Why Choose the Omada 5‑Port Easy Managed Switch
Enterprise-grade features in a compact, cost-effective package.
Seamless integration with Omada SDN Controller for easy scaling and consistent policy management.
Robust steel desktop case for long-term durability in office environments.
Intuitive management and advanced L2 capabilities make it a versatile choice for IT administrators seeking performance, visibility, and control.
Included in the Box
Omada 5‑Port Gigabit Easy Managed Switch (steel desktop)
External power adapter
Quick installation guide
Mounting rubber feet
Technical notes
For full Omada Controller functionality, connect the switch to an Omada Controller-managed network. Firmware version requirements may apply for certain features; verify compatibility during deployment.
LAG and VLAN configuration options are available through the local web UI and the Omada SDN Controller interface.
Contact Zorins Technologies for volume deployments, firmware requirements, and enterprise support options.
ES208G
Product Overview
Model: ES208G
Category: Enterprise-grade 8-port Gigabit Ethernet Switch
Ports: 8 × 10/100/1000 Mbps RJ-45 ports
Uplink: 2 × SFP slots (1G)
Switching capacity: 16 Gbps
Forwarding rate: 11.9 Mpps
MAC address table: 8K entries
VLANs supported: 4K
Jumbo frames: Up to 9,216 bytes
QoS: 4 priority queues, 802.1p, DSCP-based classification
Security: Port-based 802.1X, MAC-based authentication, ACLs (IPv4)
Management: Web GUI, CLI (SSH/Telnet), SNMP v1/v2c/v3, RMON
IPv6 support: Management-plane IPv6 ready
Power: Internal AC power supply, 100–240 VAC, 50–60 Hz
Power consumption: Typical ≤ 8W
Dimensions: 210 × 135 × 44 mm (W × D × H)
Weight: 0.9 kg
Operating temperature: 0°C to 50°C
Humidity: 10%–90% non-condensing
Compliance: FCC, CE, RoHS
Key Features
Reliable Gigabit connectivity for SMB and branch deployments.
Low-latency switching suitable for voice, video, and data traffic.
Flexible fiber uplinks via SFP for extended reach and network aggregation.
Advanced QoS and traffic management to prioritize latency-sensitive services.
Robust access controls and authentication to secure network edge.
Energy-efficient design with low power consumption and fanless operation for quiet deployments.
Rack-mountable with included bracket or desktop placement for flexible installation.
Use Cases
Small office networks requiring full-Gigabit access with fiber uplinks.
Branch offices and retail stores needing secure, dependable connectivity.
VoIP and video conferencing deployments where QoS and low latency are essential.
Edge aggregation for wireless access points and IP surveillance cameras.
Deployment Notes
For SFP fiber links, use compatible 1G SFP modules (single-mode or multi-mode) and verify module compatibility with the ES208G firmware.
When enabling 802.1X, ensure RADIUS server availability and correct certificate/time synchronization for smooth authentication.
Implement ACLs on edge ports to restrict access to management interfaces; use SNMPv3 and SSH to secure management access.
Ordering Information
Model: ES208G
SKU: ES208G-8P
Package includes: ES208G switch, power cord (region-specific), rack-mount ears, rubber feet, quick start guide, warranty card
Warranty: 3-year limited hardware warranty, 90-day software support; extended support plans available
Regulatory and Safety
Observe grounding and installation instructions in the quick start guide.
Operate the unit within specified temperature and humidity ranges.
Dispose of electronic equipment in accordance with local regulations.
Contact Support
For technical assistance, firmware updates, or RMA requests, contact Zorins Technologies Support with product serial number and system logs.
Omada 5‑Port Gigabit Easy Managed Switch with 4‑Port PoE+
Overview A compact, fanless gigabit switch engineered for small offices, retail, and edge deployments — the Omada 5‑Port Easy Managed Switch delivers secure power and intelligent traffic control in a durable steel chassis. Four 802.3at/af PoE+ ports supply up to 65 W total PoE budget for access points, IP phones, and cameras while a dedicated gigabit uplink handles non‑PoE connectivity.
Key Specifications
Ports: 4 × Gigabit PoE+ ports, 1 × Gigabit non‑PoE port (uplink)
PoE standard: 802.3at/af (PoE+)
Total PoE budget: 65 W
Form factor: Desktop, steel case, fanless design
Management: Easy Managed via Omada SDN Controller or local GUI
Features & Benefits
Seamless Omada SDN integration: Centralized provisioning, monitoring, and policy enforcement through the Omada SDN Controller simplifies deployment at single or multiple sites and enables scalable network management.
Reliable PoE delivery: Four PoE+ ports support high‑power devices (access points, PTZ cameras, VoIP phones) with intelligent power allocation and 65 W total budget for predictable, uninterrupted operation.
Robust traffic control: QoS, flow control, and rate limiting prioritize business‑critical traffic and optimize performance for voice, video, and data.
Layer 2 intelligence: VLAN support, LAG (link aggregation), IGMP snooping for efficient multicast handling, and port isolation for secure segmentation between endpoints.
Monitoring and diagnostics: Port mirroring for traffic analysis and loopback detection to quickly identify and resolve switching loops.
Network protection: Storm control and port-based security features reduce broadcast/multicast storms and enhance overall resilience.
Quiet, durable design: Fanless operation in a steel chassis minimizes noise and maximizes reliability in office or retail environments.
Typical Use Cases
Small office or branch: Power and connect wireless access points and VoIP phones while centrally managing policies and firmware through Omada SDN.
Retail and hospitality: Support surveillance cameras, PoE sensors, and PoE signage with compact, unobtrusive deployment.
Edge IT closets: Provide resilient, managed connectivity for point-of-sale, security, and network edge devices where space and noise are constrained.
Why choose this switch The Omada 5‑Port Gigabit Easy Managed Switch pairs the convenience of centralized Omada SDN management with a compact PoE+ platform that’s engineered for reliability and operational simplicity. It’s an ideal choice where power, performance, and manageable intelligence must coexist in a small footprint.
What’s in the box
Omada 5‑Port Gigabit Easy Managed Switch
Power cord
Quick installation guide
Rubber feet for desktop placement
Technical note For optimal PoE performance, verify connected device power requirements against the 65 W total PoE budget and configure power
Omada 5‑Port Gigabit Easy Managed Switch with 4‑Port PoE+
Overview A compact, fanless gigabit switch engineered for small offices, retail, and edge deployments — the Omada 5‑Port Easy Managed Switch delivers secure power and intelligent traffic control in a durable steel chassis. Four 802.3at/af PoE+ ports supply up to 65 W total PoE budget for access points, IP phones, and cameras while a dedicated gigabit uplink handles non‑PoE connectivity.
Key Specifications
Ports: 4 × Gigabit PoE+ ports, 1 × Gigabit non‑PoE port (uplink)
PoE standard: 802.3at/af (PoE+)
Total PoE budget: 65 W
Form factor: Desktop, steel case, fanless design
Management: Easy Managed via Omada SDN Controller or local GUI
Features & Benefits
Seamless Omada SDN integration: Centralized provisioning, monitoring, and policy enforcement through the Omada SDN Controller simplifies deployment at single or multiple sites and enables scalable network management.
Reliable PoE delivery: Four PoE+ ports support high‑power devices (access points, PTZ cameras, VoIP phones) with intelligent power allocation and 65 W total budget for predictable, uninterrupted operation.
Robust traffic control: QoS, flow control, and rate limiting prioritize business‑critical traffic and optimize performance for voice, video, and data.
Layer 2 intelligence: VLAN support, LAG (link aggregation), IGMP snooping for efficient multicast handling, and port isolation for secure segmentation between endpoints.
Monitoring and diagnostics: Port mirroring for traffic analysis and loopback detection to quickly identify and resolve switching loops.
Network protection: Storm control and port-based security features reduce broadcast/multicast storms and enhance overall resilience.
Quiet, durable design: Fanless operation in a steel chassis minimizes noise and maximizes reliability in office or retail environments.
Typical Use Cases
Small office or branch: Power and connect wireless access points and VoIP phones while centrally managing policies and firmware through Omada SDN.
Retail and hospitality: Support surveillance cameras, PoE sensors, and PoE signage with compact, unobtrusive deployment.
Edge IT closets: Provide resilient, managed connectivity for point-of-sale, security, and network edge devices where space and noise are constrained.
Why choose this switch The Omada 5‑Port Gigabit Easy Managed Switch pairs the convenience of centralized Omada SDN management with a compact PoE+ platform that’s engineered for reliability and operational simplicity. It’s an ideal choice where power, performance, and manageable intelligence must coexist in a small footprint.
What’s in the box
Omada 5‑Port Gigabit Easy Managed Switch
Power cord
Quick installation guide
Rubber feet for desktop placement
Technical note For optimal PoE performance, verify connected device power requirements against the 65 W total PoE budget and configure power allocation policies via the Omada controller as needed.
Omada 10‑Port Gigabit Easy Managed Switch with 8‑Port PoE+
Overview A compact, reliable switch designed for small to medium deployments that require robust PoE delivery and simplified centralized management. The Omada 10‑Port Gigabit Easy Managed Switch provides eight Gigabit PoE+ ports, a non‑PoE Gigabit port, and a combo Gigabit RJ45/SFP uplink — all in a fanless desktop steel chassis for quiet, durable operation.
Key Specifications
Ports: 8 × Gigabit PoE+ ports, 1 × Gigabit non‑PoE port, 1 × combo Gigabit RJ45/SFP port
PoE Standard: 802.3at/af (PoE/PoE+)
Total PoE Budget: 123 W
Form Factor: Desktop, steel case, fanless design
Performance: Full Gigabit switching on all ports with wire‑speed throughput
Management & Integration
Integration with Omada SDN Controller for centralized provisioning, monitoring, and firmware management across sites
Easy‑managed interface for local configuration when SDN is not deployed
Advanced Features
Flow Control: Prevents packet loss during congestion for reliable transmission of critical traffic
Loopback Detection: Automatically identifies and mitigates network loops to preserve stability
Port Isolation: Segregates edge devices at the switch level to enhance security and reduce east‑west traffic
Port Mirroring: Supports traffic monitoring and diagnostics for troubleshooting and security analysis
Link Aggregation (LAG): Combines multiple ports for higher bandwidth and redundancy
VLAN: 802.1Q VLAN support for traffic segmentation and secure multi
Omada 10‑Port Gigabit Easy Managed Switch with 8‑Port PoE+
Overview A compact, reliable switch designed for small to medium deployments that require robust PoE delivery and simplified centralized management. The Omada 10‑Port Gigabit Easy Managed Switch provides eight Gigabit PoE+ ports, a non‑PoE Gigabit port, and a combo Gigabit RJ45/SFP uplink — all in a fanless desktop steel chassis for quiet, durable operation.
Key Specifications
Ports: 8 × Gigabit PoE+ ports, 1 × Gigabit non‑PoE port, 1 × combo Gigabit RJ45/SFP port
PoE Standard: 802.3at/af (PoE/PoE+)
Total PoE Budget: 123 W
Form Factor: Desktop, steel case, fanless design
Performance: Full Gigabit switching on all ports with wire‑speed throughput
Management & Integration
Integration with Omada SDN Controller for centralized provisioning, monitoring, and firmware management across sites
Easy‑managed interface for local configuration when SDN is not deployed
Advanced Features
Flow Control: Prevents packet loss during congestion for reliable transmission of critical traffic
Loopback Detection: Automatically identifies and mitigates network loops to preserve stability
Port Isolation: Segregates edge devices at the switch level to enhance security and reduce east‑west traffic
Port Mirroring: Supports traffic monitoring and diagnostics for troubleshooting and security analysis
Link Aggregation (LAG): Combines multiple ports for higher bandwidth and redundancy
VLAN: 802.1Q VLAN support for traffic segmentation and secure multi‑tenant deployments
IGMP Snooping: Efficient multicast management for IPTV and streaming applications
QoS: Traffic prioritization to ensure performance for voice, video, and latency‑sensitive services
Storm Control: Limits broadcast, multicast, and unknown unicast storms to protect network availability
PoE Use Cases
Power and connect IP phones, wireless access points, security cameras, and IoT devices without separate power supplies
123 W total budget supports multiple PoE+ devices concurrently for small branch offices, retail, hospitality, and smart buildings
Why Choose This Switch
Centralized management with Omada SDN simplifies deployment and ongoing operations across locations
Fanless steel chassis provides reliable, quiet operation ideal for office, classroom, or retail environments
Comprehensive L2 features give administrators the tools needed for secure, resilient network design without complexity
Included in Box
Omada 10‑Port Gigabit Easy Managed Switch
Power cord
Quick installation guide
Rubber feet for desktop placement
Vendor Notes
Confirm PoE power requirements of connected devices to ensure total demand does not exceed the 123 W PoE budget.
Use the SFP slot with compatible modules for fiber uplink options.
Specifications and feature availability may vary by region and firmware version.
10/100/1000 Mbps RJ45 to 1000 Mbps Multi-mode SC Fiber Converter
Overview A compact, rack-mountable media converter that seamlessly bridges copper Ethernet and multimode fiber networks. Ideal for enterprise, campus, and data center environments requiring reliable Gigabit fiber uplinks with legacy copper devices. Supports 10/100/1000BASE-T RJ45 at one end and 1000BASE-SX multimode SC at the other, offering transparent protocol conversion with auto-negotiation and Auto MDI/MDIX.
Key Features
Ports:
1 × Gigabit SC fiber port (1000BASE-SX, multimode)
1 × Gigabit RJ45 port (10/100/1000BASE-T), Auto MDI/MDIX
Full-duplex operation for simultaneous send/receive on both links
Fiber reach: up to 550 meters (multimode, typical OM2/OM3 depending on transceiver and cable)
Compact chassis: TL-MC1400 rack-mountable design for 19" cabinets
Transparent media conversion with wire-speed forwarding
Link/activity LEDs for quick status monitoring
Low latency and low jitter suitable for voice, video, and data
Plug-and-play installation; no configuration required
Technical Specifications
Fiber Standard: 1000BASE-SX
Fiber Connector: SC (multimode)
Copper Standard: 10/100/1000BASE-T
Copper Connector: RJ45, Auto MDI/MDIX
Duplex Mode: Full-duplex supported on both ports
Maximum Multimode Distance: Up to 550 meters (dependent on multimode grade and optical budget)
Forwarding Mode: Store-and-forward or cut-through (device-specific — offers wire-speed forwarding)
Power: Internal/external power options depending on model (check unit label)
Mounting: TL-MC1400 compatible rack-mount chassis; 19" rack ears included
LEDs: Power, RJ45 Link/Activity, Fiber Link/Activity
Use Cases
Extend Gigabit network segments where copper reach is limited
Connect floor switches to building fiber backbone
Migrate mixed-speed copper devices to a fiber backbone without replacing existing equipment
Provide isolated fiber uplinks for security-sensitive endpoints
Installation Notes
Ensure multimode fiber type and transceiver compatibility (OM1/OM2/OM3/OM4 affects distance)
Observe ESD precautions when handling fiber connectors
Verify duplex mode and speed on connected copper devices if issues arise; Auto-negotiation and Auto MDI/MDIX typically handle mismatches
Use appropriate rack space and ventilation when mounting the TL-MC1400 chassis
Packaging Includes
1 × RJ45-to-SC fiber converter module (TL-MC1400 form factor)
Rack-mount ears and screws
Power adapter or power cable (model dependent)
Quick installation guide
Regulatory & Environmental
RoHS compliant; regulatory approvals vary by region — consult product label
Operating temperature and humidity: refer to unit datasheet for environmental limits
Ordering Information Specify multimode SC transceiver variant if multiple optical budgets are offered and confirm TL-MC1400 chassis slot availability when ordering multiple modules.
For deployment planning or bulk orders, contact Zorins
10/100/1000 Mbps RJ45 to 1000 Mbps Multi-mode SC Fiber Converter
Overview A compact, rack-mountable media converter that seamlessly bridges copper Ethernet and multimode fiber networks. Ideal for enterprise, campus, and data center environments requiring reliable Gigabit fiber uplinks with legacy copper devices. Supports 10/100/1000BASE-T RJ45 at one end and 1000BASE-SX multimode SC at the other, offering transparent protocol conversion with auto-negotiation and Auto MDI/MDIX.
Key Features
Ports:
1 × Gigabit SC fiber port (1000BASE-SX, multimode)
1 × Gigabit RJ45 port (10/100/1000BASE-T), Auto MDI/MDIX
Full-duplex operation for simultaneous send/receive on both links
Fiber reach: up to 550 meters (multimode, typical OM2/OM3 depending on transceiver and cable)
Compact chassis: TL-MC1400 rack-mountable design for 19" cabinets
Transparent media conversion with wire-speed forwarding
Link/activity LEDs for quick status monitoring
Low latency and low jitter suitable for voice, video, and data
Plug-and-play installation; no configuration required
Technical Specifications
Fiber Standard: 1000BASE-SX
Fiber Connector: SC (multimode)
Copper Standard: 10/100/1000BASE-T
Copper Connector: RJ45, Auto MDI/MDIX
Duplex Mode: Full-duplex supported on both ports
Maximum Multimode Distance: Up to 550 meters (dependent on multimode grade and optical budget)
Forwarding Mode: Store-and-forward or cut-through (device-specific — offers wire-speed forwarding)
Power: Internal/external power options depending on model (check unit label)
Mounting: TL-MC1400 compatible rack-mount chassis; 19" rack ears included
LEDs: Power, RJ45 Link/Activity, Fiber Link/Activity
Use Cases
Extend Gigabit network segments where copper reach is limited
Connect floor switches to building fiber backbone
Migrate mixed-speed copper devices to a fiber backbone without replacing existing equipment
Provide isolated fiber uplinks for security-sensitive endpoints
Installation Notes
Ensure multimode fiber type and transceiver compatibility (OM1/OM2/OM3/OM4 affects distance)
Observe ESD precautions when handling fiber connectors
Verify duplex mode and speed on connected copper devices if issues arise; Auto-negotiation and Auto MDI/MDIX typically handle mismatches
Use appropriate rack space and ventilation when mounting the TL-MC1400 chassis
Packaging Includes
1 × RJ45-to-SC fiber converter module (TL-MC1400 form factor)
Rack-mount ears and screws
Power adapter or power cable (model dependent)
Quick installation guide
Regulatory & Environmental
RoHS compliant; regulatory approvals vary by region — consult product label
Operating temperature and humidity: refer to unit datasheet for environmental limits
Ordering Information Specify multimode SC transceiver variant if multiple optical budgets are offered and confirm TL-MC1400 chassis slot availability when ordering multiple modules.
For deployment planning or bulk orders, contact Zorins Technologies for technical consultation and volume pricing.
Gigabit Single-Mode SFP Module
Overview A compact, high-performance Small Form-factor Pluggable (SFP) transceiver engineered for reliable Gigabit Ethernet and Fiber Channel links over single-mode fiber. Designed for interoperability with a wide range of switches, routers, and optical equipment, this MiniGBIC module delivers stable, long-reach connectivity up to 10 km.
Key Specifications
Fiber Type: Single-mode fiber (SMF)
Form Factor: SFP (MiniGBIC)
Data Rate: 1.25 Gbps (Gigabit)
Wavelength: 1310 nm (typical for 10 km reach)
Interface: LC duplex connector
Maximum Link Distance: Up to 10 km (single-mode fiber, 9/125 µm)
Transmit Power: Compliant with relevant SFP optical power levels
Receiver Sensitivity: Meets Gigabit SFP sensitivity requirements
Connector Type: LC duplex
Operating Temperature: Commercial and extended temperature options available
Power Consumption: Low-power design, <1W typical
Diagnostics: Optional Digital Diagnostics Monitoring (DDM/DOM) for real-time monitoring of optical power, temperature, voltage, and bias current
Standards Compliance: SFF-8472, IEEE 802.3z (Gigabit Ethernet), RoHS compliant
Hot-Pluggable: Yes
Features & Benefits
Miniaturized SFP form factor enables high port density and easy field upgrades.
Single-mode design supports long-distance links — ideal for campus interconnects, metro aggregation, and data center uplinks.
LC duplex connector provides secure, low-loss mating and broad vendor compatibility.
Low power consumption reduces thermal load and operating expense.
Optional DDM support for proactive monitoring and simplified troubleshooting.
RoHS compliance and industry-standard interoperability for dependable deployment.
Typical Applications
Switch-to-switch and router-to-router interconnects
Data center uplinks and server farm aggregation
Campus backbone links and MAN segments
Fiber Channel storage area network (SAN) connectivity
Telecom and carrier access networks
Ordering Information
Part Number Format: G1-SFP-SM-10KM-LC[-DDM][-XT]
G1-SFP-SM-10KM-LC — Standard commercial temp, no DDM
G1-SFP-SM-10KM-LC-DDM — With digital diagnostics monitoring
G1-SFP-SM-10KM-LC-XT — Extended temperature range
Custom labeling and compatibility testing services available upon request
Compliance & Warranty
Manufactured to industry standards for optical transceivers.
Backed by Zorins Technologies’ limited warranty and network-grade technical support.
For ordering, compatibility verification, or to request a datasheet, contact Zorins Technologies sales or your authorized distributor.
1000BASE-T RJ45 SFP Module
Overview A compact, hot-pluggable 1000BASE-T RJ45 SFP copper transceiver engineered for seamless integration with SFP/SFP+ ports. Delivers reliable Gigabit Ethernet over copper cabling up to 100 meters using Cat5e or higher, enabling flexible media conversion between fiber and copper networks without downtime. Ideal for data centers, enterprise LAN aggregation, access switches, and network edge devices.
Key Features
Standard: IEEE 802.3ab (1000BASE-T) compliant
Interface: SFP form factor uplink; RJ45 8P8C copper port
Data Rate: 1000 Mbps (Gigabit Ethernet)
Reach: Up to 100 meters over Cat5e/Cat6/Cat6a/Cat7
Media: 4-pair UTP/STP copper cable, auto MDIX
Duplex: Full duplex with auto-negotiation
Hot-pluggable: Insert or remove with no system power-down
Plug-and-play: No driver or configuration required for standard host devices
Diagnostic: Digital Diagnostic Monitoring (DDM) support (where supported by host)
Operating Temperature: Commercial: 0°C to 70°C; Extended/Industrial options available on request
Compliance: RoHS compliant; CE and FCC standards where applicable
Power Consumption: Low-power design (typical < 1W)
LEDs: Link/activity and speed indication via host chassis or integrated LED (platform dependent)
MTBF: High reliability design with long mean time between failures
Functional Benefits
Simplifies network design by converting SFP slots to copper Gigabit ports without adapters
Enables flexible uplink options and switch interconnection in mixed fiber/copper deployments
Supports link auto-negotiation and auto MDIX to eliminate crossover cable concerns
Reduces spare part inventory by using a single SFP module type for many platforms
Low power profile minimizes thermal impact in dense switch environments
Compatibility and Installation
Compatible with standard SFP ports on switches, routers, and servers that support 1000BASE-T SFP modules
Operates with most mainstream network operating systems and hardware; vendor-specific compatibility lists available on request
Installation: Insert module into SFP port until latched; connect RJ45 cable; module is recognized and negotiates link automatically
Use Cat5e or higher cabling to guarantee full Gigabit performance and reach. For distances <100 m, quality of cable and connectors influences performance.
Electrical and Mechanical Specifications
Connector (host): 20-pin SFP electrical connector
Connector (network): RJ45 8P8C with integrated magnetics
Operating voltage: +3.3 V DC (from SFP host)
Dimensions: SFP standard form factor (approx. 13.4 mm x 56.5 mm x 8.5 mm)
Weight: Typical light-weight SFP module
Environmental and Regulatory
Storage Temperature: -40°C to +85°C
Humidity: 5% to 95% (non-condensing)
Safety and EMC: Designed to meet relevant regional standards; RoHS compliant
Ordering Information
Part Number Example: ZT-SFP-1G-T (1000BASE-T RJ45 SFP Module, commercial temp)
Options: Extended temperature (-40°C to 85°C) and vendor-locked or vendor-neutral firmware available on request
Packaging: Individually packed with ESD protection; bulk and tray options for volume orders
Support and Warranty
Technical support provided by Zorins Technologies network specialists
Standard limited warranty; extended warranty and on-site support packages available
Applications
Access and aggregation switch uplinks
Media conversion in fiber-to-copper transitions
Server and appliance Gigabit connectivity via SFP ports
Network upgrades, redundancy paths, and temporary copper links in fiber installations
Ordering guidance
Confirm host device support for 1000BASE-T SFP modules and any vendor compatibility lists before purchase.
Choose cable category (Cat5e minimum) based on installation distance and futureproofing requirements (Cat6/Cat6a recommended for higher margin).
For deployments in harsh environments, specify industrial/extended-temperature version.
Contact For product samples, volume pricing, and technical integration assistance, contact Zorins Technologies sales and engineering teams.
10GBASE-T RJ45 SFP+ Module
Overview A high-performance 10Gbps RJ45 copper transceiver designed for seamless integration into SFP+ slots. Provides plug-and-play connectivity over Cat6a (or better) cabling for up to 30 meters, with Digital Diagnostics Monitoring (DDM) for real‑time temperature and voltage awareness. Ideal for data center uplinks, server connections, top-of-rack switching, and enterprise network deployments that require the flexibility of copper links with the density of SFP+ ports.
Key Features
Data rate: 10 Gbps (full duplex)
Interface: SFP+ (cage and connector) to RJ45 (8P8C)
Cable type: Cat6a or higher recommended
Maximum reach: Up to 30 meters (Cat6a or above)
Auto-negotiation: 10G/1G operation where supported
Digital Diagnostics Monitoring (DDM): Real-time temperature and voltage reporting
Hot-pluggable: SFP+ compliant for easy installation and replacement
Low power consumption and efficient thermal profile
RoHS compliant; industrial-grade components for reliability
Broad vendor and platform compatibility with standard SFP+ ports
Technical Specifications
Standards compliance:
IEEE 802.3an (10GBASE-T)
IEEE 802.3ab/802.3az where applicable
Connector types:
Host: SFP+ transceiver module footprint
Network: RJ45 8P8C jack
Supported link lengths:
Up to 30 m on Cat6a; performance on Cat6 may be limited and dependent on cabling and environment
Operating wavelength: Copper electrical interface (not applicable)
Data rate: 10.3125 Gbps line rate (10G Ethernet)
Power consumption: Typical ≤ 2.5 W (varies by operating conditions)
Operating temperature: 0°C to 70°C (commercial); extended options available on request
Storage temperature: -40°C to 85°C
Humidity: 0% to 85% non-condensing
DDM parameters:
Module temperature
Supply voltage
Transceiver status and fault alerts as supported by host
MTBF: Designed for high reliability; typical MTBF > 1,000,000 hours (vendor dependent)
Regulatory: RoHS, CE, FCC (where applicable)
Compatibility and Interoperability Designed to work with a wide range of SFP+-equipped switches, routers, and servers. Compatible with devices that accept standard SFP+ copper transceivers and support 10GBASE-T or 1G fallback where supported. For guaranteed interoperability, verify vendor compatibility lists or request a compatibility check for your specific hardware model.
Installation and Operation
Hot-pluggable SFP+ form factor for zero-downtime insertion/removal.
Plug module into SFP+ cage on the host device; connect Cat6a (or better) cable to RJ45 port.
DDM information accessible through host management interface for temperature and voltage monitoring.
No external power or configuration needed for standard operation.
Use Cases
Data center server to switch uplinks using existing copper cabling
Top-of-rack switch connectivity where fiber is not required or practical
Lab and testing environments requiring flexible, short-reach 10G links
Migrating infrastructure to 10G while reusing high-quality copper cabling
Ordering Information
Part number: ZT-10GBASE-T-SFP+
Description: 10GBASE-T RJ45 SFP+ Copper Transceiver, DDM, Cat6a up to 30 m
Options: Extended temperature variants; vendor-validated compatibility bundles; volume and custom labeling available upon request
Compliance and Warranty
Conforms to industry 10GBASE-T SFP+ specifications
RoHS compliant
One-year limited warranty standard; extended warranty and support contracts available
Contact For purchasing, compatibility verification, or technical support, contact Zorins Technologies sales and support teams. Provide host device make/model and firmware version for fastest interoperability guidance.
10Gbase-LR SFP+ LC Transceiver
Overview A high-performance 10G SFP+ optical transceiver designed for long-reach single-mode fiber links. Engineered for carrier-class networks and enterprise backbone applications, this module delivers reliable 10 Gigabit Ethernet connectivity up to 10 km using a single-mode fiber and LC duplex connector. Ideal for switches, routers, media converters, and optical transport systems that require compact, hot-pluggable 10G optics.
Key Features
Standards: 10GBase-LR compliant (IEEE 802.3ae)
Wavelength: 1310 nm (FP or DFB depending on vendor variant)
Form Factor: SFP+ (enhanced SFP) hot-pluggable
Connector: LC duplex
Reach: Up to 10 km over single-mode fiber (SMF, OS2)
Data Rate: 10.3125 Gbps nominal (10G Ethernet)
Duplex: Full-duplex optical transmission
Media Type: Single-mode fiber (SMF)
Digital Diagnostics Monitoring (DDM): SFF-8472 compliant (optical power, temperature, voltage, TX bias, RX power)
Power Consumption: Typically < 1.0 W (module dependent)
Operating Temperature: Commercial (0°C to 70°C) / Industrial variants available (-40°C to 85°C)
Hot-pluggable; low-latency operation
RoHS compliant
Optical Characteristics (typical)
Transmitter
Laser Type: 1310 nm FP/DFB
Center Wavelength: 1295–1330 nm
Optical Output Power (Tx): –3 dBm to +0.5 dBm (typical range; see product variant)
Extinction Ratio: ≥ 3.5 dB
Receiver
Receiver Sensitivity: ≤ –14.4 dBm (BER 1e-12)
Receiver Overload: ≥ –3 dBm
Loss Budget: Typically 11–16 dB (depending on transmitter power and receiver sensitivity)
Electrical and Management
Interface: SFP+ MSA compliant electrical interface
Signaling: 64b/66b encoding for 10G Ethernet
Management: I2C serial ID for vendor/product information; DDM support for real-time monitoring
MTBF: Typically > 1,000,000 hours (module dependent)
Mechanical
Dimensions: SFP+ compliant (approx. 13.4 mm x 72 mm x 18.35 mm)
Weight: ~20 g (varies by housing)
Housing: Metal with ESD protection
Mounting: Hot-pluggable SFP+ cage
Environmental and Compliance
Operating Temperature: 0°C to 70°C (commercial); -40°C to 85°C (industrial option)
Storage Temperature: –40°C to 85°C
Relative Humidity: 5% to 95% (non-condensing)
Regulatory: RoHS, REACH; optional CE/FCC compliance per model
Safety: Class 1 Laser Product (IEC/EN 60825-1)
Compatibility and Use Cases
Compatible with SFP+-equipped switches, routers, NICs, and optical transceivers supporting 10GBase-LR
Use cases: Data center aggregation and spine links, campus backbones, metro access links, enterprise WAN connectivity, optical uplinks between switches and routers
Ordering Information
Product Code Example: ZT-10G-LR-SFP+-1310
Variants: Commercial vs. industrial temperature ranges; DFB vs. FP lasers for extended reach; vendor-programming options (warranty/compatibility declaration)
Installation Notes
Use single-mode fiber (OS2) with LC duplex connectors and appropriate cleaning practices.
Ensure host device supports SFP+ 10GBase-LR modules; verify vendor compatibility and firmware requirements.
Observe ESD precautions and proper hot-plug procedures.
Warranty and Support
Standard warranty and extended support options available. Contact your Zorins Technologies account representative for compatibility testing, firmware programming, and volume pricing.
Technical Specifications Summary
Protocol: 10GBase-LR (IEEE 802.3ae)
Wavelength: 1310 nm
Connector: LC duplex
Fiber: Single-mode (SMF)
Max Distance: Up to 10 km
Data Rate: 10.3125 Gbps
Form Factor: SFP+
DDM: Yes (SFF-8472)
Power: < 1.0 W typical
Temp Range: 0°C–70°C (std),
10GBASE-SR SFP+ LC Transceiver
Overview A high-performance short-range 10 Gigabit Ethernet SFP+ transceiver optimized for multi-mode fiber (MMF) networks. Designed for data center, enterprise, and campus backbone links, this module delivers low-latency, energy-efficient 10GbE connectivity with hot-pluggable convenience and broad vendor compatibility.
Key Features
Form factor: SFP+ (hot-pluggable)
Wavelength: 850 nm VCSEL
Fiber type: Multi-mode fiber (MMF)
Connector: LC duplex
Data rate: 10.3125 Gbps (10 Gigabit Ethernet)
Maximum link length: Up to 300 meters on OM3/OM4 (see table below)
Transmitter: VCSEL
Receiver: PIN photodiode
Power consumption: Typical ≤ 1.0 W (module-dependent)
Compliance: IEEE 802.3ae 10GBASE-SR; SFF-8431; SFF-8472 diagnostic monitoring (DDM) support (module-dependent)
Operating temperature: 0°C to 70°C (commercial) — industrial ranges available on request
RoHS compliant
Typical Reach on MMF
OM1 (62.5/125 µm): limited, not recommended for 10G
OM2 (50/125 µm): up to ~82 meters
OM3 (50/125 µm, laser-optimized): up to 300 meters
OM4 (50/125 µm, laser-optimized): up to 400 meters (module specified to 300m; confirm OM4 performance with vendor data)
Diagnostic and Management
Digital Diagnostic Monitoring (DDM/DOM) provides real-time monitoring of:
Transmit power
Receive power
Temperature
Laser bias current
Supply voltage
SFP+ EEPROM complies with SFF-8472 for module ID and diagnostics (feature availability depends on host/device firmware)
Mechanical and Electrical
Single 3.3 V power supply
Differential CML electrical interface
SFP+ MSA compliant mechanical dimensions and pinout
Hot-pluggable LC duplex interface for easy installation and maintenance
Applications
Data center uplinks and top-of-rack switching
High-performance computing clusters
SAN and NAS connections
Enterprise aggregation and distribution layers
Short-range fiber backbone links
Ordering and Compatibility Notes
Verify host device compatibility and firmware support for third-party SFP+ modules.
Specify required operating temperature range (commercial vs. industrial) when ordering.
For guaranteed reach beyond 300 m, confirm use of OM4 fiber and consult vendor-specific datasheet.
Available with vendor-specific coding (if required) and extended warranty options.
Contact your Zorins Technologies representative for pricing, lead time, and custom labeling or extended temperature variants.
Omada 25GBase-SR SFP28 LC Transceiver
Product Overview A high-performance, low-power optical transceiver engineered for data center and enterprise networks. The Omada 25GBase-SR SFP28 delivers dual-rate operation for 25.78 Gbps and 10.31 Gbps links over multimode fiber, optimized for short-reach, high-density deployments that demand reliable, energy-efficient connectivity.
Key Specifications
Data Rates: Dual-rate support — 25.78 Gbps and 10.31 Gbps
Wavelength: 850 nm (VCSEL)
Fiber Type: Multimode fiber (MMF)
Connector: Duplex LC/UPC
Reach:
OM4: 100 m at 25.78 Gbps
OM3: 70 m at 25.78 Gbps
OM3: 300 m at 10.31 Gbps
Power Consumption: ≤ 1 W
Digital Diagnostics: Supports Digital Diagnostic Monitoring (DDM)
Form Factor: SFP28
Hot Swappable: Yes
Features & Benefits
Dual-rate Flexibility: Seamlessly supports both 25.78 Gbps and 10.31 Gbps links for backward compatibility and network migration paths.
Optimized for MMF: Designed for short-reach multimode fiber links common in server-to-switch and switch-to-switch connections within racks and across adjacent aisles.
Low Power: Power consumption at or below 1 W reduces thermal load and lowers operating costs in high-density deployments.
DDM for Visibility: Real-time monitoring of optical parameters (transmit/receive power, temperature, voltage, bias current) enables proactive maintenance and rapid troubleshooting.
Hot-Swappable: Allows on-the-fly insertion and removal without powering down equipment, minimizing downtime during upgrades or replacements.
Industry-Compatible Form Factor: SFP28 footprint supports easy deployment in a wide range of modern 25G-capable network equipment.
Typical Applications
Top-of-Rack (ToR) switching
Server uplinks and interconnects
Spine-leaf architectures in data centers
High-performance enterprise networks requiring short-reach 25G or legacy 10G connectivity
Operational Notes
Ensure use of OM3 or OM4 multimode fiber to achieve specified distances. Performance varies with fiber type, connector quality, and installation practices.
Observe proper ESD handling procedures when installing transceivers.
For optimal diagnostic capabilities, confirm host platform supports SFF-8472 digital diagnostics reporting.
Ordering Information
Product: Omada 25GBase-SR SFP28 LC Transceiver
Part Number: [Contact Sales for part number and compatibility]
Package: Single-unit retail or bulk OEM packaging available
Compliance & Reliability Engineered to meet current optical transceiver standards for short-reach multimode links and tested for environmental robustness in data center conditions. Meets common interoperability and safety expectations for professional network deployments.
For purchasing, compatibility confirmation, or volume pricing, contact your Omada sales representative at Zorins Technologies.
Omada 1 Meter 25G SFP28 Direct Attach Cable
Product Overview
High-performance, short-reach DAC engineered for reliable 25 Gigabit Ethernet interconnects.
Optimized for low latency and low power consumption in data center, aggregation, and top-of-rack deployments.
Plug-and-play simplicity with broad compatibility across SFP28 and SFP+ ports.
Key Specifications
Length: 1 meter
Supported Data Rates: 25 Gbps and backward-compatible with 10 Gbps
Connector Type: SFP28 (copper direct attach)
Port Compatibility: Works in 25G SFP28 slots and 10G SFP+ slots
Cable Type: Twinax copper assembly
Power: Passive/low-power design (no external power required)
Latency: Negligible, suitable for high-performance switching and server connections
Hot-pluggable: Yes
Compatibility & Use Cases
Compatible with switches, routers, network interface cards (NICs), and servers that support SFP28 or SFP+ modules.
Ideal for short-distance links within racks and between adjacent racks: server-to-switch, switch-to-switch, and switch-to-NIC connections.
Suitable for cloud, virtualization, storage networking, and high-performance computing environments.
Features & Benefits
25G Performance: Supports full 25 Gbps throughput for modern high-bandwidth applications while remaining fully interoperable with legacy 10G environments.
Cost-Effective: Copper DAC provides an economical alternative to optical transceivers for short interconnects.
Plug-and-Play: No additional configuration required—auto-negotiation across supported rates ensures immediate operation.
Robust Design: Durable connectors and cable assembly for dependable, long-term use in dense rack configurations.
Energy Efficient: Passive twinax design minimizes power draw compared to active optical options.
Installation & Handling
Insert firmly into compatible SFP28 or SFP+ ports until connector latches.
Support proper cable bend radius; avoid sharp bends or kinks.
For optimal airflow and cable management, route and secure the DAC within the rack or chassis.
Remove by depressing the latch and pulling straight out; do not twist.
Environmental & Regulatory
Operating temperature: typical data center range (consult device-specific tolerances)
RoHS compliant; recyclable materials where applicable
Ordering Information
Product: Omada 1M 25G SFP28 DAC
Length: 1 m
Part Number: (contact your Zorins Technologies representative for the correct SKU and firmware/compatibility notes)
Zorins Technologies — Network Leader in Global Industry. For procurement, compatibility verification, or volume pricing, contact your Zorins sales representative.
Omada 1 Meter 100G QSFP28 Direct Attach Cable
Product Overview The Omada 1 Meter 100G QSFP28 Direct Attach Cable delivers high-performance, low-latency connectivity for modern data centers and enterprise networks. Designed for short-reach interconnects, this passive cable supports both 100Gbps and 40Gbps data rates and provides a reliable, cost-effective solution for top-of-rack, spine, and aggregation switch connections.
Key Specifications
Maximum Length: 1 meter
Supported Data Rates: 100 Gbps and 40 Gbps
Compatible Ports: 100G QSFP28 slot and 40G QSFP+ slot
Interface: QSFP28 to QSFP28 (backward compatible with QSFP+)
Installation: Plug-and-play, hot-pluggable
Form Factor: QSFP28 direct attach copper (DAC)
Benefits
High Throughput: Supports full 100Gbps bandwidth for high-density, bandwidth-intensive applications.
Backward Compatibility: Seamlessly operates at 40Gbps when connected to QSFP+ ports, enabling flexible upgrades and mixed-speed environments.
Low Latency: Passive copper design minimizes latency for latency-sensitive workloads such as virtualization, storage, and high-performance computing.
Cost Efficiency: Economical alternative to optical transceivers for short-distance connections without compromising performance.
Simple Deployment: Plug-and-play connectivity reduces installation time and operational complexity.
Use Cases
Top-of-Rack to aggregation switch links in data centers
High-performance computing clusters requiring low-latency interconnects
Storage area networks and server-to-switch connections
Network upgrades where backward compatibility with 40G hardware is required
Mechanical and Environmental
Cable Length: 1 m
Connector Type: QSFP28 / QSFP+
Operating Temperature Range: Standard commercial operating range (refer to device-specific compatibility)
Compliance: Meets industry mechanical and electrical specifications for QSFP28/QSFP+
Ordering Information
Product: Omada 1M 100G QSFP28 Direct Attach Cable
Length: 1 meter
Model: Omada-QSFP28-DAC-1M
Compatibility Note Verify that your switches, NICs, and network equipment support passive DAC modules and QSFP28/QSFP+ interfaces. Some vendors require specific firmware or compatibility settings for direct-attach copper assemblies.
Packaging and Warranty
Supplied in protective packaging to prevent connector damage
Warranty: Standard manufacturer warranty (refer to reseller or Omada warranty terms for details)
For high-density, short-range 100Gbps connectivity with 40Gbps backward compatibility, the Omada 1 Meter 100G QSFP28 Direct Attach Cable offers a straightforward, cost-effective solution
Omada 1 Meter 100G QSFP28 Direct Attach Cable
Product Overview The Omada 1 Meter 100G QSFP28 Direct Attach Cable delivers high-performance, low-latency connectivity for modern data centers and enterprise networks. Designed for short-reach interconnects, this passive cable supports both 100Gbps and 40Gbps data rates and provides a reliable, cost-effective solution for top-of-rack, spine, and aggregation switch connections.
Key Specifications
Maximum Length: 1 meter
Supported Data Rates: 100 Gbps and 40 Gbps
Compatible Ports: 100G QSFP28 slot and 40G QSFP+ slot
Interface: QSFP28 to QSFP28 (backward compatible with QSFP+)
Installation: Plug-and-play, hot-pluggable
Form Factor: QSFP28 direct attach copper (DAC)
Benefits
High Throughput: Supports full 100Gbps bandwidth for high-density, bandwidth-intensive applications.
Backward Compatibility: Seamlessly operates at 40Gbps when connected to QSFP+ ports, enabling flexible upgrades and mixed-speed environments.
Low Latency: Passive copper design minimizes latency for latency-sensitive workloads such as virtualization, storage, and high-performance computing.
Cost Efficiency: Economical alternative to optical transceivers for short-distance connections without compromising performance.
Simple Deployment: Plug-and-play connectivity reduces installation time and operational complexity.
Use Cases
Top-of-Rack to aggregation switch links in data centers
High-performance computing clusters requiring low-latency interconnects
Storage area networks and server-to-switch connections
Network upgrades where backward compatibility with 40G hardware is required
Mechanical and Environmental
Cable Length: 1 m
Connector Type: QSFP28 / QSFP+
Operating Temperature Range: Standard commercial operating range (refer to device-specific compatibility)
Compliance: Meets industry mechanical and electrical specifications for QSFP28/QSFP+
Ordering Information
Product: Omada 1M 100G QSFP28 Direct Attach Cable
Length: 1 meter
Model: Omada-QSFP28-DAC-1M
Compatibility Note Verify that your switches, NICs, and network equipment support passive DAC modules and QSFP28/QSFP+ interfaces. Some vendors require specific firmware or compatibility settings for direct-attach copper assemblies.
Packaging and Warranty
Supplied in protective packaging to prevent connector damage
Warranty: Standard manufacturer warranty (refer to reseller or Omada warranty terms for details)
For high-density, short-range 100Gbps connectivity with 40Gbps backward compatibility, the Omada 1 Meter 100G QSFP28 Direct Attach Cable offers a straightforward, cost-effective solution for modern network infrastructures.
3M Direct Attach SFP+ Cable for 10 Gigabit Connections
Overview Optimized for short‑reach 10 Gigabit Ethernet links, the 3M Direct Attach SFP+ Cable delivers reliable, high‑performance connectivity for switches, servers, and storage arrays. Engineered for low latency and energy efficiency, this passive copper twinax solution supports up to 3 meters of distance and is ideal for top‑of‑rack, middle‑of‑row, and server‑to‑switch interconnects in modern data center environments.
Key Features
Data rate: 10 Gbps full duplex
Maximum cable length: up to 3 meters
Connector type: SFP+ (direct attach)
Cable type: passive copper twinax (cost‑effective, low latency)
Low power consumption: no optical transceivers required
Broad compatibility: works with SFP+ ports on most leading switch and server vendors
Rugged housing: durable metal cages for reliable mating cycles
Easy deployment: plug‑and‑play with hot‑swappable capability
Benefits
Cost efficiency: lower per‑link cost compared with optical modules and fiber for short runs
Performance: near‑native electrical performance with negligible added latency
Power savings: reduced power draw because optical transceivers and lasers are not required
Simplified inventory: standard lengths for predictable deployments and simplified cable management
Reliability: robust physical construction and proven twinax performance for high‑density racks
Typical Applications
Server to top‑of‑rack switch connections
Switch to switch interconnects within the same rack or adjacent racks
Storage array connections in SAN/NAS environments
High‑performance computing clusters with dense short‑reach links
Installation Notes
Verify SFP+ port compatibility and firmware/vendor interoperability before large deployments.
Maintain proper bend radius and avoid kinking the twinax cable to preserve signal integrity.
For runs longer than 3 meters, consider active copper or fiber optic SFP+ solutions.
Ordering Information Available in standard lengths up to 3 meters. Specify length and required quantity when ordering. Contact your Zorins Technologies representative for volume pricing, compatibility checks, and custom length options.
Technical Specifications (typical)
Supported speed: 10.3125 Gbps (10GBASE)
Latency: negligible added latency over direct electrical connection
Operating temperature: 0°C to 70°C (verify model for exact range)
Storage temperature: -40°C to 85°C (verify model for exact range)
Mating cycles: rated for repeated hot‑swap operations
For
3M Direct Attach SFP+ Cable for 10 Gigabit Connections
Overview Optimized for short‑reach 10 Gigabit Ethernet links, the 3M Direct Attach SFP+ Cable delivers reliable, high‑performance connectivity for switches, servers, and storage arrays. Engineered for low latency and energy efficiency, this passive copper twinax solution supports up to 3 meters of distance and is ideal for top‑of‑rack, middle‑of‑row, and server‑to‑switch interconnects in modern data center environments.
Key Features
Data rate: 10 Gbps full duplex
Maximum cable length: up to 3 meters
Connector type: SFP+ (direct attach)
Cable type: passive copper twinax (cost‑effective, low latency)
Low power consumption: no optical transceivers required
Broad compatibility: works with SFP+ ports on most leading switch and server vendors
Rugged housing: durable metal cages for reliable mating cycles
Easy deployment: plug‑and‑play with hot‑swappable capability
Benefits
Cost efficiency: lower per‑link cost compared with optical modules and fiber for short runs
Performance: near‑native electrical performance with negligible added latency
Power savings: reduced power draw because optical transceivers and lasers are not required
Simplified inventory: standard lengths for predictable deployments and simplified cable management
Reliability: robust physical construction and proven twinax performance for high‑density racks
Typical Applications
Server to top‑of‑rack switch connections
Switch to switch interconnects within the same rack or adjacent racks
Storage array connections in SAN/NAS environments
High‑performance computing clusters with dense short‑reach links
Installation Notes
Verify SFP+ port compatibility and firmware/vendor interoperability before large deployments.
Maintain proper bend radius and avoid kinking the twinax cable to preserve signal integrity.
For runs longer than 3 meters, consider active copper or fiber optic SFP+ solutions.
Ordering Information Available in standard lengths up to 3 meters. Specify length and required quantity when ordering. Contact your Zorins Technologies representative for volume pricing, compatibility checks, and custom length options.
Technical Specifications (typical)
Supported speed: 10.3125 Gbps (10GBASE)
Latency: negligible added latency over direct electrical connection
Operating temperature: 0°C to 70°C (verify model for exact range)
Storage temperature: -40°C to 85°C (verify model for exact range)
Mating cycles: rated for repeated hot‑swap operations
For assistance selecting the correct cable length, compatibility verification, or bulk procurement, consult Zorins Technologies’ network solutions team.
1M Direct Attach SFP+ Cable for 10 Gigabit Connections
Overview A high-performance, cost-effective 10 Gigabit direct attach cable (DAC) designed for short-reach interconnects in data centers and enterprise networks. The 1-meter passive SFP+ twinax cable delivers reliable, low-latency 10Gbps connectivity between SFP+ ports on switches, servers, storage arrays, and NICs without the need for transceivers.
Key Features
Data rate: 10 Gigabit Ethernet (10Gbps) per lane
Length: 1 meter
Connector type: SFP+ to SFP+ (hot-pluggable)
Cable type: Twinax copper (passive)
Low latency and low power consumption versus optical transceivers
Plug-and-play: no configuration or additional drivers required
Backward compatible with SFP+ ports supporting 10GBASE-CU
Robust metal housings for EMI protection and mechanical durability
RoHS compliant
Technical Specifications
Maximum supported distance: up to 1 meter
Electrical interface: SFP+ MSA compliant
Signaling: 10Gbps NRZ
Cable impedance: 100 ohms differential
Insertion loss: compliant with SFP+ specifications for short-reach copper
Operating temperature: 0°C to 70°C (commercial); extended ranges available on request
Storage temperature: -40°C to 85°C
MTBF: industry-standard reliability; contact for detailed reliability data
Compatible protocols: 10G Ethernet, FCoE (depending on host support), iSCSI
Applications
Top-of-rack (ToR) switch to server connections
Switch-to-switch stacking in short-reach environments
SAN and NAS connectivity where 10Gbps short links are required
High-density, low-power data center interconnects
Ordering Information
Product code: ZT-SFP+-DAC-1M (example SKU)
Length: 1 meter
Packaging: anti-static bag with protective caps
Compliance and Safety
SFP+ MSA compliant
RoHS compliant
Meets industry electromagnetic compatibility and safety standards
Why Choose This Cable
Cost-effective alternative to optical transceivers for short distances
Minimal power draw and heat generation
Simplifies deployment with plug-and-play operation
Durable construction for dense data center environments
Contact For volume pricing, compatibility checks with specific switch or server models, and extended temperature or active DAC options, contact your Zorins Technologies account manager or authorized distributor.
1M Direct Attach SFP+ Cable for 10 Gigabit Connections
Overview A high-performance, cost-effective 10 Gigabit direct attach cable (DAC) designed for short-reach interconnects in data centers and enterprise networks. The 1-meter passive SFP+ twinax cable delivers reliable, low-latency 10Gbps connectivity between SFP+ ports on switches, servers, storage arrays, and NICs without the need for transceivers.
Key Features
Data rate: 10 Gigabit Ethernet (10Gbps) per lane
Length: 1 meter
Connector type: SFP+ to SFP+ (hot-pluggable)
Cable type: Twinax copper (passive)
Low latency and low power consumption versus optical transceivers
Plug-and-play: no configuration or additional drivers required
Backward compatible with SFP+ ports supporting 10GBASE-CU
Robust metal housings for EMI protection and mechanical durability
RoHS compliant
Technical Specifications
Maximum supported distance: up to 1 meter
Electrical interface: SFP+ MSA compliant
Signaling: 10Gbps NRZ
Cable impedance: 100 ohms differential
Insertion loss: compliant with SFP+ specifications for short-reach copper
Operating temperature: 0°C to 70°C (commercial); extended ranges available on request
Storage temperature: -40°C to 85°C
MTBF: industry-standard reliability; contact for detailed reliability data
Compatible protocols: 10G Ethernet, FCoE (depending on host support), iSCSI
Applications
Top-of-rack (ToR) switch to server connections
Switch-to-switch stacking in short-reach environments
SAN and NAS connectivity where 10Gbps short links are required
High-density, low-power data center interconnects
Ordering Information
Product code: ZT-SFP+-DAC-1M (example SKU)
Length: 1 meter
Packaging: anti-static bag with protective caps
Compliance and Safety
SFP+ MSA compliant
RoHS compliant
Meets industry electromagnetic compatibility and safety standards
Why Choose This Cable
Cost-effective alternative to optical transceivers for short distances
Minimal power draw and heat generation
Simplifies deployment with plug-and-play operation
Durable construction for dense data center environments
Contact For volume pricing, compatibility checks with specific switch or server models, and extended temperature or active DAC options, contact your Zorins Technologies account manager or authorized distributor.
24V Passive PoE Injector Adapter
Overview A compact, reliable solution for delivering both data and power over a single Ethernet cable. This 24V Passive PoE Injector Adapter is engineered for straightforward deployment of PoE-enabled devices where standard 802.3af/at negotiation is unnecessary. Ideal for IP cameras, wireless access points, VoIP phones, and other low-power network devices.
Key Features
Ports: 1 × Gigabit PoE Port (out), 1 × Gigabit Non‑PoE Port (in)
Power: 24V DC input
Maximum PoE Power: 12 W delivered to the powered device
Cabling: Data and power carried over the same Ethernet cable (passive PoE)
Housing: Durable plastic case, lightweight and compact
Throughput: Full Gigabit Ethernet data rates on both ports
Plug-and-play: No configuration required; power is applied as soon as the adapter is connected
LED indicator(s): Power and PoE status (model dependent)
Technical Specifications
Input voltage: 24V DC
Output PoE voltage: 24V DC (passive)
Maximum output power: 12 W
Port types:
LAN In: 1 × RJ45 Gigabit Non‑PoE
PoE Out: 1 × RJ45 Gigabit PoE
Data rate: 10/100/1000 Mbps, auto MDI/MDIX
Power polarity: Center-positive (verify adapter barrel connector and cabling)
Connector (power): DC barrel jack (specify connector size with purchase)
Case material: Plastic
Operating temperature: Typical commercial range (consult datasheet for exact values)
Dimensions & weight: Compact, lightweight design (refer to product label for exact dimensions)
Safety & compliance: Designed for indoor use; follow local regulations and installation best practices
Applications
Surveillance cameras where low-power passive PoE is sufficient
Outdoor WAPs and bridges when paired with appropriate outdoor housings and cable runs
Point-of-sale terminals and kiosks requiring a simple power+data solution
Temporary network deployments and rapid installations
Installation Notes & Safety
Passive PoE does not include handshake/negotiation; ensure connected device supports 24V passive PoE to prevent damage.
Confirm polarity and connector compatibility before connecting power.
Maximum 12 W output limits use to low-power devices—do not connect high-power PoE devices.
Use quality Cat5e/Cat6 cable to maintain Gigabit performance and minimize voltage drop.
For extended cable runs, calculate voltage drop and ensure adequate power at the device end.
Indoor use recommended unless adapter is specified for outdoor environments.
Package Includes
24V Passive PoE Injector Adapter (1 × PoE out, 1 × Non‑PoE in)
Quick start guide
AC/DC power supply sold separately or included depending on SKU (check product listing)
Ordering Information Specify model/part number when ordering to confirm included power supply, connector type, and compliance certifications.
Zorins Technologies — A Network Leader in Global Industry. Exceptional design, dependable power delivery, and simple deployment
24V Passive PoE Injector Adapter
Overview A compact, reliable solution for delivering both data and power over a single Ethernet cable. This 24V Passive PoE Injector Adapter is engineered for straightforward deployment of PoE-enabled devices where standard 802.3af/at negotiation is unnecessary. Ideal for IP cameras, wireless access points, VoIP phones, and other low-power network devices.
Key Features
Ports: 1 × Gigabit PoE Port (out), 1 × Gigabit Non‑PoE Port (in)
Power: 24V DC input
Maximum PoE Power: 12 W delivered to the powered device
Cabling: Data and power carried over the same Ethernet cable (passive PoE)
Housing: Durable plastic case, lightweight and compact
Throughput: Full Gigabit Ethernet data rates on both ports
Plug-and-play: No configuration required; power is applied as soon as the adapter is connected
LED indicator(s): Power and PoE status (model dependent)
Technical Specifications
Input voltage: 24V DC
Output PoE voltage: 24V DC (passive)
Maximum output power: 12 W
Port types:
LAN In: 1 × RJ45 Gigabit Non‑PoE
PoE Out: 1 × RJ45 Gigabit PoE
Data rate: 10/100/1000 Mbps, auto MDI/MDIX
Power polarity: Center-positive (verify adapter barrel connector and cabling)
Connector (power): DC barrel jack (specify connector size with purchase)
Case material: Plastic
Operating temperature: Typical commercial range (consult datasheet for exact values)
Dimensions & weight: Compact, lightweight design (refer to product label for exact dimensions)
Safety & compliance: Designed for indoor use; follow local regulations and installation best practices
Applications
Surveillance cameras where low-power passive PoE is sufficient
Outdoor WAPs and bridges when paired with appropriate outdoor housings and cable runs
Point-of-sale terminals and kiosks requiring a simple power+data solution
Temporary network deployments and rapid installations
Installation Notes & Safety
Passive PoE does not include handshake/negotiation; ensure connected device supports 24V passive PoE to prevent damage.
Confirm polarity and connector compatibility before connecting power.
Maximum 12 W output limits use to low-power devices—do not connect high-power PoE devices.
Use quality Cat5e/Cat6 cable to maintain Gigabit performance and minimize voltage drop.
For extended cable runs, calculate voltage drop and ensure adequate power at the device end.
Indoor use recommended unless adapter is specified for outdoor environments.
Package Includes
24V Passive PoE Injector Adapter (1 × PoE out, 1 × Non‑PoE in)
Quick start guide
AC/DC power supply sold separately or included depending on SKU (check product listing)
Ordering Information Specify model/part number when ordering to confirm included power supply, connector type, and compliance certifications.
Zorins Technologies — A Network Leader in Global Industry. Exceptional design, dependable power delivery, and simple deployment for your low‑power PoE needs.
Omada 48V Passive PoE Injector Adapter
Overview A compact, reliable solution for delivering data and power over a single Ethernet cable to PoE-capable devices. The Omada 48V Passive PoE Injector Adapter is engineered for straightforward deployments where ease, compatibility, and cost-efficiency are priorities. Ideal for powering cameras, access points, and other low-power network devices in small-to-medium installations.
Key Features
Ports:
1 × Gigabit PoE Port (data + power output)
1 × Gigabit Non‑PoE Port (data input)
PoE Standard: Passive PoE (48 V)
Power Delivery: Up to 18 W to the powered device
Power Input: 48 V DC
Data Rate: Gigabit Ethernet (10/100/1000 Mbps)
Housing: Durable plastic case for lightweight, compact installation
Simplicity: Plug-and-play; no configuration or management required
Technical Specifications
Interfaces:
PoE Output: RJ45 Gigabit port supplying 48 V passive PoE
Data Input: RJ45 Gigabit Ethernet (non‑PoE)
Power:
Input Voltage: 48 V DC
Maximum PoE Output Power: 18 W
Power over Cable: Data and power carried over the same Cat5e/Cat6 Ethernet cable
LED Indicators: Link/Activity (per port)
Operating Temperature: 0°C to 40°C (typical room environment — verify for your installation)
Storage Temperature: -20°C to 70°C
Humidity: 5%–90% non-condensing
Enclosure: Flame-retardant plastic, compact footprint
Mounting: Desktop or wall-mountable depending on site needs
Compliance: Designed to meet common safety and EMC practices (check local regulations and device compatibility)
Use Cases
IP cameras where a local power outlet is unavailable
Wireless access points in small offices or branch locations
Point-of-sale terminals, VoIP phones, and other low-power networked devices
Temporary or quick-deploy network segments requiring minimal setup
Installation Notes
Ensure the powered device accepts 48 V passive PoE and that 18 W is sufficient for the device’s peak consumption.
Use quality Cat5e or Cat6 cabling to maintain Gigabit performance and reliable power delivery.
Confirm polarity and connector compatibility when connecting external 48 V DC power supplies.
Not compatible with IEEE 802.3af/at PoE standards that negotiate power via handshakes; only use with devices that support passive 48 V PoE.
Package Contents
Omada 48V Passive PoE Injector Adapter
Quick Installation Guide
Rubber feet or basic mounting accessories (varies by SKU)
Ordering Information
Model: Omada 48V Passive PoE Injector Adapter
SKU: Contact sales for part numbers, regional variants, and bundled power supply options
Reliable, unobtrusive power delivery for edge devices — the Omada 48V Passive PoE Injector Adapter simplifies installations by combining data and power on a single Gigabit link in a compact plastic enclosure.
48V Passive PoE Injector Adapter
Overview A compact, reliable solution for powering and networking PoE-capable devices where centralized power is impractical. The 48V Passive PoE Injector Adapter delivers data and 48V DC power over a single Ethernet cable, enabling clean, efficient deployment of IP cameras, wireless access points, VoIP phones, and other low-power network devices.
Key Features
Ports: 1× Gigabit PoE port (data + power), 1× Gigabit non‑PoE port (data only)
Power Input: 48 V DC input
PoE Output: Up to 24 W delivered to a single device
Cabling: Data and power carried over the same Ethernet cable for simplified installation
Enclosure: Durable plastic case — lightweight, cost-effective, and electrically insulated
Gigabit throughput on both ports for full 10/100/1000 Mbps performance
Passive PoE design — straightforward wiring with no negotiation protocols required
Performance and Compatibility
Provides up to 24 W at 48 V to compatible passive PoE devices; ideal for many IP cameras, small access points, and IoT devices
Supports standard Cat5e/Cat6 cabling for distances up to typical Ethernet limits (up to 100 m), subject to cable quality and power draw
Non‑PoE port passes data to/from your network switch or router without injecting power
Safety and Installation Notes
Passive PoE supplies fixed voltage — confirm device compatibility with 48 V passive input before connection to avoid damage
Use the specified 48 V DC power supply with appropriate current rating and polarity
Observe standard grounding and surge protection best practices in installations exposed to lightning or electrical noise
Plastic enclosure provides basic environmental protection; for outdoor or harsh environments use weatherproof enclosures or place the injector indoors
Applications
Small-scale CCTV and surveillance deployments
Installing wireless access points in offices, hospitality, and retail spaces
Powering VoIP phones and networked IoT sensors at remote points
Temporary network setups where rapid, cable-minimal deployment is required
Technical Specifications
Ports: 1 × Gigabit PoE (data + power), 1 × Gigabit non‑PoE (data only)
PoE Standard: Passive (non‑802.3af/at) — fixed 48 V output
Maximum PoE Power: 24 W
Power Input: 48 V DC (use compatible external power supply)
Data Rate: 10/100/1000 Mbps on both ports
Enclosure: Plastic case
Operating Temperature: Refer to product label (typical indoor rating)
Dimensions / Weight: Compact, lightweight design (refer to datasheet for exact values)
Ordering and Technical Support For ordering information, compatibility guidance, and technical support, contact your Zorins Technologies representative. Provide device model numbers and deployment details so we can recommend the correct power supply and best practices for a reliable installation.
Zorins Technologies — A Network Leader in Global Industry.
PoE Splitter Adapter
Overview Compact, reliable power and data separation for devices that lack Power over Ethernet. This pocket-sized PoE splitter adheres to IEEE 802.3af and extracts up to 12V/9V/5V DC from a single Gigabit PoE feed—delivering both power and Gigabit data where you need it most, up to 100 meters over standard Ethernet cabling.
Key Features
Ports: 1× Gigabit PoE input port, 1× Gigabit non-PoE output port
PoE Standard: IEEE 802.3af compliant
Distance: Data and power carried together up to 100 meters (328 ft) over Cat5e/Cat6
Output Voltages: Selectable 12V, 9V, or 5V DC to accommodate a wide range of devices
Form Factor: Durable plastic case, pocket-size for simple deployment and transport
Gigabit Performance: Full Gigabit throughput preserved between PoE source and non-PoE device
Use Cases: IP cameras, wireless access points, VoIP phones, single-board computers, and other non-PoE devices requiring DC power
Technical Notes
Power budget depends on the upstream PoE source (switch or injector). Ensure the PoE supply can provide sufficient power for the selected output voltage and the target device’s consumption.
Maximum cable length for combined power and data is 100 meters. Longer runs may require local power or a higher-power PoE standard.
Output connector and cable not included; verify polarity and connector type match the powered device before use.
What’s Included
PoE Splitter Adapter (plastic enclosure)
Short adapter cable for DC output (where applicable)
Quick start guide
Applications
Field technicians needing fast, portable PoE-to-DC conversion
Retrofit projects converting existing PoE infrastructure to power legacy non-PoE equipment
Temporary deployments and demos where power outlets are unavailable
Ordering Info Specify required DC output (12V, 9V
PoE Splitter Adapter
Overview Compact, reliable power and data separation for devices that lack Power over Ethernet. This pocket-sized PoE splitter adheres to IEEE 802.3af and extracts up to 12V/9V/5V DC from a single Gigabit PoE feed—delivering both power and Gigabit data where you need it most, up to 100 meters over standard Ethernet cabling.
Key Features
Ports: 1× Gigabit PoE input port, 1× Gigabit non-PoE output port
PoE Standard: IEEE 802.3af compliant
Distance: Data and power carried together up to 100 meters (328 ft) over Cat5e/Cat6
Output Voltages: Selectable 12V, 9V, or 5V DC to accommodate a wide range of devices
Form Factor: Durable plastic case, pocket-size for simple deployment and transport
Gigabit Performance: Full Gigabit throughput preserved between PoE source and non-PoE device
Use Cases: IP cameras, wireless access points, VoIP phones, single-board computers, and other non-PoE devices requiring DC power
Technical Notes
Power budget depends on the upstream PoE source (switch or injector). Ensure the PoE supply can provide sufficient power for the selected output voltage and the target device’s consumption.
Maximum cable length for combined power and data is 100 meters. Longer runs may require local power or a higher-power PoE standard.
Output connector and cable not included; verify polarity and connector type match the powered device before use.
What’s Included
PoE Splitter Adapter (plastic enclosure)
Short adapter cable for DC output (where applicable)
Quick start guide
Applications
Field technicians needing fast, portable PoE-to-DC conversion
Retrofit projects converting existing PoE infrastructure to power legacy non-PoE equipment
Temporary deployments and demos where power outlets are unavailable
Ordering Info Specify required DC output (12V, 9V, or 5V) when ordering to ensure compatibility with your device. For high-draw devices or distances approaching 100 meters, confirm your PoE source can supply adequate wattage.
PoE Injector Adapter
Overview A compact, pocket-size PoE injector adapter designed for easy deployment of power and data over a single Ethernet cable. Ideal for powering remote devices such as IP cameras, wireless access points, VoIP phones, and IoT equipment where a power outlet is unavailable.
Key Features
Ports: 1 × Gigabit PoE Port (RJ45), 1 × Gigabit Non‑PoE Port (RJ45)
PoE Standard: 802.3af compliant
Power + Data: Delivers both power and data over the same cable for distances up to 100 meters (328 feet)
Form Factor: Lightweight plastic case, pocket-size for portability and field use
Gigabit Performance: Full gigabit throughput on both PoE and non‑PoE ports
Plug-and-Play: No configuration required — simply connect the non‑PoE network source to the adapter and the PoE device to the PoE port
Safety: Built to comply with 802.3af power negotiation to protect non‑PoE devices from accidental powering
Technical Specifications
PoE Standard: 802.3af (PoE)
Ports: 1 × Gigabit PoE (Data + Power), 1 × Gigabit LAN (Data only)
Maximum Distance: Up to 100 m (328 ft) over Cat5e/Cat6 cable
Housing: Durable plastic enclosure
Size: Pocket-size, lightweight for portability
Power Delivery: 15.4 W (per 802.3af) negotiated to powered device
Data Rate: 10/100/1000 Mbps auto-negotiation
LED Indicators: Link/Activity and Power status (model dependent)
Operating Temperature: Typical commercial range (refer to model datasheet for exact limits)
Mounting: Portable; desk or field use
Use Cases
Field technicians powering surveillance cameras during installation or testing
Extending network and power to rooftop or outdoor wireless access points
Temporary setups for events or pop-up deployments
Powering VoIP phones or small IoT devices where an outlet is not convenient
What’s in the Box
PoE Injector Adapter (1× Gigabit PoE port, 1× Gigabit non‑PoE port)
Quick start guide
(Optional) Power adapter or cable, depending on SKU
Compliance & Safety
Compliant with IEEE 802.3af PoE standard
Power negotiation ensures safe operation with compatible PDs (Powered Devices)
Follow manufacturer guidance for cable quality and maximum run length to ensure reliable operation
Ordering Notes Select the SKU that includes the appropriate regional power adapter if required. For deployments needing higher wattage (802.3at/at+), consider an upgraded injector offering PoE+ compatibility.
PoE+ Injector Adapter
Overview A compact, pocket-sized PoE+ injector adapter that delivers Gigabit Ethernet data and up to 30W of power over a single CAT5e/6 cable. Ideal for powering IP cameras, VoIP phones, wireless access points, and other PoE devices when a PoE switch is not available.
Key Features
Ports: 1× Gigabit PoE port, 1× Gigabit non‑PoE port
Standards: 802.3at (PoE+) and backward compatible with 802.3af
Power and Data: Data and power carried over the same cable up to 100 meters (328 ft)
Compact Design: Lightweight plastic case, pocket size for easy field use and deployment
Plug-and-Play: No configuration required — connect power and network to immediately energize PoE devices
Safe Operation: Built-in short-circuit and over-current protection to safeguard connected equipment
Technical Specifications
Input Port: 1× Gigabit RJ-45 (Non-PoE)
Output Port: 1× Gigabit RJ-45 (PoE+, 802.3at/af)
Maximum Power Output: Up to 30W (802.3at)
Data Rate: 10/100/1000 Mbps auto-negotiation
Cable Length: Up to 100 meters (328 feet) over Cat5e/Cat6
Case Material: Durable plastic
Dimensions: Pocket-sized (typical compact form factor)
Indicators: LED(s) for power and link/activity status
Protections: Short-circuit, over-current, over-voltage protection, and thermal protection
Operating Temperature: Standard commercial range (consult product datasheet for exact values)
Compliance: 802.3at/af compliant
Applications
Surveillance cameras (PoE IP cameras)
Wireless access points and mesh nodes
VoIP phones and desk terminals
Remote IoT devices and sensors
Temporary or test deployments where PoE switches are unavailable
Packaging and What's Included
PoE+ Injector Adapter (1×)
AC power adapter (as required; check region-specific models)
Quick start guide and safety information
Ordering Notes
Ensure connected device is PoE-capable and compatible with 802.3at/af power class requirements.
Verify regional AC adapter configuration when ordering.
For extended cable runs beyond 100 meters or higher power requirements, consider installing a midspan or a PoE switch designed for higher wattage.
Zorins Technologies — A Network Leader in Global Industry.
Omada 2.5G PoE+ Injector Adapter
Overview A compact, pocket-size PoE+ injector that delivers up to 2.5G throughput with IEEE 802.3at/af compatibility. Designed to power and connect high-bandwidth devices — such as Wi-Fi 6 access points, IP cameras, and switches — while simplifying installations where inline PoE is not available.
Key Features
Ports: 1 × 2.5G PoE port, 1 × 2.5G non-PoE port
Standards: Compliant with IEEE 802.3at (PoE+) and 802.3af (PoE)
Power & Data: Data and power carried over a single Ethernet cable up to 100 meters
Form Factor: Durable plastic case; pocket-size for easy transport and field use
Use Cases: Ideal for retrofitting PoE to non-PoE outlets, powering edge devices in offices, retail, and small installations
Technical Summary
Data Rate: Up to 2.5 Gbps on both ports
Power Delivery: PoE+ (802.3at) compatible — supports higher-power devices within standard PoE+ limits
Cable Distance: Full power and data up to 100 meters over Cat5e/Cat6 (per IEEE specifications)
Construction: Lightweight plastic housing for portability and low-profile deployment
Installation Notes
Connect the non-PoE 2.5G port to your network switch or router.
Connect the PoE 2.5G port to the powered device using a single Ethernet cable (up to 100 meters).
Ensure the powered device is compatible with IEEE 802.3at/af.
For optimal 2.5G performance, use Cat5e or higher cabling; shielded cable may be required in high-interference environments.
Safety and Compliance
Meets IEEE 802.3at/af PoE safety and negotiation standards to prevent damage to non-PoE devices.
Designed for indoor use; avoid exposure to moisture and extreme temperatures.
What’s Included
Omada 2.5G PoE+ Injector Adapter (pocket-size plastic case)
Quick start guide
Compact, powerful, and standards-compliant — the Omada 2.5G PoE+ Injector Adapter enables fast, flexible PoE deployment without replacing existing network infrastructure.
PoE++ Injector Adapter
Product Overview A compact, pocket-sized PoE++ injector adapter engineered for reliable, high-power Ethernet deployment. Delivers up to 60 W to a single powered device while maintaining gigabit data throughput. Ideal for field installations, small offices, surveillance systems, wireless access points, and any scenario that requires power and data over a single cable.
Key Features
Ports: 1× Gigabit PoE (PD) port, 1× Gigabit Non-PoE (uplink) port
Standards: Fully compliant with 802.3bt, 802.3at, and 802.3af
Power Output: Up to 60 W PoE power to the powered device
Cable Reach: Data and power transmitted together up to 100 meters (328 feet) over standard Cat5e/Cat6
Construction: Durable steel case for enhanced shielding and heat dissipation
Size: Pocket-sized—portable and unobtrusive for on-the-go technicians and tight installations
Auto-detection: Intelligent negotiation with PDs for safe power delivery
Plug-and-Play: No configuration or software required; simple inline installation
Technical Specifications
Input: 1× Gigabit non-PoE RJ45 (uplink)
Output: 1× Gigabit PoE RJ45 (power + data)
PoE Standard: 802.3bt (primary), backward compatible with 802.3at and 802.3af
Maximum PoE Power: 60 W
Data Rate: Up to 1 Gbps full duplex
Maximum Cable Length: 100 meters (328 feet) over Cat5e/Cat6
Power Source: External AC adapter (specify required voltage/current per model)
Housing: Steel enclosure
Dimensions: Pocket-friendly — consult model sheet for exact measurements
Operating Temperature: Commercial grade operating range (consult model sheet for specifics)
Safety & Certifications: Meets relevant safety and EMC requirements (refer to datasheet for certifications)
Typical Applications
High-performance Wi‑Fi access points (including Wi‑Fi 6/6E devices)
PTZ and high-resolution IP cameras
VoIP phones and intercom systems
IoT gateways and edge devices requiring higher power budgets
Temporary or mobile network deployments
Why Choose This Adapter Compact yet powerful, this PoE++ injector adapter simplifies deployments by removing the need for additional power runs. Its steel construction ensures durability in demanding environments, while standards compliance guarantees compatibility across a broad range of powered devices. Reliable 60 W delivery and gigabit throughput make it an efficient, low-footprint solution for modern networked devices.
What’s in the Box
PoE++ Injector Adapter
External AC power adapter (model-specific)
Quick start guide
Ordering Information Refer to product code and power adapter variant when ordering. Contact Zorins Technologies for volume pricing, custom labeling, or extended warranty options.
8-Port Gigabit Managed Reverse PoE Switch
Overview A compact, industrial-grade managed switch designed for reverse (passive) Power over Ethernet deployments. The unit supplies power to an upstream PoE-powered device via a single reverse PoE out port while receiving power through multiple PoE-in ports. Built in a durable steel desktop chassis, it combines enterprise-class Layer 2 features with simplified deployment for access points, cameras, and other networked devices where remote power sourcing is required.
Ports
7 × Gigabit Passive PoE In ports (RJ45)
Accept passive PoE power input from upstream PoE injectors or PoE switches
1 × Gigabit Passive PoE Out port (RJ45)
Supplies passive PoE power upstream (reverse PoE)
1 × 5V/12V DC Out port
Configurable/dual-voltage auxiliary DC output for powering small devices or accessories
Management: Out-of-band management via dedicated management interface accessible through web UI and utility software (details in management section)
Physical
Chassis: Steel desktop case for enhanced durability and heat dissipation
Mounting: Desktop or optional surface mount
LED indicators: Per-port link/activity and PoE status, system power LEDs
Power input: Accepts passive PoE power on designated PoE-In ports; internal power handling converts and routes power as configured
Key Specifications
Switching capacity: Gigabit wire-speed switching on all ports
PoE type: Passive PoE (non-standard, polarity- and voltage-specific; verify compatibility)
PoE topology: Reverse PoE support — power sourced from PoE-In ports and delivered out via the single PoE-Out port
DC Out: Selectable 5V or 12V output, suitable for powering small peripherals
MTU: Configurable MTU per port; supports jumbo frames
VLAN: MTU/Port/Tag-based VLAN support (flexible segmentation by port, tag, and MTU)
QoS: Hierarchical QoS with priority mapping and bandwidth control per port
IGMP Snooping: IGMP Snooping v1/v2/v3 for efficient multicast forwarding
Management: Intuitive web management interface and utility software for discovery and basic configuration; supports firmware upgrade via web UI
Security: Port-based access control and basic administrative authentication
Operating temperature: Industrial-tolerant range for indoor installations (check product label for exact range)
Certification: Compliance to regional safety and EMC standards (see product datasheet for specific certifications)
Features and Benefits
Reverse PoE capability: Simplifies topologies where power must be sent upstream to a central PoE-powered device (e.g., powered aggregators, powered AP controllers)
Multiple PoE-In ports: Redundant or aggregated power input options reduce single-point failure risk and increase installation flexibility
Desktop steel housing: Robust construction for longer lifecycle and stable thermal performance
Advanced Layer 2 features: VLAN by MTU/port/tag, QoS, and IGMP Snooping deliver predictable performance for voice, video, and critical data
Simple management: Web UI and utility provide quick setup and central discovery for small to medium deployments
Auxiliary DC output: Built-in 5V/12V DC out provides power for cameras, sensors, or indicator devices without separate supplies
Compact footprint: Keeps rack/desktop space minimal while delivering enterprise-level switching and power management
Typical Applications
Campus and branch networks requiring upstream-powered devices
Wireless deployments where a powered aggregation point must be fed from field-located injectors
Surveillance systems with centralized powered recorders or controllers
Industrial and commercial indoor deployments needing robust steel housing and managed features
Notes and Installation Considerations
Passive PoE compatibility: Passive PoE is not standardized (802.3af/at) — verify voltage and pinout compatibility with connected equipment to prevent damage.
Power budget planning: Confirm total available power from PoE-In sources and the power requirements of the device connected to the PoE-Out port as well as any load on the DC Out port.
VLAN and QoS design: Use MTU/Port/Tag-based VLANs and QoS to separate and prioritize traffic classes (voice/video/data) for deterministic performance.
Firmware and security: Maintain updated firmware and strong administrative credentials. Restrict management access to trusted networks.
What’s in the Box
8-Port Gigabit Managed Reverse PoE Switch
Power adapter or documentation for passive PoE power sourcing (depending on model/region)
Quick start guide and safety instructions
Rubber feet and basic mounting hardware
Ordering Information
Product model: 8-Port Gigabit Managed Reverse PoE Switch (contact sales for exact model number and regional SKUs)
Optional accessories
2.4 GHz 300 Mbps 9 dBi Outdoor CPE
Overview A high-performance outdoor CPE designed for reliable long-range wireless connectivity in challenging environments. Operating in the 2.4 GHz band, this unit delivers up to 300 Mbps throughput with a focused 9 dBi antenna for extended coverage beyond 5 km under optimal conditions. Ruggedized and weatherproof, it supports flexible deployment modes and enterprise-grade management features.
Key Specifications
Radio: 2.4 GHz, up to 300 Mbps
Antenna Gain: 9 dBi (integrated)
Range: 5+ km (line-of-sight, environmental and deployment dependent)
Ethernet: 1× 10/100 Mbps shielded RJ-45 port
Power: Passive PoE (included)
Weatherproofing: IPX5-rated enclosure
Throughput Optimization: MAXtream TDMA for collision-free transmission
Deployment Modes: AP, Client, AP Router, AP Client Router
Features and Benefits
Long-Range Performance: The 9 dBi directional antenna and optimized RF design extend reliable connectivity to clients located over 5 km away in line-of-sight scenarios, ideal for rural broadband, tower-to-premises links, and campus backhaul.
High Throughput: Up to 300 Mbps at 2.4 GHz supports bandwidth-intensive applications such as video surveillance, VoIP, and real-time data transfer.
Robust Weather Resistance: IPX5-rated housing protects against water jets and harsh outdoor conditions, ensuring continuous operation in rain and wind.
Simplified Installation: Single shielded 10/100 Mbps Ethernet port with Passive PoE reduces cabling complexity and enables quick site deployments.
Deterministic Access with TDMA: MAXtream TDMA minimizes airtime contention, increases network efficiency, and improves latency for time-sensitive traffic.
Flexible Operation Modes: Configure as an Access Point, Client, AP Router, or AP Client Router to meet varied network topologies and service models.
Centralized Management: Integrates with centralized management platforms for bulk configuration, monitoring, and firmware updates — streamlining lifecycle operations across large deployments.
Spectrum Analyzer: Built-in tools help identify interference sources, optimize channel selection, and troubleshoot RF issues on-site.
Shielded Ethernet Port: Provides robust grounding and EMI protection for outdoor installations.
Use Cases
Last-mile wireless access for underserved or remote areas
Point-to-multipoint links for small to medium-sized enterprises
Wireless backhaul for camera networks and IoT sensor farms
Temporary event connectivity and rapid-deploy network nodes
Rural schools, clinics, and municipal connectivity projects
Physical and Environmental
Form Factor: Compact, rugged outdoor CPE with integrated directional antenna
Mounting: Pole- or wall-mount compatible hardware included
Operating Temperature: Designed for extended outdoor temperature ranges
Ingress Protection: IPX5 (water jets); verify local requirements for dust ingress if needed
What’s in the Box
2.4 GHz Outdoor CPE with integrated 9 dBi antenna
Passive PoE injector and power adapter
Mounting bracket and hardware
Quick start guide and safety information
Management and Security
Centralized management support for remote provisioning and monitoring
Secure firmware update mechanisms and administrative access controls
Traffic prioritization via TDMA and QoS settings for latency-sensitive services
Ordering and Support Available for enterprise and service-provider deployments. Zorins Technologies provides professional services for site survey, installation support, and ongoing managed services to ensure optimal network performance.
Technical note: Actual range and throughput depend on regulatory limits, environmental conditions, antenna alignment, and network configuration. For guaranteed performance, consult a site survey and planning service.
Product: 5 GHz 300 Mbps 13 dBi Outdoor CPE
Overview A high-performance outdoor Customer Premises Equipment (CPE) engineered for long-range, reliable wireless links. Operating in the 5 GHz band with up to 300 Mbps throughput and a focused 13 dBi antenna, this unit is ideal for point-to-point and point-to-multipoint deployments across challenging outdoor environments.
Key Specifications
Wireless frequency: 5 GHz
Maximum throughput: 300 Mbps
Antenna gain: 13 dBi (integrated directional antenna)
Range: Up to 10+ km (line of sight; actual distance varies with conditions)
Ethernet: 1 × 10/100 Mbps shielded RJ-45 port with Passive PoE support
Weather rating: IPX5 (water-resistant for outdoor use)
Performance & Features
Long-range connectivity: High-gain 13 dBi antenna and optimized RF design deliver stable links beyond 10 km in clear line-of-sight scenarios.
Reliable throughput: Up to 300 Mbps at 5 GHz for high-bandwidth applications such as backhaul, video surveillance, and broadband distribution.
MAXtream TDMA: Time-division multiple access technology reduces latency and increases network efficiency for multi-client networks.
Multi-mode operation: Configurable as AP, Client, AP Router, or AP Client Router to suit a variety of network topologies and deployment needs.
Centralized management: Supports enterprise-style centralized configuration and monitoring for simplified large-scale rollouts and maintenance.
Spectrum Analyzer: Built-in spectrum analysis tools allow for interference detection and channel planning to optimize link performance.
Passive PoE: Single-cable power and data simplifies installation and reduces the need for external power at the mounting location.
Weather-resistant construction: IPX5-rated housing and ruggedized components for reliable outdoor operation in rain and wind.
Typical Applications
Carrier-grade wireless backhaul
Rural and campus broadband distribution
CCTV and remote surveillance links
Last-mile connectivity for residential or commercial sites
Temporary event connectivity and disaster recovery links
Mechanical & Environmental
Mounting: Pole- or mast-mount compatible hardware included
Operating temperature: Designed for a wide outdoor temperature range (check datasheet for exact limits)
Ingress protection: IPX5-rated against water jets; recommended mounting to avoid direct prolonged exposure to severe conditions
Package Contents
Outdoor 5 GHz CPE unit (13 dBi)
Shielded Ethernet cable with passive PoE injector (or PoE adapter)
Mounting kit and hardware
Quick installation guide
Notes & Best Practices
Line-of-sight is critical for achieving maximum range; obstructions and RF interference will reduce effective distance and throughput.
Use the spectrum analyzer during site surveys to select the clearest channel and minimize interference.
For mixed devices or environments requiring Gigabit Ethernet, consider a gigabit-capable CPE; this model provides 10/100 Mbps Ethernet.
Secure installations with proper grounding and surge protection in areas prone to lightning.
For detailed electrical, mechanical, and regulatory specifications, consult the product datasheet and installation manual.
Product Name: 5 GHz 150 Mbps 23 dBi Outdoor CPE
Overview A precision-engineered outdoor CPE designed for long-distance point-to-point and point-to-multipoint wireless links. Operating in the 5 GHz band with up to 150 Mbps throughput and a high-gain 23 dBi directional antenna, this unit delivers reliable connectivity across challenging outdoor environments up to and beyond 30 km (depending on LOS and regulatory limits). Built for service providers and enterprise deployments, it combines robust weatherproof hardware, advanced TDMA scheduling, centralized management, and flexible deployment modes.
Key Specifications
Frequency: 5 GHz
Max Throughput: 150 Mbps
Antenna Gain: 23 dBi directional
Range: 30+ km (line-of-sight, subject to regulatory and environmental conditions)
Ethernet: 1 × 10/100 Mbps Shielded (STP) Ethernet port
Power: Passive PoE (power injector included)
Weatherproofing: IP65-rated enclosure
Operating Modes: AP, Client, AP Router, AP Client Router
Wireless Protocols/Features: MAXtream TDMA for collision-free scheduling, high-efficiency MAC
Management: Centralized management platform support for fleet provisioning, monitoring, and firmware updates
Tools: Built-in Spectrum Analyzer for channel planning and interference diagnosis
Mounting: Pole/wall mounting hardware included
Temperature Range: -40°C to +60°C (industrial-grade)
Certifications: Regulatory approvals per regional standards (confirm local compliance)
Performance Highlights
Stable long-range links: 23 dBi gain and optimized RF front-end support extended-range links with strong receive sensitivity and focused beamwidth for reduced interference.
High-efficiency TDMA: MAXtream TDMA minimizes contention and improves throughput and latency for uplink-heavy scenarios, ideal for multiple-subscriber deployments.
150 Mbps throughput: Sufficient for last-mile access, backhaul for remote sites, surveillance aggregation, and enterprise connectivity where symmetrical gigabit speeds are
Product Name: 5 GHz 150 Mbps 23 dBi Outdoor CPE
Overview A precision-engineered outdoor CPE designed for long-distance point-to-point and point-to-multipoint wireless links. Operating in the 5 GHz band with up to 150 Mbps throughput and a high-gain 23 dBi directional antenna, this unit delivers reliable connectivity across challenging outdoor environments up to and beyond 30 km (depending on LOS and regulatory limits). Built for service providers and enterprise deployments, it combines robust weatherproof hardware, advanced TDMA scheduling, centralized management, and flexible deployment modes.
Key Specifications
Frequency: 5 GHz
Max Throughput: 150 Mbps
Antenna Gain: 23 dBi directional
Range: 30+ km (line-of-sight, subject to regulatory and environmental conditions)
Ethernet: 1 × 10/100 Mbps Shielded (STP) Ethernet port
Power: Passive PoE (power injector included)
Weatherproofing: IP65-rated enclosure
Operating Modes: AP, Client, AP Router, AP Client Router
Wireless Protocols/Features: MAXtream TDMA for collision-free scheduling, high-efficiency MAC
Management: Centralized management platform support for fleet provisioning, monitoring, and firmware updates
Tools: Built-in Spectrum Analyzer for channel planning and interference diagnosis
Mounting: Pole/wall mounting hardware included
Temperature Range: -40°C to +60°C (industrial-grade)
Certifications: Regulatory approvals per regional standards (confirm local compliance)
Performance Highlights
Stable long-range links: 23 dBi gain and optimized RF front-end support extended-range links with strong receive sensitivity and focused beamwidth for reduced interference.
High-efficiency TDMA: MAXtream TDMA minimizes contention and improves throughput and latency for uplink-heavy scenarios, ideal for multiple-subscriber deployments.
150 Mbps throughput: Sufficient for last-mile access, backhaul for remote sites, surveillance aggregation, and enterprise connectivity where symmetrical gigabit speeds are not required.
Deployment & Use Cases
Rural broadband distribution: Reliable last-mile service delivery to remote subscribers across long distances.
Point-to-point backhaul: Cost-effective backhaul between sites where fiber is unavailable.
Video surveillance: Aggregation and backhaul for IP cameras across campuses, industrial sites, and transportation corridors.
Temporary or rapid-deploy links: Quick rollout for events, emergency response, and construction sites.
Management & Diagnostics
Centralized management: Provision, monitor, and maintain large-scale deployments through a unified controller for automated configuration, status dashboards, and remote troubleshooting.
Spectrum Analyzer: Onboard diagnostics let technicians identify interference and select optimal channels during installation or maintenance.
Remote firmware updates: Maintain device security and feature parity across deployments with centralized firmware distribution.
Physical & Installation
Rugged design: IP65-rated enclosure protects against dust and water ingress for reliable outdoor operation.
Compact footprint: Low-profile directional antenna with integrated radio for simplified installation and minimal wind load.
Mounting kit: Includes adjustable pole and wall brackets for flexible positioning and alignment.
Shielded Ethernet: 10/100 Mbps STP port minimizes EMI and supports long PoE feed runs.
Power & Cabling
Passive PoE: Power supplied over Ethernet from included injector; use shielded cable and proper grounding for best performance and lightning protection.
Recommended cabling: Outdoor-rated shielded Cat5e/6 with proper surge protection for exposed installations.
Ordering Information & Options
Standard SKU includes CPE unit, passive PoE injector, shielded Ethernet pigtail, mounting bracket, and quick start guide.
Optional accessories: Surge protector, extended lightning arrestor kit, professional alignment tool.
Regulatory & Safety
Ensure operation complies with local 5 GHz band regulations, including EIRP limits and DFS requirements where applicable.
Follow grounding, lightning protection, and cabling best practices to protect equipment and personnel.
Summary This 5 GHz, 150 Mbps outdoor CPE with 23 dBi antenna delivers a high-performance, weatherproof solution for long-range wireless connectivity. With MAXtream TDMA, centralized management, and built-in spectrum analysis, it is optimized for service providers and enterprises requiring dependable links across demanding outdoor environments.
Product Overview — 5 GHz 300 Mbps 23 dBi Outdoor CPE
Engineered for long-distance wireless backhaul and fixed wireless access, this outdoor CPE delivers reliable, high-throughput connectivity in demanding environments. Operating on the 5 GHz band with a sustained 300 Mbps aggregate throughput and a high-gain 23 dBi directional antenna, it provides point-to-point and point-to-multipoint links at ranges beyond 30 km under optimal conditions.
Key Specifications
Radio: 5 GHz
Throughput: Up to 300 Mbps
Antenna Gain: 23 dBi directional
Range: 30+ km (line-of-sight, environmental conditions dependent)
Ethernet: 1 × 10/100 Mbps shielded Ethernet port
Power: Passive PoE (included)
Weatherproofing: IP65-rated enclosure for outdoor deployment
Performance & Features
Long-range connectivity: High-gain 23 dBi antenna and optimized RF design enable reliable links for rural broadband, ISP last-mile, and long-distance enterprise connectivity.
Efficient spectrum usage: MAXtream TDMA technology reduces airtime contention and improves throughput and latency on multi-client links.
Flexible deployment modes: Configurable as AP, Client, AP Router, or AP Client Router for versatile network topologies.
Centralized management: Supports centralized provisioning and monitoring to simplify large-scale rollouts and ongoing operations.
Advanced diagnostics: Integrated spectrum analyzer for channel planning, interference detection, and on-site troubleshooting.
Robust outdoor design: IP65-rated housing with corrosion-resistant materials and industrial-grade connectors for year-round operation.
Easy installation: Compact, pole-mountable form factor with passive PoE simplifies mounting and reduces cabling complexity.
Typical Use Cases
Rural broadband and carrier backhaul
Wireless ISP last-mile connectivity
Enterprise campus bridging and remote site linking
Surveillance camera backhaul and outdoor sensor networks
Temporary or rapid-deployment connectivity for events or construction sites
Package Includes
5 GHz 300 Mbps Outdoor CPE with 23 dBi antenna
Passive PoE injector and power cord
Mounting bracket and hardware
Quick start guide and regulatory documentation
Operational Notes
Maximum range is highly dependent on line-of-sight, Fresnel zone clearance, environmental conditions, and local regulations. Achievable throughput will vary with signal quality and network load.
The Ethernet port supports 10/100 Mbps; for deployments requiring gigabit uplink, consider network architecture or intermediate switches accordingly.
Compliance with regional spectrum regulations is required; select channels and transmit power within legal limits.
For deployments requiring robust, long-distance wireless links with centralized management and advanced RF tools, this 5 GHz 300 Mbps 23 dBi outdoor CPE provides a balanced combination of gain, throughput, and operational resilience.
5 GHz AC867 23 dBi Outdoor CPE
Overview A high-performance outdoor customer-premises equipment (CPE) engineered for long-range point-to-point and point-to-multipoint wireless links. Delivers 867 Mbps on 5 GHz with a high-gain 23 dBi directional antenna for reliable connectivity over extended distances. Built for harsh environments with IP65 protection and designed for simple deployment using Passive PoE and a single shielded Gigabit Ethernet port.
Key Specifications
Radio: 5 GHz, 802.11ac (AC867)
Throughput: Up to 867 Mbps (5 GHz)
Antenna: Integrated 23 dBi directional antenna
Range: Effective links beyond 30 km (site and conditions dependent)
Ethernet: 1 × Gigabit Shielded Ethernet Port (PoE)
Power: Passive PoE (included or compatible injector required)
Weatherproofing: IP65-rated enclosure for dust and water resistance
Management: Centralized device management support
Additional tools: Built-in spectrum analyzer
Operating Modes: AP, Client, AP Router, AP Client Router
Mounting: Pole and wall-mount ready
Operating Temperature: Designed for wide outdoor temperature ranges (specify per model variant)
Certifications: Regulatory approvals vary by region (confirm before deployment)
Performance and Range The combination of AC867 radio performance and a high-gain 23 dBi antenna optimizes both throughput and link budget for long-distance deployments. Under clear line-of-sight conditions and with proper alignment, stable links exceeding 30 km are achievable for data, voice, and video backhaul. Actual range and throughput depend on environmental factors, Fresnel clearance, interference, and antenna alignment.
Deployment Features
Single-cable installation: Passive PoE powers the unit over the shielded Gigabit Ethernet cable to simplify outdoor installations.
IP65 ruggedization: Sealed enclosure and corrosion-resistant mounting hardware for reliable operation in rain, dust, and wind.
Centralized management: Integrate units into a centralized controller or management platform for bulk provisioning, monitoring, firmware updates, and diagnostics.
Multi-mode flexibility: Configure as Access Point, Client, AP Router, or AP Client Router to suit diverse network topologies.
Spectrum analysis: Onboard spectrum analyzer helps identify interference and select optimal channels before provisioning.
Use Cases
Long-distance wireless backhaul between remote sites
Last-mile connectivity for rural broadband
Link aggregation for surveillance camera networks
Point-to-multipoint subscriber distribution in community or campus networks
Rapid-deploy temporary networks for events or emergency response
Installation Notes
Ensure clear line-of-sight and adequate Fresnel zone clearance for maximum distance and stability.
Use shielded, outdoor-rated Cat5e/Cat6 cable and grounding where required by local codes.
Select power injector or switch compatible with the unit's Passive PoE specification.
Verify regional regulatory compliance for 5 GHz operation and channel availability.
What’s in the Box (typical)
5 GHz AC867 Outdoor CPE (23 dBi)
Passive PoE injector (model-dependent)
Mounting kit for pole/wall
Quick start guide and warranty documentation
Ordering and Support Confirm regional model and firmware for regulatory compliance and channel support. For enterprise deployments, request centralized management setup guidance, link planning assistance, and access to firmware and security updates.
300 Mbps Wall-Plate Wi‑Fi Access Point
Overview A discreet, wall‑mounted access point designed for hospitality, office, classroom, and multi‑dwelling environments. Delivers reliable 2.4 GHz wireless coverage from a standard wall plate form factor while supporting centralized management and PoE deployment.
Key Specifications
Wireless Speed: Up to 300 Mbps (2.4 GHz)
Ports:
Uplink: 1 × 10/100 Mbps RJ45
Downlink: 1 × 10/100 Mbps RJ45 (pass‑through)
Power: 802.3af PoE (powered via uplink)
Antennas: 2 × internal antennas (optimized for wall‑mount coverage)
Mounting: Compatible with EU standard junction box (flush wall‑plate installation)
Management: Centralized management support (for mass deployment and simplified administration)
Advanced Features: Load balance for client distribution and improved network stability
Highlights
Compact, low‑profile design integrates seamlessly into standard EU wall boxes for a professional in‑room or in‑corridor installation.
PoE simplifies installation by eliminating the need for local power outlets and enables centralized power management.
Internal antennas preserve aesthetics while providing stable 2.4 GHz coverage suitable for common client devices.
Load balancing reduces congestion in high‑density deployments by distributing clients across access points.
Centralized management streamlines firmware updates, configuration, monitoring, and bulk provisioning to reduce operational overhead.
Use Cases
Hotels and guest rooms: discreet, reliable Wi‑Fi for guests with simple pass‑through Ethernet for wired devices.
Offices and meeting rooms: consistent coverage without floor‑standing access points, preserving interior design.
Education and multi‑dwelling units: scalable deployments with centralized control and easy maintenance.
Physical & Environmental
Form factor: Single gang wall plate compatible with EU junction box
Antenna type: Internal
Operating temperature and humidity: Designed for standard indoor commercial environments (refer to product datasheet for exact ranges)
Package Contents
Wall‑plate Wi‑Fi Access Point
Mounting hardware compatible with EU junction boxes
Quick installation guide
Management & Security
Centralized management platform (controller or cloud) for configuration, monitoring, and firmware management
Standard wireless security support (WPA/WPA2/WPA3 depending on controller and firmware)
VLAN and guest network support (refer to management platform capabilities)
Ordering & Compliance
Available with region‑specific regulatory compliance for EU installations
802.3af PoE compliant
For complete technical details — including exact dimensions, environmental specifications, firmware features, and management compatibility — consult the product datasheet or contact your Zorins Technologies representative.
300 Mbps Outdoor Wi‑Fi Access Point
Overview A robust, weatherproof solution delivering reliable wireless connectivity in outdoor and harsh environments. Engineered for performance and ease of deployment, this access point provides up to 300 Mbps at 2.4 GHz and a suite of enterprise-grade management features—ideal for campuses, parks, transit hubs, and outdoor venues.
Key Specifications
Port: 1 × 10/100 Mbps RJ45 (supports Passive PoE)
Wireless Speed: Up to 300 Mbps on the 2.4 GHz band
Antennas: 2 × external high‑gain antennas for extended coverage and improved link stability
Weatherproof Rating: IP65, designed to withstand dust and water spray
Power: Passive PoE simplifies outdoor installation with single-cable data and power
Mounting: Flexible mounting hardware included for poles and walls
Features & Benefits
Reliable Outdoor Performance: External antennas and optimized radio design extend coverage and strengthen connections across open areas and challenging environments.
Weather-Resistant Construction: IP65-rated housing protects electronics from dust and rain, ensuring long-term, low-maintenance operation outdoors.
Simplified Installation: Passive PoE enables power-over-cable deployment to rooftop and pole locations without the need for local AC power.
Intelligent Traffic Handling: Load Balance capability distributes client traffic to maintain consistent performance when multiple users connect simultaneously.
Centralized Management: Seamless integration with the Omada SDN Controller provides unified configuration, monitoring, and policy enforcement across all networked access points.
Mobile Management: The Omada App enables intuitive, on-the-go setup and real-time monitoring from a smartphone or tablet.
Ideal Use Cases
Public Wi‑Fi in parks, plazas, and outdoor seating areas
Campus and corporate outdoor connectivity
Transit stops, marinas, and outdoor event spaces
Retail plazas and outdoor hospitality areas
Management & Security
Centralized firmware updates, SSID and policy management through Omada SDN Controller
Quick commissioning and network health visibility via the Omada App
Supports enterprise-grade wireless security standards and guest network segmentation
Physical & Environmental
Durable enclosure engineered for outdoor exposure
Operating temperature range suitable for typical outdoor deployments
Compact form factor to blend into outdoor installations
Why Choose This Access Point Combining outdoor-ready hardware with the power of Omada centralized management, this 300 Mbps outdoor access point offers a sophisticated, scalable solution for organizations seeking dependable wireless coverage beyond indoor walls. Its passive PoE convenience, IP65 protection, and load balancing capabilities make it a practical choice for long-term outdoor deployments.
What’s Included
Outdoor Wi‑Fi Access Point
Mounting bracket and hardware for pole/wall installation
Quick installation guide
For detailed technical specifications, deployment guidance, or to add this device to your Omada-managed network, contact your Zorins Technologies representative.
300 Mbps Ceiling Mount Wi-Fi Access Point
Overview A high-performance ceiling-mount access point engineered for reliable, unobtrusive wireless coverage in offices, retail, hospitality, and education environments. Delivers up to 300 Mbps on the 2.4 GHz band with integrated features for easy deployment, centralized control, and efficient power delivery.
Key Specifications
Wireless Speed: 300 Mbps at 2.4 GHz
Ports: 1 × 10/100 Mbps RJ45 Ethernet port
Power: Passive PoE (power supplied over Ethernet cable)
Antennas: 2 × Internal antennas for clean ceiling installation and consistent coverage
Mounting: Ceiling mount design for optimal, unobtrusive signal distribution
Advanced Features
Centralized Management: Full integration with Omada SDN Controller for single-pane management of multiple APs, policy enforcement, firmware upgrades, and network monitoring.
Mobile Management: Omada App support for on-the-go setup, monitoring, and diagnostics.
Load Balance: Distributes client connections across network resources to prevent overload on a single AP and maintain steady performance during peak usage.
Simple Deployment: Passive PoE simplifies cabling and installation—no local power outlet required at the mount location.
Secure Guest Access: Supports captive portal and guest authentication features through the Omada platform (configurable per-site).
Scalable Architecture: Ideal for small to mid-size deployments and expandable networks managed centrally by the Omada SDN ecosystem.
Physical & Environmental
Concealed internal antennas for a sleek ceiling profile
Durable housing suitable for commercial indoor environments
Typical operating temperature and humidity ranges suitable for standard indoor installations (refer to product datasheet for exact figures)
Use Cases
Office spaces requiring centralized management and predictable coverage
Hotels, restaurants, and retail environments where ceiling-mounted, unobtrusive APs are preferred
Education facilities and conference rooms needing stable client distribution and simplified management
What’s Included
Ceiling-mount Wi-Fi Access Point
Mounting hardware and installation template
Quick installation guide
Note: For optimal performance and feature set, deploy with Omada SDN Controller (hardware or software) and use compatible PoE injector/switch providing the required passive PoE voltage. Consult the product datasheet for regulatory certifications, detailed RF specifications, and complete environmental limits.
300 Mbps Ceiling Mount Wi‑Fi Access Point
Overview A compact, ceiling‑mount access point delivering reliable 300 Mbps wireless connectivity on the 2.4 GHz band. Designed for offices, retail, hospitality, and light‑to‑medium density deployments, this AP combines simple installation, flexible power options, and centralized management for efficient network operations.
Key Specifications
Ports: 1 × 10/100 Mbps RJ45 Ethernet port
Wireless Speed: Up to 300 Mbps on 2.4 GHz
Power: 802.3af PoE or 9V DC input
Antennas: 2 × internal antennas
Management: Centralized management via Omada SDN Controller and Omada App
Mounting: Ceiling mount form factor, low‑profile design
Core Features
Reliable 2.4 GHz Performance: Optimized for long range and solid wall penetration, supporting typical business applications such as web browsing, VoIP, and point‑of‑sale terminals.
Dual Power Options: Supports industry‑standard 802.3af Power over Ethernet for clean, single‑cable installations, with 9V DC as an alternate power source for flexible deployment.
Compact, Discreet Design: Flush ceiling mount and internal antennas provide a low‑visibility installation that preserves interior aesthetics.
Load Balance: Intelligent client distribution balances users across APs to maximize throughput and reduce congestion in multi‑AP environments.
Centralized Management: Seamless provisioning, monitoring, and firmware management via Omada SDN Controller. On‑the-go management and diagnostics available through the Omada App for quick troubleshooting and configuration changes.
Easy Deployment: Single RJ45 port handles both data and PoE power (when using PoE), minimizing cabling and installation time.
Use Cases
Small offices and branch locations requiring dependable wireless for employee devices and IoT sensors.
Retail environments and boutiques where discreet ceiling installation preserves store aesthetics.
Hospitality spaces such as lobbies and meeting rooms where centralized guest access management and simple onboarding are required.
Educational and healthcare areas needing consistent coverage and easy oversight by IT staff.
Benefits
Cost‑effective 2.4 GHz coverage with straightforward installation and power flexibility.
Reduced operational overhead through centralized management and load balancing.
Neat, unobtrusive ceiling presence that integrates with commercial interiors.
Scalable—works with the Omada SDN ecosystem to expand and manage multi‑site deployments.
What’s in the Box
Ceiling Mount Wi‑Fi Access Point
Ceiling mounting bracket and hardware
Quick installation guide
Technical Notes
For best performance in higher density or bandwidth‑intensive environments, consider dual‑band or higher‑capacity AP models.
Ensure PoE switch or injector complies with 802.3af for reliable power delivery.
Centralized features require Omada SDN Controller (software or hardware) for full functionality.
Zorins Technologies — Network Leader in Global Industry.
5GHz AC867 Indoor/Outdoor Access Point
Overview A compact, high-performance access point engineered for flexible deployment in demanding indoor and outdoor environments. Delivers up to 867 Mbps on the 5 GHz band with robust weatherproofing and lightning protection, supporting point-to-point (PTP) and point-to-multipoint (PTMP) topologies. Designed for easy installation and centralized management via Omada SDN Controller or the Omada mobile app.
Key Specifications
Wireless Standard: IEEE 802.11ac Wave 2 (5 GHz)
Radio: Single 5 GHz radio
Maximum Data Rate: 867 Mbps (5 GHz)
Ports: 3 × Gigabit RJ45
Power: 12V DC or 24V Passive PoE
Antennas: 2 × internal high-gain antennas
Bridge Modes: Wireless bridge, PTP and PTMP support
Range: Up to 1 km (line-of-sight, dependent on environment and local regulations)
Auto-Pairing: Quick, automatic link establishment for bridge setups
Management: Omada SDN Controller (on-premises/cloud) and Omada App
Weatherproofing: IP65-rated enclosure for outdoor deployment
Surge Protection: 6 kV lightning protection for outdoor installations
Operating Temperature: Designed for extended temperature ranges (verify model datasheet for exact values)
Dimensions & Weight: See product datasheet for precise measurements
Features and Benefits
High Throughput: 867 Mbps on 5 GHz minimizes latency and supports high-bandwidth applications such as video streaming, VoIP, and real-time data transfer.
Flexible Power Options: Supports 12V DC and 24V Passive PoE for diverse installation scenarios and simplified cabling.
Multi-Port Connectivity: Three Gigabit RJ45 ports enable direct wired connections to local devices or aggregation to uplinks without additional switches.
Reliable Outdoor Operation: IP65-rated housing and 6 kV lightning protection safeguard the unit against harsh weather and electrical surges.
Long-Range Wireless Bridge: Up to 1 km line-of-sight bridging capacity for linking buildings, remote sensors, backhaul connections, or off-site facilities.
Rapid Deployment: Auto-pairing accelerates point-to-point link setup; internal antennas reduce installation complexity and exposure.
Centralized Management: Full configuration, monitoring, and firmware management through Omada SDN Controller or the Omada App—suitable for single-site and multi-site networks.
Scalable Topologies: Supports PTP and PTMP deployments for flexible network design and efficient backhaul distribution.
Typical Use Cases
Building-to-building wireless backhaul
Campus and industrial site connectivity
Surveillance camera backhaul in outdoor environments
Temporary event networks and remote site access
Small branches and retail site connectivity where wall- or pole-mounted outdoor AP is required
Installation Notes
Line-of-sight required for maximum range and throughput; obstructions will reduce distance and speeds.
Use appropriate grounding and surge protection practices in outdoor installations.
Confirm regulatory power limits and channel availability for 5 GHz in your region.
For PoE deployments, ensure compatibility with 24V Passive PoE or provide 12V DC power where Passive PoE is not available.
Package Includes
Access Point unit
Mounting hardware for pole and wall installations
Power adapter (model-dependent) or PoE injector (check included accessories)
Quick installation guide
For full technical details, certification information, and environmental specifications, refer to the product datasheet or contact Zorins Technologies technical sales.
5GHz AC867 Long-range Indoor/Outdoor Access Point
Overview A high-performance, long-range indoor/outdoor access point delivering robust 5 GHz connectivity for demanding broadband and enterprise edge deployments. Engineered for extended coverage and reliable throughput, this model supports advanced wireless features and centralized management for simplified large-scale deployments.
Key Specifications
Radio: 5 GHz, 802.11ac Wave 2
Maximum Data Rate: Up to 867 Mbps at 5 GHz
Ports: 3 × Gigabit RJ45 (supports data and PoE pass-through scenarios)
Power: 12V DC or 24V Passive PoE (power adapter not included)
Antennas: 2 × Internal high-gain antennas optimized for long-range performance
Environmental Rating: Designed for indoor/outdoor use (weather-resistant housing)
Wireless Features
MU-MIMO: Supports multi-user MIMO for simultaneous data streams and improved client efficiency
Beamforming: Enhances signal strength and reliability to individual client devices
Airtime Fairness: Balances access time among clients to prevent slower devices from degrading overall performance
Wireless Bridge & Mesh: Flexible deployment modes for point-to-point bridging and self-healing mesh networks
SSIDs & Security: Multiple SSIDs with enterprise-grade security and authentication options
Management & Integration
Centralized Management: Full integration with Omada SDN Controller for scalable, centralized policy, monitoring, and firmware management
Mobile Management: Configuration and real-time monitoring via Omada App
Scalable Deployment: Suitable for multi-site campus, retail, hospitality, and outdoor perimeter coverage when combined with Omada management
Physical & Installation
Compact, rugged enclosure for indoor and sheltered outdoor mounting
Mounting options: wall, pole, and ceiling adaptors (mounting hardware may vary)
Power options: select 12V DC input or 24V Passive PoE for flexible site power planning (power supply not included)
Use Cases
Long-range coverage for outdoor dining, courtyards, parking perimeters, and connected campuses
Point-to-point or point-to-multipoint wireless backhaul with Wireless Bridge mode
Rapid expansion and resiliency through mesh networking for temporary events or phased rollouts
Enterprise-managed Wi‑Fi for retail, hospitality, education, and branch offices using Omada SDN
What’s Included
Access Point unit
Quick install guide
Basic mounting bracket and screws (verify included hardware for specific SKUs)
What’s Not Included
12V DC power adapter
24V Passive PoE injector (if required for installation)
Advanced mounting accessories (sold separately depending on site requirements)
Ordering Notes Confirm required power method (12V DC vs. 24V Passive PoE) and mounting accessories before deployment. For centralized management across multiple sites, pair with Omada SDN Controller hardware or the Omada Software Controller.
Compliance and Safety Compliant with applicable wireless and safety regulations for supported regions. Verify local regulatory requirements for outdoor wireless installations prior to use.
For deployment planning assistance, capacity guidance, and accessories, consult your Zorins Technologies network specialist.
AC1200 Wall-Plate Dual-Band Wi‑Fi Access Point
Overview Compact, discreet, and engineered for professional-grade in-wall deployments, the AC1200 Wall-Plate Dual-Band Wi‑Fi Access Point brings high-performance wireless to office suites, hotel rooms, classrooms, and residential retrofit projects where space and aesthetics matter. Designed to mount into a standard EU junction box, it replaces a traditional wall plate with a powerful, centrally managed access point that blends into the room environment.
Key Specifications
Ports: 2 × Gigabit RJ45 (LAN/WAN or LAN/LAN)
Wireless Speed: Up to 300 Mbps on 2.4 GHz + up to 867 Mbps on 5 GHz (AC1200)
Power: 802.3af PoE support for clean, single-cable installation
Antennas: 2 × internal antennas for a low-profile appearance
Dimensions: 86.8 × 86.8 × 30.2 mm
Mounting: Compatible with EU standard junction box
Performance & Features
Dual‑Band AC Performance: Simultaneous 2.4 GHz and 5 GHz radios deliver reliable connectivity for a mix of legacy and high-bandwidth clients.
MU‑MIMO: Improves multi-client efficiency by serving multiple devices concurrently, reducing latency in busy environments.
Band Steering: Automatically guides dual-band capable clients to the less congested 5 GHz band for better throughput.
Beamforming: Focuses signal toward client devices for improved range and stability compared with conventional omnidirectional broadcast.
Load Balance: Distributes client associations across radios and devices to prevent resource overload on a single AP.
Rate Limit & Wireless Schedule: Apply per-SSID throughput limits and time-based access windows to align network behavior with policy and operational hours.
Centralized Management: Full compatibility with Omada SDN Controller and Omada App for unified provisioning, monitoring, and analytics across distributed sites. Supports zero-touch deployment and profile-based configuration.
Deployment Advantages
Discreet Integration: Internal antennas and wall-plate form factor keep the device unobtrusive while delivering enterprise-class features.
Simplified Cabling: Gigabit ports plus 802.3af PoE support enable single-cable power and data, suitable for retrofit and new-build applications.
Flexible Port Use: Dual RJ45 ports allow uplink and pass-through or additional wired client connectivity at the wall plate.
Use Cases
Hotels and serviced apartments: Deliver room-level Wi‑Fi with centralized management and per-room traffic control.
Offices and meeting rooms: Provide dedicated wireless and wired connectivity at workstation clusters without ceiling APs.
Classrooms and training centers: Control schedules and bandwidth to support lesson plans and content delivery.
What’s in the Box
AC1200 Wall-Plate Dual-Band Wi‑Fi Access Point
Wall-plate mounting hardware compatible with EU junction boxes
Quick installation guide
Complementary Products
Omada SDN Controller (hardware or software) for multi-site management
PoE switches delivering 802.3af power for simplified deployments
The AC1200 wall-plate AP is purpose-built for environments that demand tidy aesthetics without compromising the advanced features expected in modern enterprise Wi‑Fi deployments.
AC1200 Wall-Plate Dual-Band Wi-Fi Access Point
Overview A slim, wall-plate Wi‑Fi access point engineered for seamless integration into residences, offices, hotels, and classrooms. Delivers simultaneous dual-band performance with centralized PoE power and passthrough for downstream devices. Designed to mount directly over standard EU and US junction boxes for a clean, professional installation.
Key Specifications
Wireless speeds: 300 Mbps (2.4 GHz) + 867 Mbps (5 GHz) — AC1200 class
Ports:
Uplink: 1 × Gigabit RJ45 (PoE input)
Downlink: 3 × Gigabit RJ45 (LAN, with PoE passthrough capability)
Power over Ethernet: 802.3at/af compatible (PoE input)
PoE Passthrough: Supports powering one downstream device via passthrough
Mounting: Compatible with EU & US standard junction boxes (single-gang)
Antennas: Internal high-gain antennas for discreet, wall-mounted coverage
LEDs: Discreet status indicators for power, uplink, and wireless activity
Security: WPA3/WPA2 encryption, guest network isolation, VLAN support
Management: Standalone web UI and support for centralized controller/cloud management (model-dependent)
Hardware: Durable ABS faceplate with low-profile aesthetic, tamper-resistant mounting screws
Environmental: Operating temperature 0°C to 40°C; humidity 10%–90% non-condensing
Dimensions & Weight: Slim form factor designed to match standard wall plates (specifics vary by SKU)
Features & Benefits
Clean, integrated deployment: Installs directly into existing EU and US junction boxes for a professional, low-visibility Wi‑Fi endpoint.
Dual-band performance: Simultaneous 2.4 GHz and 5 GHz radios optimize throughput and device compatibility.
Gigabit backbone: Uplink and three LAN downlinks provide full Gigabit connectivity for high-bandwidth devices.
PoE convenience: 802.3at/af compatibility simplifies installation—power and data over a single cable. PoE passthrough enables powering VoIP phones, cameras, or other edge devices.
Flexible network design: VLAN and guest isolation features support secure multi-tenant and hospitality environments.
Easy management: Configure locally via web UI or integrate with centralized management platforms for large-scale deployments.
Typical Use Cases
Hospitality: Discreet room-level Wi‑Fi with secure guest networks and PoE for IP phones or set-top boxes.
Enterprise/Office: Wall-mounted access in meeting rooms, corridors, and cubicle clusters where ceiling access is limited.
Education: Classroom and dormitory coverage with straightforward deployment and network segmentation.
Residential: Upscale home networking with professional appearance and wired connections for smart devices.
Package Contents
AC1200 Wall-Plate Dual-Band Wi‑Fi Access Point
Mounting bracket and screws (EU & US box compatible)
Quick installation guide
Warranty card
Regulatory & Compliance Meets regional safety and wireless regulatory requirements. Model variants available for specific regional certifications.
Ordering Notes Select SKU based on required management option (standalone vs. controller/cloud-managed) and regional power/certification requirements. Contact your network solutions provider for bulk pricing and firmware customization.
Zorins Technologies — Network Leader in Global Industry.
AC1200 Indoor/Outdoor Dual-Band Wi‑Fi Access Point
Overview A compact, high-performance AC1200 access point engineered for versatile deployment—indoors, outdoors, and in mixed environments. Delivers reliable dual-band connectivity (300 Mbps at 2.4 GHz + 867 Mbps at 5 GHz) through a single Gigabit RJ45 port with flexible power options and robust weatherproofing.
Key Specifications
Port: 1 × Gigabit RJ45 (10/100/1000 Mbps)
Wireless Speed: 300 Mbps (2.4 GHz) + 867 Mbps (5 GHz) — total AC1200
Power: 802.3af Power over Ethernet (PoE) and Passive PoE support
Antennas: 2 × External high-gain antennas
Ingress Protection: IP65 weatherproof rating
Advanced Features: Mesh networking, seamless roaming (802.11k/v), MU‑MIMO, band steering, beamforming
Product Highlights
Dual-band performance: Simultaneous 2.4 GHz and 5 GHz radios ensure broad device compatibility and reduced interference for smoother streaming, VoIP, and web services.
Gigabit uplink: Single Gigabit RJ45 port provides full-speed wired backhaul for high-throughput environments and uplink aggregation.
Flexible power options: Supports both standard 802.3af PoE for simplified installation and Passive PoE for compatibility with legacy PoE injectors.
Outdoor-ready design: IP65-rated housing resists dust and water spray, enabling deployment on facades, eaves, patios, and transitional indoor/outdoor spaces.
Extended coverage: Two external high-gain antennas and beamforming concentrate signal strength where devices need it most, enhancing range and stability.
Scalable mesh: Mesh networking capability simplifies extension of coverage without complex cabling—nodes self-heal and automatically optimize topology.
Seamless roaming: 802.11k/v support and band steering enable smooth handoffs for mobile users moving across access points, minimizing interruptions for real-time applications.
Multi-user efficiency: MU‑MIMO allows simultaneous transmission to multiple clients, improving overall network throughput in dense client scenarios.
Use Cases
Hospitality: Reliable outdoor and indoor coverage for patios, courtyards, pool areas, and guest rooms.
Campus & Education: Extend campus Wi‑Fi to building exteriors, walkways, and outdoor study areas while maintaining seamless roaming between indoor APs.
Retail & Venues: Provide consistent coverage across storefronts, outdoor seating, and transitional spaces, supporting PoS systems and customer devices.
Enterprise & Branch: Cost-effective way to broaden network footprint without compromising performance or manageability.
Installation & Management
Mounting: Designed for wall and pole mounting with included hardware for quick, secure installation.
Power & Cabling: Single Ethernet cable can carry both data and power when using PoE; Passive PoE option for environments with specific injector requirements.
Management
AC1200 Indoor/Outdoor Dual-Band Wi‑Fi Access Point
Overview A compact, high-performance AC1200 access point engineered for versatile deployment—indoors, outdoors, and in mixed environments. Delivers reliable dual-band connectivity (300 Mbps at 2.4 GHz + 867 Mbps at 5 GHz) through a single Gigabit RJ45 port with flexible power options and robust weatherproofing.
Key Specifications
Port: 1 × Gigabit RJ45 (10/100/1000 Mbps)
Wireless Speed: 300 Mbps (2.4 GHz) + 867 Mbps (5 GHz) — total AC1200
Power: 802.3af Power over Ethernet (PoE) and Passive PoE support
Antennas: 2 × External high-gain antennas
Ingress Protection: IP65 weatherproof rating
Advanced Features: Mesh networking, seamless roaming (802.11k/v), MU‑MIMO, band steering, beamforming
Product Highlights
Dual-band performance: Simultaneous 2.4 GHz and 5 GHz radios ensure broad device compatibility and reduced interference for smoother streaming, VoIP, and web services.
Gigabit uplink: Single Gigabit RJ45 port provides full-speed wired backhaul for high-throughput environments and uplink aggregation.
Flexible power options: Supports both standard 802.3af PoE for simplified installation and Passive PoE for compatibility with legacy PoE injectors.
Outdoor-ready design: IP65-rated housing resists dust and water spray, enabling deployment on facades, eaves, patios, and transitional indoor/outdoor spaces.
Extended coverage: Two external high-gain antennas and beamforming concentrate signal strength where devices need it most, enhancing range and stability.
Scalable mesh: Mesh networking capability simplifies extension of coverage without complex cabling—nodes self-heal and automatically optimize topology.
Seamless roaming: 802.11k/v support and band steering enable smooth handoffs for mobile users moving across access points, minimizing interruptions for real-time applications.
Multi-user efficiency: MU‑MIMO allows simultaneous transmission to multiple clients, improving overall network throughput in dense client scenarios.
Use Cases
Hospitality: Reliable outdoor and indoor coverage for patios, courtyards, pool areas, and guest rooms.
Campus & Education: Extend campus Wi‑Fi to building exteriors, walkways, and outdoor study areas while maintaining seamless roaming between indoor APs.
Retail & Venues: Provide consistent coverage across storefronts, outdoor seating, and transitional spaces, supporting PoS systems and customer devices.
Enterprise & Branch: Cost-effective way to broaden network footprint without compromising performance or manageability.
Installation & Management
Mounting: Designed for wall and pole mounting with included hardware for quick, secure installation.
Power & Cabling: Single Ethernet cable can carry both data and power when using PoE; Passive PoE option for environments with specific injector requirements.
Management: Compatible with centralized controller platforms or standalone operation (depending on model/firmware). Supports remote provisioning and firmware updates for simplified fleet management.
Technical Notes
Actual throughput and range vary with environmental conditions, client capabilities, and RF interference.
For high-density deployments, plan channel allocation and power settings to minimize co-channel interference.
Ensure PoE injector/switch supports 802.3af for standard PoE; use compatible Passive PoE injectors where required.
What’s in the Box
AC1200 Indoor/Outdoor Dual-Band Access Point
2 × External antennas
Mounting kit (wall and pole brackets)
Quick installation guide
Passive PoE injector (model-dependent)
Ordering Information Available in single-unit and bulk enterprise SKUs. Contact your Zorins Technologies sales representative for volume pricing, warranty options, and controller compatibility.
AC1350 Ceiling Mount Dual-Band Wi‑Fi Access Point
Overview A high-performance ceiling-mount access point engineered for dense indoor environments. Delivers combined speeds up to 1.317 Gbps with dual-band radios, advanced multi-user features, and flexible power options — ideal for offices, schools, hospitality, and retail spaces seeking reliable, centrally managed wireless coverage.
Key Specifications
Port: 1 × Gigabit RJ45 (10/100/1000)
Wireless Speed: 450 Mbps (2.4 GHz) + 867 Mbps (5 GHz), total 1.317 Gbps
Antennas: 3 × internal antennas
Power: 802.3af PoE and Passive PoE supported (power adapter not included)
Mounting: Ceiling mount form factor
Performance & Wireless Features
Dual‑band concurrent operation for better device distribution and throughput
MU‑MIMO: Simultaneous data streams to multiple clients for improved network efficiency
Beamforming: Focused signal delivery for extended range and stronger client links
Band Steering: Encourages dual-band capable clients onto 5 GHz to reduce congestion on 2.4 GHz
Airtime Fairness: Prevents slow clients from degrading overall network performance
Load Balance: Distributes client connections across APs to avoid congestion
Seamless Roaming: Fast, uninterrupted client handoff between APs for voice and real‑time applications
Mesh: Wireless mesh capability for flexible deployment where cabling is limited
Management & Integration
Centralized management via Omada SDN Controller for scalable, unified network control
Local and cloud management options through the Omada App for on‑the‑go monitoring and configuration
Profiles, bulk provisioning, and centralized firmware updates to simplify large deployments
Deployment Scenarios
Offices: High device density, VoIP, and collaboration tools with seamless roaming
Education: Classrooms and corridors requiring consistent coverage and centralized policy control
Hospitality & Retail: Guest access, captive portals, and secure segmentation for staff and customers
Light industrial & public spaces: Robust throughput and mesh options for hard‑to‑wire areas
Physical & Environmental
Compact, discreet ceiling design with low-profile aesthetics
Typical operating temperature and humidity ranges suitable for indoor installations (refer to datasheet for precise ratings)
Package Notes
Power adapter is not included. Use 802.3af PoE switch or compatible passive PoE injector as required.
For optimal performance and coverage, plan AP placement and channel/power settings using site survey best practices.
What’s Included
AC1350 Ceiling Mount AP unit
Ceiling mount bracket and installation accessories
Quick installation guide
Ordering & Support Contact your Zorins Technologies representative for pricing, volume licensing, and enterprise deployment support. For technical documentation, compatibility matrices, and advanced configuration guides, consult the Omada SDN resources or the product datasheet.
AC1350 Ceiling Mount Dual-Band Wi‑Fi Access Point
Overview A refined ceiling‑mount access point engineered for enterprise and hospitality environments where reliable, high‑density wireless coverage and discreet installation are required. The AC1350 delivers simultaneous dual‑band performance, advanced RF features, and flexible power options to support seamless connectivity across public and private networks.
Key Specifications
Ports: 1 × Gigabit RJ45 Ethernet
Wireless Speed: Up to 450 Mbps (2.4 GHz) + 867 Mbps (5 GHz) — combined AC1350
Antennas: 3 × internal antennas for clean aesthetics and optimized coverage
Power: Supports 802.3af PoE and Passive PoE for flexible deployment
Mounting: Ceiling‑mount form factor designed for drop ceilings and hard surfaces
Performance & Wireless Features
Dual‑Band Concurrent Operation: Maintain client capacity and throughput by serving devices on both 2.4 GHz and 5 GHz bands simultaneously.
MU‑MIMO: Multi‑user MIMO improves spectral efficiency by serving multiple compatible clients at once, reducing air‑time contention in dense deployments.
Beamforming: Focuses signal energy toward active clients to extend range and improve link stability.
Band Steering: Encourages dual‑band clients to connect to the less congested 5 GHz band for higher throughput and reduced interference.
Mesh Networking: Supports wireless backhaul between APs to extend coverage without running additional cabling. Mesh self‑heals to maintain connectivity if a link fails.
Seamless Roaming: Fast roaming ensures minimal interruption as clients move across coverage areas; ideal for VoIP, video conferencing, and mobile applications.
Load Balancing: Distributes client associations across APs to avoid oversubscription and maintain consistent performance under heavy load.
Security & Management
Role‑based SSIDs and guest isolation options support segmented access for staff and visitors.
WPA2/WPA3 support for modern encryption (depending on firmware), with RADIUS authentication compatibility for enterprise deployments.
Centralized management capable — compatible with on‑premises controllers or cloud management platforms for provisioning, monitoring, and firmware updates.
LED indicators and web/GUI access for on‑site troubleshooting.
Physical & Environmental
Discreet, low‑profile design suitable for hotels, offices, classrooms, retail, and public venues.
Operating temperature and humidity ranges engineered for indoor commercial environments (refer to product datasheet for exact values).
Mounting hardware included for standard ceiling installations.
Use Cases
Office campuses requiring uniform coverage with secure segmented networks for guests and employees.
Hospitality settings where aesthetics and easy provisioning are critical.
Retail and public spaces that need high client density support and mesh‑based coverage extension.
Education environments demanding seamless roaming for mobile learning and VoIP communications.
What’s in the Box
AC1350 Ceiling Mount Dual‑Band Wi‑Fi Access Point
Ceiling mounting kit and hardware
Quick installation guide
Ordering & Support
Model: AC1350
Optional accessories: PoE injector (if 802.3af switch not available), mounting extension kits
Warranty and enterprise support options available through Zorins Technologies network solutions
For exact regulatory specifications, per‑model certifications, and detailed deployment recommendations, consult the product datasheet or contact Zorins Technologies sales and technical support.
AC1750 Ceiling Mount Dual-Band Wi‑Fi Access Point
Overview A refined ceiling‑mount access point engineered for enterprise and high‑density environments. The AC1750 delivers reliable dual‑band performance, advanced RF intelligence, and flexible power options to provide consistent, high‑capacity wireless coverage across offices, hospitality, retail, and education facilities.
Key Specifications
Ports: 2 × Gigabit RJ45 (LAN + PoE passthrough)
Wireless Speed: Up to 450 Mbps on 2.4 GHz + up to 1300 Mbps on 5 GHz (AC1750 aggregate)
Power: 802.3af PoE and Passive PoE support
Antennas: 3 × internal antennas (optimized for ceiling deployment)
Performance & Features
MU‑MIMO: Simultaneous multi‑client data streaming increases overall throughput and improves performance for modern devices.
Beamforming: Focuses RF energy toward connected clients for stronger signals and extended range.
Band Steering: Automatically encourages dual‑band capable devices to connect to the less congested 5 GHz band, maximizing capacity.
Seamless Roaming: Fast roaming with minimal packet loss and session interruption for voice, video, and real‑time apps across access points.
Load Balancing: Distributes client associations to prevent overload on a single radio, ensuring consistent performance across the network.
PoE Flexibility: Compatible with standard 802.3af PoE switches and legacy passive PoE injectors for simple, cost‑effective installations.
Ceiling‑Optimized Antenna Design: Internal antennas tuned for unobtrusive ceiling placement while delivering uniform coverage and reduced interference.
Deployment Benefits
Simplified Install: Ceiling mount form factor with dual‑port passthrough reduces cabling complexity and supports daisy‑chain topologies for efficient infrastructure layouts.
Scalable Coverage: Designed for deployment in multi‑unit and high‑density scenarios where predictable performance and seamless client mobility are required.
Managed or Standalone: Suitable for centralized controller environments or as a standalone managed AP depending on site requirements.
Ideal Use Cases
Corporate offices and coworking spaces
Hotels and hospitality venues
Retail stores and shopping centers
Classrooms and lecture halls
Conference rooms and public spaces
What’s Included
AC1750 Ceiling Mount Dual‑Band Wi‑Fi Access Point
Mounting kit for standard ceiling tile and solid ceilings
Quick start guide
Ordering Information Model: AC1750‑CM Contact your Zorins Technologies representative for volume pricing, support options, and advanced management features.
AC1750 Ceiling Mount Dual-Band Wi‑Fi Access Point
Overview A refined solution for high-density environments, the AC1750 Ceiling Mount Access Point delivers reliable, high-performance wireless connectivity where it matters most. Engineered for enterprise-grade deployments, it combines dual-band speed, robust client capacity, and flexible power options in a discreet ceiling-mount form factor.
Key Specifications
Ports: 2 × Gigabit RJ45
Wireless Speed: 450 Mbps (2.4 GHz) + 1300 Mbps (5 GHz) — total AC1750 throughput
Antennas: 3 × Internal antennas
Power: 802.3af PoE and 48V/0.5A passive PoE supported
Client Capacity: High-density support for 500+ concurrent clients
Advanced Features: MU‑MIMO, seamless roaming
Performance Highlights
Dual‑band operation balances compatibility and capacity: 2.4 GHz for broad device support and superior range; 5 GHz for high-throughput connections and reduced interference.
MU‑MIMO increases simultaneous client throughput, reducing latency and improving performance in crowded spaces.
Designed to sustain 500+ concurrent clients with efficient airtime management and traffic handling—ideal for conference centers, classrooms, offices, hospitality, and retail.
Deployment & Power Flexibility
Dual Gigabit Ethernet ports enable uplink redundancy, link aggregation, or network segmentation.
Supports 802.3af PoE for easy integration into existing PoE infrastructures, plus 48V/0.5A passive PoE for legacy systems or alternative power schemes.
Ceiling-mount design and internal antennas provide a clean, unobtrusive installation while maintaining consistent coverage patterns.
User Experience
Seamless roaming allows users to move throughout the coverage area without dropped sessions, supporting VoIP, video conferencing, and real-time applications.
Optimized for mixed-device environments—smartphones, tablets, laptops, IoT sensors, and more—ensuring smooth connectivity under heavy load.
Management & Security
Centralized management compatibility simplifies firmware updates, configuration, and monitoring across multiple APs.
Enterprise-grade security features protect network access and data while supporting guest access and VLAN segmentation for tenant or departmental isolation.
Use Cases
Large conference rooms and expo halls requiring dense client support
Education campuses, lecture halls, and libraries with high device concentration
Hotels, restaurants, and retail locations needing uniform guest Wi‑Fi
Corporate offices seeking reliable roaming and segmented network services
Physical & Environmental
Low-profile ceiling form factor with robust mounting hardware
Internal antennas for a sleek aesthetic
Built to operate in standard commercial indoor environments
The AC1750 Ceiling Mount Dual‑Band Wi‑Fi Access Point delivers enterprise-capable performance, flexible power options, and elegant installation—engineered to support demanding, high-density wireless deployments with sophistication and reliability.
Omada AX1800 Wall-Plate Dual-Band Wi‑Fi 6 GPON Access Point
Overview A purpose-built wall-plate access point that integrates GPON uplink and Wi‑Fi 6 performance into a low-profile, electrician-friendly form factor. Designed for hospitality, multi‑dwelling units, corporate guest rooms, and premium residential deployments where aesthetic integration, wired backhaul, and centralized management are required.
Key Specifications
Ports: 1× SC/UPC GPON + 2× 1G RJ45 + 1× RJ11 (phone)
Wireless Speed: Up to 574 Mbps (2.4 GHz) + 1201 Mbps (5 GHz) — AX1800 class
Radio/Antennas: Dual‑band Wi‑Fi 6 with 4 internal antennas
Power: AC power (wall‑plate powered)
Standards: 802.11ax (Wi‑Fi 6), backward compatible with 802.11a/b/g/n/ac
Performance & Wireless Features
MU‑MIMO: Simultaneous multi‑client throughput to reduce latency and increase aggregate capacity.
80 MHz channel support: Higher throughput on compatible 5 GHz clients.
Beamforming: Improved link reliability and range by directing RF energy toward connected devices.
Band Steering: Automatically nudges capable clients to the less congested 5 GHz band for optimal performance.
Airtime Fairness & Load Balancing: Prevents slower devices from monopolizing airtime and balances client load across radios and APs.
Seamless Roaming: Fast roaming for uninterrupted voice and video sessions across multiple APs.
Management & Integration
Centralized Management: Full lifecycle control via Omada SDN Controller — provisioning, monitoring, policy enforcement, firmware updates, and analytics from a single pane of glass.
Omada App: Mobile setup, real‑time status, and basic configuration for on‑the‑go administration.
GPON Integration: Direct GPON uplink simplifies deployment where fiber to the room is available; supports service-provider friendly topologies.
Physical & Deployment Notes
Wall‑plate form factor for flush mounting in guest rooms or apartments; preserves room aesthetics while delivering enterprise features.
RJ11 port for analog voice integration where required.
AC-powered design avoids dependency on PoE infrastructure; suitable for retrofits in existing electrical backboxes.
Use Cases
Hotels and serviced apartments: High-density coverage in every room with centralized policy enforcement and seamless guest roaming.
Multi‑dwelling units (MDU): Fiber-fed apartments with in-unit Wi‑Fi 6 performance and voice passthrough.
Corporate offices and meeting rooms: Discreet, high-performance connectivity with centralized IT control.
Why Choose the Omada AX1800 Wall‑Plate AP
Combines GPON flexibility with Wi‑Fi 6 efficiency in a discreet wall‑mounted package.
Enterprise-grade wireless features (MU‑MIMO, beamforming, airtime fairness) for consistent user experience.
Centralized Omada SDN management reduces operational overhead and accelerates deployments.
Ideal for environments that demand both design-conscious hardware and carrier-grade connectivity.
What’s in the Box (typical)
Omada AX1800 Wall‑Plate AP
Mounting hardware and faceplate
Quick installation guide
Safety and regulatory documentation
Ordering & Support Contact your Zorins Technologies representative for SKUs, warranty options, and professional installation services. Technical support and firmware updates are available through the Omada support channels and our enterprise services team.
Omada AX1800 Desktop Dual-Band Wi‑Fi 6 GPON Access Point
Overview A compact, high-performance GPON access point designed for fiber-based deployments and advanced home/SMB wireless environments. Combines GPON ONT functionality with Wi‑Fi 6 throughput and Omada SDN centralized management for simple deployment and scalable network control.
Key Specifications
Ports:
1 × SC/UPC GPON
4 × 1G RJ45 (one port supports PoE Out)
1 × RJ11 (voice)
Wireless Speed:
2.4 GHz: up to 574 Mbps
5 GHz: up to 1201 Mbps
Total theoretical AX1800 throughput
Radio & Antennas:
Dual‑band Wi‑Fi 6 (802.11ax)
4 × internal antennas
MU‑MIMO, Beamforming
80 MHz channel support
Power:
53.5 V DC (power adapter included)
PoE Out on one LAN port for powering downstream device
Performance & QoS:
Seamless roaming
Band steering
Load balancing
Airtime fairness
Management:
Centralized management via Omada SDN Controller
Mobile management with the Omada App
Form factor:
Desktop design for flexible placement in customer premises
Capabilities & Benefits
Integrated GPON ONT and Wi‑Fi 6 AP: Streamline fiber deployments by combining optical network termination with high-speed wireless access in a single desktop unit.
Improved capacity and efficiency: Wi‑Fi 6 features (MU‑MIMO, 80 MHz channels, OFDMA effects) increase client density handling and reduce latency for modern applications.
Reliable coverage: Beamforming and internal antennas deliver stable connections across typical home or small office layouts.
Smooth mobility: Seamless roaming and band steering keep devices connected to the best available radio band and access point without interruption.
Flexible power options: Standard DC adapter included; one Gigabit LAN port can supply PoE power to downstream devices.
Centralized, scalable management: Manage single or multiple devices through Omada SDN Controller or on the go with the Omada App—ideal for multi‑site rollouts and consistent policy enforcement.
Use Cases
Fiber-to-the-Home (FTTH) residences requiring integrated GPON termination plus robust Wi‑Fi 6 coverage.
Small offices and branch sites where simplified wiring and centralized management ease deployment and maintenance.
Hospitality or multi‑dwelling environments where voice (RJ11) and downstream PoE simplify peripheral connectivity.
What’s Included
Omada AX1800 Desktop Dual‑Band Wi‑Fi 6 GPON Access Point
53.5 V DC power adapter
Documentation and quick start guide
Compliance & Notes
Actual throughput and coverage depend on environment, client capabilities, and network configuration.
For best performance in dense deployments, use Omada SDN Controller to optimize channel planning, power settings, and load balancing.
For professional installations, consult network design guidance to ensure appropriate GPON profiles and VLAN/voice settings are configured on the service provider and controller side.
AX1800 Wall-Plate Dual-Band Wi‑Fi 6 Access Point
Overview A sleek, high-performance wall-plate access point engineered for deployments that demand discreet installation and robust wireless capacity. Ideal for hotels, offices, multi-dwelling units, classrooms, and conference spaces where on-wall mounting into standard junction boxes is required. Delivers the efficiency and range benefits of Wi‑Fi 6 while supporting Power over Ethernet for flexible installation.
Key Specifications
Wireless standard: IEEE 802.11ax (Wi‑Fi 6), backward compatible with 802.11ac/n/a/b/g
Radio configuration: Dual-band concurrent
2.4 GHz: up to 574 Mbps
5 GHz: up to 1201 Mbps
Total combined: AX1800 class performance
Ethernet ports:
Uplink: 1 × Gigabit RJ45 (supports 802.3at/af PoE input)
Downlink: 3 × Gigabit RJ45 (PoE Passthrough capable)
PoE support:
802.3at/af powered device input (PSE required upstream)
PoE Passthrough on one or more downlink ports for powering downstream devices (check model variant for passthrough port count and power budget)
Physical compatibility: Fits EU and US standard junction boxes and single-gang wall cavities; low-profile faceplate finish
Antennas: Internal high-efficiency antennas for clean aesthetics and consistent coverage
Security: WPA3, WPA2, 802.1X authentication support
Management: Local web UI and centralized controller/cloud-management options (model-dependent)
Quality of Service: WMM, OFDMA, MU‑MIMO (uplink/downlink), airtime fairness
Advanced features: Band
AX1800 Wall-Plate Dual-Band Wi‑Fi 6 Access Point
Overview A sleek, high-performance wall-plate access point engineered for deployments that demand discreet installation and robust wireless capacity. Ideal for hotels, offices, multi-dwelling units, classrooms, and conference spaces where on-wall mounting into standard junction boxes is required. Delivers the efficiency and range benefits of Wi‑Fi 6 while supporting Power over Ethernet for flexible installation.
Key Specifications
Wireless standard: IEEE 802.11ax (Wi‑Fi 6), backward compatible with 802.11ac/n/a/b/g
Radio configuration: Dual-band concurrent
2.4 GHz: up to 574 Mbps
5 GHz: up to 1201 Mbps
Total combined: AX1800 class performance
Ethernet ports:
Uplink: 1 × Gigabit RJ45 (supports 802.3at/af PoE input)
Downlink: 3 × Gigabit RJ45 (PoE Passthrough capable)
PoE support:
802.3at/af powered device input (PSE required upstream)
PoE Passthrough on one or more downlink ports for powering downstream devices (check model variant for passthrough port count and power budget)
Physical compatibility: Fits EU and US standard junction boxes and single-gang wall cavities; low-profile faceplate finish
Antennas: Internal high-efficiency antennas for clean aesthetics and consistent coverage
Security: WPA3, WPA2, 802.1X authentication support
Management: Local web UI and centralized controller/cloud-management options (model-dependent)
Quality of Service: WMM, OFDMA, MU‑MIMO (uplink/downlink), airtime fairness
Advanced features: Band steering, client steering, guest network, SSID VLAN tagging, airtime scheduling
Power consumption
FortiSwitch Secure Access switches deliver a secure, simple, scalable Ethernet solution built for threat-conscious small-to-midsized businesses, distributed enterprises, and branch offices. Engineered for outstanding security, performance, and manageability, FortiSwitch integrates tightly with the FortiGate® Network Security Platform so network teams can manage switching from the familiar FortiGate interface.
Key benefits
End-to-end security: Policy enforcement, access control, and segmentation are extended to the access layer, reducing attack surface and simplifying compliance.
Unified management: Single-pane-of-glass administration via FortiGate cuts operational complexity, accelerates provisioning, and centralizes logging and monitoring.
High performance: Purpose-built hardware delivers reliable low-latency switching, robust throughput, and deterministic behavior for critical applications and voice/video traffic.
Scalable architecture: Modular port densities and stacking options support growth from small sites to multi-branch deployments without redesign.
Simplified operations: Automated workflows, zero-touch provisioning, and consistent policy propagation minimize manual tasks and reduce human error.
Flexible deployment: Suitable for access, distribution, and small core roles with models offering PoE, SFP/SFP+ uplinks, and enhanced resiliency features.
Security features
Role-based access control and 802.1X authentication for secure user and device onboarding
Dynamic VLAN assignment and network segmentation enforced at the switch
Integration with FortiGate’s threat intelligence for coordinated response and automated mitigation
Access control lists, DHCP snooping, ARP inspection, and storm control to protect against common layer-2 threats
Management & visibility
Native FortiGate-driven management with consolidated policy and event correlation
Centralized firmware and configuration management, with support for zero-touch provisioning
Detailed flow and device telemetry for faster troubleshooting and capacity planning
Use
FortiSwitch Secure Access switches deliver a secure, simple, scalable Ethernet solution built for threat-conscious small-to-midsized businesses, distributed enterprises, and branch offices. Engineered for outstanding security, performance, and manageability, FortiSwitch integrates tightly with the FortiGate® Network Security Platform so network teams can manage switching from the familiar FortiGate interface.
Key benefits
End-to-end security: Policy enforcement, access control, and segmentation are extended to the access layer, reducing attack surface and simplifying compliance.
Unified management: Single-pane-of-glass administration via FortiGate cuts operational complexity, accelerates provisioning, and centralizes logging and monitoring.
High performance: Purpose-built hardware delivers reliable low-latency switching, robust throughput, and deterministic behavior for critical applications and voice/video traffic.
Scalable architecture: Modular port densities and stacking options support growth from small sites to multi-branch deployments without redesign.
Simplified operations: Automated workflows, zero-touch provisioning, and consistent policy propagation minimize manual tasks and reduce human error.
Flexible deployment: Suitable for access, distribution, and small core roles with models offering PoE, SFP/SFP+ uplinks, and enhanced resiliency features.
Security features
Role-based access control and 802.1X authentication for secure user and device onboarding
Dynamic VLAN assignment and network segmentation enforced at the switch
Integration with FortiGate’s threat intelligence for coordinated response and automated mitigation
Access control lists, DHCP snooping, ARP inspection, and storm control to protect against common layer-2 threats
Management & visibility
Native FortiGate-driven management with consolidated policy and event correlation
Centralized firmware and configuration management, with support for zero-touch provisioning
Detailed flow and device telemetry for faster troubleshooting and capacity planning
Use cases
Branch offices: Securely extend corporate policies to remote sites with consistent management and local performance.
Distributed retail and hospitality: Protect POS, guest Wi-Fi, and back-office systems while simplifying rollouts and updates.
SMB and campus access: Deliver secure, high-performance connectivity for office users, IP phones, and wireless access points.
FortiSwitch Secure Access simplifies network operations while strengthening security at the access layer. When managed through the FortiGate Network Security Platform, organizations gain coordinated protection, streamlined administration, and a scalable path for growth.
The Fortinet FortiGate FG-40F-BDL-950-12 is a robust security appliance engineered for small to medium-sized businesses that require enterprise-grade protection without complexity. Combining high-throughput performance, advanced threat detection, and simplified management, this bundle delivers comprehensive security and reliable connectivity in a compact, scalable form.
Key features and benefits
Advanced threat protection: Integrated FortiGuard services provide real-time intrusion prevention, antivirus/anti-malware, web and application filtering, and sandboxing to stop threats before they can impact your network.
High performance: Purpose-built hardware and FortiOS optimizations ensure low-latency inspection and throughput suitable for busy small to medium environments, maintaining user experience while enforcing security policies.
Integrated SD-WAN: Built-in SD-WAN capabilities enable intelligent path selection, application-aware routing, and WAN optimization to improve application performance and reduce connectivity costs across multiple links.
Simplified management: FortiManager and FortiCloud compatibility plus an intuitive FortiGate interface streamline policy creation, monitoring, and updates—reducing administrative overhead and speeding deployment.
Scalable design: The FG-40F-BDL-950-12 supports growing environments through flexible licensing and centralized management, making it easy to expand protections as business needs evolve.
Reliability and compliance: Hardened appliance design and continuous security updates help maintain regulatory compliance and operational continuity.
Ideal use cases
Small to medium-sized businesses seeking a single appliance to protect branch offices or headquarters.
Organizations looking to consolidate security functions (firewall, IPS, VPN, web filtering, anti-malware) into one managed platform.
Enterprises needing cost-effective SD-WAN to optimize cloud and SaaS application performance across multiple internet links.
Managed service providers requiring a deployable, centrally managed security device for multiple customer sites.
What’s included in the FG-40F-BDL-950-12 bundle
FortiGate FG-40F hardware appliance
Comprehensive FortiGuard security subscription bundle (threat protection, web/app control, etc.)
Technical support and firmware updates for the subscription period
Licensing for SD-WAN and management features as specified in the bundle
Why choose the FG-40F-BDL-950-12
The FG-40F-BDL-950-12 balances powerful security capabilities with ease of use and performance optimization. Its combination of advanced detection technologies, integrated SD-WAN, and centralized management makes it particularly well suited for organizations that require strong protection without the operational burden of managing multiple discrete products. Deploying this solution delivers efficiency, reliability, and peace of mind—so your team can focus on core business priorities rather than security headaches.
FG-80F-BDL-950-12 — Enterprise-grade security, optimized for SMBs
The FG-80F-BDL-950-12 is a tightly integrated security and connectivity bundle engineered to deliver enterprise-level protection and performance for small to medium-sized enterprises. Combining advanced firewall capabilities, unified threat management, and flexible scaling, this solution secures critical assets while simplifying deployment and day‑to‑day operations.
Key benefits
Comprehensive protection: Next-generation firewall with stateful inspection, deep packet inspection, and application-aware controls to block advanced threats at the perimeter.
Unified threat management: Built-in intrusion prevention, antivirus, antimalware, URL filtering, and sandboxing to stop known and zero‑day attacks before they reach your network.
High performance: Hardware-accelerated throughput and optimized processing deliver low latency and consistent performance for business-critical applications and real-time services.
Scalable architecture: Bundle components and licensing designed to grow with your business—add users, sites, or services without re-architecting your security posture.
Intuitive administration: Streamlined, role-based management console and preconfigured policy templates enable rapid deployment and reduce administrative overhead.
Reliable uptime: Redundancy features, resilient session handling, and intelligent failover ensure continuous operations and business continuity.
Visibility and reporting: Granular logging, traffic analytics, and automated reporting provide the insights needed for compliance and proactive security management.
Simplified procurement and support: Single-vendor bundle including hardware, software subscriptions, and support options to minimize procurement complexity and accelerate time to value.
Ideal use cases
Distributed businesses seeking centralized security policies across multiple branch locations.
Growing enterprises requiring a secure, high-performance network that scales without operational disruption.
Organizations needing robust protection for cloud access, remote workforces, and hybrid deployments.
Firms subject to regulatory requirements that demand audit-ready logging and reporting.
Specifications (selected)
Appliance class: Mid-range hardware optimized for SMB environments
Firewall throughput: Hardware-accelerated for real-world mixed traffic
VPN: Site-to-site and remote-access with high-concurrency support
UTM services: IPS
FG-80F-BDL-950-12 — Enterprise-grade security, optimized for SMBs
The FG-80F-BDL-950-12 is a tightly integrated security and connectivity bundle engineered to deliver enterprise-level protection and performance for small to medium-sized enterprises. Combining advanced firewall capabilities, unified threat management, and flexible scaling, this solution secures critical assets while simplifying deployment and day‑to‑day operations.
Key benefits
Comprehensive protection: Next-generation firewall with stateful inspection, deep packet inspection, and application-aware controls to block advanced threats at the perimeter.
Unified threat management: Built-in intrusion prevention, antivirus, antimalware, URL filtering, and sandboxing to stop known and zero‑day attacks before they reach your network.
High performance: Hardware-accelerated throughput and optimized processing deliver low latency and consistent performance for business-critical applications and real-time services.
Scalable architecture: Bundle components and licensing designed to grow with your business—add users, sites, or services without re-architecting your security posture.
Intuitive administration: Streamlined, role-based management console and preconfigured policy templates enable rapid deployment and reduce administrative overhead.
Reliable uptime: Redundancy features, resilient session handling, and intelligent failover ensure continuous operations and business continuity.
Visibility and reporting: Granular logging, traffic analytics, and automated reporting provide the insights needed for compliance and proactive security management.
Simplified procurement and support: Single-vendor bundle including hardware, software subscriptions, and support options to minimize procurement complexity and accelerate time to value.
Ideal use cases
Distributed businesses seeking centralized security policies across multiple branch locations.
Growing enterprises requiring a secure, high-performance network that scales without operational disruption.
Organizations needing robust protection for cloud access, remote workforces, and hybrid deployments.
Firms subject to regulatory requirements that demand audit-ready logging and reporting.
Specifications (selected)
Appliance class: Mid-range hardware optimized for SMB environments
Firewall throughput: Hardware-accelerated for real-world mixed traffic
VPN: Site-to-site and remote-access with high-concurrency support
UTM services: IPS, AV, Web Filtering, Application Control, Sandboxing
Management: Web-based GUI, CLI, centralized management compatible
Redundancy: Active/passive failover and session synchronization
Licensing: Bundle includes base subscriptions for UTM services with optional add-ons for advanced features and cloud integrations
Support: Multiple tiers available including 24/7 options and on-premises assistance
Deployment and onboarding
Rapid out-of-the-box setup with guided configuration wizard and ready-made policy templates tailored to common SMB scenarios.
Migration support to transfer existing firewall rules, VPN settings, and user policies with minimal downtime.
Professional services options for custom integrations, segmentation planning, and compliance alignment.
Why choose the FG-80F-BDL-950-12 The FG-80F-BDL-950-12 provides a balanced combination of strong security controls, predictable performance, and operational simplicity—allowing IT teams to focus on growth rather than firefighting. It’s a future-ready choice for organizations that require dependable protection, clear visibility, and straightforward scalability without compromising on speed or manageability.
For procurement, technical deep dives, or to arrange a demo, contact your Zorins Technologies representative to match the FG-80F-BDL-950-12 configuration to your environment.
AX3000 Ceiling Mount Dual-Band Wi‑Fi 6 Access Point
Overview A high-performance ceiling-mount access point engineered for dense environments and modern enterprise demands. Delivers combined AX3000 throughput with advanced Wi‑Fi 6 features to support high client density, low-latency applications, and seamless roaming across large indoor deployments.
Key Specifications
Ports: 1 × 1 Gbps RJ45
Power: 802.3at PoE and 12 V DC input
Wireless Speeds: Up to 574 Mbps (2.4 GHz) + 2402 Mbps (5 GHz)
Antennas: 2 × internal antennas
Channel Width: 160 MHz supported
MU‑MIMO: Downlink MU‑MIMO supported
Roaming: Seamless roaming for uninterrupted client handoff
Band Steering: Automatic steering to optimize client distribution
Beamforming: Improves range and signal quality to individual clients
Load Balancing: Distributes clients to prevent AP overload
Performance Highlights
High aggregate throughput suitable for high-bandwidth video, conferencing, and large numbers of IoT and mobile devices.
160 MHz channel support and Wi‑Fi 6 OFDMA reduce latency and improve spectral efficiency in congested environments.
MU‑MIMO and beamforming increase capacity and reliability for simultaneous multi-client transmission.
Deployment & Power
Ceiling-mount form factor optimized for unobtrusive placement and broad, even coverage in offices, retail, hospitality, classrooms, and public venues.
Supports 802.3at PoE for simple installation with centralized power and optional 12 V DC for legacy or alternate power setups.
Management & User Experience
Seamless roaming and band steering enable smooth mobility and automatically place devices on the best available band.
Load balancing ensures consistent performance by spreading clients across APs when multiple units are deployed.
Use Cases
Enterprise offices and campus buildings
Hotels, conference centers, and hospitality venues
Retail stores and shopping centers
Schools, libraries, and lecture halls
High-density public spaces and meeting rooms
Physical & Environmental
Ceiling-mount aesthetic with internal antennas for a clean installation
Compact footprint designed for standard ceiling plates and mounts
What’s Included
AX3000 Ceiling Mount Access Point
Ceiling mounting kit
Quick start guide
Ordering Information
Model: AX3000-CM
Power options: PoE (802.3at) / 12 V DC
For planning large deployments, consider site survey and AP density calculation to optimize coverage, capacity, and channel planning
AX3000 Ceiling Mount Dual-Band Wi‑Fi 6 Access Point
Overview A high-performance ceiling-mount access point engineered for dense environments and modern enterprise demands. Delivers combined AX3000 throughput with advanced Wi‑Fi 6 features to support high client density, low-latency applications, and seamless roaming across large indoor deployments.
Key Specifications
Ports: 1 × 1 Gbps RJ45
Power: 802.3at PoE and 12 V DC input
Wireless Speeds: Up to 574 Mbps (2.4 GHz) + 2402 Mbps (5 GHz)
Antennas: 2 × internal antennas
Channel Width: 160 MHz supported
MU‑MIMO: Downlink MU‑MIMO supported
Roaming: Seamless roaming for uninterrupted client handoff
Band Steering: Automatic steering to optimize client distribution
Beamforming: Improves range and signal quality to individual clients
Load Balancing: Distributes clients to prevent AP overload
Performance Highlights
High aggregate throughput suitable for high-bandwidth video, conferencing, and large numbers of IoT and mobile devices.
160 MHz channel support and Wi‑Fi 6 OFDMA reduce latency and improve spectral efficiency in congested environments.
MU‑MIMO and beamforming increase capacity and reliability for simultaneous multi-client transmission.
Deployment & Power
Ceiling-mount form factor optimized for unobtrusive placement and broad, even coverage in offices, retail, hospitality, classrooms, and public venues.
Supports 802.3at PoE for simple installation with centralized power and optional 12 V DC for legacy or alternate power setups.
Management & User Experience
Seamless roaming and band steering enable smooth mobility and automatically place devices on the best available band.
Load balancing ensures consistent performance by spreading clients across APs when multiple units are deployed.
Use Cases
Enterprise offices and campus buildings
Hotels, conference centers, and hospitality venues
Retail stores and shopping centers
Schools, libraries, and lecture halls
High-density public spaces and meeting rooms
Physical & Environmental
Ceiling-mount aesthetic with internal antennas for a clean installation
Compact footprint designed for standard ceiling plates and mounts
What’s Included
AX3000 Ceiling Mount Access Point
Ceiling mounting kit
Quick start guide
Ordering Information
Model: AX3000-CM
Power options: PoE (802.3at) / 12 V DC
For planning large deployments, consider site survey and AP density calculation to optimize coverage, capacity, and channel planning.
AX3000 Ceiling Mount Dual-Band Wi‑Fi 6 Access Point
Overview The AX3000 is a high-performance ceiling-mount Wi‑Fi 6 access point engineered for demanding enterprise and hospitality environments. Delivering combined speeds up to 2976 Mbps, it supports dense client populations and bandwidth-intensive applications while remaining easy to deploy and centrally manage.
Key Specifications
Port: 1 × Gigabit RJ45 (supports 802.3at PoE)
Power: 802.3at PoE and 12V DC (power adapter not included)
Wireless Speed: 574 Mbps @ 2.4 GHz + 2402 Mbps @ 5 GHz (AX)
Antennas: 3 × internal antennas (includes an auxiliary antenna optimized for the 5 GHz band to enhance coverage)
Channel Width: 160 MHz supported
Wi‑Fi Standard: 802.11ax (Wi‑Fi 6)
Management: Centralized management via Omada SDN Controller and Omada App
Performance & Features
MU‑MIMO: Simultaneous uplink and downlink multi‑user MIMO increases throughput and efficiency for multiple connected devices.
Seamless Roaming: Fast, uninterrupted handover between access points for voice, video and real‑time applications.
Band Steering: Automatically guides dual‑band clients to the optimal band for improved overall performance.
Beamforming: Focused signal delivery improves range and reliability to individual devices.
Load Balance: Distributes client associations across APs to prevent overload and maintain consistent performance.
Airtime Fairness: Ensures equitable capacity allocation between high‑ and low‑speed clients, maximizing network efficiency.
160 MHz Channel Support: Enables peak throughput for compatible devices and latency‑sensitive services.
Deployment & Management Designed for professional ceiling installation, the AX3000 integrates cleanly into managed Wi‑Fi networks. Use the Omada SDN Controller for centralized configuration, monitoring and analytics across sites, or manage on the go with the Omada App for quick setup and routine maintenance.
Use Cases
Enterprise offices and conference centers with high device density
Hotels, campuses and multi‑tenant buildings requiring consistent coverage and roaming
Retail and public venues needing reliable connectivity for POS, inventory, and guest access
What’s Included
AX3000 Ceiling Mount Dual‑Band Wi‑Fi 6 Access Point
Ceiling mounting kit and quick installation guide Note: Power adapter not included; 802.3at PoE recommended for full functionality.
The AX3000 combines Wi‑Fi 6 performance, advanced RF features and centralized Omada management to deliver robust, scalable wireless networking for professional environments.
AX3600 Ceiling Mount Dual-Band Wi‑Fi 6 Access Point
Overview The AX3600 ceiling-mount access point delivers enterprise-grade Wi‑Fi 6 performance in a compact, unobtrusive design. Engineered for high-density environments, it supports more than 1,000 concurrent clients with reliable throughput and seamless mobility, making it ideal for offices, classrooms, retail venues, hospitality, and public spaces.
Key Specifications
Port: 1 × 2.5 Gbps RJ45
Wireless Speed: Up to 1,148 Mbps on 2.4 GHz + 2,402 Mbps on 5 GHz (AX3600 total)
Power: 802.3at PoE and 12 V DC support
Antennas: 8 × internal antennas
Client Capacity: High-density support (1,000+ clients)
Features and Benefits
Dual-Band Wi‑Fi 6 Performance: OFDMA and 1024-QAM increase spectral efficiency and throughput for both 2.4 GHz and 5 GHz bands, delivering fast, low-latency connections for modern devices and applications.
High-Density Connectivity: Designed to handle crowded networks—supporting over 1,000 simultaneous clients—without sacrificing responsiveness or quality of experience.
2.5 Gbps Uplink: A single 2.5 Gbps RJ45 port aggregates high wireless bandwidth to the wired network, reducing backhaul bottlenecks in multi-user scenarios.
Flexible Power Options: Supports 802.3at PoE for simplified ceiling deployment and 12 V DC for installations without Power over Ethernet.
Advanced Antenna Design: Eight internal antennas provide optimized coverage and improved signal uniformity from a ceiling-mounted position while preserving a sleek, tamper-resistant profile.
MU‑MIMO & OFDMA: Simultaneous multi-user data streams and subchannel resource allocation enhance capacity and efficiency for many concurrent devices.
Seamless Roaming: Client steering and fast roaming minimize interruptions during handoffs, ensuring continuous connectivity for voice, video, and real-time apps.
Band Steering: Automatically directs dual-band clients to the optimal band (5 GHz when available) to maximize aggregate throughput and reduce congestion.
Enterprise-ready Management: Supports centralized management, RF optimization, and security policies for scalable deployments (controller or cloud management options depending on system).
Ideal Use Cases
Corporate offices and coworking spaces with dense device populations
Classrooms, lecture halls, and campus buildings
Retail stores and shopping centers with high foot traffic
Hotels, conference centers, and hospitality venues
Public venues and transportation hubs requiring robust roaming
Physical & Installation
Ceiling-mount form factor with low-profile aesthetic
Tamper-resistant housing for public deployments
PoE simplifies wiring; DC option for alternate power setups
Security
WPA3 support for enhanced encryption and protection
Enterprise authentication (802.1X) and guest network separation
Rogue AP detection and secure management channel options
Package Includes
AX3600 Ceiling Mount AP
Mounting bracket and hardware
Quick installation guide
Power adapter (if applicable to SKU)
Why Choose AX3600 The AX3600 balances high client capacity, multi-gig uplink performance, and the latest Wi‑Fi 6 efficiencies in a clean, ceiling-friendly design. It’s a dependable choice where scalability, roaming, and consistent user experience matter.
Technical Note Actual throughput and client capacity depend on network configuration, environmental conditions, and client device capabilities. For large deployments, consult a site survey and
AX3600 Ceiling Mount Dual-Band Wi‑Fi 6 Access Point
Overview The AX3600 ceiling-mount access point delivers enterprise-grade Wi‑Fi 6 performance in a compact, unobtrusive design. Engineered for high-density environments, it supports more than 1,000 concurrent clients with reliable throughput and seamless mobility, making it ideal for offices, classrooms, retail venues, hospitality, and public spaces.
Key Specifications
Port: 1 × 2.5 Gbps RJ45
Wireless Speed: Up to 1,148 Mbps on 2.4 GHz + 2,402 Mbps on 5 GHz (AX3600 total)
Power: 802.3at PoE and 12 V DC support
Antennas: 8 × internal antennas
Client Capacity: High-density support (1,000+ clients)
Features and Benefits
Dual-Band Wi‑Fi 6 Performance: OFDMA and 1024-QAM increase spectral efficiency and throughput for both 2.4 GHz and 5 GHz bands, delivering fast, low-latency connections for modern devices and applications.
High-Density Connectivity: Designed to handle crowded networks—supporting over 1,000 simultaneous clients—without sacrificing responsiveness or quality of experience.
2.5 Gbps Uplink: A single 2.5 Gbps RJ45 port aggregates high wireless bandwidth to the wired network, reducing backhaul bottlenecks in multi-user scenarios.
Flexible Power Options: Supports 802.3at PoE for simplified ceiling deployment and 12 V DC for installations without Power over Ethernet.
Advanced Antenna Design: Eight internal antennas provide optimized coverage and improved signal uniformity from a ceiling-mounted position while preserving a sleek, tamper-resistant profile.
MU‑MIMO & OFDMA: Simultaneous multi-user data streams and subchannel resource allocation enhance capacity and efficiency for many concurrent devices.
Seamless Roaming: Client steering and fast roaming minimize interruptions during handoffs, ensuring continuous connectivity for voice, video, and real-time apps.
Band Steering: Automatically directs dual-band clients to the optimal band (5 GHz when available) to maximize aggregate throughput and reduce congestion.
Enterprise-ready Management: Supports centralized management, RF optimization, and security policies for scalable deployments (controller or cloud management options depending on system).
Ideal Use Cases
Corporate offices and coworking spaces with dense device populations
Classrooms, lecture halls, and campus buildings
Retail stores and shopping centers with high foot traffic
Hotels, conference centers, and hospitality venues
Public venues and transportation hubs requiring robust roaming
Physical & Installation
Ceiling-mount form factor with low-profile aesthetic
Tamper-resistant housing for public deployments
PoE simplifies wiring; DC option for alternate power setups
Security
WPA3 support for enhanced encryption and protection
Enterprise authentication (802.1X) and guest network separation
Rogue AP detection and secure management channel options
Package Includes
AX3600 Ceiling Mount AP
Mounting bracket and hardware
Quick installation guide
Power adapter (if applicable to SKU)
Why Choose AX3600 The AX3600 balances high client capacity, multi-gig uplink performance, and the latest Wi‑Fi 6 efficiencies in a clean, ceiling-friendly design. It’s a dependable choice where scalability, roaming, and consistent user experience matter.
Technical Note Actual throughput and client capacity depend on network configuration, environmental conditions, and client device capabilities. For large deployments, consult a site survey and capacity plan to optimize placement and performance.
AX5400 Ceiling Mount Dual-Band Wi‑Fi 6 Access Point
Overview A high-performance, enterprise-grade ceiling AP engineered for dense, high-bandwidth environments. The AX5400 delivers next-generation Wi‑Fi 6 throughput and advanced RF management in a discreet ceiling form factor—ideal for offices, schools, hospitality, and other public spaces requiring reliable, scalable wireless coverage.
Key Specifications
Ports: 1 × 2.5 Gigabit RJ45 (supports high-throughput uplinks)
Power: 802.3at PoE and 12V DC input for flexible deployment
Radio & Speed: Dual-band Wi‑Fi 6 — up to 574 Mbps on 2.4 GHz and up to 4804 Mbps on 5 GHz (AX)
Antennas: 6 × internal antennas optimized for ceiling deployment and uniform coverage
Standards: IEEE 802.11ax, backward compatible with 802.11ac/n/a/b/g
Performance & RF Features
MU‑MIMO: Simultaneous multi-client servicing improves overall network efficiency and capacity
160 MHz Channel Support: Increased single-client throughput where spectrum and regulatory conditions permit
Beamforming: Focused signal delivery to enhance range and client performance
Band Steering: Automatically directs dual-band clients to 5 GHz for higher throughput and reduced congestion
Airtime Fairness: Balances access across fast and slow clients to prevent slower devices from monopolizing airtime
Load Balance: Distributes client associations to prevent overloading any single AP or radio
Seamless Roaming: Smooth client handoffs for real-time applications (VoIP, video conferencing) when used with controller-managed networks
Management & Deployment
Centralized Management: Full integration with Omada SDN Controller for single-pane-of-glass provisioning, monitoring, firmware updates, and advanced policy control
Mobile Management: Quick setup, monitoring, and configuration via Omada App for on-the-go management
Scalability: Designed to scale from single-site deployments to large distributed networks with cluster management, automated RF optimization, and role-based access control
Use Cases
Enterprise offices with dense client populations and high concurrent throughput needs
Education campuses and lecture halls requiring seamless roaming and centralized policy control
Hospitality properties and public venues where discreet ceiling aesthetics and consistent coverage are essential
Retail and healthcare environments needing reliable, manageable wireless for staff and guests
Physical & Installation
Ceiling‑mount form factor with tamper‑resistant design and minimal visual impact
PoE-powered installation reduces cabling complexity; 12V DC option for non-PoE sites
Compact, lightweight housing suitable for standard drop ceilings and hard ceilings with mounting kit
Security & Reliability
WPA3 support for stronger encryption and modern client security
Advanced RF management and load mitigation features to maintain consistent user experience under heavy load
Enterprise-class stability and firmware lifecycle management through Omada SDN
What you get
High-throughput AX5400 Wi‑Fi 6 performance for demanding wireless environments
Flexible power options (802.3at PoE / 12V DC) and a 2.5G uplink for multi-gig aggregation
Centralized, scalable management with Omada SDN Controller and the Omada App
Intelligent RF features (MU‑MIMO, beamforming, band steering, airtime fairness, load balance) for optimal client experiences
Technical Note Actual throughput and range depend on environmental factors, client capabilities, and regulatory limitations on channel width and transmit power. For best results in dense deployments, use centralized controller-managed RF planning and enable 160 MHz where
AX5400 Ceiling Mount Dual-Band Wi‑Fi 6 Access Point
Overview A high-performance, enterprise-grade ceiling AP engineered for dense, high-bandwidth environments. The AX5400 delivers next-generation Wi‑Fi 6 throughput and advanced RF management in a discreet ceiling form factor—ideal for offices, schools, hospitality, and other public spaces requiring reliable, scalable wireless coverage.
Key Specifications
Ports: 1 × 2.5 Gigabit RJ45 (supports high-throughput uplinks)
Power: 802.3at PoE and 12V DC input for flexible deployment
Radio & Speed: Dual-band Wi‑Fi 6 — up to 574 Mbps on 2.4 GHz and up to 4804 Mbps on 5 GHz (AX)
Antennas: 6 × internal antennas optimized for ceiling deployment and uniform coverage
Standards: IEEE 802.11ax, backward compatible with 802.11ac/n/a/b/g
Performance & RF Features
MU‑MIMO: Simultaneous multi-client servicing improves overall network efficiency and capacity
160 MHz Channel Support: Increased single-client throughput where spectrum and regulatory conditions permit
Beamforming: Focused signal delivery to enhance range and client performance
Band Steering: Automatically directs dual-band clients to 5 GHz for higher throughput and reduced congestion
Airtime Fairness: Balances access across fast and slow clients to prevent slower devices from monopolizing airtime
Load Balance: Distributes client associations to prevent overloading any single AP or radio
Seamless Roaming: Smooth client handoffs for real-time applications (VoIP, video conferencing) when used with controller-managed networks
Management & Deployment
Centralized Management: Full integration with Omada SDN Controller for single-pane-of-glass provisioning, monitoring, firmware updates, and advanced policy control
Mobile Management: Quick setup, monitoring, and configuration via Omada App for on-the-go management
Scalability: Designed to scale from single-site deployments to large distributed networks with cluster management, automated RF optimization, and role-based access control
Use Cases
Enterprise offices with dense client populations and high concurrent throughput needs
Education campuses and lecture halls requiring seamless roaming and centralized policy control
Hospitality properties and public venues where discreet ceiling aesthetics and consistent coverage are essential
Retail and healthcare environments needing reliable, manageable wireless for staff and guests
Physical & Installation
Ceiling‑mount form factor with tamper‑resistant design and minimal visual impact
PoE-powered installation reduces cabling complexity; 12V DC option for non-PoE sites
Compact, lightweight housing suitable for standard drop ceilings and hard ceilings with mounting kit
Security & Reliability
WPA3 support for stronger encryption and modern client security
Advanced RF management and load mitigation features to maintain consistent user experience under heavy load
Enterprise-class stability and firmware lifecycle management through Omada SDN
What you get
High-throughput AX5400 Wi‑Fi 6 performance for demanding wireless environments
Flexible power options (802.3at PoE / 12V DC) and a 2.5G uplink for multi-gig aggregation
Centralized, scalable management with Omada SDN Controller and the Omada App
Intelligent RF features (MU‑MIMO, beamforming, band steering, airtime fairness, load balance) for optimal client experiences
Technical Note Actual throughput and range depend on environmental factors, client capabilities, and regulatory limitations on channel width and transmit power. For best results in dense deployments, use centralized controller-managed RF planning and enable 160 MHz where permitted and beneficial.
AX5400 Wall-Plate Wi‑Fi 6 Extender
Designed for professional environments and demanding home networks, the AX5400 Wall‑Plate Wi‑Fi 6 Extender delivers high-capacity, low-latency wireless coverage from a discreet, power‑outlet form factor. Ideal for hotel rooms, offices, apartments, and multi‑unit installs, this unit combines Wi‑Fi 6 performance with easy deployment and centralized management.
Key Specifications
Wireless speeds: up to 574 Mbps on 2.4 GHz + 4804 Mbps on 5 GHz (AX5400 total)
Ports: 1 × Gigabit RJ45 Ethernet port
In Extender mode: functions as a downlink (LAN) port
In AP mode: functions as an uplink (WAN) port
Power: standard AC power plug — installs directly into a standard wall outlet
Antennas: 4 × external antennas for extended coverage and improved signal quality
Core Features
Wi‑Fi 6 (802.11ax) — improved spectral efficiency, capacity, and performance with OFDMA and 1024‑QAM
MU‑MIMO — simultaneous data streams to multiple devices for better throughput under load
Band Steering — automatically guides dual‑band clients to the optimal band for best performance
Beamforming — focuses wireless signals to devices for stronger, more reliable connections
Load Balance — distributes client traffic to maintain stable performance in high‑density environments
Modes: Extender mode for seamless range extension; AP mode to create a wired access point using the RJ45 uplink
Centralized Management: fully manageable via Omada SDN Controller and Omada App for scalable deployment, monitoring, and configuration
Deployment Advantages
Clean, space‑saving installation that leaves wall surfaces tidy and professional
Rapid rollout for multi‑room and multi‑unit properties without additional power cabling
Unified management with Omada SDN enables zero‑touch provisioning, group policies, and network analytics across sites
Use Cases
Hotels and serviced apartments: uniform wireless experience in each room with centralized guest network controls
Offices and meeting rooms: secure, high‑performance connectivity where wiring is limited
Residential complexes: consistent coverage and simplified management for property-wide Wi‑Fi
What’s in the Box
AX5400 Wall‑Plate Wi‑Fi 6 Extender unit
Quick installation guide
Safety and warranty information
Technical Notes
Actual throughput and coverage vary with environment, client capability, and interference
For optimal performance in AP mode, use the Gigabit RJ45 uplink to a wired switch or router
Managed features and firmware updates require connection to the Omada SDN Controller or Omada App
Delivering AX‑class performance in a discreet, installable wall‑plate form, the AX5400 Wall‑Plate Wi
AX5400 Wall-Plate Wi‑Fi 6 Extender
Designed for professional environments and demanding home networks, the AX5400 Wall‑Plate Wi‑Fi 6 Extender delivers high-capacity, low-latency wireless coverage from a discreet, power‑outlet form factor. Ideal for hotel rooms, offices, apartments, and multi‑unit installs, this unit combines Wi‑Fi 6 performance with easy deployment and centralized management.
Key Specifications
Wireless speeds: up to 574 Mbps on 2.4 GHz + 4804 Mbps on 5 GHz (AX5400 total)
Ports: 1 × Gigabit RJ45 Ethernet port
In Extender mode: functions as a downlink (LAN) port
In AP mode: functions as an uplink (WAN) port
Power: standard AC power plug — installs directly into a standard wall outlet
Antennas: 4 × external antennas for extended coverage and improved signal quality
Core Features
Wi‑Fi 6 (802.11ax) — improved spectral efficiency, capacity, and performance with OFDMA and 1024‑QAM
MU‑MIMO — simultaneous data streams to multiple devices for better throughput under load
Band Steering — automatically guides dual‑band clients to the optimal band for best performance
Beamforming — focuses wireless signals to devices for stronger, more reliable connections
Load Balance — distributes client traffic to maintain stable performance in high‑density environments
Modes: Extender mode for seamless range extension; AP mode to create a wired access point using the RJ45 uplink
Centralized Management: fully manageable via Omada SDN Controller and Omada App for scalable deployment, monitoring, and configuration
Deployment Advantages
Clean, space‑saving installation that leaves wall surfaces tidy and professional
Rapid rollout for multi‑room and multi‑unit properties without additional power cabling
Unified management with Omada SDN enables zero‑touch provisioning, group policies, and network analytics across sites
Use Cases
Hotels and serviced apartments: uniform wireless experience in each room with centralized guest network controls
Offices and meeting rooms: secure, high‑performance connectivity where wiring is limited
Residential complexes: consistent coverage and simplified management for property-wide Wi‑Fi
What’s in the Box
AX5400 Wall‑Plate Wi‑Fi 6 Extender unit
Quick installation guide
Safety and warranty information
Technical Notes
Actual throughput and coverage vary with environment, client capability, and interference
For optimal performance in AP mode, use the Gigabit RJ45 uplink to a wired switch or router
Managed features and firmware updates require connection to the Omada SDN Controller or Omada App
Delivering AX‑class performance in a discreet, installable wall‑plate form, the AX5400 Wall‑Plate Wi‑Fi 6 Extender is engineered for professional deployments that demand capacity, reliability, and centralized control.
Omada AX6000 Ceiling Mount Dual-Band Wi‑Fi 6 Access Point
Overview A high-performance ceiling-mount Wi‑Fi 6 AP engineered for dense environments and large venues. Delivering combined AX6000 throughput, dual-band capacity, and enterprise-grade features, the Omada AX6000 ensures fast, reliable connectivity with centralized management for simplified deployment and maintenance.
Key Specifications
Model: Omada AX6000 Ceiling Mount
Ports: 1 × 2.5G RJ45 (data + PoE)
Power: 802.3at PoE+ and 12V DC input (power adapter not included)
Wireless Standards: IEEE 802.11ax (Wi‑Fi 6), backward compatible with 802.11a/b/g/n/ac
Antennas: 4 × internal antennas
Maximum Throughput:
2.4 GHz: up to 1148 Mbps
5 GHz: up to 4804 Mbps
Total: AX6000-class aggregate
MU‑MIMO: Downlink and uplink MU‑MIMO support
Channel Width: 160 MHz support on 5 GHz for higher throughput
Beamforming: Yes
Roaming: Seamless roaming with fast handoff
Band Steering: Automatic steering to optimize client performance
Load Balancing: Client distribution across APs to prevent congestion
Airtime Fairness: Prioritizes balanced access to radio time for all clients
Management: Centralized management via Omada SDN Controller and Omada App
Form Factor: Ceiling mount, low-profile design for aesthetic integration
Security: WPA3, WPA2, guest network isolation, VLAN support
Ideal Use Cases: Offices, hotels, schools, retail stores, conference halls, hospitals, large multi-floor deployments
Highlights
High-capacity Wi‑Fi 6 performance with up to 4804 Mbps on 5 GHz and 1148 Mbps on 2.4 GHz for bandwidth-hungry applications.
2.5G RJ45 uplink to leverage multi-gig backbones and reduce uplink bottlenecks.
Flexible power options via 802.3at PoE+ or 12V DC (power adapter sold separately), simplifying ceiling installs.
Enterprise features—seamless roaming, band steering, airtime fairness, and load balancing—improve user experience in crowded environments.
Centralized provisioning, monitoring, and analytics through Omada SDN Controller and the Omada App for streamlined network operations.
What’s in the Box
Omada AX6000 Ceiling Mount Access Point
Ceiling mounting kit and hardware
Quick installation guide
(Power adapter not included)
Compliance & Notes
Verify PoE+ injector or switch supports 802.3at for full functionality.
For optimal 5 GHz performance using 160 MHz channels, ensure regulatory region and client device support.
Firmware and feature availability may vary; update to the latest Omada firmware for
Omada AX6000 Ceiling Mount Dual-Band Wi‑Fi 6 Access Point
Overview A high-performance ceiling-mount Wi‑Fi 6 AP engineered for dense environments and large venues. Delivering combined AX6000 throughput, dual-band capacity, and enterprise-grade features, the Omada AX6000 ensures fast, reliable connectivity with centralized management for simplified deployment and maintenance.
Key Specifications
Model: Omada AX6000 Ceiling Mount
Ports: 1 × 2.5G RJ45 (data + PoE)
Power: 802.3at PoE+ and 12V DC input (power adapter not included)
Wireless Standards: IEEE 802.11ax (Wi‑Fi 6), backward compatible with 802.11a/b/g/n/ac
Antennas: 4 × internal antennas
Maximum Throughput:
2.4 GHz: up to 1148 Mbps
5 GHz: up to 4804 Mbps
Total: AX6000-class aggregate
MU‑MIMO: Downlink and uplink MU‑MIMO support
Channel Width: 160 MHz support on 5 GHz for higher throughput
Beamforming: Yes
Roaming: Seamless roaming with fast handoff
Band Steering: Automatic steering to optimize client performance
Load Balancing: Client distribution across APs to prevent congestion
Airtime Fairness: Prioritizes balanced access to radio time for all clients
Management: Centralized management via Omada SDN Controller and Omada App
Form Factor: Ceiling mount, low-profile design for aesthetic integration
Security: WPA3, WPA2, guest network isolation, VLAN support
Ideal Use Cases: Offices, hotels, schools, retail stores, conference halls, hospitals, large multi-floor deployments
Highlights
High-capacity Wi‑Fi 6 performance with up to 4804 Mbps on 5 GHz and 1148 Mbps on 2.4 GHz for bandwidth-hungry applications.
2.5G RJ45 uplink to leverage multi-gig backbones and reduce uplink bottlenecks.
Flexible power options via 802.3at PoE+ or 12V DC (power adapter sold separately), simplifying ceiling installs.
Enterprise features—seamless roaming, band steering, airtime fairness, and load balancing—improve user experience in crowded environments.
Centralized provisioning, monitoring, and analytics through Omada SDN Controller and the Omada App for streamlined network operations.
What’s in the Box
Omada AX6000 Ceiling Mount Access Point
Ceiling mounting kit and hardware
Quick installation guide
(Power adapter not included)
Compliance & Notes
Verify PoE+ injector or switch supports 802.3at for full functionality.
For optimal 5 GHz performance using 160 MHz channels, ensure regulatory region and client device support.
Firmware and feature availability may vary; update to the latest Omada firmware for new features and security patches.
For professional deployments, consult Zorins Technologies’ network services for site survey, capacity planning, and centralized Omada SDN integration.
BE3600 Wall-Plate Dual-Band Wi‑Fi 7 Access Point
Overview A premium in-wall Wi‑Fi 7 access point engineered for modern workplaces, hospitality, and multi-dwelling installations. The BE3600 combines next‑generation wireless performance with a compact, EU‑compatible form factor and versatile PoE power options. Designed for centralized deployment and management via Omada SDN Controller or the Omada App.
Key Specifications
Form factor: Wall‑plate access point, compatible with EU standard junction box
Dimensions: 143 × 86 × 40 mm
Wireless standard: Wi‑Fi 7 (IEEE 802.11be) — dual‑band
Wireless speed: Up to 688 Mbps on 2.4 GHz + up to 2882 Mbps on 5 GHz
Antennas: 2 × internal antennas
Bluetooth: Integrated Bluetooth for device discovery and management
Ports & Power
Uplink: 1 × 2.5G RJ45 port (supports 802.3 bt/at PoE)
Downlink: 1 × 2.5G RJ45 port + 2 × 1G RJ45 ports
PoE features: 802.3 bt/at PoE input; PoE passthrough to downstream devices
Performance & Wireless Features
4K‑QAM for increased spectral efficiency and throughput
MU‑MIMO to serve multiple clients simultaneously and reduce latency
Beamforming to improve range and signal reliability to client devices
Band steering to optimize client distribution across 2.4 GHz and 5 GHz bands
Load balancing to distribute client load across network resources
Management & Deployment
Centralized management via Omada SDN Controller for large-scale deployments
Mobile management supported through the Omada App for on‑the‑go monitoring and configuration
Ideal for hospitality, apartment units, offices, classrooms, and retrofit projects where EU wall‑box compatibility is required
Use Cases
Multi‑dwelling units: Provide high‑speed, discreet Wi‑Fi directly from wall outlets with tenant isolation and centralized policy control.
Hospitality: Deliver reliable high‑density coverage to guest rooms while simplifying management and power delivery.
Offices & classrooms: Compact, low‑profile access point for meeting rooms and workspaces that require robust throughput and QoS.
What's in the Box
BE3600 Wall‑Plate Dual‑Band Wi‑Fi 7 Access Point
Mounting hardware compatible with EU standard junction boxes
Quick installation guide
Regulatory & Environmental
Complies with relevant EU wall‑box mechanical standards (verify local electrical codes before installation)
Operating temperature and power specifications available in the technical datasheet
Contact For pricing, deployment planning, or volume orders, contact Zorins Technologies sales and technical teams.
BE3600 Wall-Plate Dual-Band Wi‑Fi 7 Access Point
Overview A premium in-wall Wi‑Fi 7 access point engineered for modern workplaces, hospitality, and multi-dwelling installations. The BE3600 combines next‑generation wireless performance with a compact, EU‑compatible form factor and versatile PoE power options. Designed for centralized deployment and management via Omada SDN Controller or the Omada App.
Key Specifications
Form factor: Wall‑plate access point, compatible with EU standard junction box
Dimensions: 143 × 86 × 40 mm
Wireless standard: Wi‑Fi 7 (IEEE 802.11be) — dual‑band
Wireless speed: Up to 688 Mbps on 2.4 GHz + up to 2882 Mbps on 5 GHz
Antennas: 2 × internal antennas
Bluetooth: Integrated Bluetooth for device discovery and management
Ports & Power
Uplink: 1 × 2.5G RJ45 port (supports 802.3 bt/at PoE)
Downlink: 1 × 2.5G RJ45 port + 2 × 1G RJ45 ports
PoE features: 802.3 bt/at PoE input; PoE passthrough to downstream devices
Performance & Wireless Features
4K‑QAM for increased spectral efficiency and throughput
MU‑MIMO to serve multiple clients simultaneously and reduce latency
Beamforming to improve range and signal reliability to client devices
Band steering to optimize client distribution across 2.4 GHz and 5 GHz bands
Load balancing to distribute client load across network resources
Management & Deployment
Centralized management via Omada SDN Controller for large-scale deployments
Mobile management supported through the Omada App for on‑the‑go monitoring and configuration
Ideal for hospitality, apartment units, offices, classrooms, and retrofit projects where EU wall‑box compatibility is required
Use Cases
Multi‑dwelling units: Provide high‑speed, discreet Wi‑Fi directly from wall outlets with tenant isolation and centralized policy control.
Hospitality: Deliver reliable high‑density coverage to guest rooms while simplifying management and power delivery.
Offices & classrooms: Compact, low‑profile access point for meeting rooms and workspaces that require robust throughput and QoS.
What's in the Box
BE3600 Wall‑Plate Dual‑Band Wi‑Fi 7 Access Point
Mounting hardware compatible with EU standard junction boxes
Quick installation guide
Regulatory & Environmental
Complies with relevant EU wall‑box mechanical standards (verify local electrical codes before installation)
Operating temperature and power specifications available in the technical datasheet
Contact For pricing, deployment planning, or volume orders, contact Zorins Technologies sales and technical teams.
(For full technical details including power budgets, channel plans, and firmware options, request the complete datasheet.)
Omada BE9300 Indoor/Outdoor Tri‑Band Wi‑Fi 7 Access Point
Overview A high‑performance Wi‑Fi 7 access point engineered for demanding indoor and outdoor deployments. The BE9300 delivers multi‑gigabit wireless capacity across 2.4 GHz, 5 GHz and 6 GHz bands, robust environmental protection, and enterprise‑grade features—managed centrally via Omada SDN Controller or the Omada app.
Key Specifications
Ports: 1 × 2.5G RJ45 Ethernet
Power: 802.3at PoE and Passive PoE support
Radio Rates:
2.4 GHz: up to 574 Mbps
5 GHz: up to 2882 Mbps
6 GHz: up to 5760 Mbps
Antennas: 6 × internal antennas (optimized for indoor/outdoor coverage)
Environmental rating: IP68 weatherproof
Location services: GNSS
Additional radios: Bluetooth for device discovery and BLE services
Wi‑Fi features: MU‑MIMO, 320 MHz channel support, 4K‑QAM, Multi‑Link Operation (MLO)
Performance features: Seamless roaming, Band steering, Beamforming, Load balancing, Airtime fairness
Management: Centralized by Omada SDN Controller and Omada App
Performance Highlights
True tri‑band Wi‑Fi 7 throughput: Combined multi‑gig capability across 2.4/5/6 GHz bands for high device density and latency‑sensitive applications.
320 MHz channel support and 4K‑QAM enable maximum single‑user throughput and improved spectral efficiency.
MLO reduces latency and jitter by enabling concurrent links across bands—ideal for real‑time voice, AR/VR, and critical IoT.
Deployment & Use Cases
Indoor/outdoor campus coverage: IP68 build allows placement in exposed areas such as walkways, stadiums, and building exteriors while providing seamless coverage indoors.
High‑density venues: Stadiums, convention centers, transit hubs and retail environments benefit from MU‑MIMO, airtime fairness and load balancing for consistent user experience.
Enterprise & industrial IoT: GNSS and BLE support location services; robust management and security via Omada SDN Controller simplify large‑scale rollouts.
Carrier‑grade branch and outdoor connectivity: 2.5G port and multi‑gig wireless capacity serve backhaul or aggregation roles where fiber is limited.
Security & Management
Centralized provisioning, monitoring and firmware management through Omada SDN Controller or on the go via Omada App.
Seamless roaming and band steering ensure secure, uninterrupted client sessions across APs.
Enterprise feature set supports guest networks, VLANs, RADIUS authentication and role‑based access.
Physical & Environmental
Rugged IP68 enclosure for dust and water resistance in harsh outdoor conditions.
Compact design with internal antennas for a clean, vandal‑resistant installation.
Wide operating temperature range suitable for outdoor deployments (refer to datasheet for exact ranges).
Why Choose Omada BE9300
Next‑generation Wi‑Fi 7 performance with tri‑band capacity to future‑proof dense, mission‑critical networks.
Flexible power options (802.3at and passive PoE) and a multi‑gig Ethernet port for versatile deployment scenarios.
Enterprise management and advanced features (MLO, 320 MHz, 4K‑QAM, GNSS, BLE) packaged in an IP68‑rated enclosure for true indoor/outdoor use.
For sizing, mounting accessories, exact mechanical dimensions, and environmental operating specifications, consult the full technical datasheet or contact your Zorins Technologies network specialist.
Omada BE9300 Indoor/Outdoor Tri‑Band Wi‑Fi 7 Access Point
Overview A high‑performance Wi‑Fi 7 access point engineered for demanding indoor and outdoor deployments. The BE9300 delivers multi‑gigabit wireless capacity across 2.4 GHz, 5 GHz and 6 GHz bands, robust environmental protection, and enterprise‑grade features—managed centrally via Omada SDN Controller or the Omada app.
Key Specifications
Ports: 1 × 2.5G RJ45 Ethernet
Power: 802.3at PoE and Passive PoE support
Radio Rates:
2.4 GHz: up to 574 Mbps
5 GHz: up to 2882 Mbps
6 GHz: up to 5760 Mbps
Antennas: 6 × internal antennas (optimized for indoor/outdoor coverage)
Environmental rating: IP68 weatherproof
Location services: GNSS
Additional radios: Bluetooth for device discovery and BLE services
Wi‑Fi features: MU‑MIMO, 320 MHz channel support, 4K‑QAM, Multi‑Link Operation (MLO)
Performance features: Seamless roaming, Band steering, Beamforming, Load balancing, Airtime fairness
Management: Centralized by Omada SDN Controller and Omada App
Performance Highlights
True tri‑band Wi‑Fi 7 throughput: Combined multi‑gig capability across 2.4/5/6 GHz bands for high device density and latency‑sensitive applications.
320 MHz channel support and 4K‑QAM enable maximum single‑user throughput and improved spectral efficiency.
MLO reduces latency and jitter by enabling concurrent links across bands—ideal for real‑time voice, AR/VR, and critical IoT.
Deployment & Use Cases
Indoor/outdoor campus coverage: IP68 build allows placement in exposed areas such as walkways, stadiums, and building exteriors while providing seamless coverage indoors.
High‑density venues: Stadiums, convention centers, transit hubs and retail environments benefit from MU‑MIMO, airtime fairness and load balancing for consistent user experience.
Enterprise & industrial IoT: GNSS and BLE support location services; robust management and security via Omada SDN Controller simplify large‑scale rollouts.
Carrier‑grade branch and outdoor connectivity: 2.5G port and multi‑gig wireless capacity serve backhaul or aggregation roles where fiber is limited.
Security & Management
Centralized provisioning, monitoring and firmware management through Omada SDN Controller or on the go via Omada App.
Seamless roaming and band steering ensure secure, uninterrupted client sessions across APs.
Enterprise feature set supports guest networks, VLANs, RADIUS authentication and role‑based access.
Physical & Environmental
Rugged IP68 enclosure for dust and water resistance in harsh outdoor conditions.
Compact design with internal antennas for a clean, vandal‑resistant installation.
Wide operating temperature range suitable for outdoor deployments (refer to datasheet for exact ranges).
Why Choose Omada BE9300
Next‑generation Wi‑Fi 7 performance with tri‑band capacity to future‑proof dense, mission‑critical networks.
Flexible power options (802.3at and passive PoE) and a multi‑gig Ethernet port for versatile deployment scenarios.
Enterprise management and advanced features (MLO, 320 MHz, 4K‑QAM, GNSS, BLE) packaged in an IP68‑rated enclosure for true indoor/outdoor use.
For sizing, mounting accessories, exact mechanical dimensions, and environmental operating specifications, consult the full technical datasheet or contact your Zorins Technologies network specialist.
Omada BE3600 Ceiling Mount Dual-Band Wi‑Fi 7 Access Point
Key specifications
Ports: 1 × 2.5G RJ45
Wireless throughput: Up to 688 Mbps (2.4 GHz) + 4320 Mbps (5 GHz)
Radio features: MU‑MIMO, 240 MHz channels, 4K‑QAM, beamforming, band steering
Antennas: 4 × internal antennas
Power: 802.3at PoE+ and 12 V DC (power adapter not included)
Management: Centralized via Omada SDN Controller and Omada App
Overview The Omada BE3600 is a ceiling‑mount Wi‑Fi 7 access point engineered for high‑density enterprise and hospitality environments requiring multi‑gigabit performance and unified network control. With dual‑band operation and 240 MHz channel support on the 5 GHz band, the BE3600 delivers ultra‑high throughput, reduced latency, and improved concurrent-client handling for modern bandwidth‑intensive applications.
Performance and wireless experience
High aggregate capacity: Combined speeds up to 5008 Mbps (688 Mbps on 2.4 GHz + 4320 Mbps on 5 GHz) accommodate heavy multimedia streaming, large file transfers, and real‑time collaboration.
Enhanced spectral efficiency: 4K‑QAM increases data density for compatible clients, improving throughput without additional spectrum.
Wider channels: 240 MHz support reduces channel congestion and boosts peak performance on capable devices.
Multi‑client optimization: MU‑MIMO and airtime fairness ensure balanced access across many clients; load balancing distributes clients across radios to maintain consistent user experience.
Coverage and reliability: Beamforming focuses signal to clients for improved range and stability; internal antenna design supports discreet ceiling installation without sacrificing performance.
Seamless mobility: Seamless roaming and band steering let devices switch between APs and bands transparently, preserving session continuity for voice and video.
Deployment and management
Flexible powering: Supports 802.3at PoE+ for simplified ceiling deployments and 12 V DC when PoE is not available (note: DC power adapter sold separately).
Centralized orchestration: Full integration with Omada SDN Controller provides single‑pane provisioning, policy enforcement, guest management, analytics, and scalable site management. The Omada App offers on‑the‑go monitoring and basic configuration.
Scalable architecture: Designed for easy scaling across multiple sites with consistent configuration and monitoring, ideal for campuses, hotels, retail, and large offices.
Use cases
High‑density meeting rooms and auditoriums where many simultaneous HD/4K streams and low latency are required.
Hospitality and multi‑tenant environments demanding reliable roaming and centralized guest access.
Enterprise offices and campus deployments seeking future‑proof Wi‑Fi 7 performance with centralized management.
What’s not included
12 V DC power adapter (required if not using PoE+).
Why choose the Omada BE3600 For organizations that need next‑generation Wi‑Fi capacity, multi‑gigabit uplinks, and centralized SDN management, the BE3600 offers a forward‑looking ceiling AP platform that balances peak throughput,
Omada BE3600 Ceiling Mount Dual-Band Wi‑Fi 7 Access Point
Key specifications
Ports: 1 × 2.5G RJ45
Wireless throughput: Up to 688 Mbps (2.4 GHz) + 4320 Mbps (5 GHz)
Radio features: MU‑MIMO, 240 MHz channels, 4K‑QAM, beamforming, band steering
Antennas: 4 × internal antennas
Power: 802.3at PoE+ and 12 V DC (power adapter not included)
Management: Centralized via Omada SDN Controller and Omada App
Overview The Omada BE3600 is a ceiling‑mount Wi‑Fi 7 access point engineered for high‑density enterprise and hospitality environments requiring multi‑gigabit performance and unified network control. With dual‑band operation and 240 MHz channel support on the 5 GHz band, the BE3600 delivers ultra‑high throughput, reduced latency, and improved concurrent-client handling for modern bandwidth‑intensive applications.
Performance and wireless experience
High aggregate capacity: Combined speeds up to 5008 Mbps (688 Mbps on 2.4 GHz + 4320 Mbps on 5 GHz) accommodate heavy multimedia streaming, large file transfers, and real‑time collaboration.
Enhanced spectral efficiency: 4K‑QAM increases data density for compatible clients, improving throughput without additional spectrum.
Wider channels: 240 MHz support reduces channel congestion and boosts peak performance on capable devices.
Multi‑client optimization: MU‑MIMO and airtime fairness ensure balanced access across many clients; load balancing distributes clients across radios to maintain consistent user experience.
Coverage and reliability: Beamforming focuses signal to clients for improved range and stability; internal antenna design supports discreet ceiling installation without sacrificing performance.
Seamless mobility: Seamless roaming and band steering let devices switch between APs and bands transparently, preserving session continuity for voice and video.
Deployment and management
Flexible powering: Supports 802.3at PoE+ for simplified ceiling deployments and 12 V DC when PoE is not available (note: DC power adapter sold separately).
Centralized orchestration: Full integration with Omada SDN Controller provides single‑pane provisioning, policy enforcement, guest management, analytics, and scalable site management. The Omada App offers on‑the‑go monitoring and basic configuration.
Scalable architecture: Designed for easy scaling across multiple sites with consistent configuration and monitoring, ideal for campuses, hotels, retail, and large offices.
Use cases
High‑density meeting rooms and auditoriums where many simultaneous HD/4K streams and low latency are required.
Hospitality and multi‑tenant environments demanding reliable roaming and centralized guest access.
Enterprise offices and campus deployments seeking future‑proof Wi‑Fi 7 performance with centralized management.
What’s not included
12 V DC power adapter (required if not using PoE+).
Why choose the Omada BE3600 For organizations that need next‑generation Wi‑Fi capacity, multi‑gigabit uplinks, and centralized SDN management, the BE3600 offers a forward‑looking ceiling AP platform that balances peak throughput, dense client support, and simplified operations.
Omada BE9300 — Ceiling Mount Tri-Band Wi‑Fi 7 Access Point
Overview A high-performance, enterprise-grade ceiling AP engineered for dense indoor environments. The BE9300 delivers Wi‑Fi 7 throughput across 2.4 GHz, 5 GHz, and 6 GHz bands with advanced features for superior capacity, low latency, and centralized manageability.
Key Specifications
Ports: 1 × 2.5G RJ45
Wireless speeds:
2.4 GHz: up to 574 Mbps
5 GHz: up to 4320 Mbps
6 GHz: up to 5760 Mbps
Power: 802.3at PoE+ and 12V DC (power adapter not included)
Antennas: 4 × internal
Channel bandwidth: up to 320 MHz
Modulation: 4K‑QAM
Multi-link Operation (MLO) support
MU‑MIMO, Beamforming, Band Steering, Seamless Roaming, Airtime Fairness, Load Balancing
Centralized management: Omada SDN Controller and Omada App
Performance Highlights
Tri‑band Wi‑Fi 7 architecture maximizes client concurrency and throughput by distributing traffic across 2.4/5/6 GHz bands.
320 MHz channel support and 4K‑QAM boost peak data rates and spectral efficiency for demanding applications such as 4K/8K video, large file transfers, and high-density conferencing.
Multi-Link Operation (MLO) reduces latency and increases reliability by allowing devices to use multiple bands simultaneously.
Enterprise Features
Seamless roaming and fast handoff ensure uninterrupted voice and video sessions in mobile or high-density deployments.
MU‑MIMO and Beamforming optimize spatial reuse and signal focus for better per-client performance.
Airtime Fairness and Load Balance prevent network starvation by distributing resources fairly among clients.
Centralized provisioning, monitoring, and analytics through Omada SDN Controller or Omada App simplify large-scale deployment and ongoing management.
Deployment Notes
Ceiling-mount form factor is ideal for offices, classrooms, retail, hotels, and public spaces.
Requires 802.3at PoE+ switch or an external 12V DC supply (power adapter sold separately).
Built-in internal antennas deliver aesthetic, low-profile installation while supporting enterprise radio performance.
Why Choose BE9300 The Omada BE9300 is designed for organizations that need next-generation Wi‑Fi 7 capacity, low latency, and centralized control. It combines cutting-edge PHY features like 320 MHz channels and MLO with mature enterprise management and roaming capabilities, delivering a scalable, high-throughput wireless backbone for modern networked environments.
What’s in the Box
Omada BE9300 Access Point
Ceiling-mount hardware and screws
Quick installation guide
Optional Accessories
12V DC power adapter (not included)
Omada PoE+ switches and mounting kits
Technical and compatibility questions or volume licensing/ordering inquiries can be directed to Zorins Technologies’ enterprise sales and support teams.
Omada BE9300 — Ceiling Mount Tri-Band Wi‑Fi 7 Access Point
Overview A high-performance, enterprise-grade ceiling AP engineered for dense indoor environments. The BE9300 delivers Wi‑Fi 7 throughput across 2.4 GHz, 5 GHz, and 6 GHz bands with advanced features for superior capacity, low latency, and centralized manageability.
Key Specifications
Ports: 1 × 2.5G RJ45
Wireless speeds:
2.4 GHz: up to 574 Mbps
5 GHz: up to 4320 Mbps
6 GHz: up to 5760 Mbps
Power: 802.3at PoE+ and 12V DC (power adapter not included)
Antennas: 4 × internal
Channel bandwidth: up to 320 MHz
Modulation: 4K‑QAM
Multi-link Operation (MLO) support
MU‑MIMO, Beamforming, Band Steering, Seamless Roaming, Airtime Fairness, Load Balancing
Centralized management: Omada SDN Controller and Omada App
Performance Highlights
Tri‑band Wi‑Fi 7 architecture maximizes client concurrency and throughput by distributing traffic across 2.4/5/6 GHz bands.
320 MHz channel support and 4K‑QAM boost peak data rates and spectral efficiency for demanding applications such as 4K/8K video, large file transfers, and high-density conferencing.
Multi-Link Operation (MLO) reduces latency and increases reliability by allowing devices to use multiple bands simultaneously.
Enterprise Features
Seamless roaming and fast handoff ensure uninterrupted voice and video sessions in mobile or high-density deployments.
MU‑MIMO and Beamforming optimize spatial reuse and signal focus for better per-client performance.
Airtime Fairness and Load Balance prevent network starvation by distributing resources fairly among clients.
Centralized provisioning, monitoring, and analytics through Omada SDN Controller or Omada App simplify large-scale deployment and ongoing management.
Deployment Notes
Ceiling-mount form factor is ideal for offices, classrooms, retail, hotels, and public spaces.
Requires 802.3at PoE+ switch or an external 12V DC supply (power adapter sold separately).
Built-in internal antennas deliver aesthetic, low-profile installation while supporting enterprise radio performance.
Why Choose BE9300 The Omada BE9300 is designed for organizations that need next-generation Wi‑Fi 7 capacity, low latency, and centralized control. It combines cutting-edge PHY features like 320 MHz channels and MLO with mature enterprise management and roaming capabilities, delivering a scalable, high-throughput wireless backbone for modern networked environments.
What’s in the Box
Omada BE9300 Access Point
Ceiling-mount hardware and screws
Quick installation guide
Optional Accessories
12V DC power adapter (not included)
Omada PoE+ switches and mounting kits
Technical and compatibility questions or volume licensing/ordering inquiries can be directed to Zorins Technologies’ enterprise sales and support teams.
Omada BE9300 — Ceiling-Mount Tri‑Band Wi‑Fi 7 Access Point
Overview The Omada BE9300 is a ceiling-mount, tri‑band Wi‑Fi 7 access point engineered for high-density enterprise and campus environments. Delivering multi-gigabit aggregated throughput across 2.4 GHz, 5 GHz, and 6 GHz bands, the BE9300 combines next‑generation PHY features with enterprise-grade management for seamless, future‑proof wireless connectivity.
Key Specifications
Ports: 1 × 10G RJ45
Radio speeds: 574 Mbps (2.4 GHz) + 2880 Mbps (5 GHz) + 5760 Mbps (6 GHz)
Power: 802.3bt PoE++ or 12 V DC (power adapter not included)
Antennas: 4 × Internal
Channel width: up to 320 MHz
Modulation: 4K‑QAM
MU‑MIMO and multi‑user spatial processing
Support for Multi‑Link Operation (MLO)
Performance and RF Features
Tri‑band Wi‑Fi 7 delivers high aggregate capacity and reduces congestion by distributing devices across 2.4/5/6 GHz bands.
320 MHz channel support and 4K‑QAM increase single‑client peak rates and boost spectral efficiency for bandwidth‑intensive applications.
MLO enables simultaneous use of multiple bands for lower latency and more reliable links, particularly beneficial for real‑time services.
MU‑MIMO and beamforming optimize multi‑client performance and extend effective coverage.
Airtime fairness, load balancing, and band steering ensure even distribution of client load and consistent user experience under heavy density.
Deployment and Management
Ceiling‑mount design and internal antennas provide clean installation and consistent omnidirectional coverage for indoor environments.
Centralized management through Omada SDN Controller or the Omada App enables scalable provisioning, monitoring, and policy enforcement across distributed sites.
Seamless roaming support minimizes interruption for mobile clients across access points in the same network.
Use Cases
Large offices, auditoriums, and campuses requiring multi‑gigabit wireless capacity and low latency.
High‑density venues (classrooms, conference centers) needing robust client concurrency and consistent performance.
Managed enterprise environments that require centralized orchestration and advanced RF control.
Power and Installation Notes
Supports 802.3bt PoE++ for single‑cable deployments; a 12 V DC option is available but power adapter is not included.
One 10G RJ45 uplink supports high‑capacity backhaul to core switches or aggregation points.
Why Choose the BE9300 The Omada BE9300 combines Wi‑Fi 7 advances—MLO, 320 MHz channels, and 4K‑QAM—with enterprise features like centralized Omada SDN management and power‑over‑Ethernet support. It’s designed to meet the needs of modern, high‑density indoor networks where capacity, low latency, and
Omada BE9300 — Ceiling-Mount Tri‑Band Wi‑Fi 7 Access Point
Overview The Omada BE9300 is a ceiling-mount, tri‑band Wi‑Fi 7 access point engineered for high-density enterprise and campus environments. Delivering multi-gigabit aggregated throughput across 2.4 GHz, 5 GHz, and 6 GHz bands, the BE9300 combines next‑generation PHY features with enterprise-grade management for seamless, future‑proof wireless connectivity.
Key Specifications
Ports: 1 × 10G RJ45
Radio speeds: 574 Mbps (2.4 GHz) + 2880 Mbps (5 GHz) + 5760 Mbps (6 GHz)
Power: 802.3bt PoE++ or 12 V DC (power adapter not included)
Antennas: 4 × Internal
Channel width: up to 320 MHz
Modulation: 4K‑QAM
MU‑MIMO and multi‑user spatial processing
Support for Multi‑Link Operation (MLO)
Performance and RF Features
Tri‑band Wi‑Fi 7 delivers high aggregate capacity and reduces congestion by distributing devices across 2.4/5/6 GHz bands.
320 MHz channel support and 4K‑QAM increase single‑client peak rates and boost spectral efficiency for bandwidth‑intensive applications.
MLO enables simultaneous use of multiple bands for lower latency and more reliable links, particularly beneficial for real‑time services.
MU‑MIMO and beamforming optimize multi‑client performance and extend effective coverage.
Airtime fairness, load balancing, and band steering ensure even distribution of client load and consistent user experience under heavy density.
Deployment and Management
Ceiling‑mount design and internal antennas provide clean installation and consistent omnidirectional coverage for indoor environments.
Centralized management through Omada SDN Controller or the Omada App enables scalable provisioning, monitoring, and policy enforcement across distributed sites.
Seamless roaming support minimizes interruption for mobile clients across access points in the same network.
Use Cases
Large offices, auditoriums, and campuses requiring multi‑gigabit wireless capacity and low latency.
High‑density venues (classrooms, conference centers) needing robust client concurrency and consistent performance.
Managed enterprise environments that require centralized orchestration and advanced RF control.
Power and Installation Notes
Supports 802.3bt PoE++ for single‑cable deployments; a 12 V DC option is available but power adapter is not included.
One 10G RJ45 uplink supports high‑capacity backhaul to core switches or aggregation points.
Why Choose the BE9300 The Omada BE9300 combines Wi‑Fi 7 advances—MLO, 320 MHz channels, and 4K‑QAM—with enterprise features like centralized Omada SDN management and power‑over‑Ethernet support. It’s designed to meet the needs of modern, high‑density indoor networks where capacity, low latency, and operational simplicity are essential.
Technical compliance and firmware features may vary by region; consult your Omada SDN documentation for deployment best practices and latest firmware capabilities.
Omada BE19000 Ceiling Mount Tri‑Band Wi‑Fi 7 Access Point
Overview The Omada BE19000 is a high-performance ceiling-mount Wi‑Fi 7 access point engineered for dense enterprise and campus environments. Delivering tri‑band aggregation, advanced PHY features, and flexible power options, it provides ultra‑high throughput and reliable multiuser connectivity to support bandwidth‑intensive applications, seamless roaming, and centralized management.
Key Specifications
Ports: 2 × 10G RJ45
Wireless performance (maximum theoretical):
2.4 GHz: 1148 Mbps
5 GHz: 5760 Mbps
6 GHz: 11,520 Mbps
Power: 802.3bt PoE++ and 12V DC input (power adapter not included)
Antennas: 8 × internal antennas
Wi‑Fi features: MU‑MIMO, 320 MHz channel width support, 4K‑QAM, MLO (Multi‑Link Operation)
RF and user experience: Seamless roaming, Band steering, Beamforming, Load balancing, Airtime fairness
Management: Centralized management via Omada SDN Controller and Omada App
Performance and Capacity The BE19000 leverages Wi‑Fi 7 enhancements—wide 320 MHz channels, 4K‑QAM, and MLO—to dramatically increase per‑client and aggregate throughput. The dedicated 6 GHz band delivers extremely high capacity for modern client devices, while the 5 GHz and 2.4 GHz bands maintain broad compatibility. Dual 10G uplinks enable robust backhaul and link redundancy for high‑density deployments.
Advanced Wireless Technologies
MU‑MIMO and Beamforming: Improves spectral efficiency and per‑client signal quality in crowded environments.
MLO (Multi‑Link Operation): Simultaneous use of multiple bands for lower latency, improved reliability, and faster roaming between bands.
Airtime Fairness and Load Balancing: Ensures equitable access and optimizes resource distribution among clients with varying capabilities.
Band Steering and Seamless Roaming: Directs capable devices to the best band and maintains uninterrupted client sessions across the network.
Deployment and Power Designed for ceiling mounting to maximize coverage and aesthetics, the BE19000’s internal antennas deliver a clean installation without external RF hardware. Power flexibility is provided by 802.3bt PoE++ for simplified cabling or a 12V DC input where local power is preferred (note: DC power adapter sold separately).
Management and Security Fully integrated with the Omada SDN ecosystem, the BE19000 supports centralized provisioning, topology mapping, firmware scheduling, role‑based administration, and comprehensive analytics via the Omada Controller and Omada App—ideal for multi‑site enterprise networks. Standard security features include WPA3, rogue AP detection, client isolation, and guest network controls.
Use Cases
Enterprise offices and corporate campuses requiring high throughput and low latency for collaboration, video conferencing, and virtual desktops.
Education and libraries with dense concurrent users and mixed device capabilities.
Hospitality, conference centers, and public venues where predictable performance and seamless mobility matter.
Packaging Notes Power adapter not included. Verify PoE++ switch or compatible 12V DC supply before deployment.
Why Choose the Omada BE19000 For organizations demanding future‑ready Wi‑Fi with substantial capacity, resilient uplinks, and centralized management at scale, the BE19000 provides a
Omada BE19000 Ceiling Mount Tri‑Band Wi‑Fi 7 Access Point
Overview The Omada BE19000 is a high-performance ceiling-mount Wi‑Fi 7 access point engineered for dense enterprise and campus environments. Delivering tri‑band aggregation, advanced PHY features, and flexible power options, it provides ultra‑high throughput and reliable multiuser connectivity to support bandwidth‑intensive applications, seamless roaming, and centralized management.
Key Specifications
Ports: 2 × 10G RJ45
Wireless performance (maximum theoretical):
2.4 GHz: 1148 Mbps
5 GHz: 5760 Mbps
6 GHz: 11,520 Mbps
Power: 802.3bt PoE++ and 12V DC input (power adapter not included)
Antennas: 8 × internal antennas
Wi‑Fi features: MU‑MIMO, 320 MHz channel width support, 4K‑QAM, MLO (Multi‑Link Operation)
RF and user experience: Seamless roaming, Band steering, Beamforming, Load balancing, Airtime fairness
Management: Centralized management via Omada SDN Controller and Omada App
Performance and Capacity The BE19000 leverages Wi‑Fi 7 enhancements—wide 320 MHz channels, 4K‑QAM, and MLO—to dramatically increase per‑client and aggregate throughput. The dedicated 6 GHz band delivers extremely high capacity for modern client devices, while the 5 GHz and 2.4 GHz bands maintain broad compatibility. Dual 10G uplinks enable robust backhaul and link redundancy for high‑density deployments.
Advanced Wireless Technologies
MU‑MIMO and Beamforming: Improves spectral efficiency and per‑client signal quality in crowded environments.
MLO (Multi‑Link Operation): Simultaneous use of multiple bands for lower latency, improved reliability, and faster roaming between bands.
Airtime Fairness and Load Balancing: Ensures equitable access and optimizes resource distribution among clients with varying capabilities.
Band Steering and Seamless Roaming: Directs capable devices to the best band and maintains uninterrupted client sessions across the network.
Deployment and Power Designed for ceiling mounting to maximize coverage and aesthetics, the BE19000’s internal antennas deliver a clean installation without external RF hardware. Power flexibility is provided by 802.3bt PoE++ for simplified cabling or a 12V DC input where local power is preferred (note: DC power adapter sold separately).
Management and Security Fully integrated with the Omada SDN ecosystem, the BE19000 supports centralized provisioning, topology mapping, firmware scheduling, role‑based administration, and comprehensive analytics via the Omada Controller and Omada App—ideal for multi‑site enterprise networks. Standard security features include WPA3, rogue AP detection, client isolation, and guest network controls.
Use Cases
Enterprise offices and corporate campuses requiring high throughput and low latency for collaboration, video conferencing, and virtual desktops.
Education and libraries with dense concurrent users and mixed device capabilities.
Hospitality, conference centers, and public venues where predictable performance and seamless mobility matter.
Packaging Notes Power adapter not included. Verify PoE++ switch or compatible 12V DC supply before deployment.
Why Choose the Omada BE19000 For organizations demanding future‑ready Wi‑Fi with substantial capacity, resilient uplinks, and centralized management at scale, the BE19000 provides a sophisticated, high‑density solution that harnesses Wi‑Fi 7 innovations to deliver measurable improvements in speed, latency, and client experience.
Omada Hardware Controller
Overview A high-capacity, enterprise-grade controller engineered for centralized management of large-scale Omada deployments. Designed for reliability, performance, and secure multi-site administration, this rack-mountable unit delivers robust hardware and flexible management options for wireless access points, switches, and routers.
Hardware Specifications
Ports
2 × 10G SFP+ slots
4 × 10/100/1000 Mbps Ethernet ports (Gigabit RJ45)
2 × USB 3.0 ports
1 × RJ45 Console port
Build
Durable metal casing
Rack-mountable 1U form factor
Power
Dual redundant power supplies (hot-swappable)
Physical and Environmental
Designed for enterprise rack environments; industrial-grade cooling
Operating temperature and power ratings available on request to match deployment conditions
Key Features
Centralized Management
Manage up to 1,000 Omada EAPs, 200 Omada switches, and 100 Omada routers from a single pane of glass
Streamlined configuration, monitoring, firmware management, and policy enforcement
Cloud Access
Secure cloud access for remote monitoring and administration
Supports cloud-based account authentication and role-based access control
Multi-site Management
Single-controller view for multiple sites with site-level isolation and cross-site templates
Centralized reporting and analytics across all managed locations
Omada App Support
Full compatibility with the Omada mobile app for on-the-go management and deployment
Device onboarding, monitoring, and alerting via mobile interface
Reliability & Availability
Metal chassis and rack-mount design for data center and wiring-closet deployments
Dual redundant PSUs minimize downtime and support high-availability operations
Use Cases
Enterprise campuses and multi-building facilities requiring centralized wireless, switching, and routing management
Managed service providers supporting multiple customer sites from a single console
Retail and hospitality chains that need consistent network policies, firmware control, and centralized analytics
Data centers and critical environments where redundant power and 10G uplinks are required
Management & Security
Role-based administrative access and audit logging
Centralized firmware scheduling and staged upgrades
Network segmentation and SSID/VLAN mapping across multiple sites
Real-time monitoring, alerts, and historical performance graphs
Deployment Notes
Recommended for deployments demanding high device counts and multi-site orchestration
Use 10G SFP+ slots for uplinks to core switches or aggregation points to ensure headroom for traffic and management tunnels
Dual power supplies require separate power feeds for maximum redundancy
Rack rails and mounting hardware included per regional packaging (verify contents for each order)
Package Contents
Omada Hardware Controller (rack-mountable)
Dual redundant power supplies (preinstalled or included separately per regional model)
Rack-mount kit and screws
Quick installation guide and safety documentation
Warranty & Support
Enterprise-grade warranty and optional extended support packages available (contact sales for regional details)
Firmware updates and feature releases provided through Omada platform
For ordering information, exact dimensions, power specifications, or compatibility questions for your environment, contact your Zor
Omada Hardware Controller
Overview A high-capacity, enterprise-grade controller engineered for centralized management of large-scale Omada deployments. Designed for reliability, performance, and secure multi-site administration, this rack-mountable unit delivers robust hardware and flexible management options for wireless access points, switches, and routers.
Hardware Specifications
Ports
2 × 10G SFP+ slots
4 × 10/100/1000 Mbps Ethernet ports (Gigabit RJ45)
2 × USB 3.0 ports
1 × RJ45 Console port
Build
Durable metal casing
Rack-mountable 1U form factor
Power
Dual redundant power supplies (hot-swappable)
Physical and Environmental
Designed for enterprise rack environments; industrial-grade cooling
Operating temperature and power ratings available on request to match deployment conditions
Key Features
Centralized Management
Manage up to 1,000 Omada EAPs, 200 Omada switches, and 100 Omada routers from a single pane of glass
Streamlined configuration, monitoring, firmware management, and policy enforcement
Cloud Access
Secure cloud access for remote monitoring and administration
Supports cloud-based account authentication and role-based access control
Multi-site Management
Single-controller view for multiple sites with site-level isolation and cross-site templates
Centralized reporting and analytics across all managed locations
Omada App Support
Full compatibility with the Omada mobile app for on-the-go management and deployment
Device onboarding, monitoring, and alerting via mobile interface
Reliability & Availability
Metal chassis and rack-mount design for data center and wiring-closet deployments
Dual redundant PSUs minimize downtime and support high-availability operations
Use Cases
Enterprise campuses and multi-building facilities requiring centralized wireless, switching, and routing management
Managed service providers supporting multiple customer sites from a single console
Retail and hospitality chains that need consistent network policies, firmware control, and centralized analytics
Data centers and critical environments where redundant power and 10G uplinks are required
Management & Security
Role-based administrative access and audit logging
Centralized firmware scheduling and staged upgrades
Network segmentation and SSID/VLAN mapping across multiple sites
Real-time monitoring, alerts, and historical performance graphs
Deployment Notes
Recommended for deployments demanding high device counts and multi-site orchestration
Use 10G SFP+ slots for uplinks to core switches or aggregation points to ensure headroom for traffic and management tunnels
Dual power supplies require separate power feeds for maximum redundancy
Rack rails and mounting hardware included per regional packaging (verify contents for each order)
Package Contents
Omada Hardware Controller (rack-mountable)
Dual redundant power supplies (preinstalled or included separately per regional model)
Rack-mount kit and screws
Quick installation guide and safety documentation
Warranty & Support
Enterprise-grade warranty and optional extended support packages available (contact sales for regional details)
Firmware updates and feature releases provided through Omada platform
For ordering information, exact dimensions, power specifications, or compatibility questions for your environment, contact your Zorins Technologies representative.
Omada Hardware Controller
Overview A high-performance, rack-mountable hardware controller engineered for enterprise-class wireless and wired network management. Delivers centralized, cloud-enabled control for large-scale Omada deployments with industrial-grade durability and flexible connectivity.
Key Specifications
Ports
2 × 10/100/1000 Mbps Ethernet ports
1 × USB 3.0 port
Management Capacity
Centralized management of up to 500 Omada EAP access points, JetStream switches, and SafeStream routers
Multi-site management capability for distributed networks and branch offices
Cloud & Mobile
Cloud access for remote monitoring, configuration, and firmware management
Full compatibility with the Omada mobile app for on-the-go administration and alerts
Construction & Mounting
Robust metal casing for enhanced durability and thermal performance
Rack-mountable design (1U form factor) for data center and wiring-closet installations
Additional Features
Role-based administration and granular access control
Automated device discovery and zero-touch provisioning
Scalable topology mapping and visualized network health dashboards
Centralized firmware management and scheduled updates
Event logging, alerting, and audit trails
VLAN, SSID, and QoS policy propagation across managed devices
Use Cases
Campus networks requiring centralized control of wireless and wired infrastructure
Multi-branch organizations seeking cloud-enabled, multi-site oversight
Service providers deploying managed Wi-Fi and network services at scale
Data center and enterprise wiring closets needing a compact, rack-mounted controller
Physical & Environmental
Chassis: Metal
Mounting: Rack-mountable (1U)
Ports: 2× Gigabit Ethernet, 1× USB 3.0
Designed for continuous, 24/7 operation in standard server/rack environments
Why Choose This Controller
Scalable: Manages up to 500 Omada devices with centralized policies and orchestration
Secure: Cloud access with role-based controls and comprehensive logging
Durable: Metal construction and rack-ready design for enterprise deployments
Convenient: Omada app and cloud connectivity for remote administration and rapid troubleshooting
Package Contents (typical)
Omada Hardware Controller unit
Rack-mount brackets and mounting screws
AC power cord
Quick installation guide
Regulatory & Compliance
Meets common enterprise regulatory and safety standards (consult product datasheet for specific certifications and regional compliance)
For deployment planning and advanced configuration guidance, consult your Omada solution architect or
Omada Hardware Controller
Overview A high-performance, rack-mountable hardware controller engineered for enterprise-class wireless and wired network management. Delivers centralized, cloud-enabled control for large-scale Omada deployments with industrial-grade durability and flexible connectivity.
Key Specifications
Ports
2 × 10/100/1000 Mbps Ethernet ports
1 × USB 3.0 port
Management Capacity
Centralized management of up to 500 Omada EAP access points, JetStream switches, and SafeStream routers
Multi-site management capability for distributed networks and branch offices
Cloud & Mobile
Cloud access for remote monitoring, configuration, and firmware management
Full compatibility with the Omada mobile app for on-the-go administration and alerts
Construction & Mounting
Robust metal casing for enhanced durability and thermal performance
Rack-mountable design (1U form factor) for data center and wiring-closet installations
Additional Features
Role-based administration and granular access control
Automated device discovery and zero-touch provisioning
Scalable topology mapping and visualized network health dashboards
Centralized firmware management and scheduled updates
Event logging, alerting, and audit trails
VLAN, SSID, and QoS policy propagation across managed devices
Use Cases
Campus networks requiring centralized control of wireless and wired infrastructure
Multi-branch organizations seeking cloud-enabled, multi-site oversight
Service providers deploying managed Wi-Fi and network services at scale
Data center and enterprise wiring closets needing a compact, rack-mounted controller
Physical & Environmental
Chassis: Metal
Mounting: Rack-mountable (1U)
Ports: 2× Gigabit Ethernet, 1× USB 3.0
Designed for continuous, 24/7 operation in standard server/rack environments
Why Choose This Controller
Scalable: Manages up to 500 Omada devices with centralized policies and orchestration
Secure: Cloud access with role-based controls and comprehensive logging
Durable: Metal construction and rack-ready design for enterprise deployments
Convenient: Omada app and cloud connectivity for remote administration and rapid troubleshooting
Package Contents (typical)
Omada Hardware Controller unit
Rack-mount brackets and mounting screws
AC power cord
Quick installation guide
Regulatory & Compliance
Meets common enterprise regulatory and safety standards (consult product datasheet for specific certifications and regional compliance)
For deployment planning and advanced configuration guidance, consult your Omada solution architect or authorized reseller.
Omada Hardware Controller
Overview A compact, enterprise-grade controller engineered for centralized management of Omada networks. Designed for professional deployments requiring reliable on-premises control with optional cloud access, the controller delivers streamlined configuration, monitoring, and maintenance for small to medium installations.
Key Specifications
Ports:
2 × 10/100/1000 Mbps Ethernet ports
1 × USB 2.0 port
1 × Micro USB port
Management Capacity:
Up to 100 Omada EAP
Streamline your network with the Omada OC200 Hardware Controller, offering robust centralized management for your entire network infrastructure.
Effortless network management with centralized control.
Supports up to 100 devices, perfect for small to medium businesses.
Intuitive user interface for seamless configuration and monitoring.
Revolutionize the way you manage your network, ensuring your business operates smoothly and efficiently.
Robot Vacuum Cleaner
Precision navigation. Powerful cleaning. Thoughtful control.
Key Specifications
Navigation: LiDAR + IMU dual navigation system for accurate mapping and reliable path planning
Cleaning modes: Vacuum & Mop 2‑in‑1
Suction: 5300 Pa with 5 adjustable suction levels
Water flow: 3 adjustable water-flow levels
Battery: 2600 mAh for extended runtime
Dustbin: 250 ml capacity
Water tank: 300 ml capacity
Barrier-crossing: 22 mm maximum
Mapping: 3+1 local maps (multi-floor support)
Filtration: HEPA filter
Performance and Navigation
LiDAR + IMU Dual Navi System: Combines high-resolution LiDAR scanning with inertial measurement for stable localization in complex, changing environments. Maintains accurate positioning even in low light or when temporary obstacles disrupt line-of-sight.
3+1 Local Maps: Save and switch between multiple floor plans easily; the +1 allows a quick temporary map for guest rooms or remodeling scenarios.
22 mm Barrier-Cross Height: Confidently climbs thresholds and low rugs up to 22 mm.
Top Anti-blocking Sensor & Anti-Drop Protection: Sensors on the top and periphery reduce entanglement and prevent falls from stairs and elevated edges.
Cleaning Capability
5300 Pa Suction, 5-Level Control: From whisper-quiet eco mode to deep-clean turbo, select the suction power appropriate to debris and surface type.
3-Level Water Flow & Mop Integration: Adjustable mopping flow for delicate hardwoods or tougher stains; mopping and vacuuming operate in concert for a single-pass finish.
Carpet Mode: Automatically increases suction when carpeting is detected for improved dust and fiber pickup.
HEPA Filtration: Captures fine particles, supporting better indoor air quality for allergy-conscious households.
Smart Mapping & Customization
Custom Cleaning & Spot Cleaning: Draw or select cleaning areas for targeted maintenance. Perform intensive spot cleans for spills or high-traffic zones.
Scheduled Cleaning: Set recurring routines by room or area to maintain consistent cleanliness without intervention.
Virtual Walls & No-Go Zones: Define restricted areas within the app to protect fragile spaces, pet bowls, or cables.
Tapo App Control: Intuitive map editing, real-time monitoring, and mode selection from your smartphone.
Voice Control: Customized Alexa and Google Assistant voice commands for hands-free starts, stops, and mode switches.
Durability & Usability
Practical Capacities: 250 ml dustbin and 300 ml water tank minimize interruption while providing ample cleaning coverage for medium-sized homes.
User-Friendly Maintenance: Removable mop module, washable HEPA filter, and easily accessible dustbin streamline upkeep.
Reliable Runtime: 2600 mAh battery balances runtime and compact form factor; intelligent return-to-dock and resume ensure task completion.
Ideal Use Cases
Multi-floor homes needing accurate, repeatable mapping and room-specific routines
Households with mixed surfaces—hardwood, tile, low- to medium-height rugs
Allergy-aware homes seeking HEPA filtration and robust suction
Busy users who prefer scheduled maintenance and voice-activated convenience
What sets it apart A sophisticated navigation suite combining LiDAR and IMU ensures consistent, high-fidelity mapping and resilient operation in real-world conditions. Coupled with powerful 5300 Pa suction, versatile mop control, and thoughtful safety sensors, this robot delivers a premium, low-effort cleaning experience across diverse home environments.
Included in box
Robot vacuum cleaner (vacuum + mop module)
Charging dock and power adapter
Side brushes and main brush (pre-installed)
HEPA filter (installed) and spare filter
Mop cloth and mop plate
Quick start guide and warranty card
Technical note Actual runtime and performance vary with floor type, suction level, and environmental conditions.
Robot Vacuum Cleaner
Precision navigation. Powerful cleaning. Thoughtful control.
Key Specifications
Navigation: LiDAR + IMU dual navigation system for accurate mapping and reliable path planning
Cleaning modes: Vacuum & Mop 2‑in‑1
Suction: 5300 Pa with 5 adjustable suction levels
Water flow: 3 adjustable water-flow levels
Battery: 2600 mAh for extended runtime
Dustbin: 250 ml capacity
Water tank: 300 ml capacity
Barrier-crossing: 22 mm maximum
Mapping: 3+1 local maps (multi-floor support)
Filtration: HEPA filter
Performance and Navigation
LiDAR + IMU Dual Navi System: Combines high-resolution LiDAR scanning with inertial measurement for stable localization in complex, changing environments. Maintains accurate positioning even in low light or when temporary obstacles disrupt line-of-sight.
3+1 Local Maps: Save and switch between multiple floor plans easily; the +1 allows a quick temporary map for guest rooms or remodeling scenarios.
22 mm Barrier-Cross Height: Confidently climbs thresholds and low rugs up to 22 mm.
Top Anti-blocking Sensor & Anti-Drop Protection: Sensors on the top and periphery reduce entanglement and prevent falls from stairs and elevated edges.
Cleaning Capability
5300 Pa Suction, 5-Level Control: From whisper-quiet eco mode to deep-clean turbo, select the suction power appropriate to debris and surface type.
3-Level Water Flow & Mop Integration: Adjustable mopping flow for delicate hardwoods or tougher stains; mopping and vacuuming operate in concert for a single-pass finish.
Carpet Mode: Automatically increases suction when carpeting is detected for improved dust and fiber pickup.
HEPA Filtration: Captures fine particles, supporting better indoor air quality for allergy-conscious households.
Smart Mapping & Customization
Custom Cleaning & Spot Cleaning: Draw or select cleaning areas for targeted maintenance. Perform intensive spot cleans for spills or high-traffic zones.
Scheduled Cleaning: Set recurring routines by room or area to maintain consistent cleanliness without intervention.
Virtual Walls & No-Go Zones: Define restricted areas within the app to protect fragile spaces, pet bowls, or cables.
Tapo App Control: Intuitive map editing, real-time monitoring, and mode selection from your smartphone.
Voice Control: Customized Alexa and Google Assistant voice commands for hands-free starts, stops, and mode switches.
Durability & Usability
Practical Capacities: 250 ml dustbin and 300 ml water tank minimize interruption while providing ample cleaning coverage for medium-sized homes.
User-Friendly Maintenance: Removable mop module, washable HEPA filter, and easily accessible dustbin streamline upkeep.
Reliable Runtime: 2600 mAh battery balances runtime and compact form factor; intelligent return-to-dock and resume ensure task completion.
Ideal Use Cases
Multi-floor homes needing accurate, repeatable mapping and room-specific routines
Households with mixed surfaces—hardwood, tile, low- to medium-height rugs
Allergy-aware homes seeking HEPA filtration and robust suction
Busy users who prefer scheduled maintenance and voice-activated convenience
What sets it apart A sophisticated navigation suite combining LiDAR and IMU ensures consistent, high-fidelity mapping and resilient operation in real-world conditions. Coupled with powerful 5300 Pa suction, versatile mop control, and thoughtful safety sensors, this robot delivers a premium, low-effort cleaning experience across diverse home environments.
Included in box
Robot vacuum cleaner (vacuum + mop module)
Charging dock and power adapter
Side brushes and main brush (pre-installed)
HEPA filter (installed) and spare filter
Mop cloth and mop plate
Quick start guide and warranty card
Technical note Actual runtime and performance vary with floor type, suction level, and environmental conditions. For optimal battery longevity, follow recommended charging and maintenance practices.
No results found
No results match your search. Try removing a few filters.
