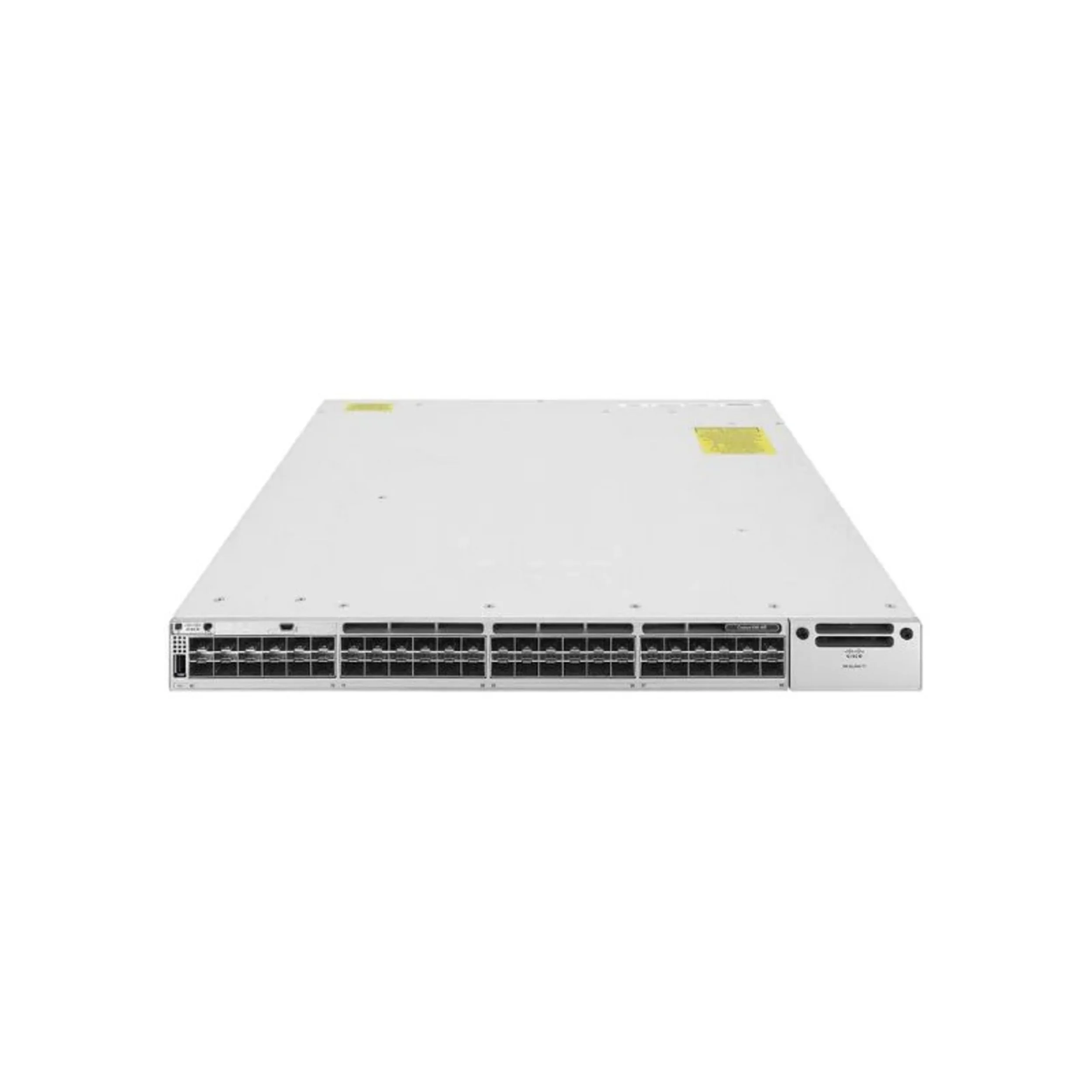

Cisco C9300-48S-E

The C9300-48S-E is a Cisco Catalyst 9300 48-Port Gigabit SFP Fiber L2/L3 Enterprise Switch with Network Essentials License — delivering 416 Gbps switching, StackWise-480, UADP 2.0 ASIC, modular uplinks, enterprise-class security, and SD-Access readiness for secure, scalable campus and branch fiber network deployments.

Key Highlights

48x Gigabit SFP Fiber Ports | 416 Gbps Switching | 309.52 Mpps Forwarding | StackWise-480 (480 Gbps) | Network Essentials License | UADP 2.0 ASIC | Modular Uplinks | SD-Access Ready | 1U Rack

Specifications

Brand: Cisco | Model: C9300-48S-E | Series: Catalyst 9300 | License: Network Essentials | Ports: 48x 1G SFP Fiber | Switching: 416 Gbps (1376 Gbps Stacked) | Forwarding: 309.52 Mpps (1023.80 Mpps Stacked) | MAC Table: 32,000 | DRAM: 8GB | Flash: 16GB | Expansion Slots: 1x Network Module Slot | Fans: 3 | Form Factor: 1U Rack

Stacking

StackWise-480 | Up to 8 Switches | 480 Gbps Stacking Bandwidth | Stack Cables Sold Separately

Module Options

C9300-NM-4G | C9300-NM-8X | C9300-NM-2Q | C9300-NM-4M | C9300-NM-2Y

L3 Features

Static Routing | RIP | OSPF | VRF Lite | Policy-Based Routing | SD-Access Ready | IPv4/IPv6 Routing | QoS | NSF/SSO | ISSU

Security

802.1X | ACL | DHCP Snooping | Dynamic ARP Inspection (DAI) | IP Source Guard | Control Plane Policing (CoPP) | Secure Boot | MACsec | Trustworthy Systems

Management

Cisco DNA Center | Cisco IOS XE | NETCONF/RESTCONF | SNMP | CLI | Streaming Telemetry | WebUI | Zero-Touch Provisioning

Temperature

Operating: -5°C to +45°C (Up to 1500m) | -5°C to +40°C (Up to 3000m)
