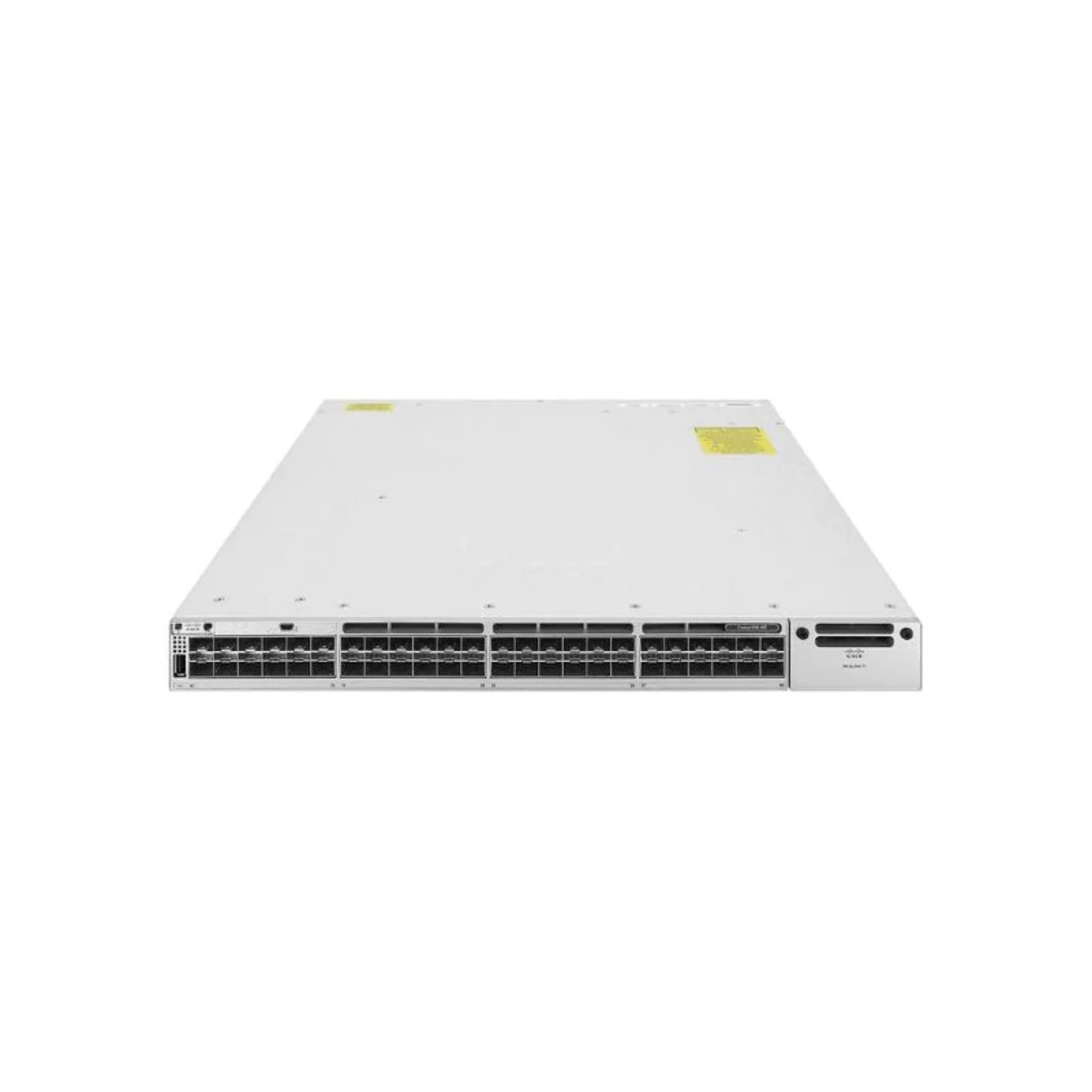

The C9300-48U-E is a Cisco Catalyst 9300 48-Port Gigabit UPOE Enterprise Switch with Network Essentials License, built to deliver secure, high-performance Layer 2 and Layer 3 networking for enterprise campus and branch deployments. It features 48 Gigabit Ethernet UPOE ports with up to 60W power per port, 176 Gbps switching capacity, Cisco UADP 2.0 ASIC, StackWise-480 technology, modular uplink support, enterprise-grade security, and SD-Access readiness for scalable, reliable, and simplified network management.
Key Highlights
48x Gigabit Ethernet UPOE Ports | Up to 60W UPOE per Port | 176 Gbps Switching | 130.95 Mpps Forwarding | StackWise-480 (480 Gbps) | Network Essentials License | UADP 2.0 ASIC | Modular Uplinks | SD-Access Ready | 1U Rack
Specifications
Brand: Cisco | Model: C9300-48U-E | Series: Catalyst 9300 | License: Network Essentials | Ports: 48x 10/100/1000 Gigabit Ethernet UPOE | PoE Standard: Cisco UPOE (Up to 60W per Port) | PoE Budget: 1440W | Switching: 176 Gbps (640 Gbps Stacked) | Forwarding: 130.95 Mpps (476.19 Mpps Stacked) | MAC Table: 32,000 | DRAM: 8GB | Flash: 16GB | Expansion Slots: 1x Network Module Slot | Fans: 3 | Form Factor: 1U Rack
Stacking
StackWise-480 | Up to 8 Switches | 480 Gbps Stacking Bandwidth | Stack Cables Sold Separately
Module Options
C9300-NM-4G | C9300-NM-8X | C9300-NM-2Q | C9300-NM-4M | C9300-NM-2Y
L3 Features
Static Routing | RIP | OSPF | VRF Lite | Policy-Based Routing | SD-Access Ready | IPv4/IPv6 Routing | QoS | NSF/SSO | ISSU
Security
802.1X | ACL | DHCP Snooping | Dynamic ARP Inspection (DAI) | IP Source Guard | Control Plane Policing (CoPP) | Secure Boot | MACsec | Trustworthy Systems
Management
Cisco DNA Center | Cisco IOS XE | NETCONF/RESTCONF | SNMP | CLI | Streaming Telemetry | WebUI | Zero-Touch Provisioning
Temperature
Operating: -5°C to +45°C (Up to 1500m) | -5°C to +40°C (Up to 3000m)
The C9300-48U-E is a Cisco Catalyst 9300 48-Port Gigabit UPOE Enterprise Switch with Network Essentials License, built to deliver secure, high-performance Layer 2 and Layer 3 networking for enterprise campus and branch deployments. It features 48 Gigabit Ethernet UPOE ports with up to 60W power per port, 176 Gbps switching capacity, Cisco UADP 2.0 ASIC, StackWise-480 technology, modular uplink support, enterprise-grade security, and SD-Access readiness for scalable, reliable, and simplified network management.
Key Highlights
48x Gigabit Ethernet UPOE Ports | Up to 60W UPOE per Port | 176 Gbps Switching | 130.95 Mpps Forwarding | StackWise-480 (480 Gbps) | Network Essentials License | UADP 2.0 ASIC | Modular Uplinks | SD-Access Ready | 1U Rack
Specifications
Brand: Cisco | Model: C9300-48U-E | Series: Catalyst 9300 | License: Network Essentials | Ports: 48x 10/100/1000 Gigabit Ethernet UPOE | PoE Standard: Cisco UPOE (Up to 60W per Port) | PoE Budget: 1440W | Switching: 176 Gbps (640 Gbps Stacked) | Forwarding: 130.95 Mpps (476.19 Mpps Stacked) | MAC Table: 32,000 | DRAM: 8GB | Flash: 16GB | Expansion Slots: 1x Network Module Slot | Fans: 3 | Form Factor: 1U Rack
Stacking
StackWise-480 | Up to 8 Switches | 480 Gbps Stacking Bandwidth | Stack Cables Sold Separately
Module Options
C9300-NM-4G | C9300-NM-8X | C9300-NM-2Q | C9300-NM-4M | C9300-NM-2Y
L3 Features
Static Routing | RIP | OSPF | VRF Lite | Policy-Based Routing | SD-Access Ready | IPv4/IPv6 Routing | QoS | NSF/SSO | ISSU
Security
802.1X | ACL | DHCP Snooping | Dynamic ARP Inspection (DAI) | IP Source Guard | Control Plane Policing (CoPP) | Secure Boot | MACsec | Trustworthy Systems
Management
Cisco DNA Center | Cisco IOS XE | NETCONF/RESTCONF | SNMP | CLI | Streaming Telemetry | WebUI | Zero-Touch Provisioning
Temperature
Operating: -5°C to +45°C (Up to 1500m) | -5°C to +40°C (Up to 3000m)
