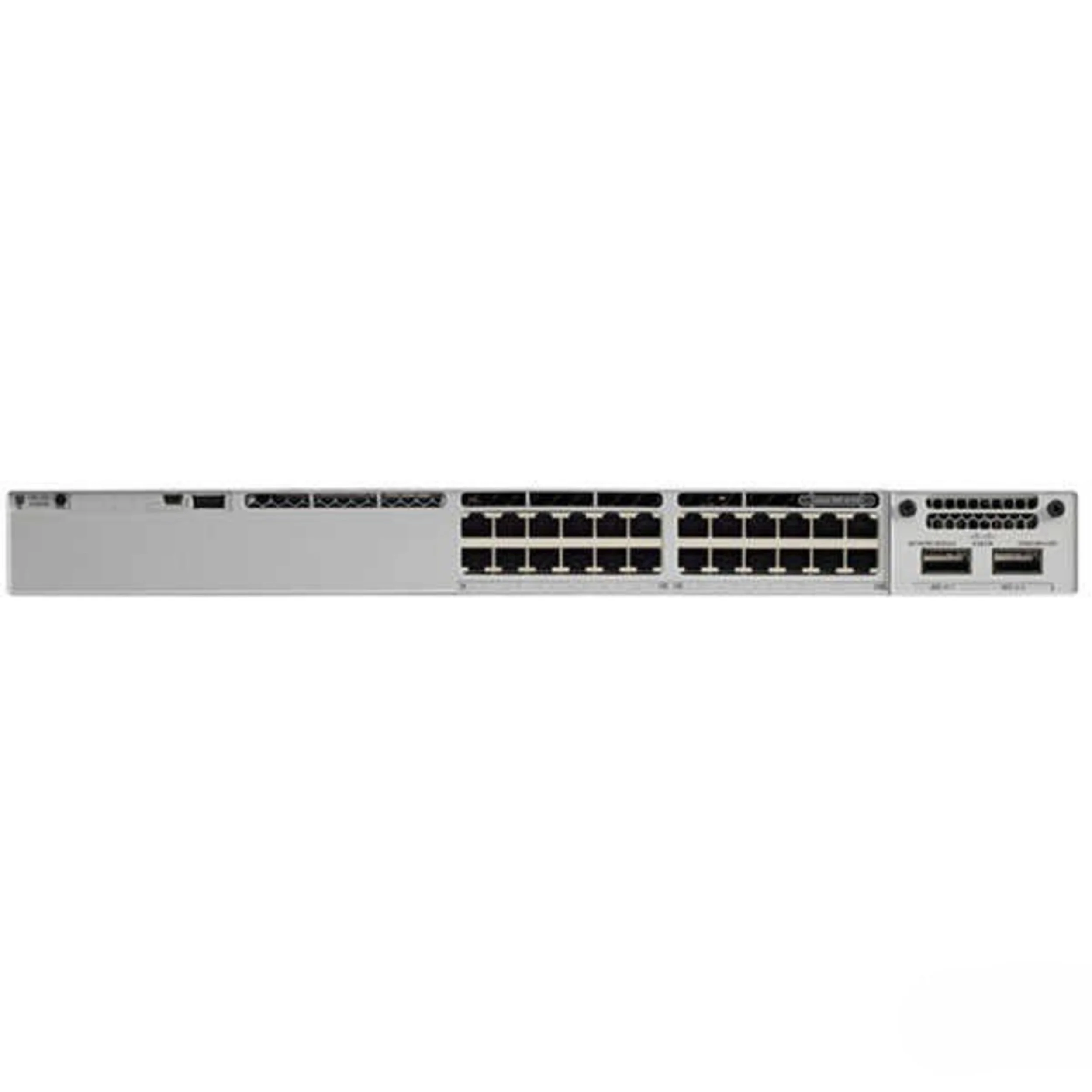

Cisco C9300L-24T-4G-E

The C9300L-24T-4G-E is a Cisco Catalyst 9300L 24-Port Gigabit Enterprise Switch with Network Essentials License, designed for secure enterprise access, branch offices, and campus network deployments. It features 24 Gigabit Ethernet data ports, fixed 4x 1G SFP uplinks, 128 Gbps switching capacity, Cisco UADP ASIC architecture, StackWise-320 technology, essential Layer 3 routing, enterprise-grade security, and Cisco DNA support for reliable, scalable, and simplified network management.

Key Highlights

24x Gigabit Ethernet Data Ports | 4x 1G Fixed SFP Uplinks | 128 Gbps Switching | 95.23 Mpps Forwarding | StackWise-320 (320 Gbps) | Network Essentials License | Cisco UADP ASIC | Enterprise Security | Fixed Uplinks | 1U Rack

Specifications

Brand: Cisco | Model: C9300L-24T-4G-E | Series: Catalyst 9300L | License: Network Essentials | Ports: 24x 10/100/1000 Gigabit Ethernet Data | Uplinks: 4x 1G Fixed SFP | Switching: 128 Gbps | Forwarding: 95.23 Mpps | MAC Table: 32,000 | DRAM: 8GB | Flash: 16GB | Stacking: StackWise-320 | Expansion Slots: Fixed Uplinks | Power Supply: 350W AC | Form Factor: 1U Rack

Stacking

StackWise-320 | Up to 8 Switches | 320 Gbps Stacking Bandwidth | C9300L-STACK-KIT Required

Module Options

Fixed 4x 1G SFP Uplinks (No Modular Network Module)

L3 Features

Static Routing | RIP | OSPF | VRF Lite | Policy-Based Routing | IPv4/IPv6 Routing | SD-Access Ready | QoS | NSF/SSO | ISSU

Security

802.1X | ACL | DHCP Snooping | Dynamic ARP Inspection (DAI) | IP Source Guard | Control Plane Policing (CoPP) | MACsec | Secure Boot | Trustworthy Systems

Management

Cisco DNA Center | Cisco IOS XE | NETCONF/RESTCONF | SNMP | CLI | Streaming Telemetry | WebUI | Zero-Touch Provisioning

Temperature

Operating: -5°C to +45°C (Up to 1500m) | -5°C to +40°C (Up to 3000m)
