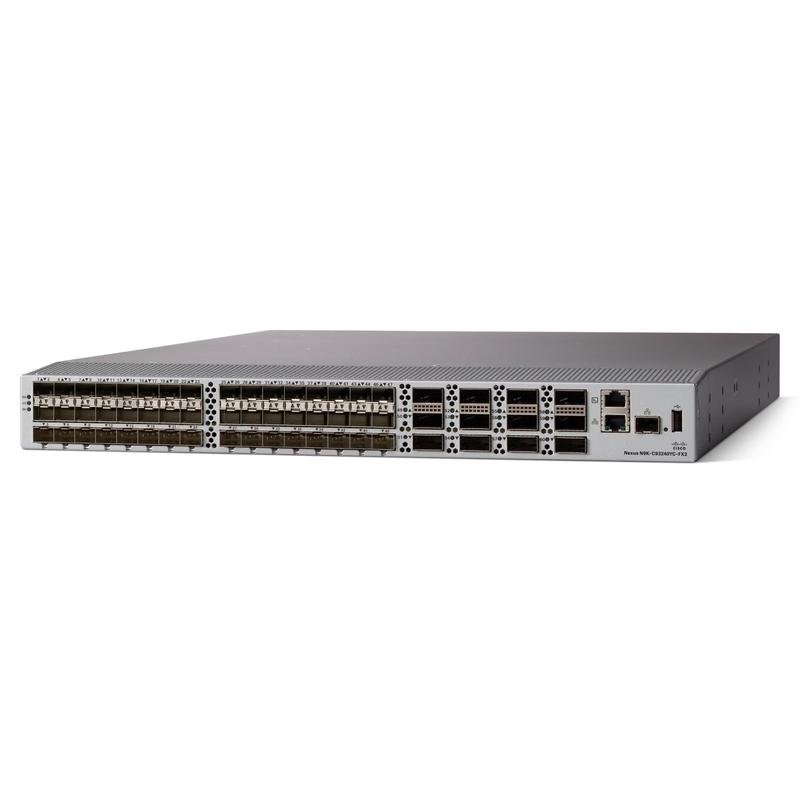

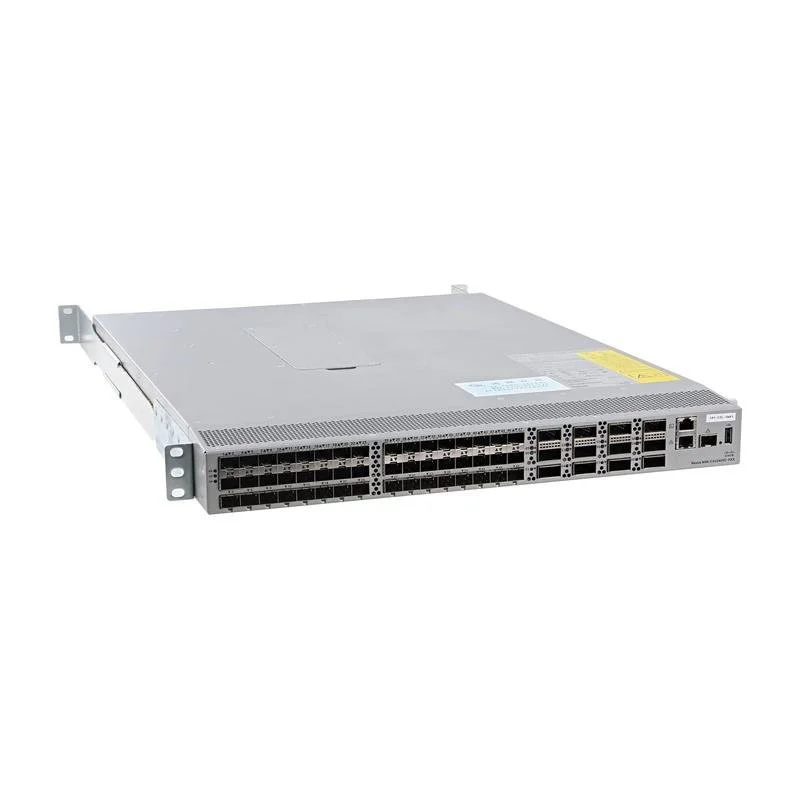

Cisco N9K-C93240YC-FX2

The N9K-C93240YC-FX2 is a Cisco Nexus 9300-FX2 1.2RU data center switch delivering 4.8 Tbps switching with 48x 1/10/25G SFP28 ports and 12x 40/100G QSFP28 uplinks — supporting MACsec, VXLAN, EVPN, TrustSec, and both NX-OS and ACI modes for cloud-scale enterprise deployments.

48x 1/10/25G SFP28 Ports | 12x 40/100G QSFP28 Uplinks | 4.8 Tbps Switching | 1.8 Bpps Forwarding | 40MB Buffer | MACsec | TrustSec | VXLAN + EVPN | NX-OS + ACI | Cloud Scale ASIC | 1.2U Rack

Specifications:

Brand: Cisco | Model: N9K-C93240YC-FX2 | Series: Nexus 9300-FX2 | Ports: 48x 1/10/25G SFP28 + 12x 40/100G QSFP28 | Switching Capacity: 4.8 Tbps | Forwarding Rate: 1.8 Bpps | Buffer: 40MB | MAC Table: 256,000 entries | CPU: 4-Core | RAM: Up to 24GB | SSD: 128GB | USB: 1 | Management: 1x RJ45 + 1x SFP+ | Serial: 1x RS-232 | Dimensions: 5.3 x 43.9 x 59.1 cm | Airflow: Port-side Intake or Exhaust (selectable)

Power:

Up to 2x PSU (750W/1100W AC/DC/HVAC/HVDC) | Typical: 298W | Max: 708W | Fans: 5

Scalability:

VLANs: 4,096 | VRF Instances: 16,000 | Port Channels: 512 | ECMP Paths: 64 | IGMP Groups: 32,000

L3 Features:

BGP | OSPF | EIGRP | RIP | PIM-SM | MSDP | MPLS | ECMP | VXLAN + EVPN | HSRP | VRRP | SSM

L2 Features:

802.1Q VLAN | MSTP | STP | RPVST+ | vPC | LACP | MACsec (IEEE 802.1AE)

Security:

MACsec | TrustSec | ACL | CoPP | RBAC | SSH | DHCP Snooping

Automation:

NX-OS | ACI Mode | POAP | Python | NX-API | RESTCONF/NETCONF | Streaming Telemetry

Certifications: CISPR 22 Class A, RoHS, UL 60950-1
