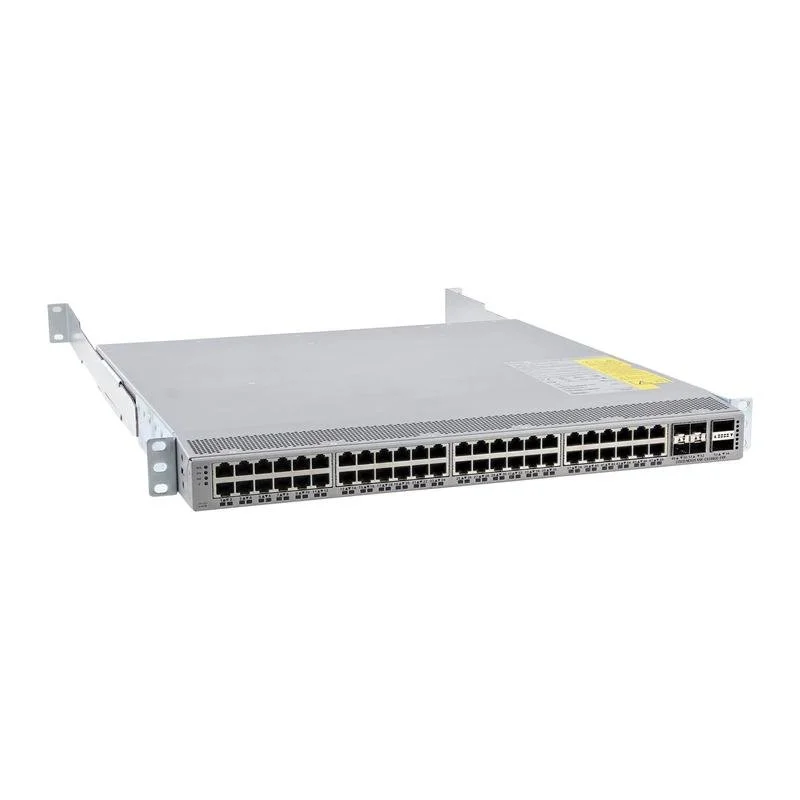

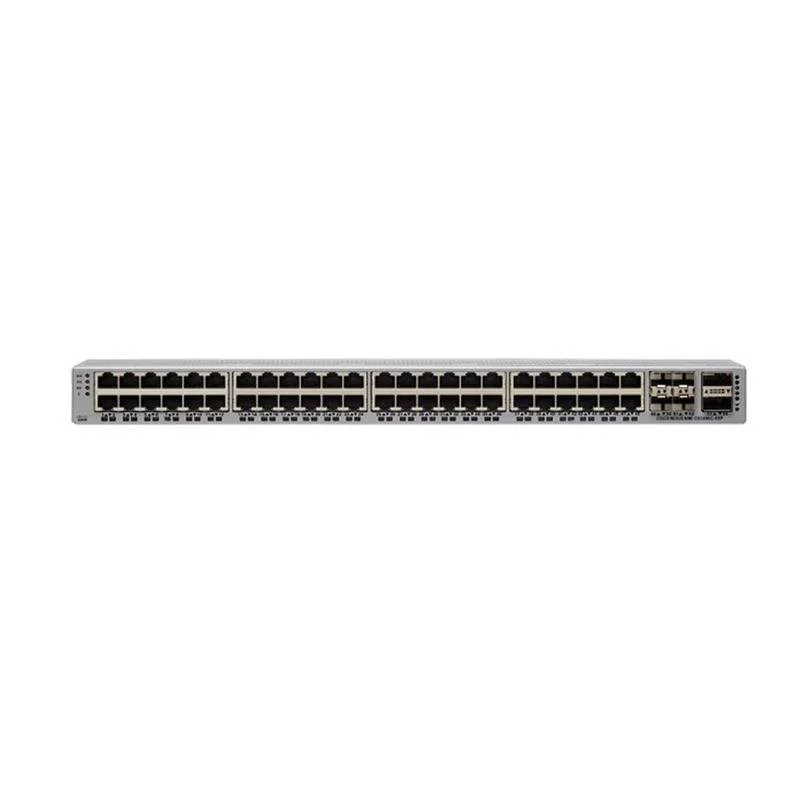

The N9K-C9348GC-FXP is a Cisco Nexus 9300-FX 1RU L2/L3 data center Top-of-Rack switch delivering 696 Gbps switching with 48x 1G BASE-T copper ports, 4x 1/10/25G SFP28 ports, and 2x 40/100G QSFP28 uplinks — supporting VXLAN, EVPN, MACsec, POAP, and both NX-OS and ACI modes.
48x 1G BASE-T RJ45 Ports | 4x 1/10/25G SFP28 Ports | 2x 40/100G QSFP28 Uplinks | 696 Gbps Switching | 250 Mpps Forwarding | MACsec | VXLAN + EVPN | NX-OS + ACI | Sub-1µs Latency | 1U Rack
Specifications:
Brand: Cisco | Model: N9K-C9348GC-FXP | Series: Nexus 9300-FX | Ports: 48x 100M/1G BASE-T RJ45 + 4x 1/10/25G SFP28 + 2x 40/100G QSFP28 | Switching Capacity: 696 Gbps | Forwarding Rate: 250 Mpps | Latency: Less than 1 microsecond | USB: 1x USB 2.0 | Management: 1x RJ45/SFP+ | Serial: 1x RS-232 | Form Factor: 1U Rack | Airflow: Port-side Intake or Exhaust (selectable)
Scalability:
VLANs: 4,096 | VRF Instances: 16,000 | Port Channels: 512 | ECMP Paths: 64 | MSTP Instances: 64 | IGMP Groups: 32,000 | Multicast Routes: 32,000 | ACL Egress: 2,000
L3 Features:
BGP | OSPF | EIGRP | RIP-2 | PIM-SM | ECMP | VXLAN + EVPN | HSRP | VRRP
L2 Features:
802.1Q VLAN | MSTP | RPVST+ | vPC | LACP | MACsec
Security:
MACsec | ACL | CoPP | RBAC | SSH | DHCP Snooping
Management:
NX-OS | ACI Mode | POAP | Python | NX-API | Streaming Telemetry | Active SPAN Sessions (4)
