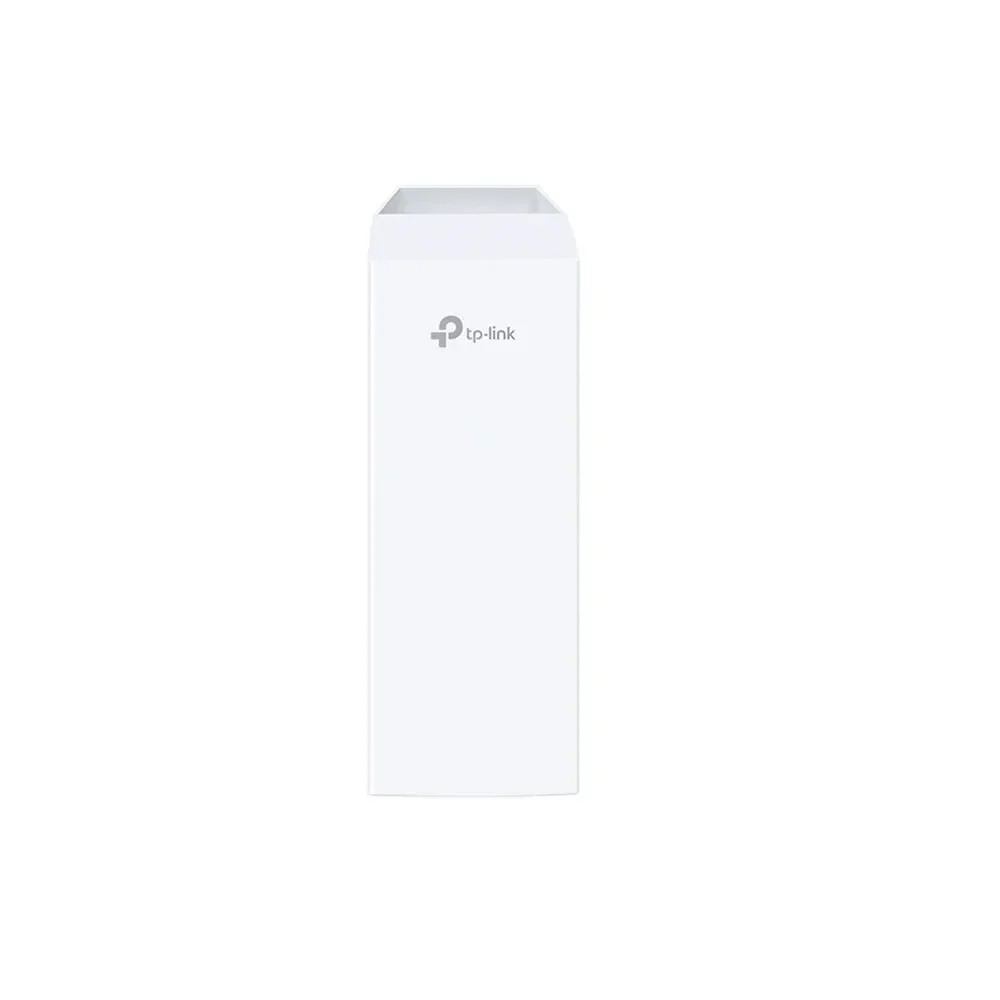

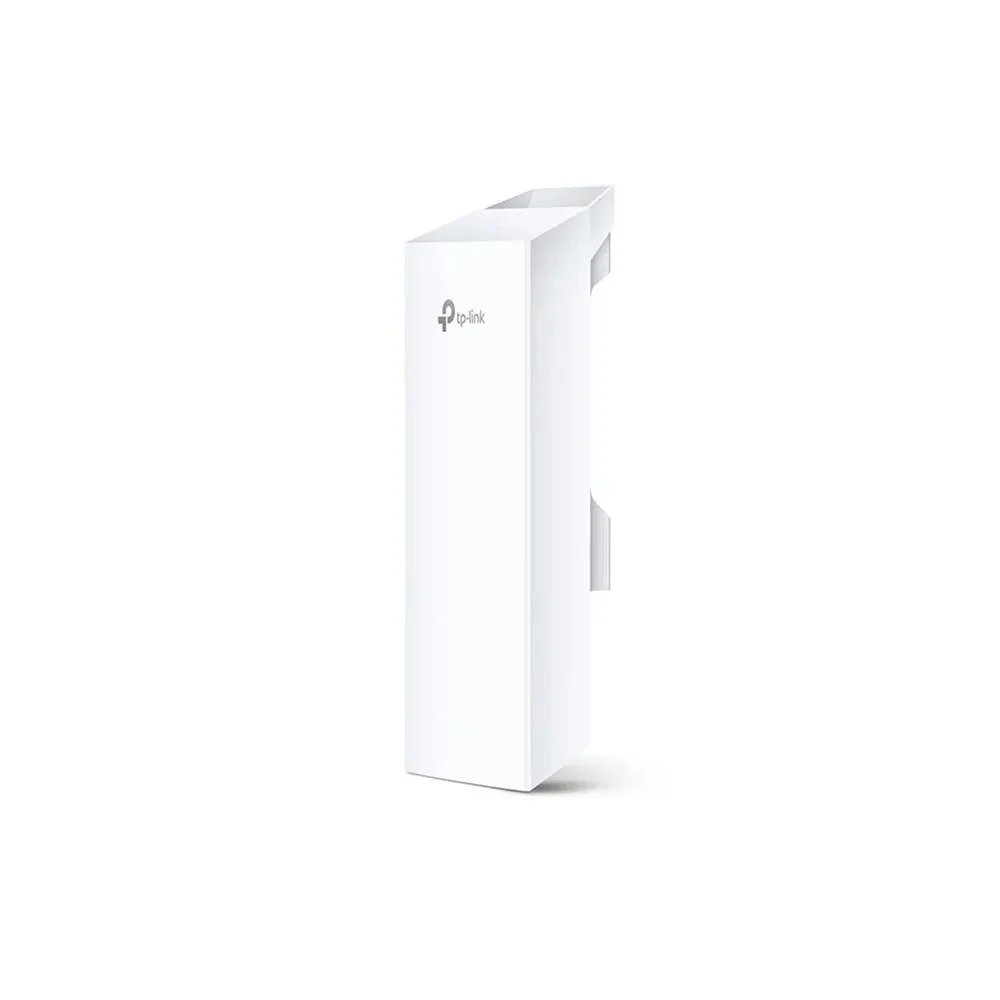

Product: 5 GHz 300 Mbps 13 dBi Outdoor CPE
Overview A high-performance outdoor Customer Premises Equipment (CPE) engineered for long-range, reliable wireless links. Operating in the 5 GHz band with up to 300 Mbps throughput and a focused 13 dBi antenna, this unit is ideal for point-to-point and point-to-multipoint deployments across challenging outdoor environments.
Key Specifications
Wireless frequency: 5 GHz
Maximum throughput: 300 Mbps
Antenna gain: 13 dBi (integrated directional antenna)
Range: Up to 10+ km (line of sight; actual distance varies with conditions)
Ethernet: 1 × 10/100 Mbps shielded RJ-45 port with Passive PoE support
Weather rating: IPX5 (water-resistant for outdoor use)
Performance & Features
Long-range connectivity: High-gain 13 dBi antenna and optimized RF design deliver stable links beyond 10 km in clear line-of-sight scenarios.
Reliable throughput: Up to 300 Mbps at 5 GHz for high-bandwidth applications such as backhaul, video surveillance, and broadband distribution.
MAXtream TDMA: Time-division multiple access technology reduces latency and increases network efficiency for multi-client networks.
Multi-mode operation: Configurable as AP, Client, AP Router, or AP Client Router to suit a variety of network topologies and deployment needs.
Centralized management: Supports enterprise-style centralized configuration and monitoring for simplified large-scale rollouts and maintenance.
Spectrum Analyzer: Built-in spectrum analysis tools allow for interference detection and channel planning to optimize link performance.
Passive PoE: Single-cable power and data simplifies installation and reduces the need for external power at the mounting location.
Weather-resistant construction: IPX5-rated housing and ruggedized components for reliable outdoor operation in rain and wind.
Typical Applications
Carrier-grade wireless backhaul
Rural and campus broadband distribution
CCTV and remote surveillance links
Last-mile connectivity for residential or commercial sites
Temporary event connectivity and disaster recovery links
Mechanical & Environmental
Mounting: Pole- or mast-mount compatible hardware included
Operating temperature: Designed for a wide outdoor temperature range (check datasheet for exact limits)
Ingress protection: IPX5-rated against water jets; recommended mounting to avoid direct prolonged exposure to severe conditions
Package Contents
Outdoor 5 GHz CPE unit (13 dBi)
Shielded Ethernet cable with passive PoE injector (or PoE adapter)
Mounting kit and hardware
Quick installation guide
Notes & Best Practices
Line-of-sight is critical for achieving maximum range; obstructions and RF interference will reduce effective distance and throughput.
Use the spectrum analyzer during site surveys to select the clearest channel and minimize interference.
For mixed devices or environments requiring Gigabit Ethernet, consider a gigabit-capable CPE; this model provides 10/100 Mbps Ethernet.
Secure installations with proper grounding and surge protection in areas prone to lightning.
For detailed electrical, mechanical, and regulatory specifications, consult the product datasheet and installation manual.
