CPE605

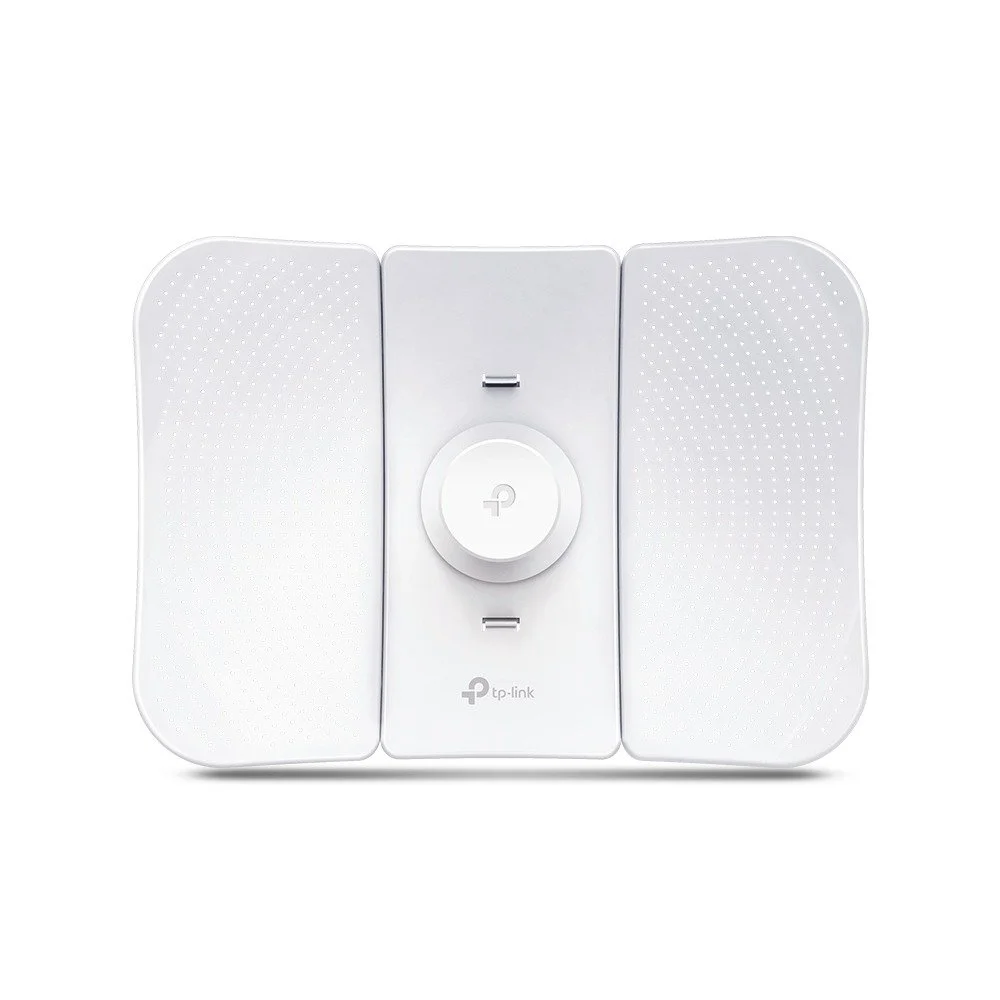

Product Name: 5 GHz 150 Mbps 23 dBi Outdoor CPE

Overview A precision-engineered outdoor CPE designed for long-distance point-to-point and point-to-multipoint wireless links. Operating in the 5 GHz band with up to 150 Mbps throughput and a high-gain 23 dBi directional antenna, this unit delivers reliable connectivity across challenging outdoor environments up to and beyond 30 km (depending on LOS and regulatory limits). Built for service providers and enterprise deployments, it combines robust weatherproof hardware, advanced TDMA scheduling, centralized management, and flexible deployment modes.

Key Specifications

• Frequency: 5 GHz

• Max Throughput: 150 Mbps

• Antenna Gain: 23 dBi directional

• Range: 30+ km (line-of-sight, subject to regulatory and environmental conditions)

• Ethernet: 1 × 10/100 Mbps Shielded (STP) Ethernet port

• Power: Passive PoE (power injector included)

• Weatherproofing: IP65-rated enclosure

• Operating Modes: AP, Client, AP Router, AP Client Router

• Wireless Protocols/Features: MAXtream TDMA for collision-free scheduling, high-efficiency MAC

• Management: Centralized management platform support for fleet provisioning, monitoring, and firmware updates

• Tools: Built-in Spectrum Analyzer for channel planning and interference diagnosis

• Mounting: Pole/wall mounting hardware included

• Temperature Range: -40°C to +60°C (industrial-grade)

• Certifications: Regulatory approvals per regional standards (confirm local compliance)

Performance Highlights

• Stable long-range links: 23 dBi gain and optimized RF front-end support extended-range links with strong receive sensitivity and focused beamwidth for reduced interference.

• High-efficiency TDMA: MAXtream TDMA minimizes contention and improves throughput and latency for uplink-heavy scenarios, ideal for multiple-subscriber deployments.

• 150 Mbps throughput: Sufficient for last-mile access, backhaul for remote sites, surveillance aggregation, and enterprise connectivity where symmetrical gigabit speeds are

Product Name: 5 GHz 150 Mbps 23 dBi Outdoor CPE

Overview A precision-engineered outdoor CPE designed for long-distance point-to-point and point-to-multipoint wireless links. Operating in the 5 GHz band with up to 150 Mbps throughput and a high-gain 23 dBi directional antenna, this unit delivers reliable connectivity across challenging outdoor environments up to and beyond 30 km (depending on LOS and regulatory limits). Built for service providers and enterprise deployments, it combines robust weatherproof hardware, advanced TDMA scheduling, centralized management, and flexible deployment modes.

Key Specifications

• Frequency: 5 GHz

• Max Throughput: 150 Mbps

• Antenna Gain: 23 dBi directional

• Range: 30+ km (line-of-sight, subject to regulatory and environmental conditions)

• Ethernet: 1 × 10/100 Mbps Shielded (STP) Ethernet port

• Power: Passive PoE (power injector included)

• Weatherproofing: IP65-rated enclosure

• Operating Modes: AP, Client, AP Router, AP Client Router

• Wireless Protocols/Features: MAXtream TDMA for collision-free scheduling, high-efficiency MAC

• Management: Centralized management platform support for fleet provisioning, monitoring, and firmware updates

• Tools: Built-in Spectrum Analyzer for channel planning and interference diagnosis

• Mounting: Pole/wall mounting hardware included

• Temperature Range: -40°C to +60°C (industrial-grade)

• Certifications: Regulatory approvals per regional standards (confirm local compliance)

Performance Highlights

• Stable long-range links: 23 dBi gain and optimized RF front-end support extended-range links with strong receive sensitivity and focused beamwidth for reduced interference.

• High-efficiency TDMA: MAXtream TDMA minimizes contention and improves throughput and latency for uplink-heavy scenarios, ideal for multiple-subscriber deployments.

• 150 Mbps throughput: Sufficient for last-mile access, backhaul for remote sites, surveillance aggregation, and enterprise connectivity where symmetrical gigabit speeds are not required.

Deployment & Use Cases

• Rural broadband distribution: Reliable last-mile service delivery to remote subscribers across long distances.

• Point-to-point backhaul: Cost-effective backhaul between sites where fiber is unavailable.

• Video surveillance: Aggregation and backhaul for IP cameras across campuses, industrial sites, and transportation corridors.

• Temporary or rapid-deploy links: Quick rollout for events, emergency response, and construction sites.

Management & Diagnostics

• Centralized management: Provision, monitor, and maintain large-scale deployments through a unified controller for automated configuration, status dashboards, and remote troubleshooting.

• Spectrum Analyzer: Onboard diagnostics let technicians identify interference and select optimal channels during installation or maintenance.

• Remote firmware updates: Maintain device security and feature parity across deployments with centralized firmware distribution.

Physical & Installation

• Rugged design: IP65-rated enclosure protects against dust and water ingress for reliable outdoor operation.

• Compact footprint: Low-profile directional antenna with integrated radio for simplified installation and minimal wind load.

• Mounting kit: Includes adjustable pole and wall brackets for flexible positioning and alignment.

• Shielded Ethernet: 10/100 Mbps STP port minimizes EMI and supports long PoE feed runs.

Power & Cabling

• Passive PoE: Power supplied over Ethernet from included injector; use shielded cable and proper grounding for best performance and lightning protection.

• Recommended cabling: Outdoor-rated shielded Cat5e/6 with proper surge protection for exposed installations.

Ordering Information & Options

• Standard SKU includes CPE unit, passive PoE injector, shielded Ethernet pigtail, mounting bracket, and quick start guide.

• Optional accessories: Surge protector, extended lightning arrestor kit, professional alignment tool.

Regulatory & Safety

• Ensure operation complies with local 5 GHz band regulations, including EIRP limits and DFS requirements where applicable.

• Follow grounding, lightning protection, and cabling best practices to protect equipment and personnel.

Summary This 5 GHz, 150 Mbps outdoor CPE with 23 dBi antenna delivers a high-performance, weatherproof solution for long-range wireless connectivity. With MAXtream TDMA, centralized management, and built-in spectrum analysis, it is optimized for service providers and enterprises requiring dependable links across demanding outdoor environments.
