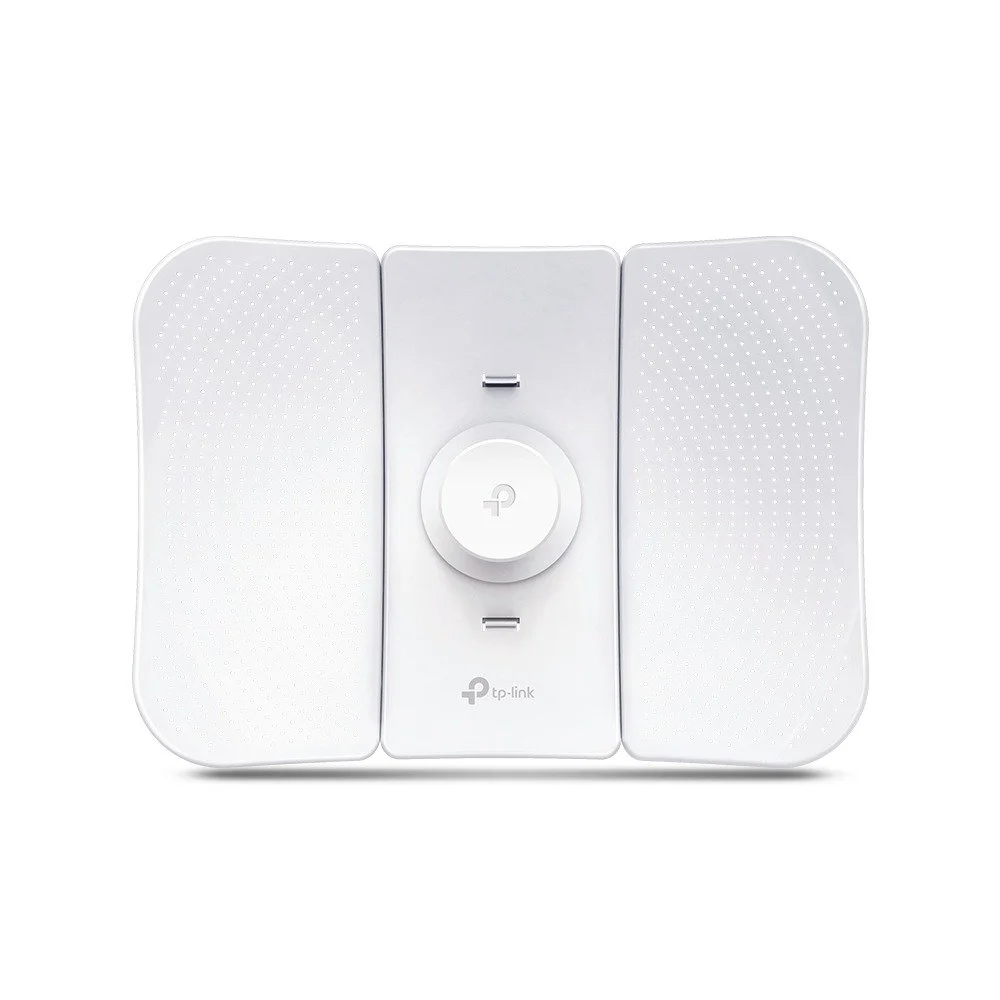

Product Overview — 5 GHz 300 Mbps 23 dBi Outdoor CPE
Engineered for long-distance wireless backhaul and fixed wireless access, this outdoor CPE delivers reliable, high-throughput connectivity in demanding environments. Operating on the 5 GHz band with a sustained 300 Mbps aggregate throughput and a high-gain 23 dBi directional antenna, it provides point-to-point and point-to-multipoint links at ranges beyond 30 km under optimal conditions.
Key Specifications
Radio: 5 GHz
Throughput: Up to 300 Mbps
Antenna Gain: 23 dBi directional
Range: 30+ km (line-of-sight, environmental conditions dependent)
Ethernet: 1 × 10/100 Mbps shielded Ethernet port
Power: Passive PoE (included)
Weatherproofing: IP65-rated enclosure for outdoor deployment
Performance & Features
Long-range connectivity: High-gain 23 dBi antenna and optimized RF design enable reliable links for rural broadband, ISP last-mile, and long-distance enterprise connectivity.
Efficient spectrum usage: MAXtream TDMA technology reduces airtime contention and improves throughput and latency on multi-client links.
Flexible deployment modes: Configurable as AP, Client, AP Router, or AP Client Router for versatile network topologies.
Centralized management: Supports centralized provisioning and monitoring to simplify large-scale rollouts and ongoing operations.
Advanced diagnostics: Integrated spectrum analyzer for channel planning, interference detection, and on-site troubleshooting.
Robust outdoor design: IP65-rated housing with corrosion-resistant materials and industrial-grade connectors for year-round operation.
Easy installation: Compact, pole-mountable form factor with passive PoE simplifies mounting and reduces cabling complexity.
Typical Use Cases
Rural broadband and carrier backhaul
Wireless ISP last-mile connectivity
Enterprise campus bridging and remote site linking
Surveillance camera backhaul and outdoor sensor networks
Temporary or rapid-deployment connectivity for events or construction sites
Package Includes
5 GHz 300 Mbps Outdoor CPE with 23 dBi antenna
Passive PoE injector and power cord
Mounting bracket and hardware
Quick start guide and regulatory documentation
Operational Notes
Maximum range is highly dependent on line-of-sight, Fresnel zone clearance, environmental conditions, and local regulations. Achievable throughput will vary with signal quality and network load.
The Ethernet port supports 10/100 Mbps; for deployments requiring gigabit uplink, consider network architecture or intermediate switches accordingly.
Compliance with regional spectrum regulations is required; select channels and transmit power within legal limits.
For deployments requiring robust, long-distance wireless links with centralized management and advanced RF tools, this 5 GHz 300 Mbps 23 dBi outdoor CPE provides a balanced combination of gain, throughput, and operational resilience.
