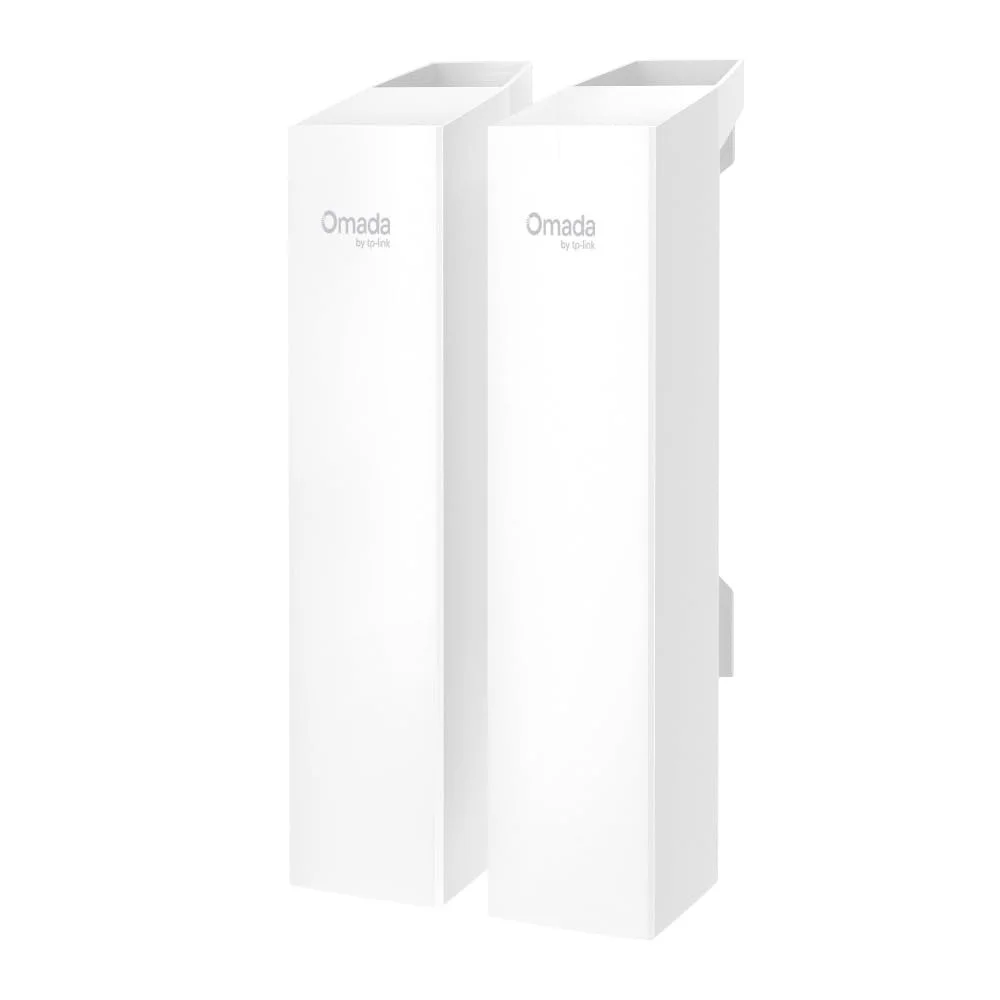

EAP211-Bridge KIT

5GHz AC867 Indoor/Outdoor Access Point

Overview A compact, high-performance access point engineered for flexible deployment in demanding indoor and outdoor environments. Delivers up to 867 Mbps on the 5 GHz band with robust weatherproofing and lightning protection, supporting point-to-point (PTP) and point-to-multipoint (PTMP) topologies. Designed for easy installation and centralized management via Omada SDN Controller or the Omada mobile app.

Key Specifications

• Wireless Standard: IEEE 802.11ac Wave 2 (5 GHz)

• Radio: Single 5 GHz radio

• Maximum Data Rate: 867 Mbps (5 GHz)

• Ports: 3 × Gigabit RJ45

• Power: 12V DC or 24V Passive PoE

• Antennas: 2 × internal high-gain antennas

• Bridge Modes: Wireless bridge, PTP and PTMP support

• Range: Up to 1 km (line-of-sight, dependent on environment and local regulations)

• Auto-Pairing: Quick, automatic link establishment for bridge setups

• Management: Omada SDN Controller (on-premises/cloud) and Omada App

• Weatherproofing: IP65-rated enclosure for outdoor deployment

• Surge Protection: 6 kV lightning protection for outdoor installations

• Operating Temperature: Designed for extended temperature ranges (verify model datasheet for exact values)

• Dimensions & Weight: See product datasheet for precise measurements

Features and Benefits

• High Throughput: 867 Mbps on 5 GHz minimizes latency and supports high-bandwidth applications such as video streaming, VoIP, and real-time data transfer.

• Flexible Power Options: Supports 12V DC and 24V Passive PoE for diverse installation scenarios and simplified cabling.

• Multi-Port Connectivity: Three Gigabit RJ45 ports enable direct wired connections to local devices or aggregation to uplinks without additional switches.

• Reliable Outdoor Operation: IP65-rated housing and 6 kV lightning protection safeguard the unit against harsh weather and electrical surges.

• Long-Range Wireless Bridge: Up to 1 km line-of-sight bridging capacity for linking buildings, remote sensors, backhaul connections, or off-site facilities.

• Rapid Deployment: Auto-pairing accelerates point-to-point link setup; internal antennas reduce installation complexity and exposure.

• Centralized Management: Full configuration, monitoring, and firmware management through Omada SDN Controller or the Omada App—suitable for single-site and multi-site networks.

• Scalable Topologies: Supports PTP and PTMP deployments for flexible network design and efficient backhaul distribution.

Typical Use Cases

• Building-to-building wireless backhaul

• Campus and industrial site connectivity

• Surveillance camera backhaul in outdoor environments

• Temporary event networks and remote site access

• Small branches and retail site connectivity where wall- or pole-mounted outdoor AP is required

Installation Notes

• Line-of-sight required for maximum range and throughput; obstructions will reduce distance and speeds.

• Use appropriate grounding and surge protection practices in outdoor installations.

• Confirm regulatory power limits and channel availability for 5 GHz in your region.

• For PoE deployments, ensure compatibility with 24V Passive PoE or provide 12V DC power where Passive PoE is not available.

Package Includes

• Access Point unit

• Mounting hardware for pole and wall installations

• Power adapter (model-dependent) or PoE injector (check included accessories)

• Quick installation guide

For full technical details, certification information, and environmental specifications, refer to the product datasheet or contact Zorins Technologies technical sales.
