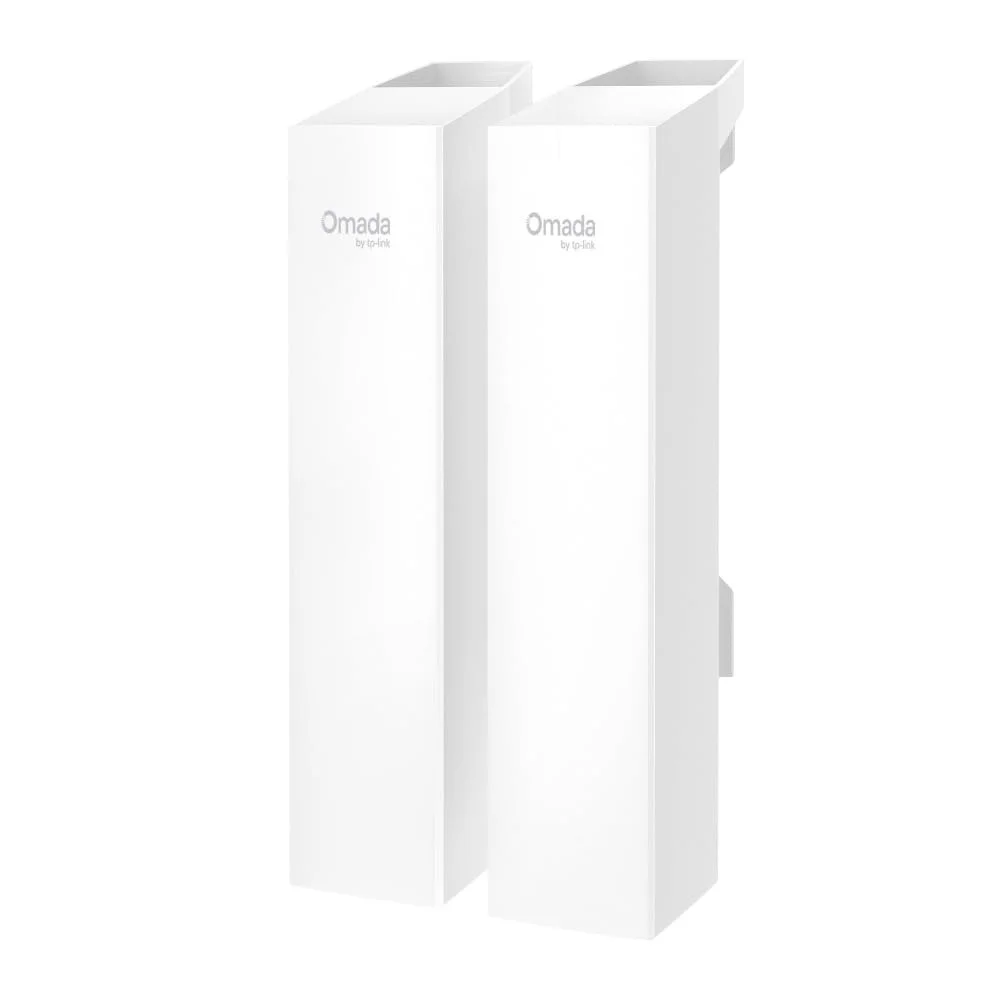

EAP215-Bridge KIT

Overview A high-performance, long-range indoor/outdoor access point delivering robust 5 GHz connectivity for demanding broadband and enterprise edge deployments. Engineered for extended coverage and reliable throughput, this model supports advanced wireless features and centralized management for simplified large-scale deployments.

Key Specifications

• Radio: 5 GHz, 802.11ac Wave 2

• Maximum Data Rate: Up to 867 Mbps at 5 GHz

• Ports: 3 × Gigabit RJ45 (supports data and PoE pass-through scenarios)

• Power: 12V DC or 24V Passive PoE (power adapter not included)

• Antennas: 2 × Internal high-gain antennas optimized for long-range performance

• Environmental Rating: Designed for indoor/outdoor use (weather-resistant housing)

Wireless Features

• MU-MIMO: Supports multi-user MIMO for simultaneous data streams and improved client efficiency

• Beamforming: Enhances signal strength and reliability to individual client devices

• Airtime Fairness: Balances access time among clients to prevent slower devices from degrading overall performance

• Wireless Bridge & Mesh: Flexible deployment modes for point-to-point bridging and self-healing mesh networks

• SSIDs & Security: Multiple SSIDs with enterprise-grade security and authentication options

Management & Integration

• Centralized Management: Full integration with Omada SDN Controller for scalable, centralized policy, monitoring, and firmware management

• Mobile Management: Configuration and real-time monitoring via Omada App

• Scalable Deployment: Suitable for multi-site campus, retail, hospitality, and outdoor perimeter coverage when combined with Omada management

Physical & Installation

• Compact, rugged enclosure for indoor and sheltered outdoor mounting

• Mounting options: wall, pole, and ceiling adaptors (mounting hardware may vary)

• Power options: select 12V DC input or 24V Passive PoE for flexible site power planning (power supply not included)

Use Cases

• Long-range coverage for outdoor dining, courtyards, parking perimeters, and connected campuses

• Point-to-point or point-to-multipoint wireless backhaul with Wireless Bridge mode

• Rapid expansion and resiliency through mesh networking for temporary events or phased rollouts

• Enterprise-managed Wi‑Fi for retail, hospitality, education, and branch offices using Omada SDN

What’s Included

• Access Point unit

• Quick install guide

• Basic mounting bracket and screws (verify included hardware for specific SKUs)

What’s Not Included

• 12V DC power adapter

• 24V Passive PoE injector (if required for installation)

• Advanced mounting accessories (sold separately depending on site requirements)

Ordering Notes Confirm required power method (12V DC vs. 24V Passive PoE) and mounting accessories before deployment. For centralized management across multiple sites, pair with Omada SDN Controller hardware or the Omada Software Controller.

Compliance and Safety Compliant with applicable wireless and safety regulations for supported regions. Verify local regulatory requirements for outdoor wireless installations prior to use.

For deployment planning assistance, capacity guidance, and accessories, consult your Zorins Technologies network specialist.
