EAP225

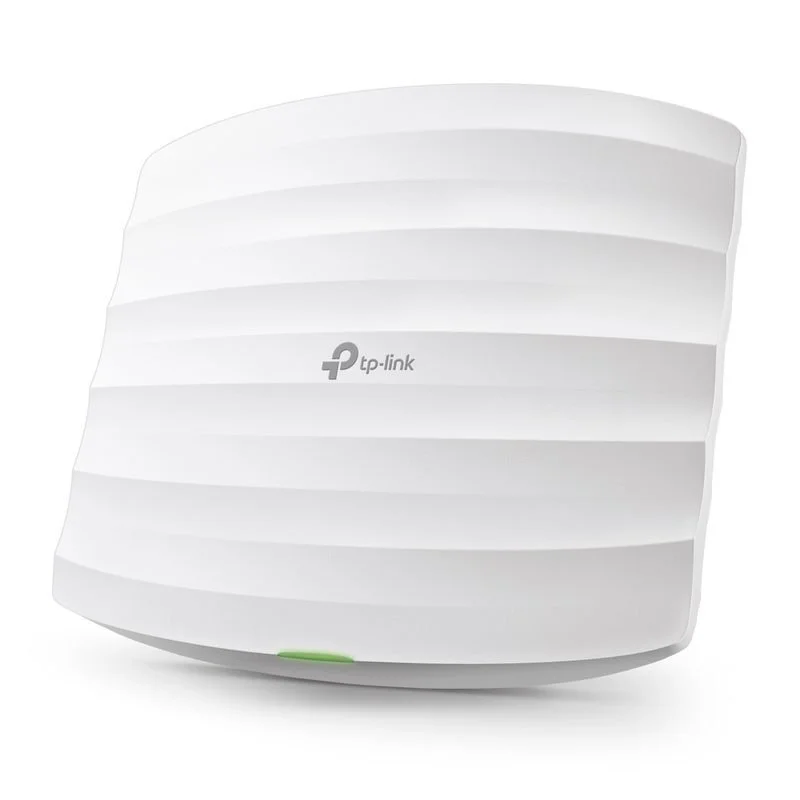

Overview A refined ceiling‑mount access point engineered for enterprise and hospitality environments where reliable, high‑density wireless coverage and discreet installation are required. The AC1350 delivers simultaneous dual‑band performance, advanced RF features, and flexible power options to support seamless connectivity across public and private networks.

Key Specifications

• Ports: 1 × Gigabit RJ45 Ethernet

• Wireless Speed: Up to 450 Mbps (2.4 GHz) + 867 Mbps (5 GHz) — combined AC1350

• Antennas: 3 × internal antennas for clean aesthetics and optimized coverage

• Power: Supports 802.3af PoE and Passive PoE for flexible deployment

• Mounting: Ceiling‑mount form factor designed for drop ceilings and hard surfaces

Performance & Wireless Features

• Dual‑Band Concurrent Operation: Maintain client capacity and throughput by serving devices on both 2.4 GHz and 5 GHz bands simultaneously.

• MU‑MIMO: Multi‑user MIMO improves spectral efficiency by serving multiple compatible clients at once, reducing air‑time contention in dense deployments.

• Beamforming: Focuses signal energy toward active clients to extend range and improve link stability.

• Band Steering: Encourages dual‑band clients to connect to the less congested 5 GHz band for higher throughput and reduced interference.

• Mesh Networking: Supports wireless backhaul between APs to extend coverage without running additional cabling. Mesh self‑heals to maintain connectivity if a link fails.

• Seamless Roaming: Fast roaming ensures minimal interruption as clients move across coverage areas; ideal for VoIP, video conferencing, and mobile applications.

• Load Balancing: Distributes client associations across APs to avoid oversubscription and maintain consistent performance under heavy load.

Security & Management

• Role‑based SSIDs and guest isolation options support segmented access for staff and visitors.

• WPA2/WPA3 support for modern encryption (depending on firmware), with RADIUS authentication compatibility for enterprise deployments.

• Centralized management capable — compatible with on‑premises controllers or cloud management platforms for provisioning, monitoring, and firmware updates.

• LED indicators and web/GUI access for on‑site troubleshooting.

Physical & Environmental

• Discreet, low‑profile design suitable for hotels, offices, classrooms, retail, and public venues.

• Operating temperature and humidity ranges engineered for indoor commercial environments (refer to product datasheet for exact values).

• Mounting hardware included for standard ceiling installations.

Use Cases

• Office campuses requiring uniform coverage with secure segmented networks for guests and employees.

• Hospitality settings where aesthetics and easy provisioning are critical.

• Retail and public spaces that need high client density support and mesh‑based coverage extension.

• Education environments demanding seamless roaming for mobile learning and VoIP communications.

What’s in the Box

• AC1350 Ceiling Mount Dual‑Band Wi‑Fi Access Point

• Ceiling mounting kit and hardware

• Quick installation guide

Ordering & Support

• Model: AC1350

• Optional accessories: PoE injector (if 802.3af switch not available), mounting extension kits

• Warranty and enterprise support options available through Zorins Technologies network solutions

For exact regulatory specifications, per‑model certifications, and detailed deployment recommendations, consult the product datasheet or contact Zorins Technologies sales and technical support.
