Image 1 of 1
EAP230-Wall

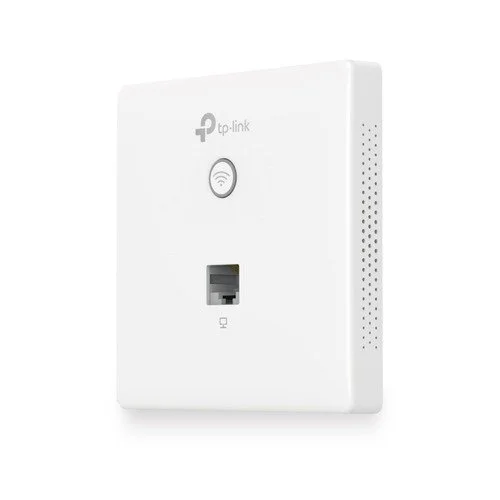

AC1200 Wall-Plate Dual-Band Wi‑Fi Access Point
Overview Compact, discreet, and engineered for professional-grade in-wall deployments, the AC1200 Wall-Plate Dual-Band Wi‑Fi Access Point brings high-performance wireless to office suites, hotel rooms, classrooms, and residential retrofit projects where space and aesthetics matter. Designed to mount into a standard EU junction box, it replaces a traditional wall plate with a powerful, centrally managed access point that blends into the room environment.
Key Specifications
Ports: 2 × Gigabit RJ45 (LAN/WAN or LAN/LAN)
Wireless Speed: Up to 300 Mbps on 2.4 GHz + up to 867 Mbps on 5 GHz (AC1200)
Power: 802.3af PoE support for clean, single-cable installation
Antennas: 2 × internal antennas for a low-profile appearance
Dimensions: 86.8 × 86.8 × 30.2 mm
Mounting: Compatible with EU standard junction box
Performance & Features
Dual‑Band AC Performance: Simultaneous 2.4 GHz and 5 GHz radios deliver reliable connectivity for a mix of legacy and high-bandwidth clients.
MU‑MIMO: Improves multi-client efficiency by serving multiple devices concurrently, reducing latency in busy environments.
Band Steering: Automatically guides dual-band capable clients to the less congested 5 GHz band for better throughput.
Beamforming: Focuses signal toward client devices for improved range and stability compared with conventional omnidirectional broadcast.
Load Balance: Distributes client associations across radios and devices to prevent resource overload on a single AP.
Rate Limit & Wireless Schedule: Apply per-SSID throughput limits and time-based access windows to align network behavior with policy and operational hours.
Centralized Management: Full compatibility with Omada SDN Controller and Omada App for unified provisioning, monitoring, and analytics across distributed sites. Supports zero-touch deployment and profile-based configuration.
Deployment Advantages
Discreet Integration: Internal antennas and wall-plate form factor keep the device unobtrusive while delivering enterprise-class features.
Simplified Cabling: Gigabit ports plus 802.3af PoE support enable single-cable power and data, suitable for retrofit and new-build applications.
Flexible Port Use: Dual RJ45 ports allow uplink and pass-through or additional wired client connectivity at the wall plate.
Use Cases
Hotels and serviced apartments: Deliver room-level Wi‑Fi with centralized management and per-room traffic control.
Offices and meeting rooms: Provide dedicated wireless and wired connectivity at workstation clusters without ceiling APs.
Classrooms and training centers: Control schedules and bandwidth to support lesson plans and content delivery.
What’s in the Box
AC1200 Wall-Plate Dual-Band Wi‑Fi Access Point
Wall-plate mounting hardware compatible with EU junction boxes
Quick installation guide
Complementary Products
Omada SDN Controller (hardware or software) for multi-site management
PoE switches delivering 802.3af power for simplified deployments
The AC1200 wall-plate AP is purpose-built for environments that demand tidy aesthetics without compromising the advanced features expected in modern enterprise Wi‑Fi deployments.
