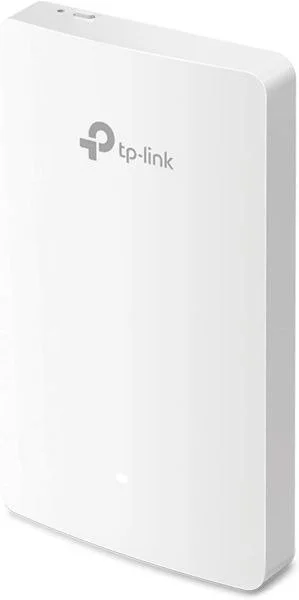

EAP235-Wall

AC1200 Wall-Plate Dual-Band Wi-Fi Access Point

Overview A slim, wall-plate Wi‑Fi access point engineered for seamless integration into residences, offices, hotels, and classrooms. Delivers simultaneous dual-band performance with centralized PoE power and passthrough for downstream devices. Designed to mount directly over standard EU and US junction boxes for a clean, professional installation.

Key Specifications

• Wireless speeds: 300 Mbps (2.4 GHz) + 867 Mbps (5 GHz) — AC1200 class

• Ports:

  • Uplink: 1 × Gigabit RJ45 (PoE input)

  • Downlink: 3 × Gigabit RJ45 (LAN, with PoE passthrough capability)

• Power over Ethernet: 802.3at/af compatible (PoE input)

• PoE Passthrough: Supports powering one downstream device via passthrough

• Mounting: Compatible with EU & US standard junction boxes (single-gang)

• Antennas: Internal high-gain antennas for discreet, wall-mounted coverage

• LEDs: Discreet status indicators for power, uplink, and wireless activity

• Security: WPA3/WPA2 encryption, guest network isolation, VLAN support

• Management: Standalone web UI and support for centralized controller/cloud management (model-dependent)

• Hardware: Durable ABS faceplate with low-profile aesthetic, tamper-resistant mounting screws

• Environmental: Operating temperature 0°C to 40°C; humidity 10%–90% non-condensing

• Dimensions & Weight: Slim form factor designed to match standard wall plates (specifics vary by SKU)

Features & Benefits

• Clean, integrated deployment: Installs directly into existing EU and US junction boxes for a professional, low-visibility Wi‑Fi endpoint.

• Dual-band performance: Simultaneous 2.4 GHz and 5 GHz radios optimize throughput and device compatibility.

• Gigabit backbone: Uplink and three LAN downlinks provide full Gigabit connectivity for high-bandwidth devices.

• PoE convenience: 802.3at/af compatibility simplifies installation—power and data over a single cable. PoE passthrough enables powering VoIP phones, cameras, or other edge devices.

• Flexible network design: VLAN and guest isolation features support secure multi-tenant and hospitality environments.

• Easy management: Configure locally via web UI or integrate with centralized management platforms for large-scale deployments.

Typical Use Cases

• Hospitality: Discreet room-level Wi‑Fi with secure guest networks and PoE for IP phones or set-top boxes.

• Enterprise/Office: Wall-mounted access in meeting rooms, corridors, and cubicle clusters where ceiling access is limited.

• Education: Classroom and dormitory coverage with straightforward deployment and network segmentation.

• Residential: Upscale home networking with professional appearance and wired connections for smart devices.

Package Contents

• AC1200 Wall-Plate Dual-Band Wi‑Fi Access Point

• Mounting bracket and screws (EU & US box compatible)

• Quick installation guide

• Warranty card

Regulatory & Compliance Meets regional safety and wireless regulatory requirements. Model variants available for specific regional certifications.

Ordering Notes Select SKU based on required management option (standalone vs. controller/cloud-managed) and regional power/certification requirements. Contact your network solutions provider for bulk pricing and firmware customization.
