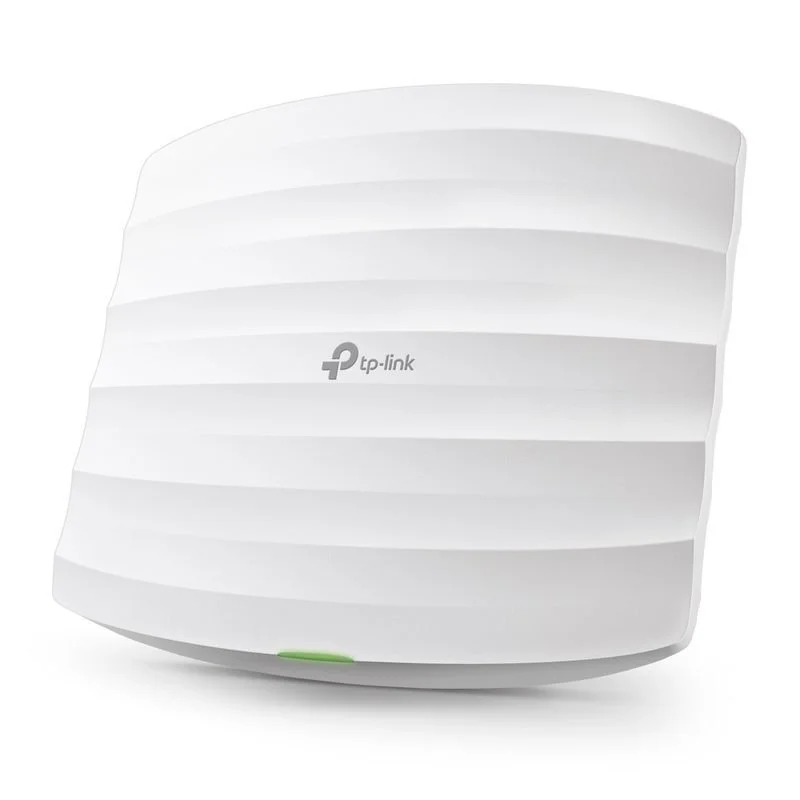

AC1750 Ceiling Mount Dual-Band Wi‑Fi Access Point
Overview A refined ceiling‑mount access point engineered for enterprise and high‑density environments. The AC1750 delivers reliable dual‑band performance, advanced RF intelligence, and flexible power options to provide consistent, high‑capacity wireless coverage across offices, hospitality, retail, and education facilities.
Key Specifications
Ports: 2 × Gigabit RJ45 (LAN + PoE passthrough)
Wireless Speed: Up to 450 Mbps on 2.4 GHz + up to 1300 Mbps on 5 GHz (AC1750 aggregate)
Power: 802.3af PoE and Passive PoE support
Antennas: 3 × internal antennas (optimized for ceiling deployment)
Performance & Features
MU‑MIMO: Simultaneous multi‑client data streaming increases overall throughput and improves performance for modern devices.
Beamforming: Focuses RF energy toward connected clients for stronger signals and extended range.
Band Steering: Automatically encourages dual‑band capable devices to connect to the less congested 5 GHz band, maximizing capacity.
Seamless Roaming: Fast roaming with minimal packet loss and session interruption for voice, video, and real‑time apps across access points.
Load Balancing: Distributes client associations to prevent overload on a single radio, ensuring consistent performance across the network.
PoE Flexibility: Compatible with standard 802.3af PoE switches and legacy passive PoE injectors for simple, cost‑effective installations.
Ceiling‑Optimized Antenna Design: Internal antennas tuned for unobtrusive ceiling placement while delivering uniform coverage and reduced interference.
Deployment Benefits
Simplified Install: Ceiling mount form factor with dual‑port passthrough reduces cabling complexity and supports daisy‑chain topologies for efficient infrastructure layouts.
Scalable Coverage: Designed for deployment in multi‑unit and high‑density scenarios where predictable performance and seamless client mobility are required.
Managed or Standalone: Suitable for centralized controller environments or as a standalone managed AP depending on site requirements.
Ideal Use Cases
Corporate offices and coworking spaces
Hotels and hospitality venues
Retail stores and shopping centers
Classrooms and lecture halls
Conference rooms and public spaces
What’s Included
AC1750 Ceiling Mount Dual‑Band Wi‑Fi Access Point
Mounting kit for standard ceiling tile and solid ceilings
Quick start guide
Ordering Information Model: AC1750‑CM Contact your Zorins Technologies representative for volume pricing, support options, and advanced management features.
