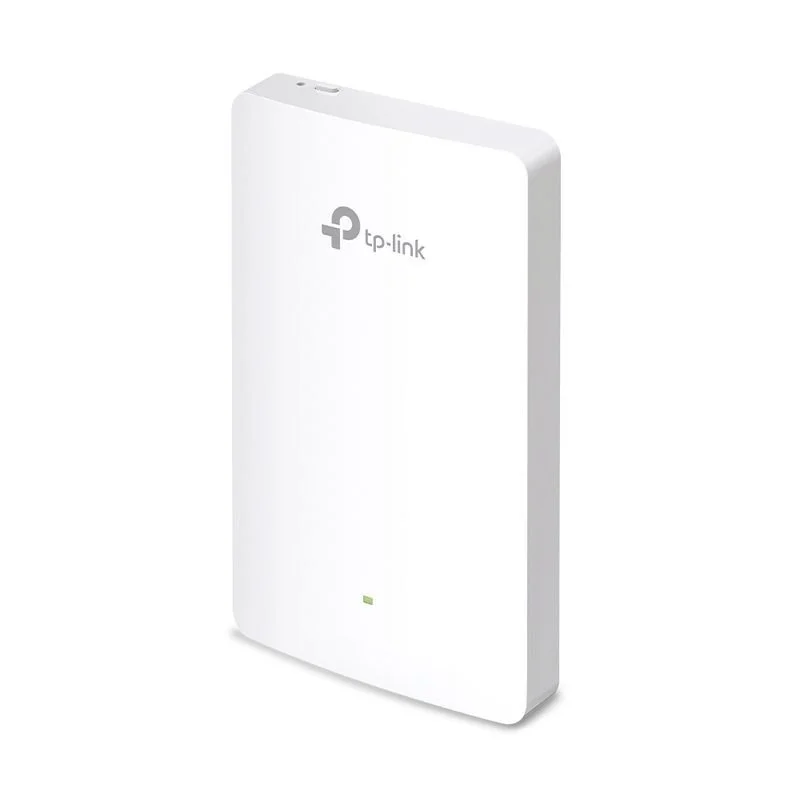

AX1800 Wall-Plate Dual-Band Wi‑Fi 6 Access Point
Overview A sleek, high-performance wall-plate access point engineered for deployments that demand discreet installation and robust wireless capacity. Ideal for hotels, offices, multi-dwelling units, classrooms, and conference spaces where on-wall mounting into standard junction boxes is required. Delivers the efficiency and range benefits of Wi‑Fi 6 while supporting Power over Ethernet for flexible installation.
Key Specifications
Wireless standard: IEEE 802.11ax (Wi‑Fi 6), backward compatible with 802.11ac/n/a/b/g
Radio configuration: Dual-band concurrent
2.4 GHz: up to 574 Mbps
5 GHz: up to 1201 Mbps
Total combined: AX1800 class performance
Ethernet ports:

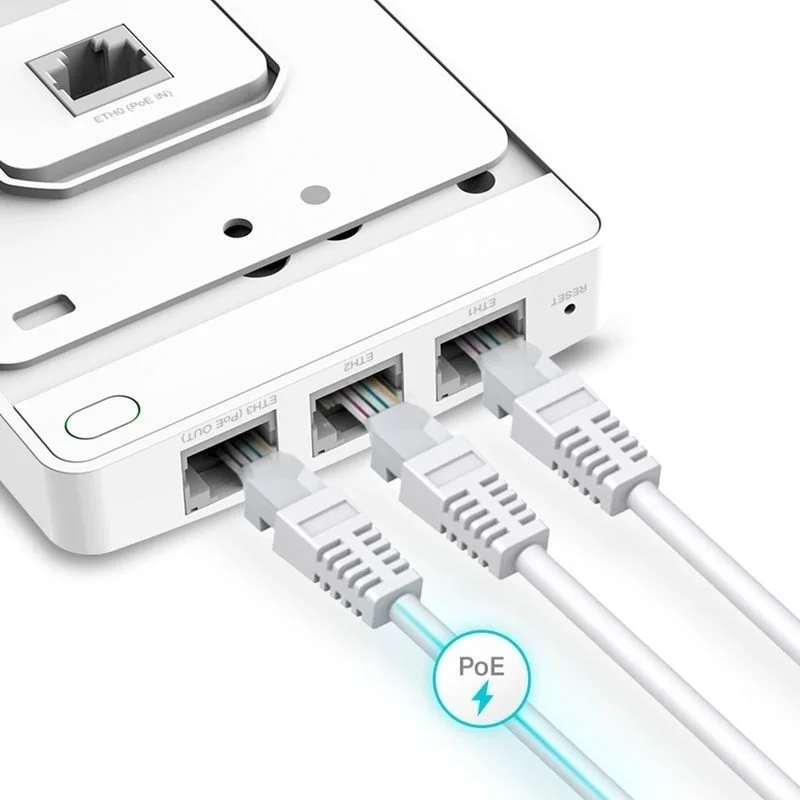

Uplink: 1 × Gigabit RJ45 (supports 802.3at/af PoE input)
Downlink: 3 × Gigabit RJ45 (PoE Passthrough capable)
PoE support:
802.3at/af powered device input (PSE required upstream)
PoE Passthrough on one or more downlink ports for powering downstream devices (check model variant for passthrough port count and power budget)
Physical compatibility: Fits EU and US standard junction boxes and single-gang wall cavities; low-profile faceplate finish
Antennas: Internal high-efficiency antennas for clean aesthetics and consistent coverage
Security: WPA3, WPA2, 802.1X authentication support
Management: Local web UI and centralized controller/cloud-management options (model-dependent)
Quality of Service: WMM, OFDMA, MU‑MIMO (uplink/downlink), airtime fairness
Advanced features: Band
AX1800 Wall-Plate Dual-Band Wi‑Fi 6 Access Point
Overview A sleek, high-performance wall-plate access point engineered for deployments that demand discreet installation and robust wireless capacity. Ideal for hotels, offices, multi-dwelling units, classrooms, and conference spaces where on-wall mounting into standard junction boxes is required. Delivers the efficiency and range benefits of Wi‑Fi 6 while supporting Power over Ethernet for flexible installation.
Key Specifications
Wireless standard: IEEE 802.11ax (Wi‑Fi 6), backward compatible with 802.11ac/n/a/b/g
Radio configuration: Dual-band concurrent
2.4 GHz: up to 574 Mbps
5 GHz: up to 1201 Mbps
Total combined: AX1800 class performance
Ethernet ports:
Uplink: 1 × Gigabit RJ45 (supports 802.3at/af PoE input)
Downlink: 3 × Gigabit RJ45 (PoE Passthrough capable)
PoE support:
802.3at/af powered device input (PSE required upstream)
PoE Passthrough on one or more downlink ports for powering downstream devices (check model variant for passthrough port count and power budget)
Physical compatibility: Fits EU and US standard junction boxes and single-gang wall cavities; low-profile faceplate finish
Antennas: Internal high-efficiency antennas for clean aesthetics and consistent coverage
Security: WPA3, WPA2, 802.1X authentication support
Management: Local web UI and centralized controller/cloud-management options (model-dependent)
Quality of Service: WMM, OFDMA, MU‑MIMO (uplink/downlink), airtime fairness
Advanced features: Band steering, client steering, guest network, SSID VLAN tagging, airtime scheduling
Power consumption
