EAP660 HD

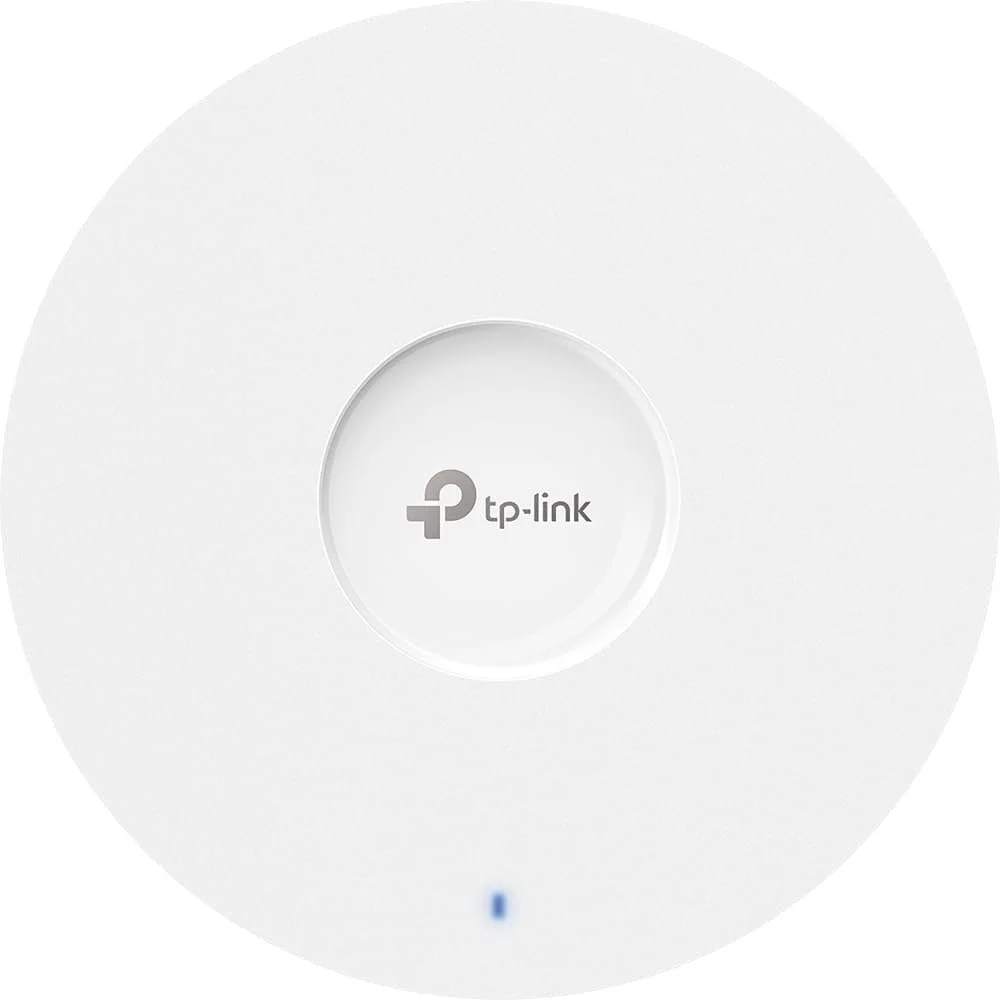

AX3600 Ceiling Mount Dual-Band Wi‑Fi 6 Access Point

Overview The AX3600 ceiling-mount access point delivers enterprise-grade Wi‑Fi 6 performance in a compact, unobtrusive design. Engineered for high-density environments, it supports more than 1,000 concurrent clients with reliable throughput and seamless mobility, making it ideal for offices, classrooms, retail venues, hospitality, and public spaces.

Key Specifications

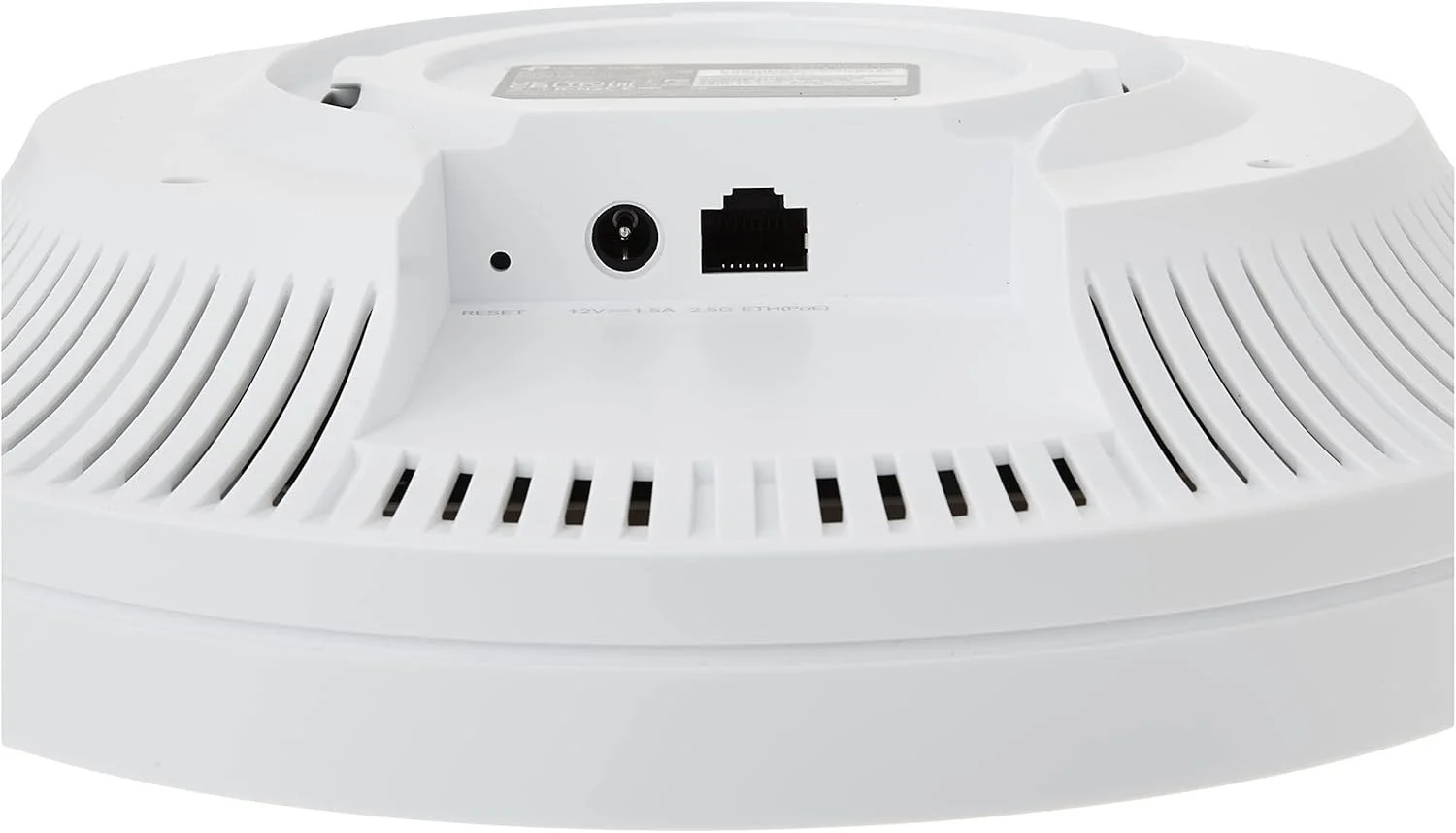

• Port: 1 × 2.5 Gbps RJ45

• Wireless Speed: Up to 1,148 Mbps on 2.4 GHz + 2,402 Mbps on 5 GHz (AX3600 total)

• Power: 802.3at PoE and 12 V DC support

• Antennas: 8 × internal antennas

• Client Capacity: High-density support (1,000+ clients)

Features and Benefits

• Dual-Band Wi‑Fi 6 Performance: OFDMA and 1024-QAM increase spectral efficiency and throughput for both 2.4 GHz and 5 GHz bands, delivering fast, low-latency connections for modern devices and applications.

• High-Density Connectivity: Designed to handle crowded networks—supporting over 1,000 simultaneous clients—without sacrificing responsiveness or quality of experience.

• 2.5 Gbps Uplink: A single 2.5 Gbps RJ45 port aggregates high wireless bandwidth to the wired network, reducing backhaul bottlenecks in multi-user scenarios.

• Flexible Power Options: Supports 802.3at PoE for simplified ceiling deployment and 12 V DC for installations without Power over Ethernet.

• Advanced Antenna Design: Eight internal antennas provide optimized coverage and improved signal uniformity from a ceiling-mounted position while preserving a sleek, tamper-resistant profile.

• MU‑MIMO & OFDMA: Simultaneous multi-user data streams and subchannel resource allocation enhance capacity and efficiency for many concurrent devices.

• Seamless Roaming: Client steering and fast roaming minimize interruptions during handoffs, ensuring continuous connectivity for voice, video, and real-time apps.

• Band Steering: Automatically directs dual-band clients to the optimal band (5 GHz when available) to maximize aggregate throughput and reduce congestion.

• Enterprise-ready Management: Supports centralized management, RF optimization, and security policies for scalable deployments (controller or cloud management options depending on system).

Ideal Use Cases

• Corporate offices and coworking spaces with dense device populations

• Classrooms, lecture halls, and campus buildings

• Retail stores and shopping centers with high foot traffic

• Hotels, conference centers, and hospitality venues

• Public venues and transportation hubs requiring robust roaming

Physical & Installation

• Ceiling-mount form factor with low-profile aesthetic

• Tamper-resistant housing for public deployments

• PoE simplifies wiring; DC option for alternate power setups

Security

• WPA3 support for enhanced encryption and protection

• Enterprise authentication (802.1X) and guest network separation

• Rogue AP detection and secure management channel options

Package Includes

• AX3600 Ceiling Mount AP

• Mounting bracket and hardware

• Quick installation guide

• Power adapter (if applicable to SKU)

Why Choose AX3600 The AX3600 balances high client capacity, multi-gig uplink performance, and the latest Wi‑Fi 6 efficiencies in a clean, ceiling-friendly design. It’s a dependable choice where scalability, roaming, and consistent user experience matter.

Technical Note Actual throughput and client capacity depend on network configuration, environmental conditions, and client device capabilities. For large deployments, consult a site survey and

AX3600 Ceiling Mount Dual-Band Wi‑Fi 6 Access Point

Overview The AX3600 ceiling-mount access point delivers enterprise-grade Wi‑Fi 6 performance in a compact, unobtrusive design. Engineered for high-density environments, it supports more than 1,000 concurrent clients with reliable throughput and seamless mobility, making it ideal for offices, classrooms, retail venues, hospitality, and public spaces.

Key Specifications

• Port: 1 × 2.5 Gbps RJ45

• Wireless Speed: Up to 1,148 Mbps on 2.4 GHz + 2,402 Mbps on 5 GHz (AX3600 total)

• Power: 802.3at PoE and 12 V DC support

• Antennas: 8 × internal antennas

• Client Capacity: High-density support (1,000+ clients)

Features and Benefits

• Dual-Band Wi‑Fi 6 Performance: OFDMA and 1024-QAM increase spectral efficiency and throughput for both 2.4 GHz and 5 GHz bands, delivering fast, low-latency connections for modern devices and applications.

• High-Density Connectivity: Designed to handle crowded networks—supporting over 1,000 simultaneous clients—without sacrificing responsiveness or quality of experience.

• 2.5 Gbps Uplink: A single 2.5 Gbps RJ45 port aggregates high wireless bandwidth to the wired network, reducing backhaul bottlenecks in multi-user scenarios.

• Flexible Power Options: Supports 802.3at PoE for simplified ceiling deployment and 12 V DC for installations without Power over Ethernet.

• Advanced Antenna Design: Eight internal antennas provide optimized coverage and improved signal uniformity from a ceiling-mounted position while preserving a sleek, tamper-resistant profile.

• MU‑MIMO & OFDMA: Simultaneous multi-user data streams and subchannel resource allocation enhance capacity and efficiency for many concurrent devices.

• Seamless Roaming: Client steering and fast roaming minimize interruptions during handoffs, ensuring continuous connectivity for voice, video, and real-time apps.

• Band Steering: Automatically directs dual-band clients to the optimal band (5 GHz when available) to maximize aggregate throughput and reduce congestion.

• Enterprise-ready Management: Supports centralized management, RF optimization, and security policies for scalable deployments (controller or cloud management options depending on system).

Ideal Use Cases

• Corporate offices and coworking spaces with dense device populations

• Classrooms, lecture halls, and campus buildings

• Retail stores and shopping centers with high foot traffic

• Hotels, conference centers, and hospitality venues

• Public venues and transportation hubs requiring robust roaming

Physical & Installation

• Ceiling-mount form factor with low-profile aesthetic

• Tamper-resistant housing for public deployments

• PoE simplifies wiring; DC option for alternate power setups

Security

• WPA3 support for enhanced encryption and protection

• Enterprise authentication (802.1X) and guest network separation

• Rogue AP detection and secure management channel options

Package Includes

• AX3600 Ceiling Mount AP

• Mounting bracket and hardware

• Quick installation guide

• Power adapter (if applicable to SKU)

Why Choose AX3600 The AX3600 balances high client capacity, multi-gig uplink performance, and the latest Wi‑Fi 6 efficiencies in a clean, ceiling-friendly design. It’s a dependable choice where scalability, roaming, and consistent user experience matter.

Technical Note Actual throughput and client capacity depend on network configuration, environmental conditions, and client device capabilities. For large deployments, consult a site survey and capacity plan to optimize placement and performance.
