EAP670

AX5400 Ceiling Mount Dual-Band Wi‑Fi 6 Access Point

Overview A high-performance, enterprise-grade ceiling AP engineered for dense, high-bandwidth environments. The AX5400 delivers next-generation Wi‑Fi 6 throughput and advanced RF management in a discreet ceiling form factor—ideal for offices, schools, hospitality, and other public spaces requiring reliable, scalable wireless coverage.

Key Specifications

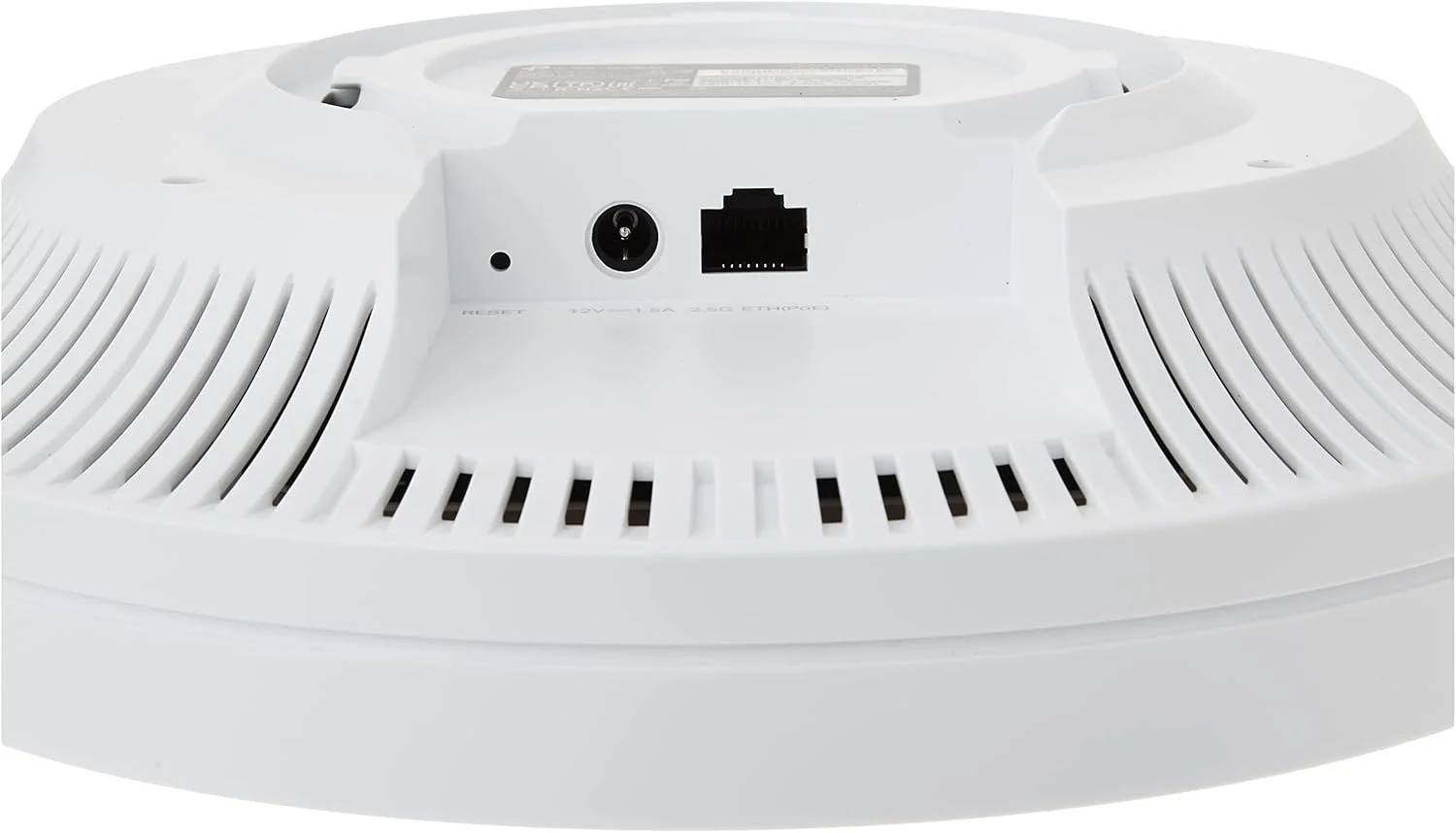

• Ports: 1 × 2.5 Gigabit RJ45 (supports high-throughput uplinks)

• Power: 802.3at PoE and 12V DC input for flexible deployment

• Radio & Speed: Dual-band Wi‑Fi 6 — up to 574 Mbps on 2.4 GHz and up to 4804 Mbps on 5 GHz (AX)

• Antennas: 6 × internal antennas optimized for ceiling deployment and uniform coverage

• Standards: IEEE 802.11ax, backward compatible with 802.11ac/n/a/b/g

Performance & RF Features

• MU‑MIMO: Simultaneous multi-client servicing improves overall network efficiency and capacity

• 160 MHz Channel Support: Increased single-client throughput where spectrum and regulatory conditions permit

• Beamforming: Focused signal delivery to enhance range and client performance

• Band Steering: Automatically directs dual-band clients to 5 GHz for higher throughput and reduced congestion

• Airtime Fairness: Balances access across fast and slow clients to prevent slower devices from monopolizing airtime

• Load Balance: Distributes client associations to prevent overloading any single AP or radio

• Seamless Roaming: Smooth client handoffs for real-time applications (VoIP, video conferencing) when used with controller-managed networks

Management & Deployment

• Centralized Management: Full integration with Omada SDN Controller for single-pane-of-glass provisioning, monitoring, firmware updates, and advanced policy control

• Mobile Management: Quick setup, monitoring, and configuration via Omada App for on-the-go management

• Scalability: Designed to scale from single-site deployments to large distributed networks with cluster management, automated RF optimization, and role-based access control

Use Cases

• Enterprise offices with dense client populations and high concurrent throughput needs

• Education campuses and lecture halls requiring seamless roaming and centralized policy control

• Hospitality properties and public venues where discreet ceiling aesthetics and consistent coverage are essential

• Retail and healthcare environments needing reliable, manageable wireless for staff and guests

Physical & Installation

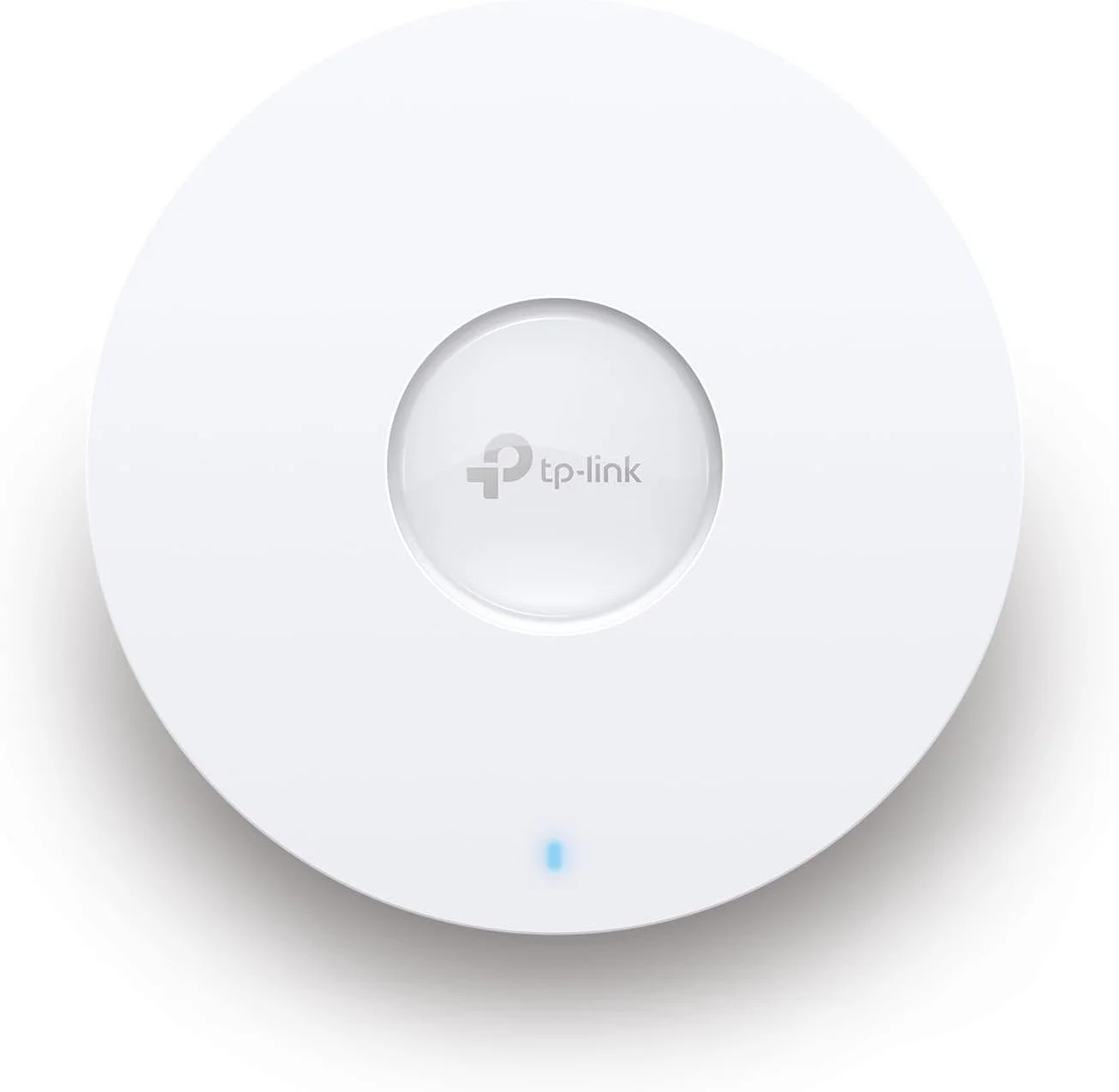

• Ceiling‑mount form factor with tamper‑resistant design and minimal visual impact

• PoE-powered installation reduces cabling complexity; 12V DC option for non-PoE sites

• Compact, lightweight housing suitable for standard drop ceilings and hard ceilings with mounting kit

Security & Reliability

• WPA3 support for stronger encryption and modern client security

• Advanced RF management and load mitigation features to maintain consistent user experience under heavy load

• Enterprise-class stability and firmware lifecycle management through Omada SDN

What you get

• High-throughput AX5400 Wi‑Fi 6 performance for demanding wireless environments

• Flexible power options (802.3at PoE / 12V DC) and a 2.5G uplink for multi-gig aggregation

• Centralized, scalable management with Omada SDN Controller and the Omada App

• Intelligent RF features (MU‑MIMO, beamforming, band steering, airtime fairness, load balance) for optimal client experiences

Technical Note Actual throughput and range depend on environmental factors, client capabilities, and regulatory limitations on channel width and transmit power. For best results in dense deployments, use centralized controller-managed RF planning and enable 160 MHz where
