EAP683 UR

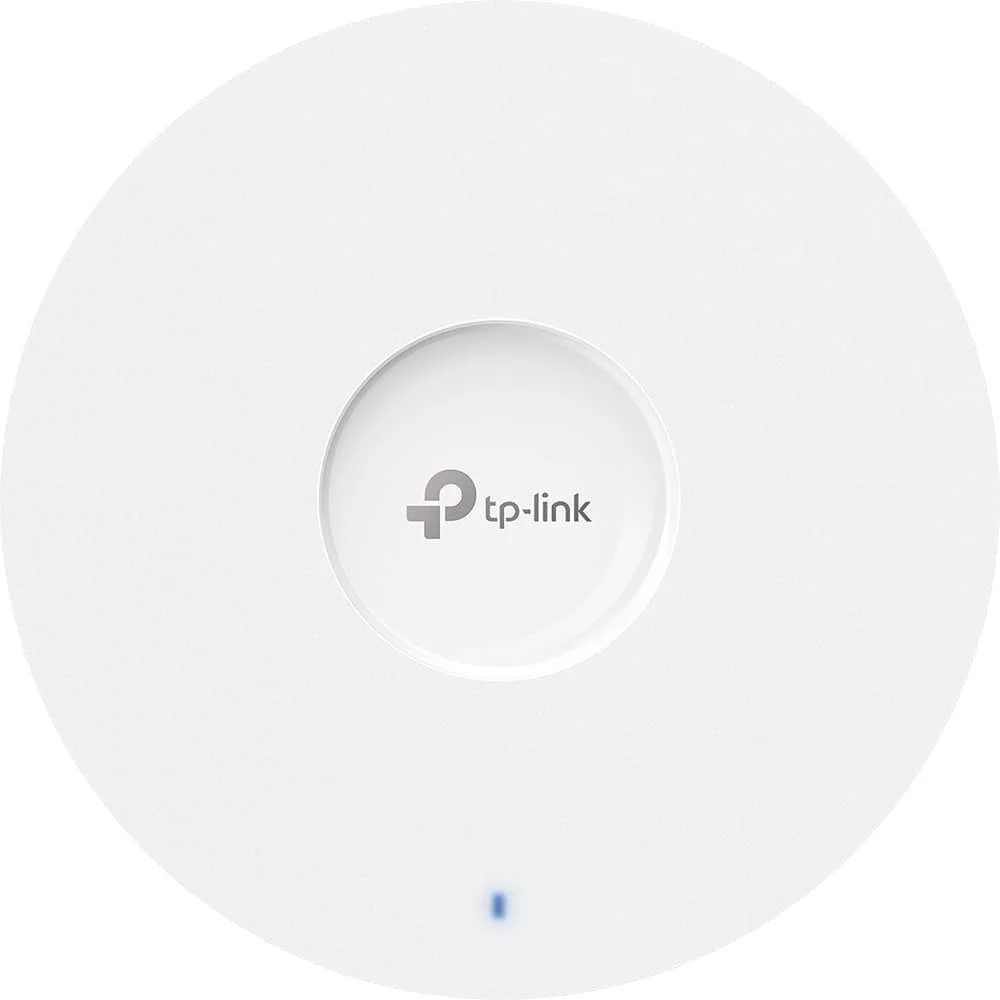

Omada AX6000 Ceiling Mount Dual-Band Wi‑Fi 6 Access Point

Overview A high-performance ceiling-mount Wi‑Fi 6 AP engineered for dense environments and large venues. Delivering combined AX6000 throughput, dual-band capacity, and enterprise-grade features, the Omada AX6000 ensures fast, reliable connectivity with centralized management for simplified deployment and maintenance.

Key Specifications

• Model: Omada AX6000 Ceiling Mount

• Ports: 1 × 2.5G RJ45 (data + PoE)

• Power: 802.3at PoE+ and 12V DC input (power adapter not included)

• Wireless Standards: IEEE 802.11ax (Wi‑Fi 6), backward compatible with 802.11a/b/g/n/ac

• Antennas: 4 × internal antennas

• Maximum Throughput:

  • 2.4 GHz: up to 1148 Mbps

  • 5 GHz: up to 4804 Mbps

  • Total: AX6000-class aggregate

• MU‑MIMO: Downlink and uplink MU‑MIMO support

• Channel Width: 160 MHz support on 5 GHz for higher throughput

• Beamforming: Yes

• Roaming: Seamless roaming with fast handoff

• Band Steering: Automatic steering to optimize client performance

• Load Balancing: Client distribution across APs to prevent congestion

• Airtime Fairness: Prioritizes balanced access to radio time for all clients

• Management: Centralized management via Omada SDN Controller and Omada App

• Form Factor: Ceiling mount, low-profile design for aesthetic integration

• Security: WPA3, WPA2, guest network isolation, VLAN support

• Ideal Use Cases: Offices, hotels, schools, retail stores, conference halls, hospitals, large multi-floor deployments

Highlights

• High-capacity Wi‑Fi 6 performance with up to 4804 Mbps on 5 GHz and 1148 Mbps on 2.4 GHz for bandwidth-hungry applications.

• 2.5G RJ45 uplink to leverage multi-gig backbones and reduce uplink bottlenecks.

• Flexible power options via 802.3at PoE+ or 12V DC (power adapter sold separately), simplifying ceiling installs.

• Enterprise features—seamless roaming, band steering, airtime fairness, and load balancing—improve user experience in crowded environments.

• Centralized provisioning, monitoring, and analytics through Omada SDN Controller and the Omada App for streamlined network operations.

What’s in the Box

• Omada AX6000 Ceiling Mount Access Point

• Ceiling mounting kit and hardware

• Quick installation guide

• (Power adapter not included)

Compliance & Notes

• Verify PoE+ injector or switch supports 802.3at for full functionality.

• For optimal 5 GHz performance using 160 MHz channels, ensure regulatory region and client device support.

• Firmware and feature availability may vary; update to the latest Omada firmware for

Omada AX6000 Ceiling Mount Dual-Band Wi‑Fi 6 Access Point

Overview A high-performance ceiling-mount Wi‑Fi 6 AP engineered for dense environments and large venues. Delivering combined AX6000 throughput, dual-band capacity, and enterprise-grade features, the Omada AX6000 ensures fast, reliable connectivity with centralized management for simplified deployment and maintenance.

Key Specifications

• Model: Omada AX6000 Ceiling Mount

• Ports: 1 × 2.5G RJ45 (data + PoE)

• Power: 802.3at PoE+ and 12V DC input (power adapter not included)

• Wireless Standards: IEEE 802.11ax (Wi‑Fi 6), backward compatible with 802.11a/b/g/n/ac

• Antennas: 4 × internal antennas

• Maximum Throughput:

  • 2.4 GHz: up to 1148 Mbps

  • 5 GHz: up to 4804 Mbps

  • Total: AX6000-class aggregate

• MU‑MIMO: Downlink and uplink MU‑MIMO support

• Channel Width: 160 MHz support on 5 GHz for higher throughput

• Beamforming: Yes

• Roaming: Seamless roaming with fast handoff

• Band Steering: Automatic steering to optimize client performance

• Load Balancing: Client distribution across APs to prevent congestion

• Airtime Fairness: Prioritizes balanced access to radio time for all clients

• Management: Centralized management via Omada SDN Controller and Omada App

• Form Factor: Ceiling mount, low-profile design for aesthetic integration

• Security: WPA3, WPA2, guest network isolation, VLAN support

• Ideal Use Cases: Offices, hotels, schools, retail stores, conference halls, hospitals, large multi-floor deployments

Highlights

• High-capacity Wi‑Fi 6 performance with up to 4804 Mbps on 5 GHz and 1148 Mbps on 2.4 GHz for bandwidth-hungry applications.

• 2.5G RJ45 uplink to leverage multi-gig backbones and reduce uplink bottlenecks.

• Flexible power options via 802.3at PoE+ or 12V DC (power adapter sold separately), simplifying ceiling installs.

• Enterprise features—seamless roaming, band steering, airtime fairness, and load balancing—improve user experience in crowded environments.

• Centralized provisioning, monitoring, and analytics through Omada SDN Controller and the Omada App for streamlined network operations.

What’s in the Box

• Omada AX6000 Ceiling Mount Access Point

• Ceiling mounting kit and hardware

• Quick installation guide

• (Power adapter not included)

Compliance & Notes

• Verify PoE+ injector or switch supports 802.3at for full functionality.

• For optimal 5 GHz performance using 160 MHz channels, ensure regulatory region and client device support.

• Firmware and feature availability may vary; update to the latest Omada firmware for new features and security patches.

For professional deployments, consult Zorins Technologies’ network services for site survey, capacity planning, and centralized Omada SDN integration.
