EAP725-Wall

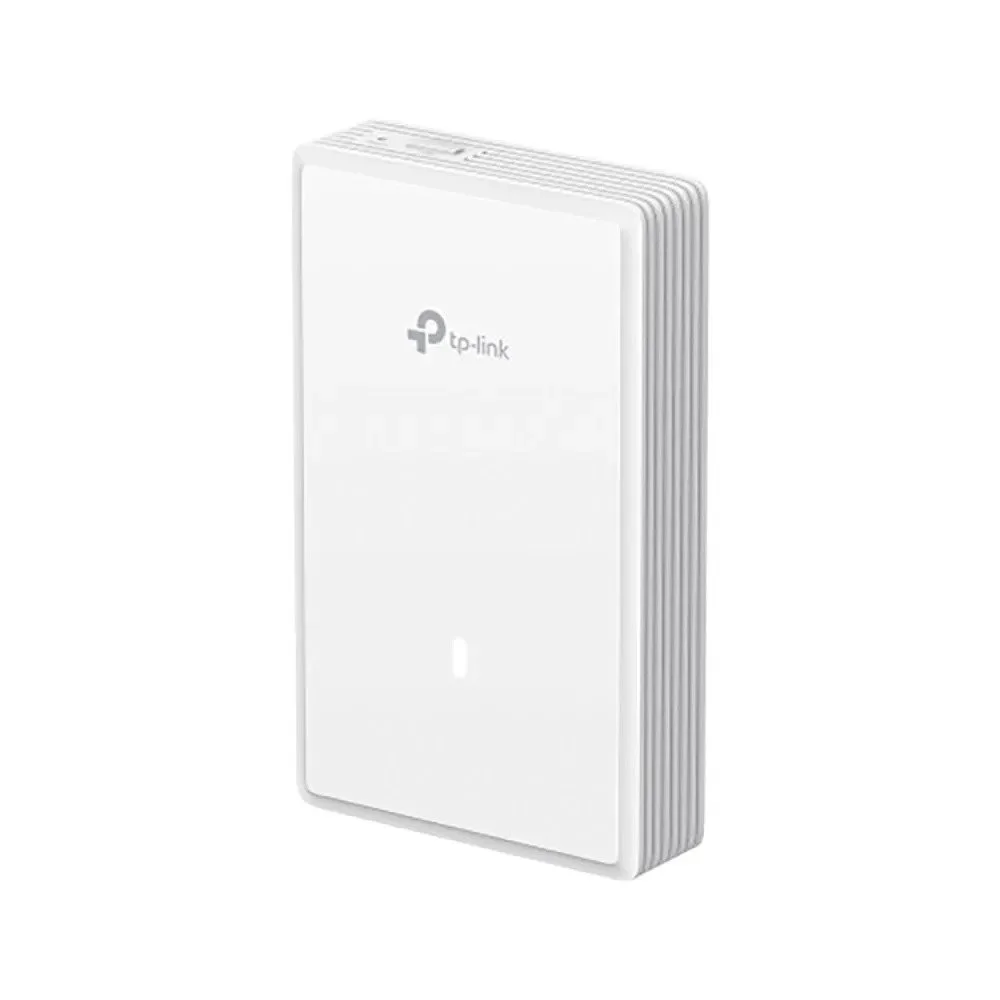

BE3600 Wall-Plate Dual-Band Wi‑Fi 7 Access Point

Overview A premium in-wall Wi‑Fi 7 access point engineered for modern workplaces, hospitality, and multi-dwelling installations. The BE3600 combines next‑generation wireless performance with a compact, EU‑compatible form factor and versatile PoE power options. Designed for centralized deployment and management via Omada SDN Controller or the Omada App.

Key Specifications

• Form factor: Wall‑plate access point, compatible with EU standard junction box

• Dimensions: 143 × 86 × 40 mm

• Wireless standard: Wi‑Fi 7 (IEEE 802.11be) — dual‑band

• Wireless speed: Up to 688 Mbps on 2.4 GHz + up to 2882 Mbps on 5 GHz

• Antennas: 2 × internal antennas

• Bluetooth: Integrated Bluetooth for device discovery and management

Ports & Power

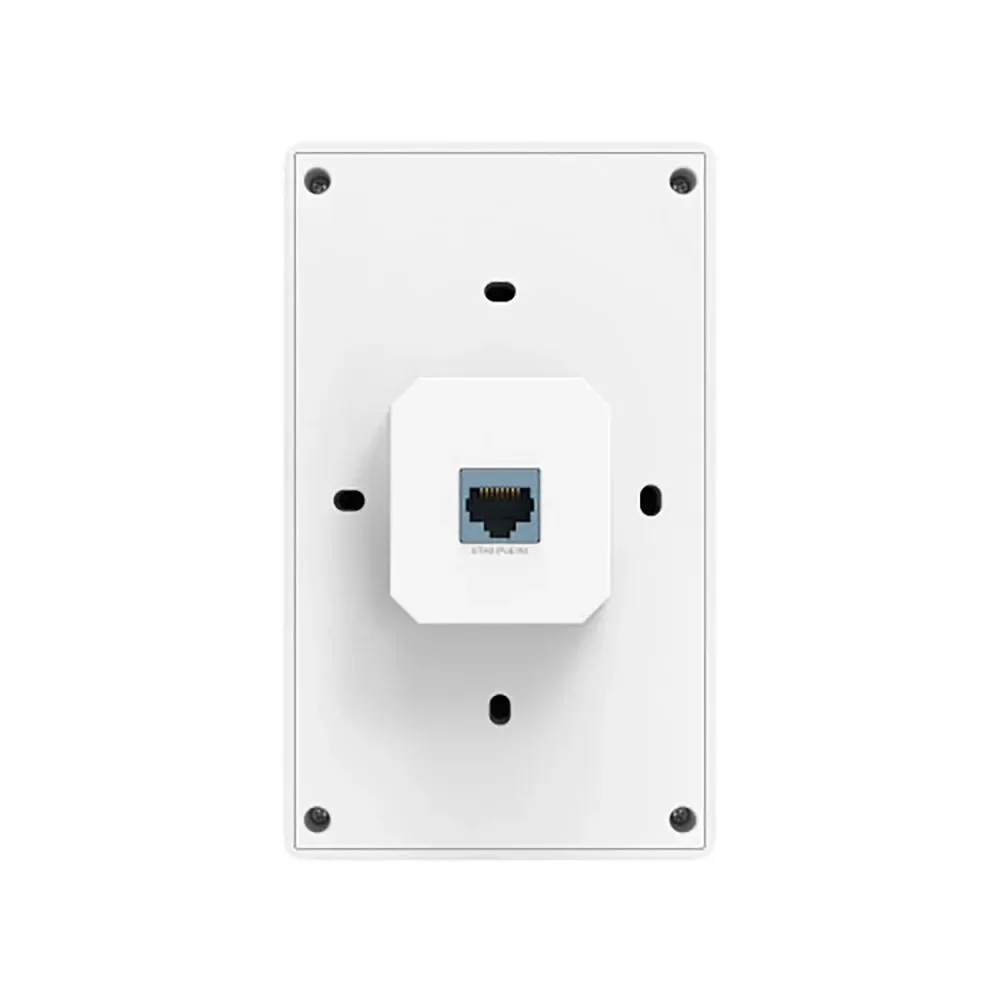

• Uplink: 1 × 2.5G RJ45 port (supports 802.3 bt/at PoE)

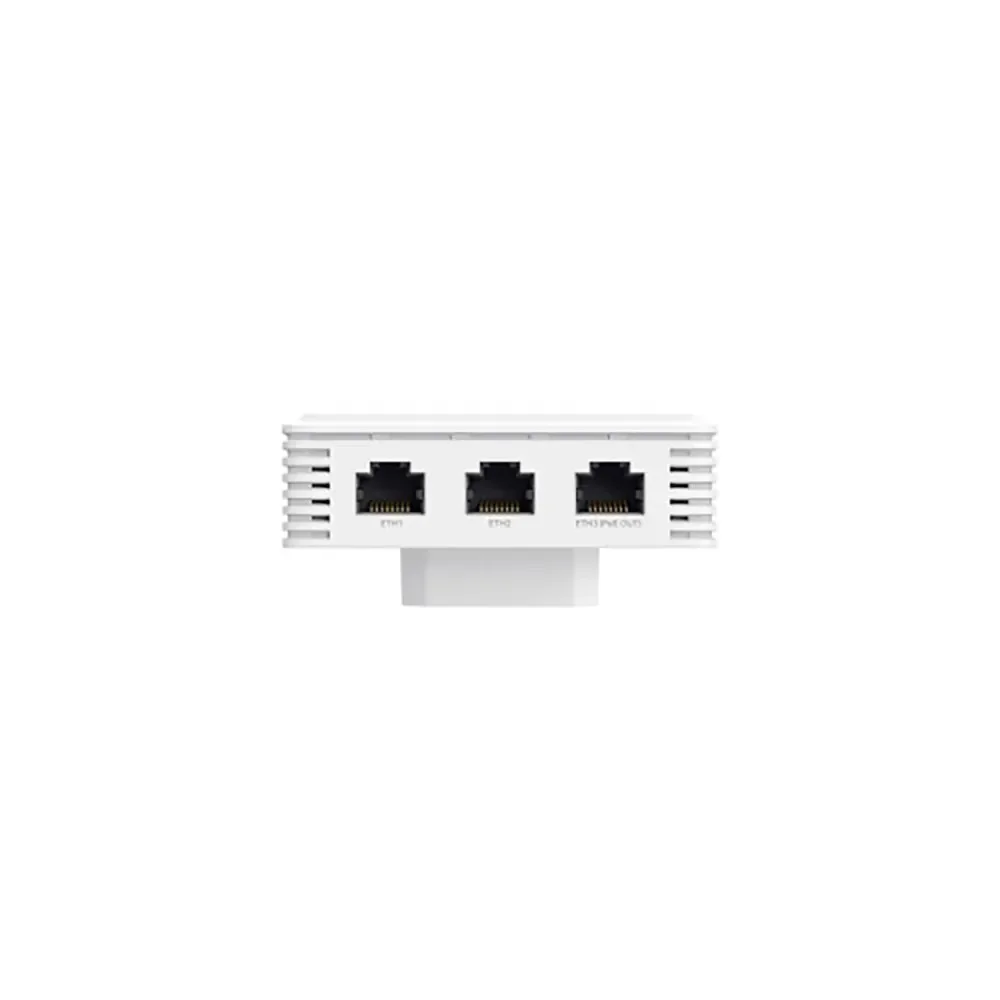

• Downlink: 1 × 2.5G RJ45 port + 2 × 1G RJ45 ports

• PoE features: 802.3 bt/at PoE input; PoE passthrough to downstream devices

Performance & Wireless Features

• 4K‑QAM for increased spectral efficiency and throughput

• MU‑MIMO to serve multiple clients simultaneously and reduce latency

• Beamforming to improve range and signal reliability to client devices

• Band steering to optimize client distribution across 2.4 GHz and 5 GHz bands

• Load balancing to distribute client load across network resources

Management & Deployment

• Centralized management via Omada SDN Controller for large-scale deployments

• Mobile management supported through the Omada App for on‑the‑go monitoring and configuration

• Ideal for hospitality, apartment units, offices, classrooms, and retrofit projects where EU wall‑box compatibility is required

Use Cases

• Multi‑dwelling units: Provide high‑speed, discreet Wi‑Fi directly from wall outlets with tenant isolation and centralized policy control.

• Hospitality: Deliver reliable high‑density coverage to guest rooms while simplifying management and power delivery.

• Offices & classrooms: Compact, low‑profile access point for meeting rooms and workspaces that require robust throughput and QoS.

What's in the Box

• BE3600 Wall‑Plate Dual‑Band Wi‑Fi 7 Access Point

• Mounting hardware compatible with EU standard junction boxes

• Quick installation guide

Regulatory & Environmental

• Complies with relevant EU wall‑box mechanical standards (verify local electrical codes before installation)

• Operating temperature and power specifications available in the technical datasheet

Contact For pricing, deployment planning, or volume orders, contact Zorins Technologies sales and technical teams.

BE3600 Wall-Plate Dual-Band Wi‑Fi 7 Access Point

Overview A premium in-wall Wi‑Fi 7 access point engineered for modern workplaces, hospitality, and multi-dwelling installations. The BE3600 combines next‑generation wireless performance with a compact, EU‑compatible form factor and versatile PoE power options. Designed for centralized deployment and management via Omada SDN Controller or the Omada App.

Key Specifications

• Form factor: Wall‑plate access point, compatible with EU standard junction box

• Dimensions: 143 × 86 × 40 mm

• Wireless standard: Wi‑Fi 7 (IEEE 802.11be) — dual‑band

• Wireless speed: Up to 688 Mbps on 2.4 GHz + up to 2882 Mbps on 5 GHz

• Antennas: 2 × internal antennas

• Bluetooth: Integrated Bluetooth for device discovery and management

Ports & Power

• Uplink: 1 × 2.5G RJ45 port (supports 802.3 bt/at PoE)

• Downlink: 1 × 2.5G RJ45 port + 2 × 1G RJ45 ports

• PoE features: 802.3 bt/at PoE input; PoE passthrough to downstream devices

Performance & Wireless Features

• 4K‑QAM for increased spectral efficiency and throughput

• MU‑MIMO to serve multiple clients simultaneously and reduce latency

• Beamforming to improve range and signal reliability to client devices

• Band steering to optimize client distribution across 2.4 GHz and 5 GHz bands

• Load balancing to distribute client load across network resources

Management & Deployment

• Centralized management via Omada SDN Controller for large-scale deployments

• Mobile management supported through the Omada App for on‑the‑go monitoring and configuration

• Ideal for hospitality, apartment units, offices, classrooms, and retrofit projects where EU wall‑box compatibility is required

Use Cases

• Multi‑dwelling units: Provide high‑speed, discreet Wi‑Fi directly from wall outlets with tenant isolation and centralized policy control.

• Hospitality: Deliver reliable high‑density coverage to guest rooms while simplifying management and power delivery.

• Offices & classrooms: Compact, low‑profile access point for meeting rooms and workspaces that require robust throughput and QoS.

What's in the Box

• BE3600 Wall‑Plate Dual‑Band Wi‑Fi 7 Access Point

• Mounting hardware compatible with EU standard junction boxes

• Quick installation guide

Regulatory & Environmental

• Complies with relevant EU wall‑box mechanical standards (verify local electrical codes before installation)

• Operating temperature and power specifications available in the technical datasheet

Contact For pricing, deployment planning, or volume orders, contact Zorins Technologies sales and technical teams.

(For full technical details including power budgets, channel plans, and firmware options, request the complete datasheet.)
