EAP772

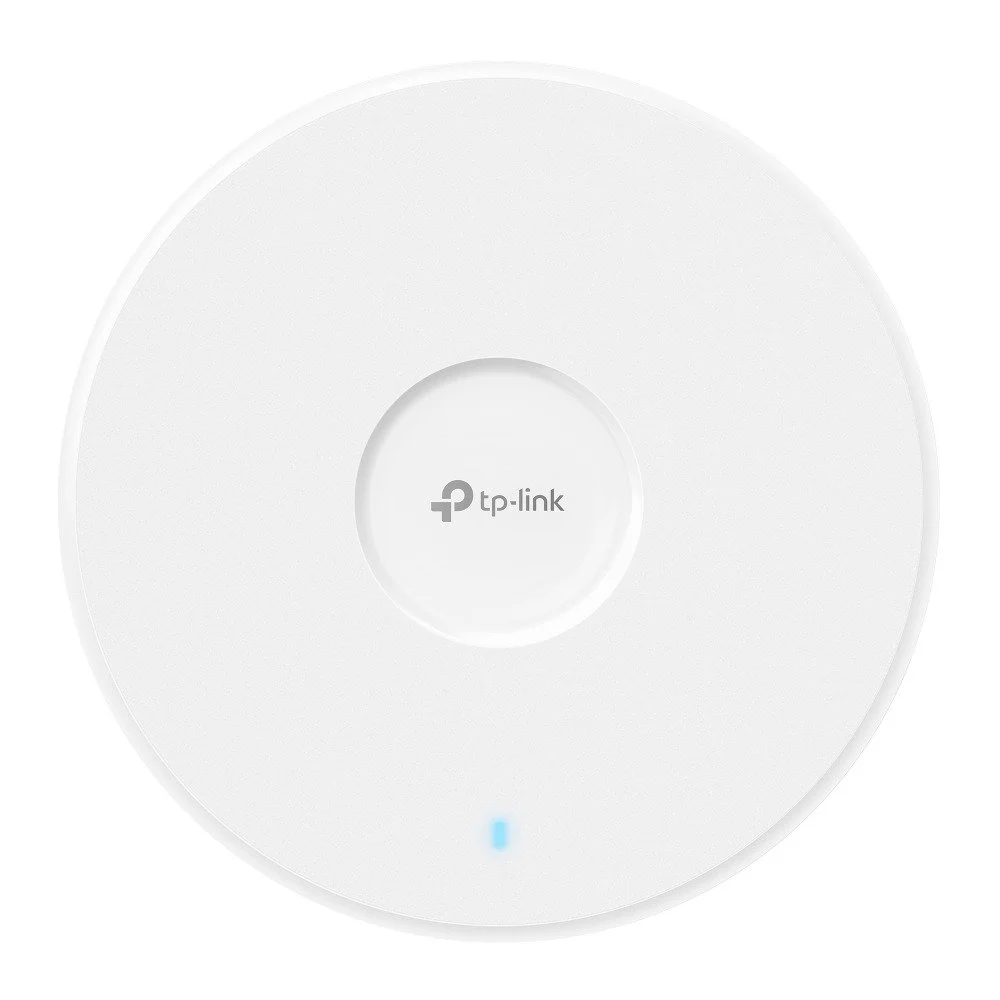

Omada BE9300 — Ceiling Mount Tri-Band Wi‑Fi 7 Access Point

Overview A high-performance, enterprise-grade ceiling AP engineered for dense indoor environments. The BE9300 delivers Wi‑Fi 7 throughput across 2.4 GHz, 5 GHz, and 6 GHz bands with advanced features for superior capacity, low latency, and centralized manageability.

Key Specifications

• Ports: 1 × 2.5G RJ45

• Wireless speeds:

  • 2.4 GHz: up to 574 Mbps

  • 5 GHz: up to 4320 Mbps

  • 6 GHz: up to 5760 Mbps

• Power: 802.3at PoE+ and 12V DC (power adapter not included)

• Antennas: 4 × internal

• Channel bandwidth: up to 320 MHz

• Modulation: 4K‑QAM

• Multi-link Operation (MLO) support

• MU‑MIMO, Beamforming, Band Steering, Seamless Roaming, Airtime Fairness, Load Balancing

• Centralized management: Omada SDN Controller and Omada App

Performance Highlights

• Tri‑band Wi‑Fi 7 architecture maximizes client concurrency and throughput by distributing traffic across 2.4/5/6 GHz bands.

• 320 MHz channel support and 4K‑QAM boost peak data rates and spectral efficiency for demanding applications such as 4K/8K video, large file transfers, and high-density conferencing.

• Multi-Link Operation (MLO) reduces latency and increases reliability by allowing devices to use multiple bands simultaneously.

Enterprise Features

• Seamless roaming and fast handoff ensure uninterrupted voice and video sessions in mobile or high-density deployments.

• MU‑MIMO and Beamforming optimize spatial reuse and signal focus for better per-client performance.

• Airtime Fairness and Load Balance prevent network starvation by distributing resources fairly among clients.

• Centralized provisioning, monitoring, and analytics through Omada SDN Controller or Omada App simplify large-scale deployment and ongoing management.

Deployment Notes

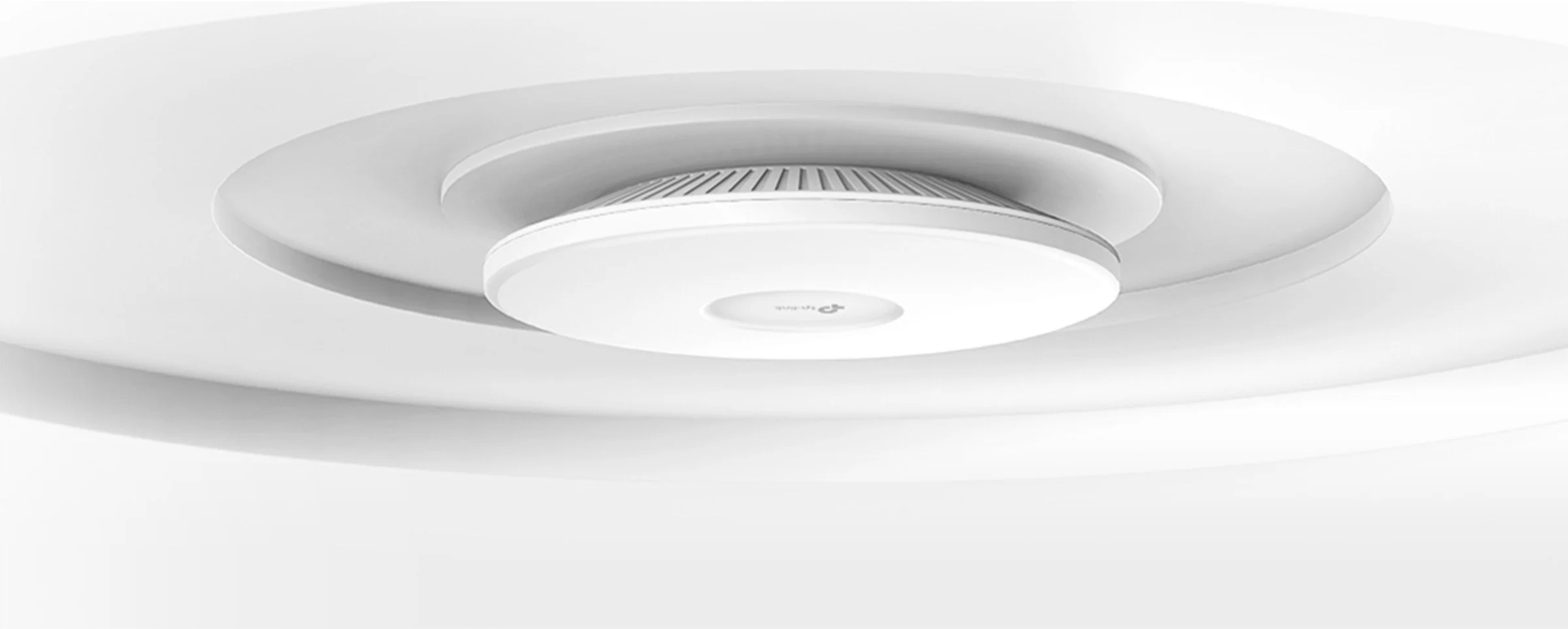

• Ceiling-mount form factor is ideal for offices, classrooms, retail, hotels, and public spaces.

• Requires 802.3at PoE+ switch or an external 12V DC supply (power adapter sold separately).

• Built-in internal antennas deliver aesthetic, low-profile installation while supporting enterprise radio performance.

Why Choose BE9300 The Omada BE9300 is designed for organizations that need next-generation Wi‑Fi 7 capacity, low latency, and centralized control. It combines cutting-edge PHY features like 320 MHz channels and MLO with mature enterprise management and roaming capabilities, delivering a scalable, high-throughput wireless backbone for modern networked environments.

What’s in the Box

• Omada BE9300 Access Point

• Ceiling-mount hardware and screws

• Quick installation guide

Optional Accessories

• 12V DC power adapter (not included)

• Omada PoE+ switches and mounting kits

Technical and compatibility questions or volume licensing/ordering inquiries can be directed to Zorins Technologies’ enterprise sales and support teams.
