EAP772-Outdoor

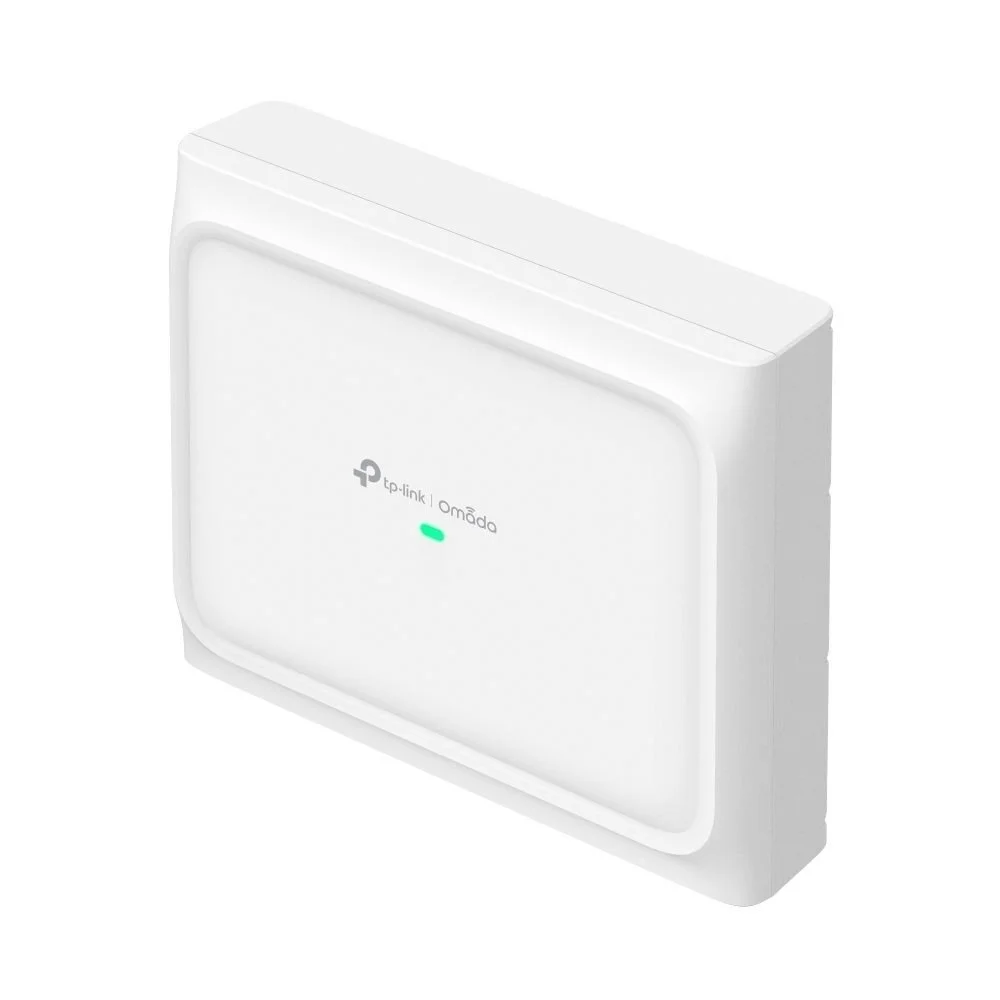

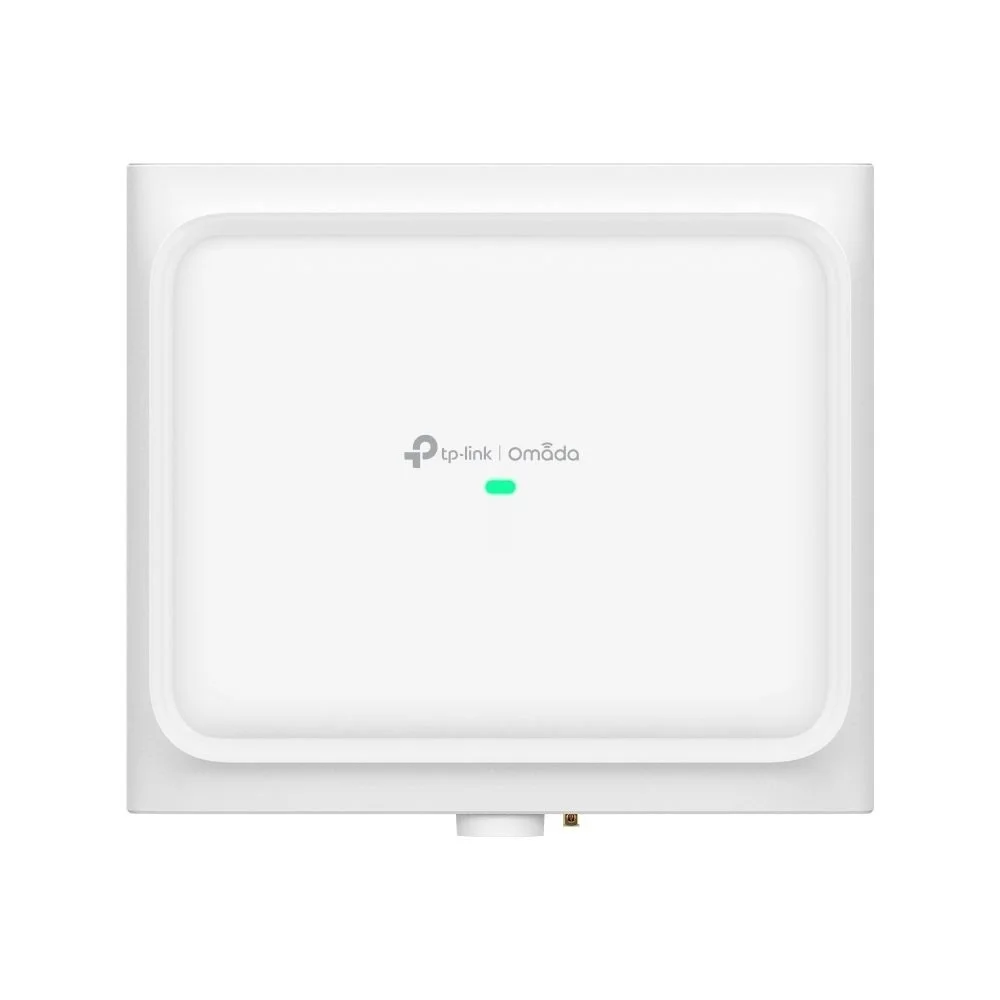

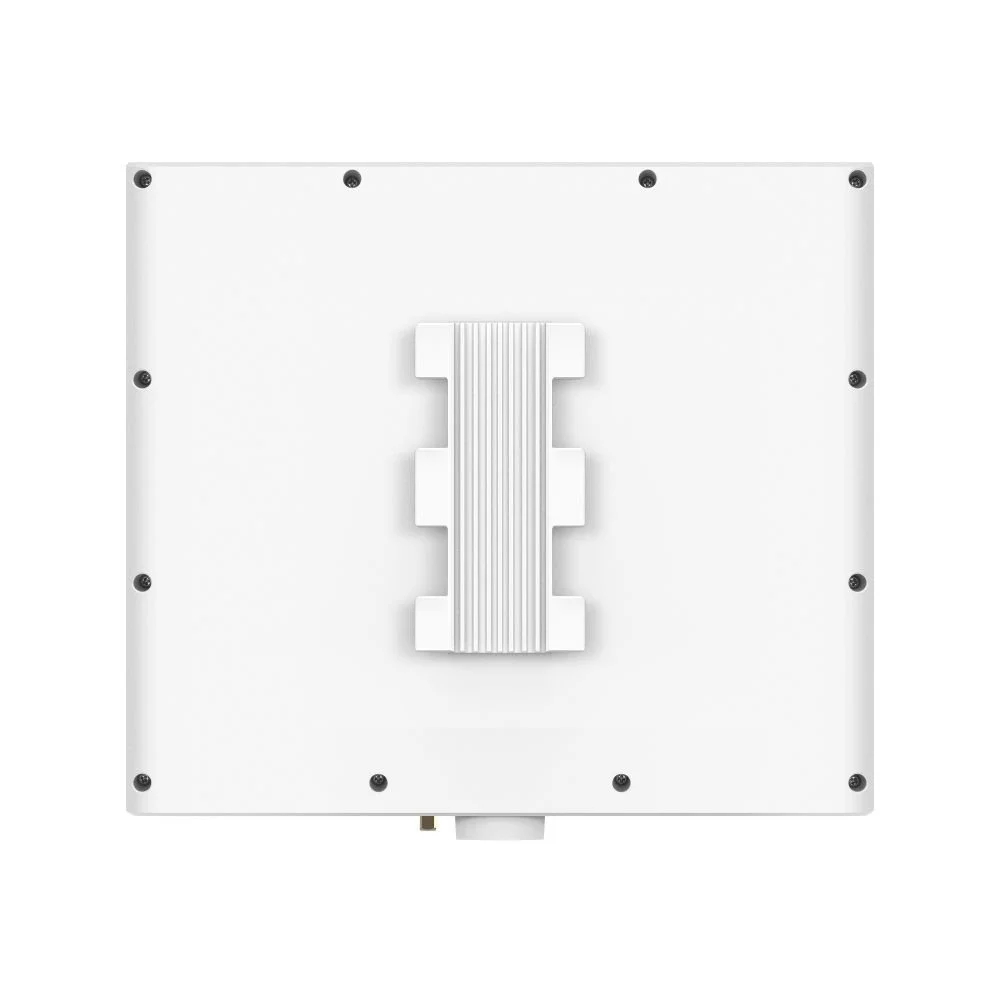

Omada BE9300 Indoor/Outdoor Tri‑Band Wi‑Fi 7 Access Point

Overview A high‑performance Wi‑Fi 7 access point engineered for demanding indoor and outdoor deployments. The BE9300 delivers multi‑gigabit wireless capacity across 2.4 GHz, 5 GHz and 6 GHz bands, robust environmental protection, and enterprise‑grade features—managed centrally via Omada SDN Controller or the Omada app.

Key Specifications

• Ports: 1 × 2.5G RJ45 Ethernet

• Power: 802.3at PoE and Passive PoE support

• Radio Rates:

  • 2.4 GHz: up to 574 Mbps

  • 5 GHz: up to 2882 Mbps

  • 6 GHz: up to 5760 Mbps

• Antennas: 6 × internal antennas (optimized for indoor/outdoor coverage)

• Environmental rating: IP68 weatherproof

• Location services: GNSS

• Additional radios: Bluetooth for device discovery and BLE services

• Wi‑Fi features: MU‑MIMO, 320 MHz channel support, 4K‑QAM, Multi‑Link Operation (MLO)

• Performance features: Seamless roaming, Band steering, Beamforming, Load balancing, Airtime fairness

• Management: Centralized by Omada SDN Controller and Omada App

Performance Highlights

• True tri‑band Wi‑Fi 7 throughput: Combined multi‑gig capability across 2.4/5/6 GHz bands for high device density and latency‑sensitive applications.

• 320 MHz channel support and 4K‑QAM enable maximum single‑user throughput and improved spectral efficiency.

• MLO reduces latency and jitter by enabling concurrent links across bands—ideal for real‑time voice, AR/VR, and critical IoT.

Deployment & Use Cases

• Indoor/outdoor campus coverage: IP68 build allows placement in exposed areas such as walkways, stadiums, and building exteriors while providing seamless coverage indoors.

• High‑density venues: Stadiums, convention centers, transit hubs and retail environments benefit from MU‑MIMO, airtime fairness and load balancing for consistent user experience.

• Enterprise & industrial IoT: GNSS and BLE support location services; robust management and security via Omada SDN Controller simplify large‑scale rollouts.

• Carrier‑grade branch and outdoor connectivity: 2.5G port and multi‑gig wireless capacity serve backhaul or aggregation roles where fiber is limited.

Security & Management

• Centralized provisioning, monitoring and firmware management through Omada SDN Controller or on the go via Omada App.

• Seamless roaming and band steering ensure secure, uninterrupted client sessions across APs.

• Enterprise feature set supports guest networks, VLANs, RADIUS authentication and role‑based access.

Physical & Environmental

• Rugged IP68 enclosure for dust and water resistance in harsh outdoor conditions.

• Compact design with internal antennas for a clean, vandal‑resistant installation.

• Wide operating temperature range suitable for outdoor deployments (refer to datasheet for exact ranges).

Why Choose Omada BE9300

• Next‑generation Wi‑Fi 7 performance with tri‑band capacity to future‑proof dense, mission‑critical networks.

• Flexible power options (802.3at and passive PoE) and a multi‑gig Ethernet port for versatile deployment scenarios.

• Enterprise management and advanced features (MLO, 320 MHz, 4K‑QAM, GNSS, BLE) packaged in an IP68‑rated enclosure for true indoor/outdoor use.

For sizing, mounting accessories, exact mechanical dimensions, and environmental operating specifications, consult the full technical datasheet or contact your Zorins Technologies network specialist.
