EAP773

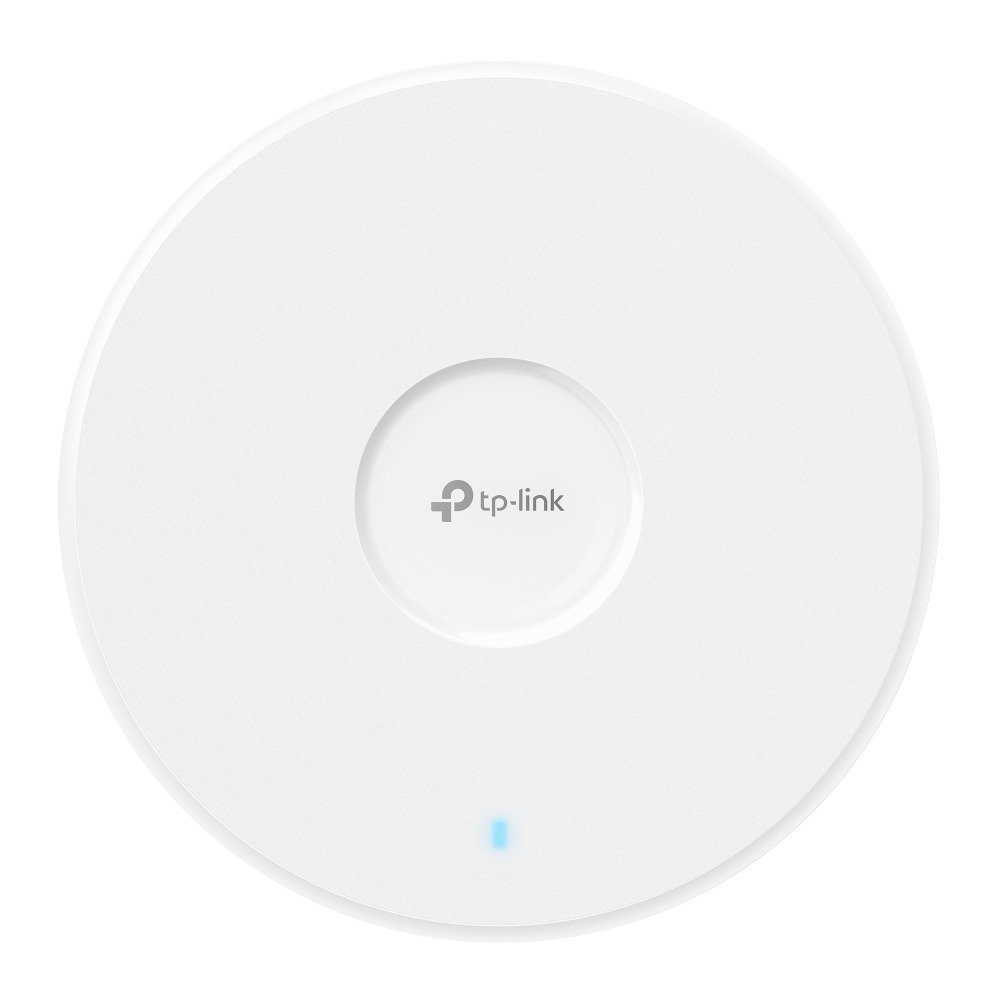

Omada BE9300 — Ceiling-Mount Tri‑Band Wi‑Fi 7 Access Point

Overview The Omada BE9300 is a ceiling-mount, tri‑band Wi‑Fi 7 access point engineered for high-density enterprise and campus environments. Delivering multi-gigabit aggregated throughput across 2.4 GHz, 5 GHz, and 6 GHz bands, the BE9300 combines next‑generation PHY features with enterprise-grade management for seamless, future‑proof wireless connectivity.

Key Specifications

• Ports: 1 × 10G RJ45

• Radio speeds: 574 Mbps (2.4 GHz) + 2880 Mbps (5 GHz) + 5760 Mbps (6 GHz)

• Power: 802.3bt PoE++ or 12 V DC (power adapter not included)

• Antennas: 4 × Internal

• Channel width: up to 320 MHz

• Modulation: 4K‑QAM

• MU‑MIMO and multi‑user spatial processing

• Support for Multi‑Link Operation (MLO)

Performance and RF Features

• Tri‑band Wi‑Fi 7 delivers high aggregate capacity and reduces congestion by distributing devices across 2.4/5/6 GHz bands.

• 320 MHz channel support and 4K‑QAM increase single‑client peak rates and boost spectral efficiency for bandwidth‑intensive applications.

• MLO enables simultaneous use of multiple bands for lower latency and more reliable links, particularly beneficial for real‑time services.

• MU‑MIMO and beamforming optimize multi‑client performance and extend effective coverage.

• Airtime fairness, load balancing, and band steering ensure even distribution of client load and consistent user experience under heavy density.

Deployment and Management

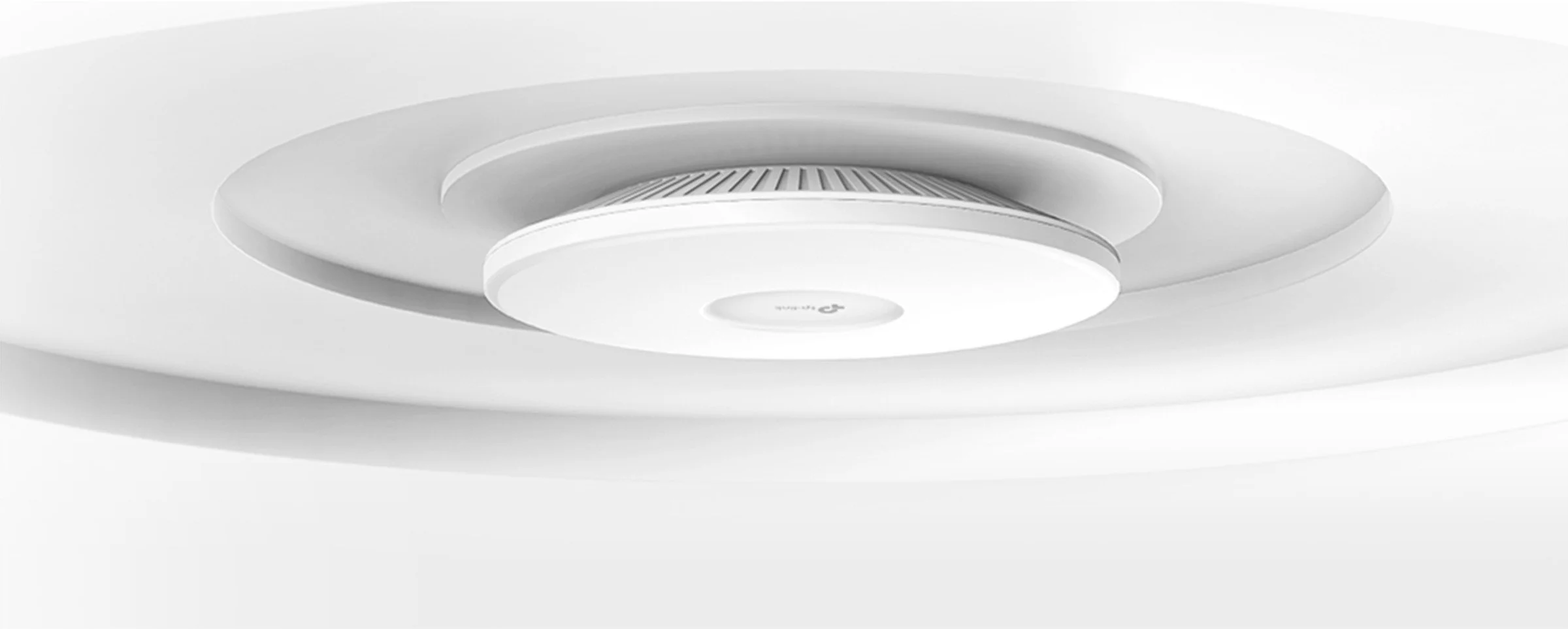

• Ceiling‑mount design and internal antennas provide clean installation and consistent omnidirectional coverage for indoor environments.

• Centralized management through Omada SDN Controller or the Omada App enables scalable provisioning, monitoring, and policy enforcement across distributed sites.

• Seamless roaming support minimizes interruption for mobile clients across access points in the same network.

Use Cases

• Large offices, auditoriums, and campuses requiring multi‑gigabit wireless capacity and low latency.

• High‑density venues (classrooms, conference centers) needing robust client concurrency and consistent performance.

• Managed enterprise environments that require centralized orchestration and advanced RF control.

Power and Installation Notes

• Supports 802.3bt PoE++ for single‑cable deployments; a 12 V DC option is available but power adapter is not included.

• One 10G RJ45 uplink supports high‑capacity backhaul to core switches or aggregation points.

Why Choose the BE9300 The Omada BE9300 combines Wi‑Fi 7 advances—MLO, 320 MHz channels, and 4K‑QAM—with enterprise features like centralized Omada SDN management and power‑over‑Ethernet support. It’s designed to meet the needs of modern, high‑density indoor networks where capacity, low latency, and

Omada BE9300 — Ceiling-Mount Tri‑Band Wi‑Fi 7 Access Point

Overview The Omada BE9300 is a ceiling-mount, tri‑band Wi‑Fi 7 access point engineered for high-density enterprise and campus environments. Delivering multi-gigabit aggregated throughput across 2.4 GHz, 5 GHz, and 6 GHz bands, the BE9300 combines next‑generation PHY features with enterprise-grade management for seamless, future‑proof wireless connectivity.

Key Specifications

• Ports: 1 × 10G RJ45

• Radio speeds: 574 Mbps (2.4 GHz) + 2880 Mbps (5 GHz) + 5760 Mbps (6 GHz)

• Power: 802.3bt PoE++ or 12 V DC (power adapter not included)

• Antennas: 4 × Internal

• Channel width: up to 320 MHz

• Modulation: 4K‑QAM

• MU‑MIMO and multi‑user spatial processing

• Support for Multi‑Link Operation (MLO)

Performance and RF Features

• Tri‑band Wi‑Fi 7 delivers high aggregate capacity and reduces congestion by distributing devices across 2.4/5/6 GHz bands.

• 320 MHz channel support and 4K‑QAM increase single‑client peak rates and boost spectral efficiency for bandwidth‑intensive applications.

• MLO enables simultaneous use of multiple bands for lower latency and more reliable links, particularly beneficial for real‑time services.

• MU‑MIMO and beamforming optimize multi‑client performance and extend effective coverage.

• Airtime fairness, load balancing, and band steering ensure even distribution of client load and consistent user experience under heavy density.

Deployment and Management

• Ceiling‑mount design and internal antennas provide clean installation and consistent omnidirectional coverage for indoor environments.

• Centralized management through Omada SDN Controller or the Omada App enables scalable provisioning, monitoring, and policy enforcement across distributed sites.

• Seamless roaming support minimizes interruption for mobile clients across access points in the same network.

Use Cases

• Large offices, auditoriums, and campuses requiring multi‑gigabit wireless capacity and low latency.

• High‑density venues (classrooms, conference centers) needing robust client concurrency and consistent performance.

• Managed enterprise environments that require centralized orchestration and advanced RF control.

Power and Installation Notes

• Supports 802.3bt PoE++ for single‑cable deployments; a 12 V DC option is available but power adapter is not included.

• One 10G RJ45 uplink supports high‑capacity backhaul to core switches or aggregation points.

Why Choose the BE9300 The Omada BE9300 combines Wi‑Fi 7 advances—MLO, 320 MHz channels, and 4K‑QAM—with enterprise features like centralized Omada SDN management and power‑over‑Ethernet support. It’s designed to meet the needs of modern, high‑density indoor networks where capacity, low latency, and operational simplicity are essential.

Technical compliance and firmware features may vary by region; consult your Omada SDN documentation for deployment best practices and latest firmware capabilities.
