EAP783

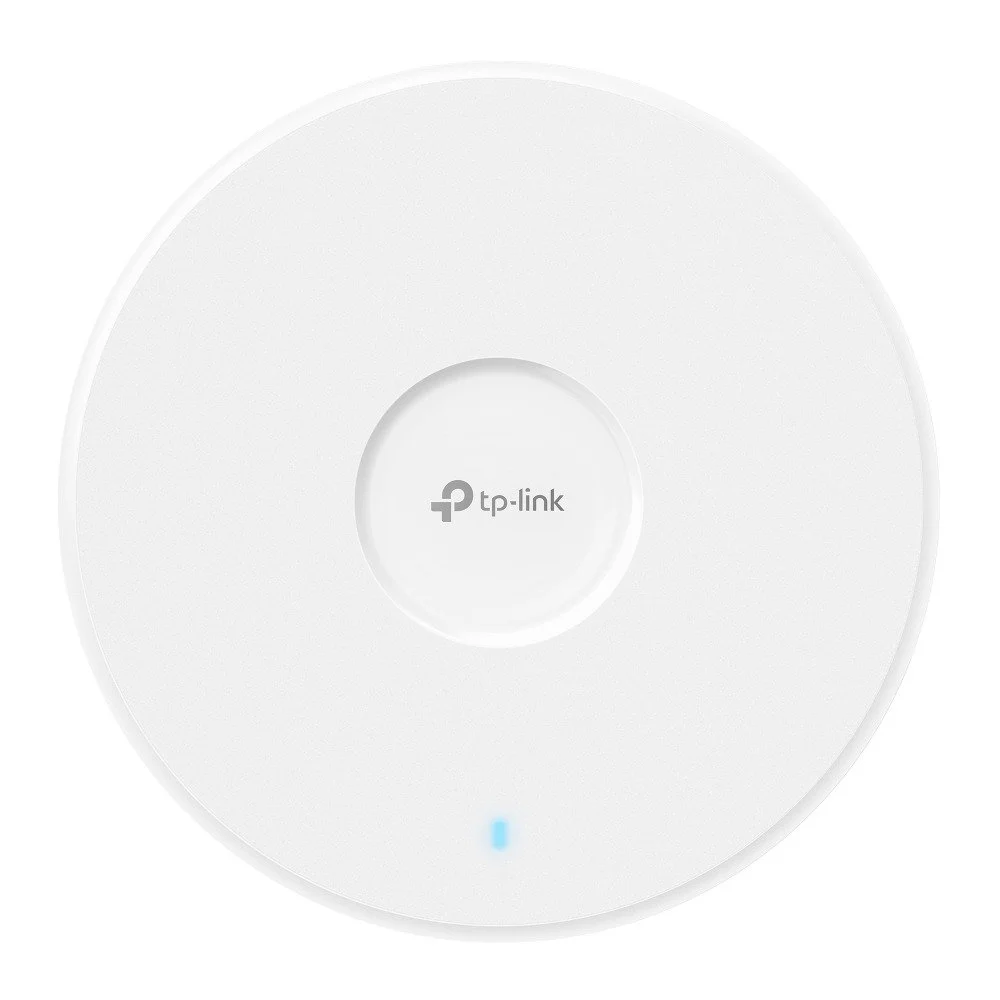

Omada BE19000 Ceiling Mount Tri‑Band Wi‑Fi 7 Access Point

Overview The Omada BE19000 is a high-performance ceiling-mount Wi‑Fi 7 access point engineered for dense enterprise and campus environments. Delivering tri‑band aggregation, advanced PHY features, and flexible power options, it provides ultra‑high throughput and reliable multiuser connectivity to support bandwidth‑intensive applications, seamless roaming, and centralized management.

Key Specifications

• Ports: 2 × 10G RJ45

• Wireless performance (maximum theoretical):

  • 2.4 GHz: 1148 Mbps

  • 5 GHz: 5760 Mbps

  • 6 GHz: 11,520 Mbps

• Power: 802.3bt PoE++ and 12V DC input (power adapter not included)

• Antennas: 8 × internal antennas

• Wi‑Fi features: MU‑MIMO, 320 MHz channel width support, 4K‑QAM, MLO (Multi‑Link Operation)

• RF and user experience: Seamless roaming, Band steering, Beamforming, Load balancing, Airtime fairness

• Management: Centralized management via Omada SDN Controller and Omada App

Performance and Capacity The BE19000 leverages Wi‑Fi 7 enhancements—wide 320 MHz channels, 4K‑QAM, and MLO—to dramatically increase per‑client and aggregate throughput. The dedicated 6 GHz band delivers extremely high capacity for modern client devices, while the 5 GHz and 2.4 GHz bands maintain broad compatibility. Dual 10G uplinks enable robust backhaul and link redundancy for high‑density deployments.

Advanced Wireless Technologies

• MU‑MIMO and Beamforming: Improves spectral efficiency and per‑client signal quality in crowded environments.

• MLO (Multi‑Link Operation): Simultaneous use of multiple bands for lower latency, improved reliability, and faster roaming between bands.

• Airtime Fairness and Load Balancing: Ensures equitable access and optimizes resource distribution among clients with varying capabilities.

• Band Steering and Seamless Roaming: Directs capable devices to the best band and maintains uninterrupted client sessions across the network.

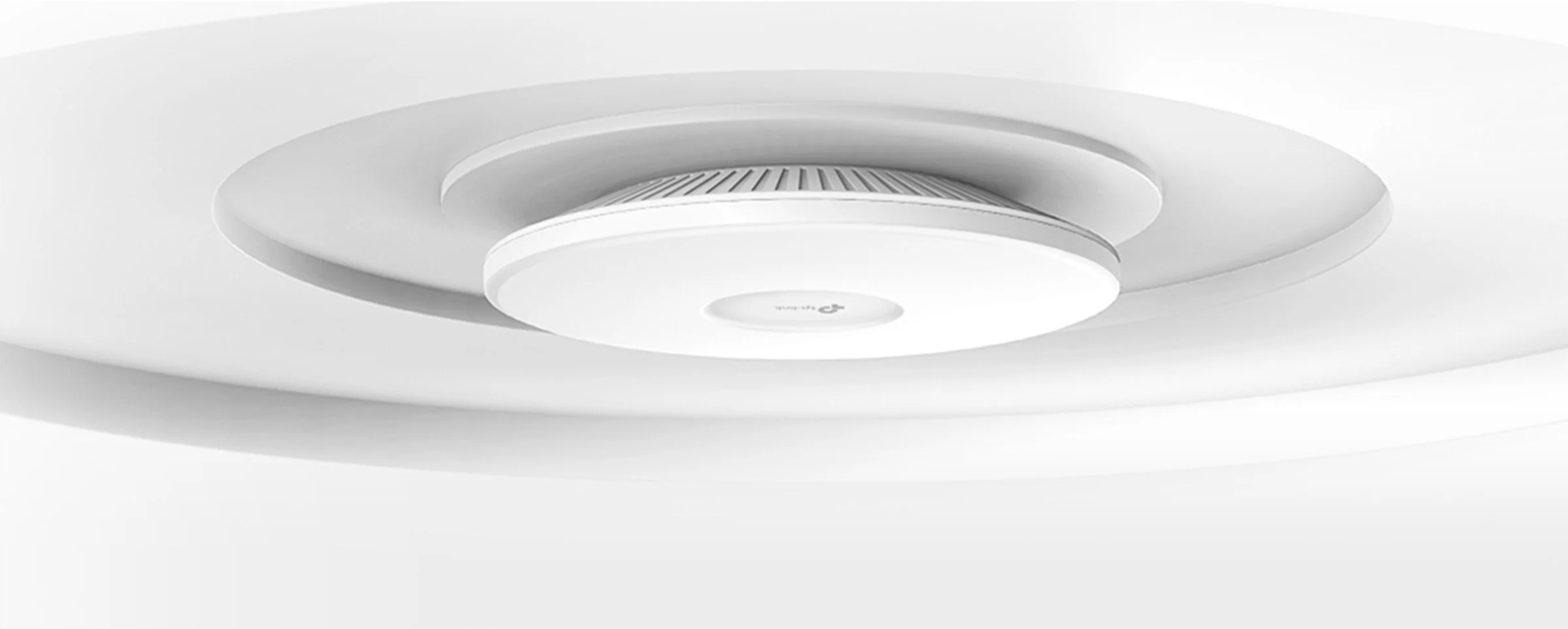

Deployment and Power Designed for ceiling mounting to maximize coverage and aesthetics, the BE19000’s internal antennas deliver a clean installation without external RF hardware. Power flexibility is provided by 802.3bt PoE++ for simplified cabling or a 12V DC input where local power is preferred (note: DC power adapter sold separately).

Management and Security Fully integrated with the Omada SDN ecosystem, the BE19000 supports centralized provisioning, topology mapping, firmware scheduling, role‑based administration, and comprehensive analytics via the Omada Controller and Omada App—ideal for multi‑site enterprise networks. Standard security features include WPA3, rogue AP detection, client isolation, and guest network controls.

Use Cases

• Enterprise offices and corporate campuses requiring high throughput and low latency for collaboration, video conferencing, and virtual desktops.

• Education and libraries with dense concurrent users and mixed device capabilities.

• Hospitality, conference centers, and public venues where predictable performance and seamless mobility matter.

Packaging Notes Power adapter not included. Verify PoE++ switch or compatible 12V DC supply before deployment.

Why Choose the Omada BE19000 For organizations demanding future‑ready Wi‑Fi with substantial capacity, resilient uplinks, and centralized management at scale, the BE19000 provides a

Omada BE19000 Ceiling Mount Tri‑Band Wi‑Fi 7 Access Point

Overview The Omada BE19000 is a high-performance ceiling-mount Wi‑Fi 7 access point engineered for dense enterprise and campus environments. Delivering tri‑band aggregation, advanced PHY features, and flexible power options, it provides ultra‑high throughput and reliable multiuser connectivity to support bandwidth‑intensive applications, seamless roaming, and centralized management.

Key Specifications

• Ports: 2 × 10G RJ45

• Wireless performance (maximum theoretical):

  • 2.4 GHz: 1148 Mbps

  • 5 GHz: 5760 Mbps

  • 6 GHz: 11,520 Mbps

• Power: 802.3bt PoE++ and 12V DC input (power adapter not included)

• Antennas: 8 × internal antennas

• Wi‑Fi features: MU‑MIMO, 320 MHz channel width support, 4K‑QAM, MLO (Multi‑Link Operation)

• RF and user experience: Seamless roaming, Band steering, Beamforming, Load balancing, Airtime fairness

• Management: Centralized management via Omada SDN Controller and Omada App

Performance and Capacity The BE19000 leverages Wi‑Fi 7 enhancements—wide 320 MHz channels, 4K‑QAM, and MLO—to dramatically increase per‑client and aggregate throughput. The dedicated 6 GHz band delivers extremely high capacity for modern client devices, while the 5 GHz and 2.4 GHz bands maintain broad compatibility. Dual 10G uplinks enable robust backhaul and link redundancy for high‑density deployments.

Advanced Wireless Technologies

• MU‑MIMO and Beamforming: Improves spectral efficiency and per‑client signal quality in crowded environments.

• MLO (Multi‑Link Operation): Simultaneous use of multiple bands for lower latency, improved reliability, and faster roaming between bands.

• Airtime Fairness and Load Balancing: Ensures equitable access and optimizes resource distribution among clients with varying capabilities.

• Band Steering and Seamless Roaming: Directs capable devices to the best band and maintains uninterrupted client sessions across the network.

Deployment and Power Designed for ceiling mounting to maximize coverage and aesthetics, the BE19000’s internal antennas deliver a clean installation without external RF hardware. Power flexibility is provided by 802.3bt PoE++ for simplified cabling or a 12V DC input where local power is preferred (note: DC power adapter sold separately).

Management and Security Fully integrated with the Omada SDN ecosystem, the BE19000 supports centralized provisioning, topology mapping, firmware scheduling, role‑based administration, and comprehensive analytics via the Omada Controller and Omada App—ideal for multi‑site enterprise networks. Standard security features include WPA3, rogue AP detection, client isolation, and guest network controls.

Use Cases

• Enterprise offices and corporate campuses requiring high throughput and low latency for collaboration, video conferencing, and virtual desktops.

• Education and libraries with dense concurrent users and mixed device capabilities.

• Hospitality, conference centers, and public venues where predictable performance and seamless mobility matter.

Packaging Notes Power adapter not included. Verify PoE++ switch or compatible 12V DC supply before deployment.

Why Choose the Omada BE19000 For organizations demanding future‑ready Wi‑Fi with substantial capacity, resilient uplinks, and centralized management at scale, the BE19000 provides a sophisticated, high‑density solution that harnesses Wi‑Fi 7 innovations to deliver measurable improvements in speed, latency, and client experience.
