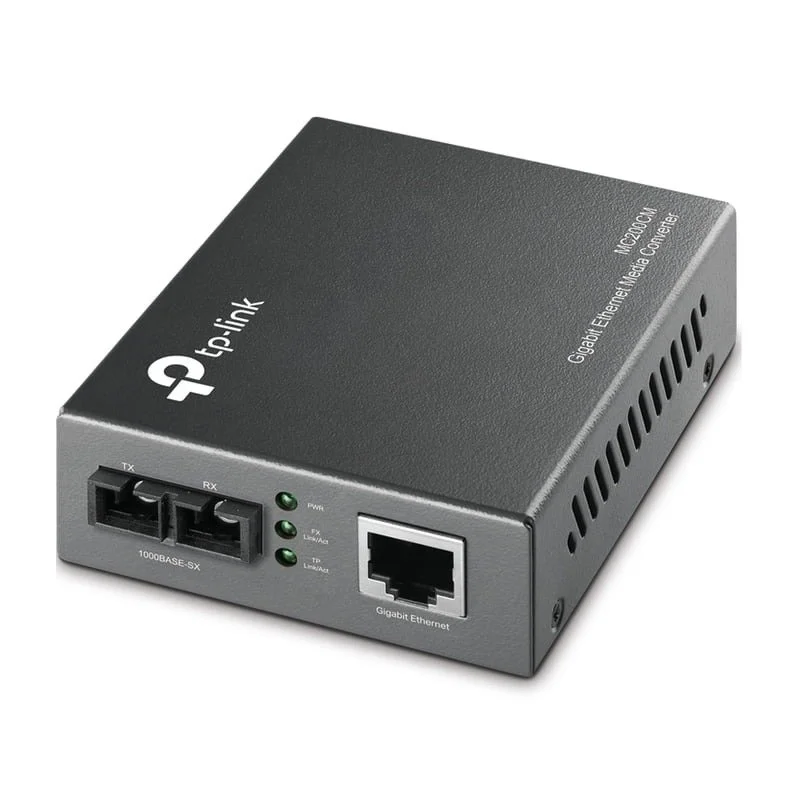

MC200CM

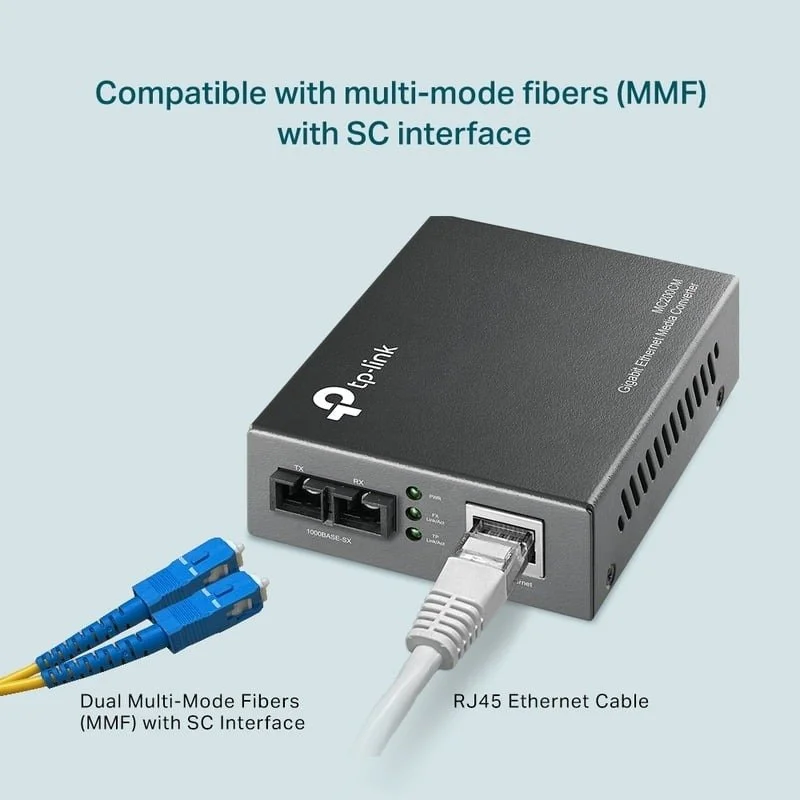

Overview A compact, rack-mountable media converter that seamlessly bridges copper Ethernet and multimode fiber networks. Ideal for enterprise, campus, and data center environments requiring reliable Gigabit fiber uplinks with legacy copper devices. Supports 10/100/1000BASE-T RJ45 at one end and 1000BASE-SX multimode SC at the other, offering transparent protocol conversion with auto-negotiation and Auto MDI/MDIX.

Key Features

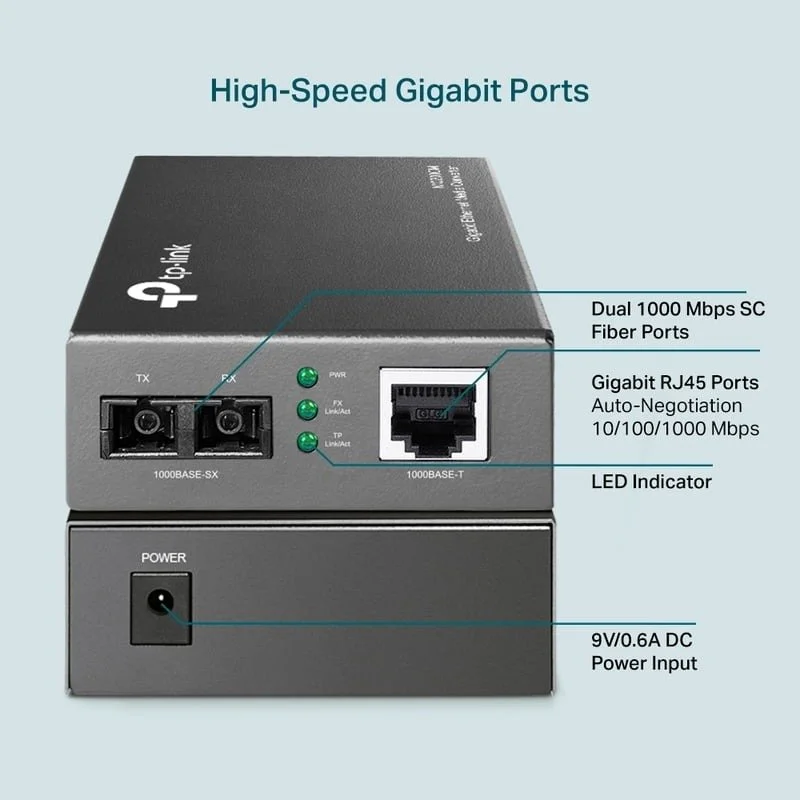

• Ports:

  • 1 × Gigabit SC fiber port (1000BASE-SX, multimode)

  • 1 × Gigabit RJ45 port (10/100/1000BASE-T), Auto MDI/MDIX

• Full-duplex operation for simultaneous send/receive on both links

• Fiber reach: up to 550 meters (multimode, typical OM2/OM3 depending on transceiver and cable)

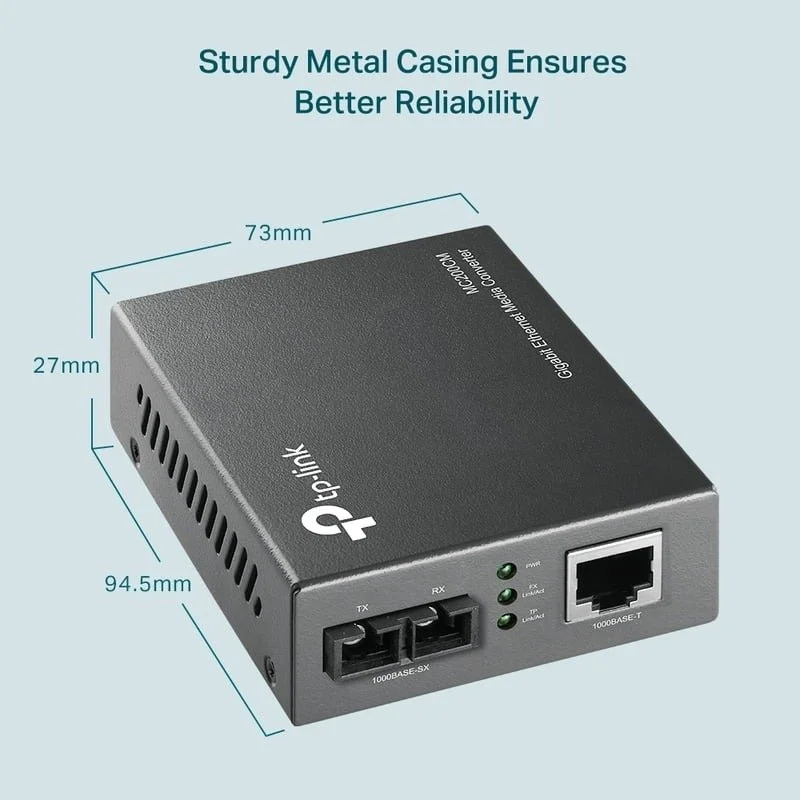

• Compact chassis: TL-MC1400 rack-mountable design for 19" cabinets

• Transparent media conversion with wire-speed forwarding

• Link/activity LEDs for quick status monitoring

• Low latency and low jitter suitable for voice, video, and data

• Plug-and-play installation; no configuration required

Technical Specifications

• Fiber Standard: 1000BASE-SX

• Fiber Connector: SC (multimode)

• Copper Standard: 10/100/1000BASE-T

• Copper Connector: RJ45, Auto MDI/MDIX

• Duplex Mode: Full-duplex supported on both ports

• Maximum Multimode Distance: Up to 550 meters (dependent on multimode grade and optical budget)

• Forwarding Mode: Store-and-forward or cut-through (device-specific — offers wire-speed forwarding)

• Power: Internal/external power options depending on model (check unit label)

• Mounting: TL-MC1400 compatible rack-mount chassis; 19" rack ears included

• LEDs: Power, RJ45 Link/Activity, Fiber Link/Activity

Use Cases

• Extend Gigabit network segments where copper reach is limited

• Connect floor switches to building fiber backbone

• Migrate mixed-speed copper devices to a fiber backbone without replacing existing equipment

• Provide isolated fiber uplinks for security-sensitive endpoints

Installation Notes

• Ensure multimode fiber type and transceiver compatibility (OM1/OM2/OM3/OM4 affects distance)

• Observe ESD precautions when handling fiber connectors

• Verify duplex mode and speed on connected copper devices if issues arise; Auto-negotiation and Auto MDI/MDIX typically handle mismatches

• Use appropriate rack space and ventilation when mounting the TL-MC1400 chassis

Packaging Includes

• 1 × RJ45-to-SC fiber converter module (TL-MC1400 form factor)

• Rack-mount ears and screws

• Power adapter or power cable (model dependent)

• Quick installation guide

Regulatory & Environmental

• RoHS compliant; regulatory approvals vary by region — consult product label

• Operating temperature and humidity: refer to unit datasheet for environmental limits

Ordering Information Specify multimode SC transceiver variant if multiple optical budgets are offered and confirm TL-MC1400 chassis slot availability when ordering multiple modules.

For deployment planning or bulk orders, contact Zorins

10/100/1000 Mbps RJ45 to 1000 Mbps Multi-mode SC Fiber Converter

Overview A compact, rack-mountable media converter that seamlessly bridges copper Ethernet and multimode fiber networks. Ideal for enterprise, campus, and data center environments requiring reliable Gigabit fiber uplinks with legacy copper devices. Supports 10/100/1000BASE-T RJ45 at one end and 1000BASE-SX multimode SC at the other, offering transparent protocol conversion with auto-negotiation and Auto MDI/MDIX.

Key Features

• Ports:

  • 1 × Gigabit SC fiber port (1000BASE-SX, multimode)

  • 1 × Gigabit RJ45 port (10/100/1000BASE-T), Auto MDI/MDIX

• Full-duplex operation for simultaneous send/receive on both links

• Fiber reach: up to 550 meters (multimode, typical OM2/OM3 depending on transceiver and cable)

• Compact chassis: TL-MC1400 rack-mountable design for 19" cabinets

• Transparent media conversion with wire-speed forwarding

• Link/activity LEDs for quick status monitoring

• Low latency and low jitter suitable for voice, video, and data

• Plug-and-play installation; no configuration required

Technical Specifications

• Fiber Standard: 1000BASE-SX

• Fiber Connector: SC (multimode)

• Copper Standard: 10/100/1000BASE-T

• Copper Connector: RJ45, Auto MDI/MDIX

• Duplex Mode: Full-duplex supported on both ports

• Maximum Multimode Distance: Up to 550 meters (dependent on multimode grade and optical budget)

• Forwarding Mode: Store-and-forward or cut-through (device-specific — offers wire-speed forwarding)

• Power: Internal/external power options depending on model (check unit label)

• Mounting: TL-MC1400 compatible rack-mount chassis; 19" rack ears included

• LEDs: Power, RJ45 Link/Activity, Fiber Link/Activity

Use Cases

• Extend Gigabit network segments where copper reach is limited

• Connect floor switches to building fiber backbone

• Migrate mixed-speed copper devices to a fiber backbone without replacing existing equipment

• Provide isolated fiber uplinks for security-sensitive endpoints

Installation Notes

• Ensure multimode fiber type and transceiver compatibility (OM1/OM2/OM3/OM4 affects distance)

• Observe ESD precautions when handling fiber connectors

• Verify duplex mode and speed on connected copper devices if issues arise; Auto-negotiation and Auto MDI/MDIX typically handle mismatches

• Use appropriate rack space and ventilation when mounting the TL-MC1400 chassis

Packaging Includes

• 1 × RJ45-to-SC fiber converter module (TL-MC1400 form factor)

• Rack-mount ears and screws

• Power adapter or power cable (model dependent)

• Quick installation guide

Regulatory & Environmental

• RoHS compliant; regulatory approvals vary by region — consult product label

• Operating temperature and humidity: refer to unit datasheet for environmental limits

Ordering Information Specify multimode SC transceiver variant if multiple optical budgets are offered and confirm TL-MC1400 chassis slot availability when ordering multiple modules.

For deployment planning or bulk orders, contact Zorins Technologies for technical consultation and volume pricing.
