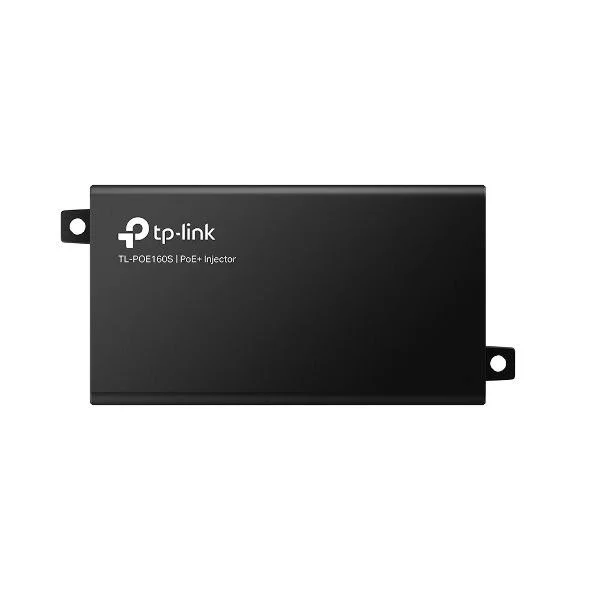

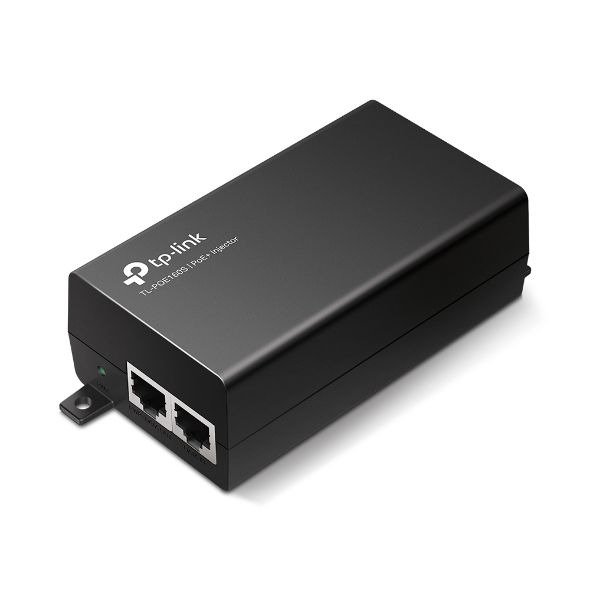

PoE+ Injector Adapter
Overview A compact, pocket-sized PoE+ injector adapter that delivers Gigabit Ethernet data and up to 30W of power over a single CAT5e/6 cable. Ideal for powering IP cameras, VoIP phones, wireless access points, and other PoE devices when a PoE switch is not available.
Key Features
Ports: 1× Gigabit PoE port, 1× Gigabit non‑PoE port
Standards: 802.3at (PoE+) and backward compatible with 802.3af
Power and Data: Data and power carried over the same cable up to 100 meters (328 ft)
Compact Design: Lightweight plastic case, pocket size for easy field use and deployment
Plug-and-Play: No configuration required — connect power and network to immediately energize PoE devices
Safe Operation: Built-in short-circuit and over-current protection to safeguard connected equipment
Technical Specifications
Input Port: 1× Gigabit RJ-45 (Non-PoE)
Output Port: 1× Gigabit RJ-45 (PoE+, 802.3at/af)
Maximum Power Output: Up to 30W (802.3at)
Data Rate: 10/100/1000 Mbps auto-negotiation
Cable Length: Up to 100 meters (328 feet) over Cat5e/Cat6
Case Material: Durable plastic
Dimensions: Pocket-sized (typical compact form factor)
Indicators: LED(s) for power and link/activity status
Protections: Short-circuit, over-current, over-voltage protection, and thermal protection
Operating Temperature: Standard commercial range (consult product datasheet for exact values)
Compliance: 802.3at/af compliant
Applications
Surveillance cameras (PoE IP cameras)
Wireless access points and mesh nodes
VoIP phones and desk terminals
Remote IoT devices and sensors
Temporary or test deployments where PoE switches are unavailable
Packaging and What's Included
PoE+ Injector Adapter (1×)
AC power adapter (as required; check region-specific models)
Quick start guide and safety information
Ordering Notes
Ensure connected device is PoE-capable and compatible with 802.3at/af power class requirements.
Verify regional AC adapter configuration when ordering.
For extended cable runs beyond 100 meters or higher power requirements, consider installing a midspan or a PoE switch designed for higher wattage.
Zorins Technologies — A Network Leader in Global Industry.
