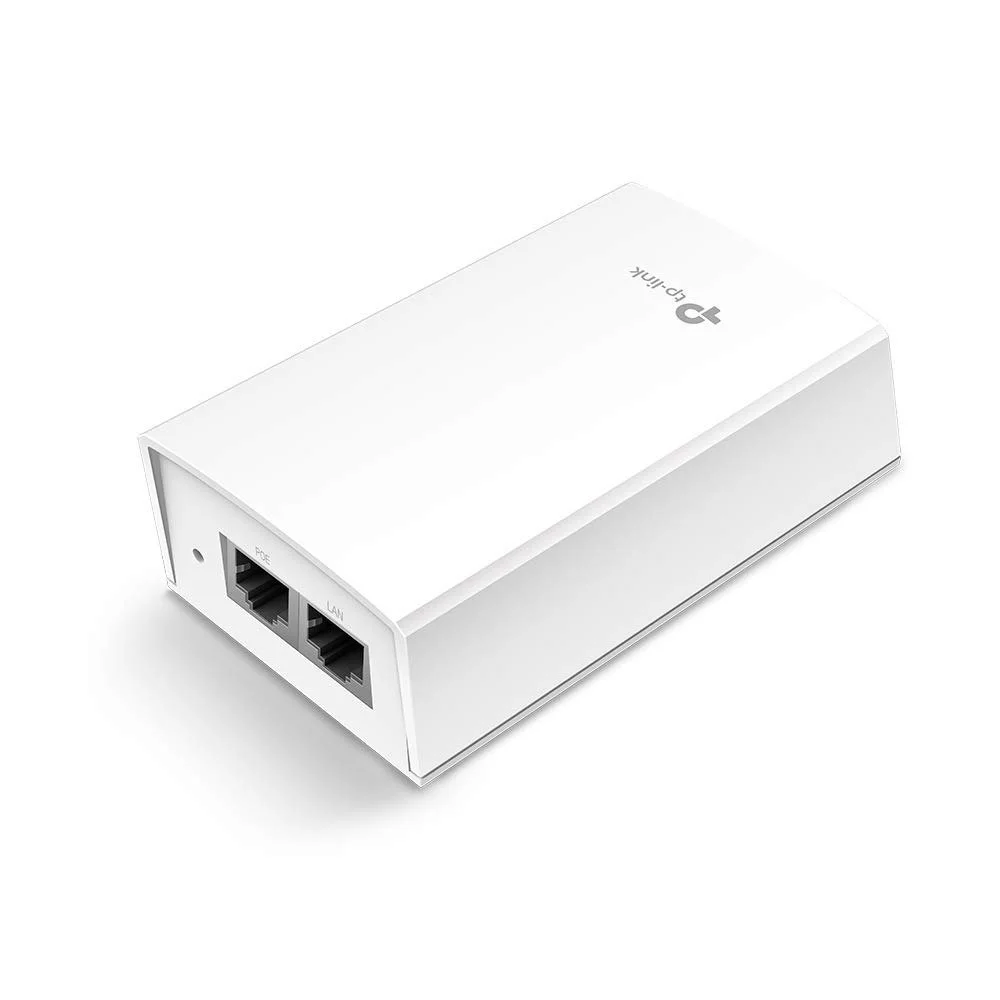

48V Passive PoE Injector Adapter
Overview A compact, reliable solution for powering and networking PoE-capable devices where centralized power is impractical. The 48V Passive PoE Injector Adapter delivers data and 48V DC power over a single Ethernet cable, enabling clean, efficient deployment of IP cameras, wireless access points, VoIP phones, and other low-power network devices.
Key Features
Ports: 1× Gigabit PoE port (data + power), 1× Gigabit non‑PoE port (data only)
Power Input: 48 V DC input
PoE Output: Up to 24 W delivered to a single device
Cabling: Data and power carried over the same Ethernet cable for simplified installation
Enclosure: Durable plastic case — lightweight, cost-effective, and electrically insulated
Gigabit throughput on both ports for full 10/100/1000 Mbps performance
Passive PoE design — straightforward wiring with no negotiation protocols required
Performance and Compatibility
Provides up to 24 W at 48 V to compatible passive PoE devices; ideal for many IP cameras, small access points, and IoT devices
Supports standard Cat5e/Cat6 cabling for distances up to typical Ethernet limits (up to 100 m), subject to cable quality and power draw
Non‑PoE port passes data to/from your network switch or router without injecting power
Safety and Installation Notes
Passive PoE supplies fixed voltage — confirm device compatibility with 48 V passive input before connection to avoid damage
Use the specified 48 V DC power supply with appropriate current rating and polarity
Observe standard grounding and surge protection best practices in installations exposed to lightning or electrical noise
Plastic enclosure provides basic environmental protection; for outdoor or harsh environments use weatherproof enclosures or place the injector indoors
Applications
Small-scale CCTV and surveillance deployments
Installing wireless access points in offices, hospitality, and retail spaces
Powering VoIP phones and networked IoT sensors at remote points
Temporary network setups where rapid, cable-minimal deployment is required
Technical Specifications
Ports: 1 × Gigabit PoE (data + power), 1 × Gigabit non‑PoE (data only)
PoE Standard: Passive (non‑802.3af/at) — fixed 48 V output
Maximum PoE Power: 24 W
Power Input: 48 V DC (use compatible external power supply)
Data Rate: 10/100/1000 Mbps on both ports
Enclosure: Plastic case
Operating Temperature: Refer to product label (typical indoor rating)
Dimensions / Weight: Compact, lightweight design (refer to datasheet for exact values)
Ordering and Technical Support For ordering information, compatibility guidance, and technical support, contact your Zorins Technologies representative. Provide device model numbers and deployment details so we can recommend the correct power supply and best practices for a reliable installation.
Zorins Technologies — A Network Leader in Global Industry.
