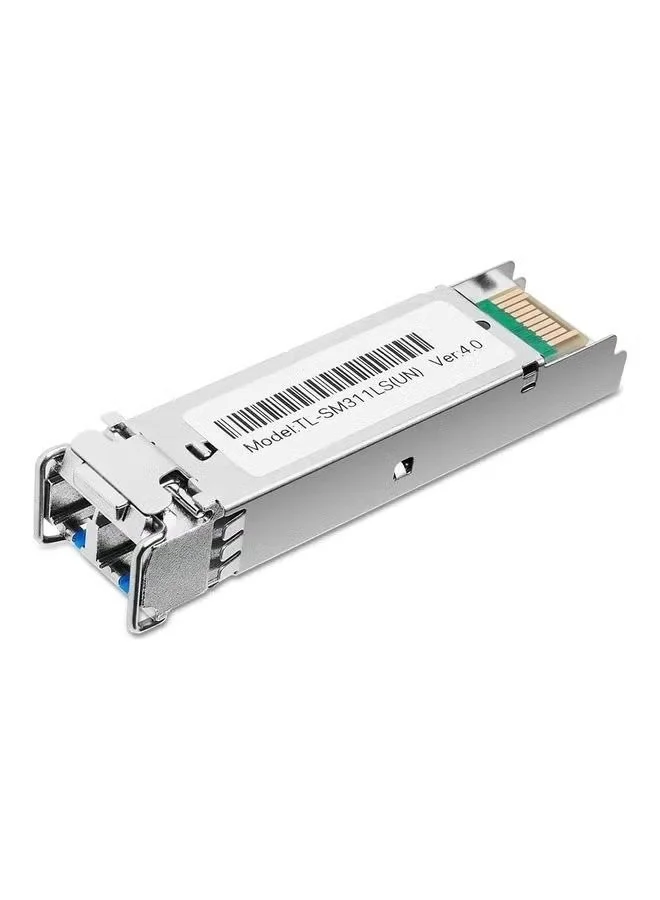

Gigabit Single-Mode SFP Module
Overview A compact, high-performance Small Form-factor Pluggable (SFP) transceiver engineered for reliable Gigabit Ethernet and Fiber Channel links over single-mode fiber. Designed for interoperability with a wide range of switches, routers, and optical equipment, this MiniGBIC module delivers stable, long-reach connectivity up to 10 km.
Key Specifications
Fiber Type: Single-mode fiber (SMF)
Form Factor: SFP (MiniGBIC)
Data Rate: 1.25 Gbps (Gigabit)
Wavelength: 1310 nm (typical for 10 km reach)
Interface: LC duplex connector
Maximum Link Distance: Up to 10 km (single-mode fiber, 9/125 µm)
Transmit Power: Compliant with relevant SFP optical power levels
Receiver Sensitivity: Meets Gigabit SFP sensitivity requirements
Connector Type: LC duplex
Operating Temperature: Commercial and extended temperature options available
Power Consumption: Low-power design, <1W typical
Diagnostics: Optional Digital Diagnostics Monitoring (DDM/DOM) for real-time monitoring of optical power, temperature, voltage, and bias current
Standards Compliance: SFF-8472, IEEE 802.3z (Gigabit Ethernet), RoHS compliant
Hot-Pluggable: Yes
Features & Benefits
Miniaturized SFP form factor enables high port density and easy field upgrades.
Single-mode design supports long-distance links — ideal for campus interconnects, metro aggregation, and data center uplinks.
LC duplex connector provides secure, low-loss mating and broad vendor compatibility.
Low power consumption reduces thermal load and operating expense.
Optional DDM support for proactive monitoring and simplified troubleshooting.
RoHS compliance and industry-standard interoperability for dependable deployment.
Typical Applications
Switch-to-switch and router-to-router interconnects
Data center uplinks and server farm aggregation
Campus backbone links and MAN segments
Fiber Channel storage area network (SAN) connectivity
Telecom and carrier access networks
Ordering Information
Part Number Format: G1-SFP-SM-10KM-LC[-DDM][-XT]
G1-SFP-SM-10KM-LC — Standard commercial temp, no DDM
G1-SFP-SM-10KM-LC-DDM — With digital diagnostics monitoring
G1-SFP-SM-10KM-LC-XT — Extended temperature range
Custom labeling and compatibility testing services available upon request
Compliance & Warranty
Manufactured to industry standards for optical transceivers.
Backed by Zorins Technologies’ limited warranty and network-grade technical support.
For ordering, compatibility verification, or to request a datasheet, contact Zorins Technologies sales or your authorized distributor.
