SM5220-1M

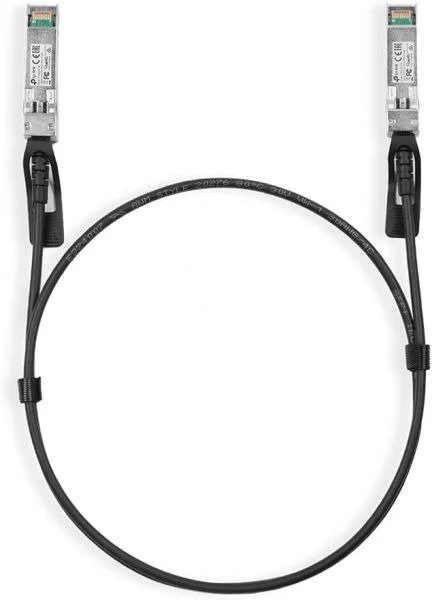

Overview A high-performance, cost-effective 10 Gigabit direct attach cable (DAC) designed for short-reach interconnects in data centers and enterprise networks. The 1-meter passive SFP+ twinax cable delivers reliable, low-latency 10Gbps connectivity between SFP+ ports on switches, servers, storage arrays, and NICs without the need for transceivers.

Key Features

• Data rate: 10 Gigabit Ethernet (10Gbps) per lane

• Length: 1 meter

• Connector type: SFP+ to SFP+ (hot-pluggable)

• Cable type: Twinax copper (passive)

• Low latency and low power consumption versus optical transceivers

• Plug-and-play: no configuration or additional drivers required

• Backward compatible with SFP+ ports supporting 10GBASE-CU

• Robust metal housings for EMI protection and mechanical durability

• RoHS compliant

Technical Specifications

• Maximum supported distance: up to 1 meter

• Electrical interface: SFP+ MSA compliant

• Signaling: 10Gbps NRZ

• Cable impedance: 100 ohms differential

• Insertion loss: compliant with SFP+ specifications for short-reach copper

• Operating temperature: 0°C to 70°C (commercial); extended ranges available on request

• Storage temperature: -40°C to 85°C

• MTBF: industry-standard reliability; contact for detailed reliability data

• Compatible protocols: 10G Ethernet, FCoE (depending on host support), iSCSI

Applications

• Top-of-rack (ToR) switch to server connections

• Switch-to-switch stacking in short-reach environments

• SAN and NAS connectivity where 10Gbps short links are required

• High-density, low-power data center interconnects

Ordering Information

• Product code: ZT-SFP+-DAC-1M (example SKU)

• Length: 1 meter

• Packaging: anti-static bag with protective caps

Compliance and Safety

• SFP+ MSA compliant

• RoHS compliant

• Meets industry electromagnetic compatibility and safety standards

Why Choose This Cable

• Cost-effective alternative to optical transceivers for short distances

• Minimal power draw and heat generation

• Simplifies deployment with plug-and-play operation

• Durable construction for dense data center environments

Contact For volume pricing, compatibility checks with specific switch or server models, and extended temperature or active DAC options, contact your Zorins Technologies account manager or authorized distributor.
