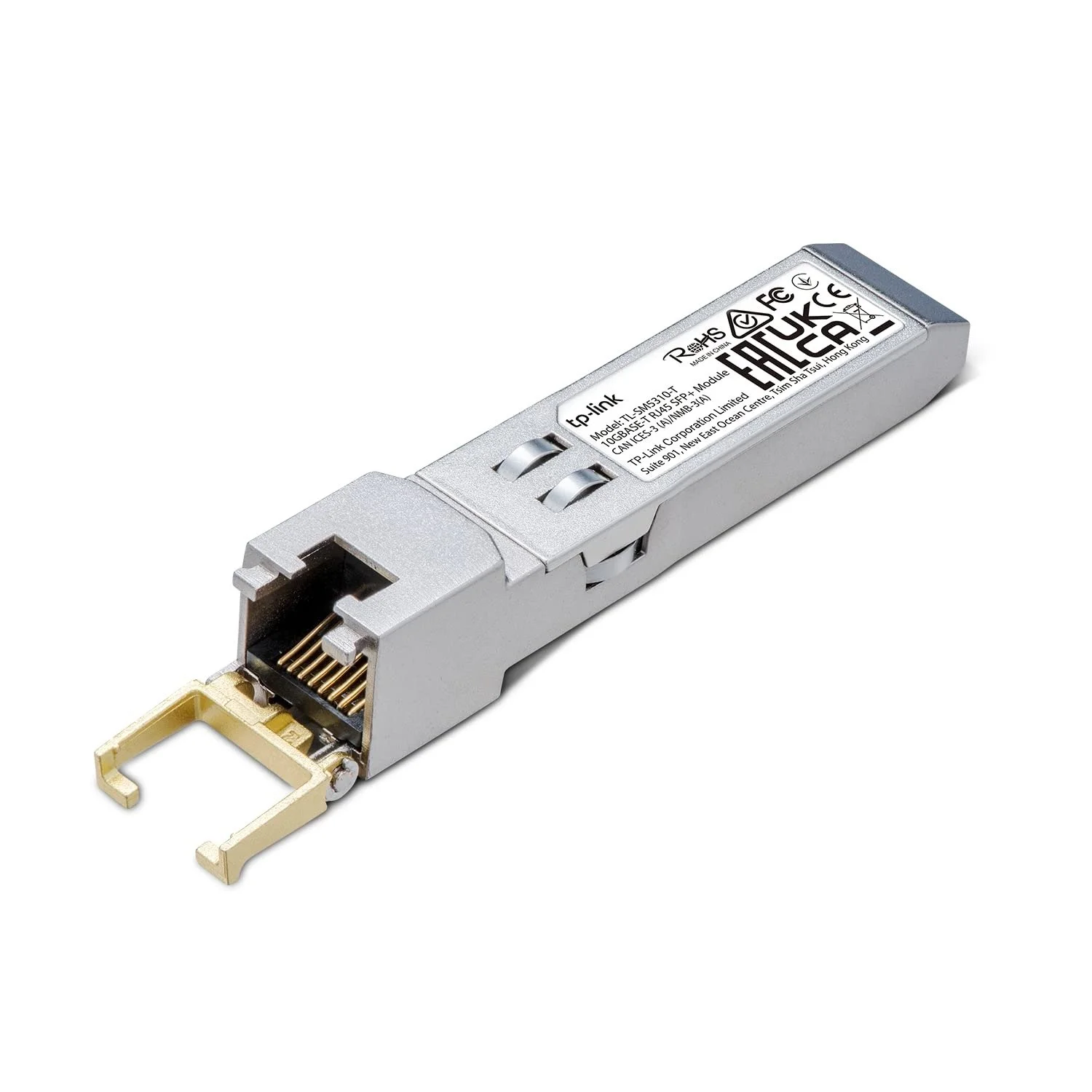

SM5310-T

10GBASE-T RJ45 SFP+ Module

Overview A high-performance 10Gbps RJ45 copper transceiver designed for seamless integration into SFP+ slots. Provides plug-and-play connectivity over Cat6a (or better) cabling for up to 30 meters, with Digital Diagnostics Monitoring (DDM) for real‑time temperature and voltage awareness. Ideal for data center uplinks, server connections, top-of-rack switching, and enterprise network deployments that require the flexibility of copper links with the density of SFP+ ports.

Key Features

• Data rate: 10 Gbps (full duplex)

• Interface: SFP+ (cage and connector) to RJ45 (8P8C)

• Cable type: Cat6a or higher recommended

• Maximum reach: Up to 30 meters (Cat6a or above)

• Auto-negotiation: 10G/1G operation where supported

• Digital Diagnostics Monitoring (DDM): Real-time temperature and voltage reporting

• Hot-pluggable: SFP+ compliant for easy installation and replacement

• Low power consumption and efficient thermal profile

• RoHS compliant; industrial-grade components for reliability

• Broad vendor and platform compatibility with standard SFP+ ports

Technical Specifications

• Standards compliance:

  • IEEE 802.3an (10GBASE-T)

  • IEEE 802.3ab/802.3az where applicable

• Connector types:

  • Host: SFP+ transceiver module footprint

  • Network: RJ45 8P8C jack

• Supported link lengths:

  • Up to 30 m on Cat6a; performance on Cat6 may be limited and dependent on cabling and environment

• Operating wavelength: Copper electrical interface (not applicable)

• Data rate: 10.3125 Gbps line rate (10G Ethernet)

• Power consumption: Typical ≤ 2.5 W (varies by operating conditions)

• Operating temperature: 0°C to 70°C (commercial); extended options available on request

• Storage temperature: -40°C to 85°C

• Humidity: 0% to 85% non-condensing

• DDM parameters:

  • Module temperature

  • Supply voltage

  • Transceiver status and fault alerts as supported by host

• MTBF: Designed for high reliability; typical MTBF > 1,000,000 hours (vendor dependent)

• Regulatory: RoHS, CE, FCC (where applicable)

Compatibility and Interoperability Designed to work with a wide range of SFP+-equipped switches, routers, and servers. Compatible with devices that accept standard SFP+ copper transceivers and support 10GBASE-T or 1G fallback where supported. For guaranteed interoperability, verify vendor compatibility lists or request a compatibility check for your specific hardware model.

Installation and Operation

• Hot-pluggable SFP+ form factor for zero-downtime insertion/removal.

• Plug module into SFP+ cage on the host device; connect Cat6a (or better) cable to RJ45 port.

• DDM information accessible through host management interface for temperature and voltage monitoring.

• No external power or configuration needed for standard operation.

Use Cases

• Data center server to switch uplinks using existing copper cabling

• Top-of-rack switch connectivity where fiber is not required or practical

• Lab and testing environments requiring flexible, short-reach 10G links

• Migrating infrastructure to 10G while reusing high-quality copper cabling

Ordering Information

• Part number: ZT-10GBASE-T-SFP+

• Description: 10GBASE-T RJ45 SFP+ Copper Transceiver, DDM, Cat6a up to 30 m

• Options: Extended temperature variants; vendor-validated compatibility bundles; volume and custom labeling available upon request

Compliance and Warranty

• Conforms to industry 10GBASE-T SFP+ specifications

• RoHS compliant

• One-year limited warranty standard; extended warranty and support contracts available

Contact For purchasing, compatibility verification, or technical support, contact Zorins Technologies sales and support teams. Provide host device make/model and firmware version for fastest interoperability guidance.
