Product Brief

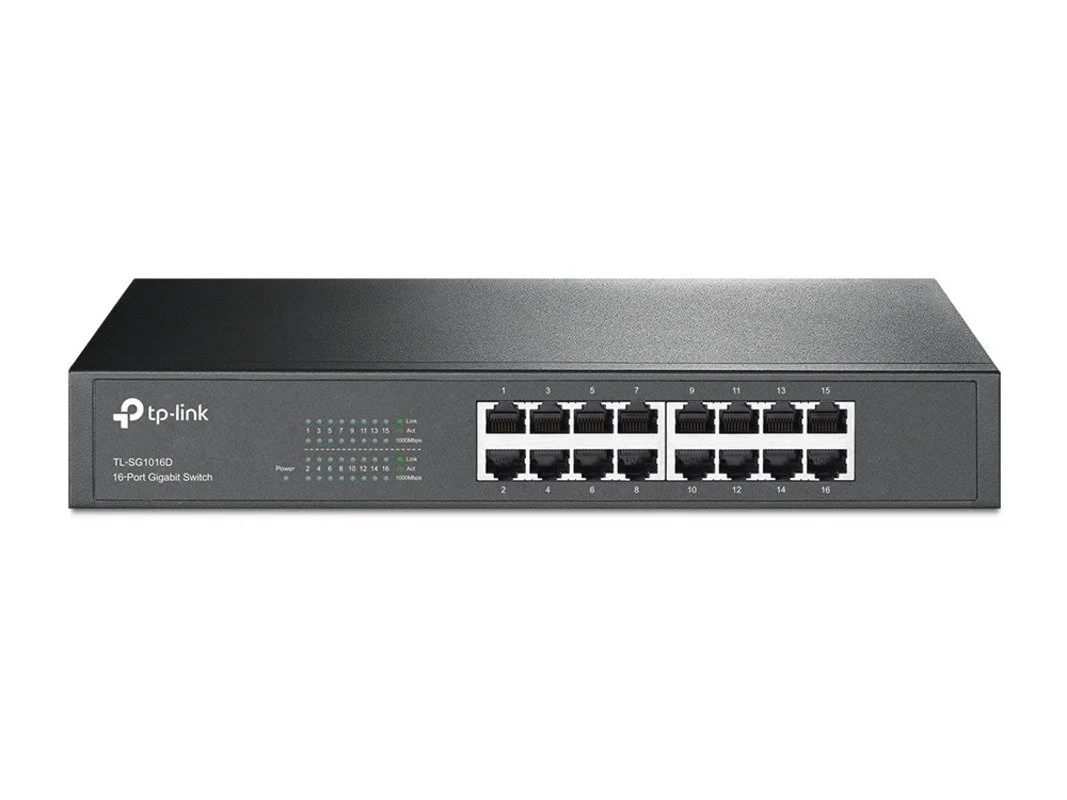

TL-SG1016D — 16-Port Gigabit Desktop/Rackmount Switch Brand: TP-Link

Overview The TL-SG1016D is a compact, high-performance unmanaged Gigabit switch designed for small to medium business networks and advanced home environments. It provides sixteen 10/100/1000 Mbps RJ45 ports with auto-negotiation and auto-MDI/MDIX, delivering reliable, plug-and-play connectivity for bandwidth-intensive applications such as IP surveillance, media streaming, and large file transfers. The switch is versatile for desktop placement or rackmount installation, combining quiet operation, low power consumption, and robust throughput in a value-driven package.

Key Features

• 16 x 10/100/1000 Mbps RJ45 ports with auto-negotiation and auto-MDI/MDIX

• Unmanaged operation for simple setup—plug and play, no configuration required

• Non-blocking switching architecture with 32 Gbps switching capacity

• Wire-speed forwarding for maximum throughput

• Store-and-forward switching ensures error-free forwarding

• Advanced energy-efficient Ethernet (IEEE 802.3az) and innovative power-saving technology reduce power consumption and operating costs

• Fanless design for silent operation in quiet environments

• Desktop or standard 19-inch rackmount installation (mounting brackets included)

• Robust metal housing for durability and heat dissipation

• Supports jumbo frames up to 9 KB for optimized performance with large payloads

• Priority queuing and basic QoS support via standard frame handling rules inherent in unmanaged switches

Performance Specifications

• Switching capacity: 32 Gbps

• Forwarding rate: 23.8 Mpps (million packets per second)

• MAC address table: 8 K entries

• Packet buffer size: Sufficient for typical SMB traffic patterns; supports burst handling

• Jumbo frame support: up to 9,216 bytes

Physical & Environmental

• Form factor: Compact desktop with rackmount option

• Dimensions: Approx. 440 x 200 x 44 mm (1U profile for rackmount compatibility)

• Weight: Approx. 1.5–2.0 kg

• Power input: External/internal power adapter depending on SKU; typical power consumption net of energy-saving features: low (manufacturer nominal rating)

• Operating temperature: 0°C to 40°C

• Operating humidity: 10%–90% non-condensing

• Certifications: CE, FCC, RoHS (depending on regional SKU and certification)

Deployment Scenarios

• Small office networks requiring aggregated Gigabit access for workstations and servers

• Network expansion for IP cameras and PoE-capable uplinks when combined with PoE switches upstream

• Media production environments requiring high-throughput, low-latency transfers for large files

• Conference rooms and meeting spaces needing reliable wired connections for video conferencing and AV systems

Management & Compatibility

• Unmanaged architecture: no CLI or web GUI; ideal where straightforward, reliable connectivity is required without administrative overhead

• Fully compatible with existing Ethernet infrastructures and auto-detection of link speeds and duplex modes

• Interoperable with network devices from major vendors while following standard Ethernet protocols

What’s in the Box

• TL-SG1016D switch

• Power adapter (or built-in power supply depending on SKU)

• Rackmount brackets and screws

• Rubber feet for desktop placement

• Quick installation guide and warranty information

Warranty & Support

• TP-Link standard limited lifetime or multi-year warranty depending on region and purchase channel

• Access to TP-Link technical support and download center for firmware, manuals, and documentation

Ideal Buyer Profile

• IT generalists and small-business owners seeking an easy-to-deploy Gigabit switch for reliable wired connectivity

• AV and media teams requiring cost-effective, high-bandwidth local networking

• Organizations that prefer a silent, energy-efficient switch for office or rack environments

Ordering Notes

• Confirm SKU variations for power supply type, regional certifications, and included accessories

• Consider uplink redundancy and port capacity planning—deploy multiple switches or stackable managed solutions if centralized management or VLAN segmentation will be required in the future

For more detailed technical specifications, installation guidance, or enterprise compatibility questions, consult the product datasheet or contact your TP-Link representative.
