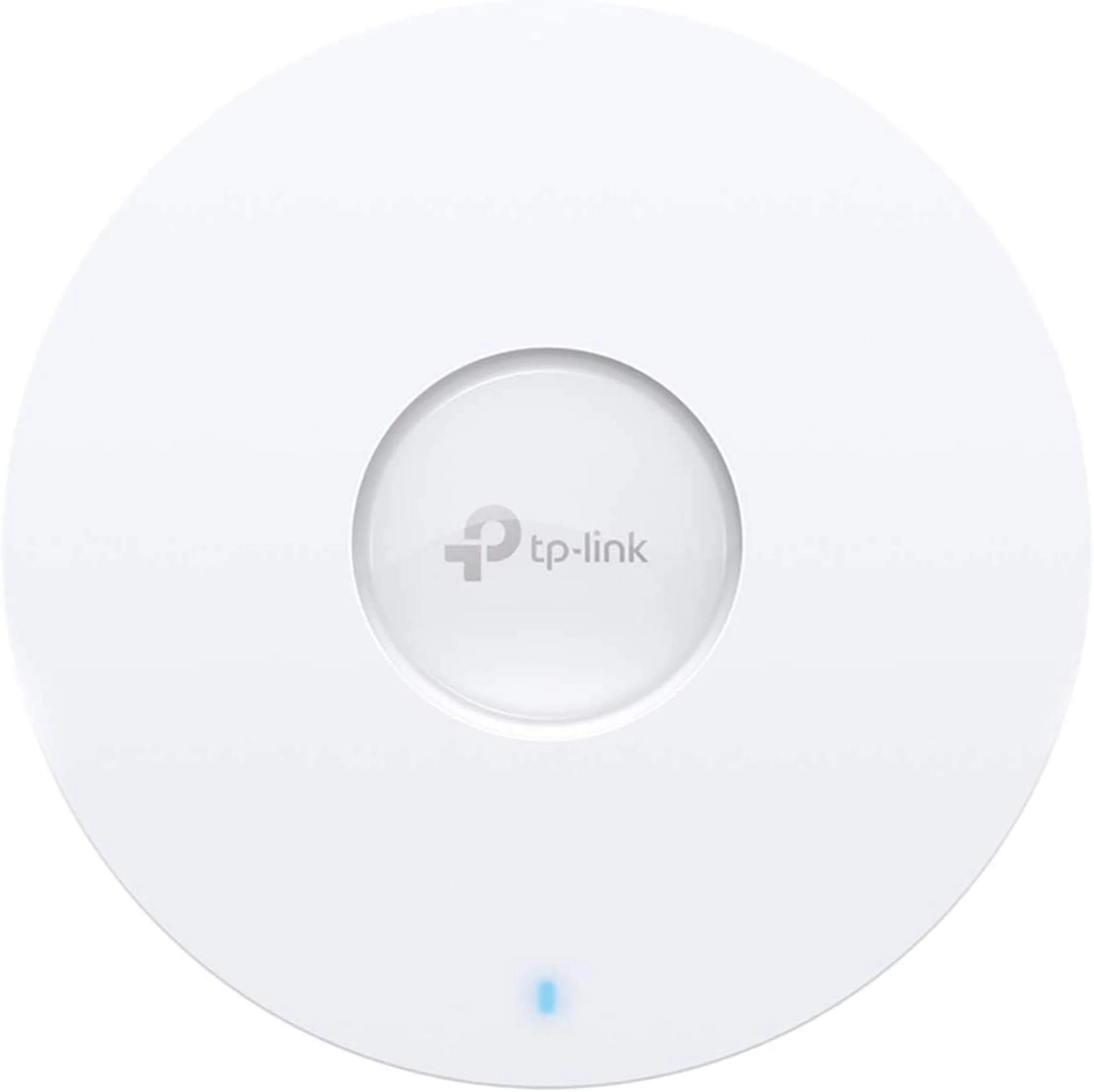

The EAP783 is a BE22000 Tri-Band WiFi 7 Ceiling Mount Access Point delivering combined speeds up to 22000 Mbps — with 2x 10G ports, Multi-Link Operation, 320MHz bandwidth, and Omada SDN for high-density enterprise deployments.
WiFi 7 BE22000 Tri-Band | 11520 Mbps (6GHz) + 8640 Mbps (5GHz) + 1376 Mbps (2.4GHz) | 2x 10G Ports | 320MHz | MLO | MU-MIMO | Beamforming | Omada SDN | PoE++ 802.3bt | Ceiling Mount
Specifications:
Brand: TP-Link | Model: EAP783 | Wireless: 802.11a/b/g/n/ac/ax/be (WiFi 7) | Speed: BE22000 | Bands: Tri-Band (2.4GHz + 5GHz + 6GHz) | Ports: 2x 10G RJ45 | Power: 802.3bt PoE++ | Mounting: Ceiling | Dimensions: 280 x 280 x 46.5 mm | SSIDs: 24 (8 per band)
Features:
Multi-Link Operation (MLO) | Multi-RUs | 320MHz Bandwidth (6GHz) | MU-MIMO | Beamforming | Band Steering | Seamless Roaming | Omada Mesh | AI Roaming | Load Balancing | Airtime Fairness | Guest Network | Captive Portal
Management:
Omada SDN | Cloud Management | Omada App + Web UI | Centralized Management | Standalone Mode
The EAP783 is a BE22000 Tri-Band WiFi 7 Ceiling Mount Access Point delivering combined speeds up to 22000 Mbps — with 2x 10G ports, Multi-Link Operation, 320MHz bandwidth, and Omada SDN for high-density enterprise deployments.
WiFi 7 BE22000 Tri-Band | 11520 Mbps (6GHz) + 8640 Mbps (5GHz) + 1376 Mbps (2.4GHz) | 2x 10G Ports | 320MHz | MLO | MU-MIMO | Beamforming | Omada SDN | PoE++ 802.3bt | Ceiling Mount
Specifications:
Brand: TP-Link | Model: EAP783 | Wireless: 802.11a/b/g/n/ac/ax/be (WiFi 7) | Speed: BE22000 | Bands: Tri-Band (2.4GHz + 5GHz + 6GHz) | Ports: 2x 10G RJ45 | Power: 802.3bt PoE++ | Mounting: Ceiling | Dimensions: 280 x 280 x 46.5 mm | SSIDs: 24 (8 per band)
Features:
Multi-Link Operation (MLO) | Multi-RUs | 320MHz Bandwidth (6GHz) | MU-MIMO | Beamforming | Band Steering | Seamless Roaming | Omada Mesh | AI Roaming | Load Balancing | Airtime Fairness | Guest Network | Captive Portal
Management:
Omada SDN | Cloud Management | Omada App + Web UI | Centralized Management | Standalone Mode
