IES206GPP

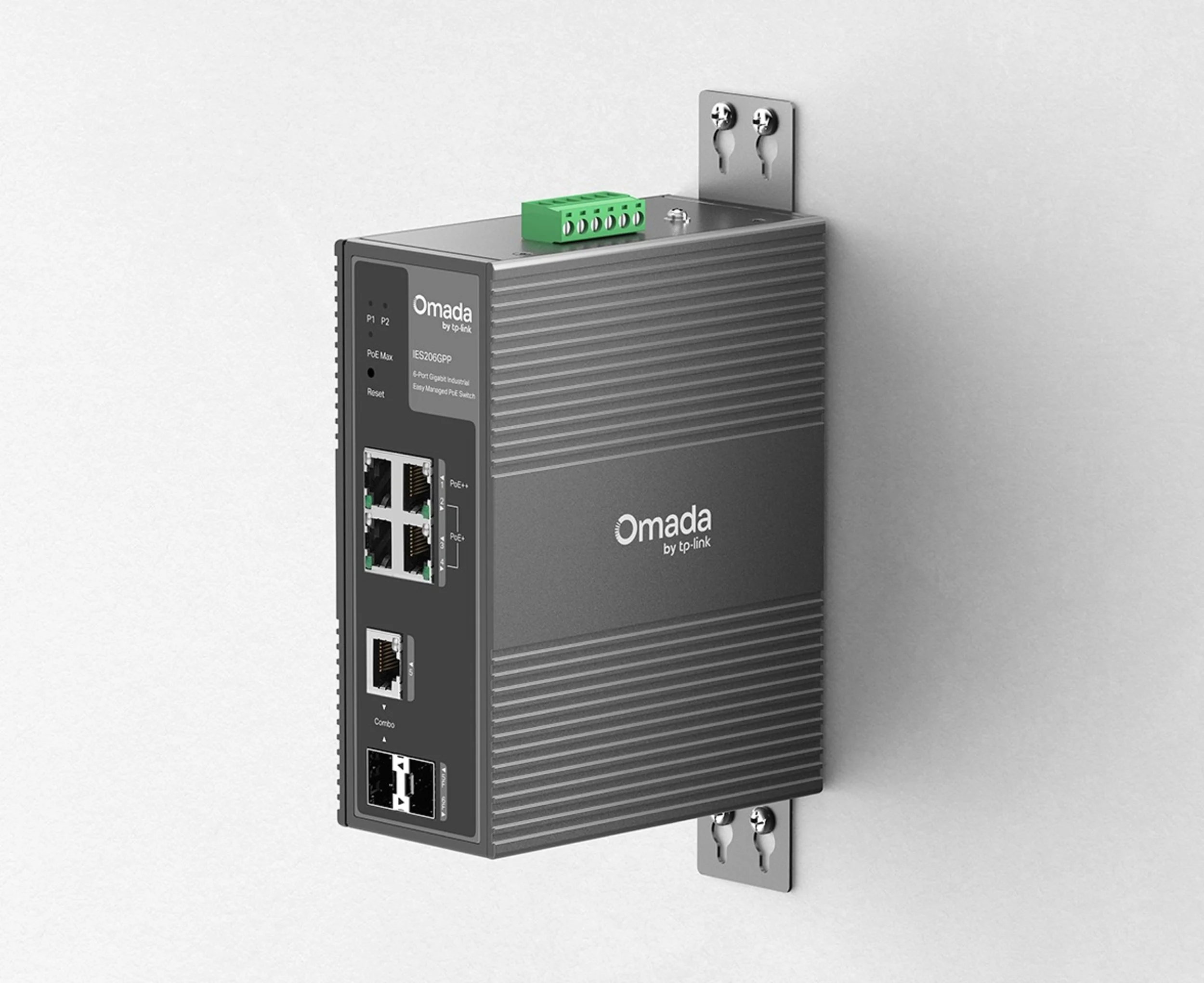

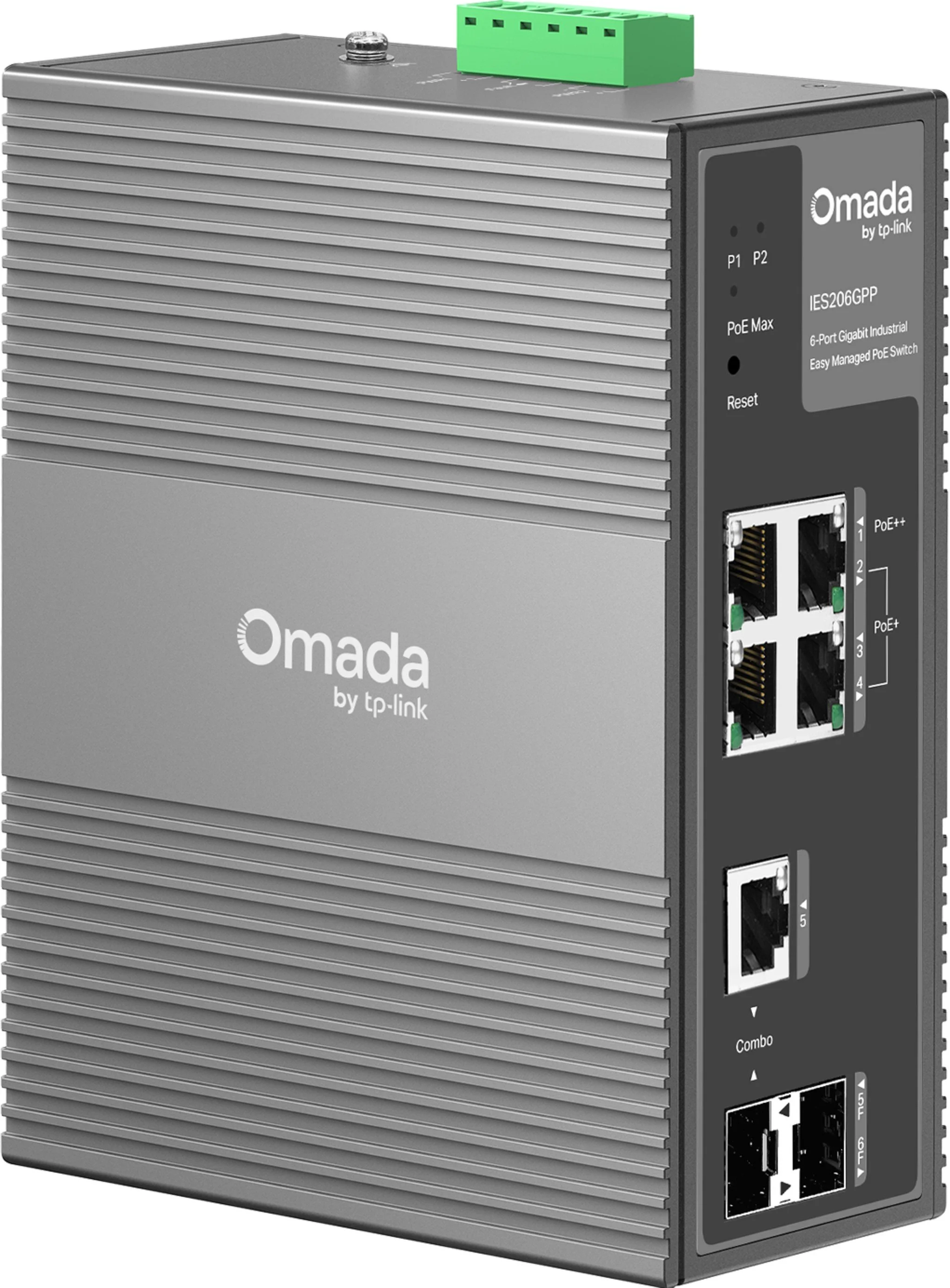

The IES206GPP is an Omada 6-Port Gigabit Industrial Easy Managed Switch built for harsh environments — with 120W PoE budget, 1x PoE++ (60W) and 3x PoE+ (30W) ports, 6KV lightning protection, IP40 aluminum casing, and Omada SDN.

120W PoE Budget | 1x PoE++ (60W) + 3x PoE+ (30W) | 1x Combo RJ45/SFP + 1x SFP | -40°C to 75°C | 6KV Lightning Protection | IP40 Aluminum | 1+1 Redundant Power | DIN-Rail + Wall Mount | Omada SDN

Specifications:

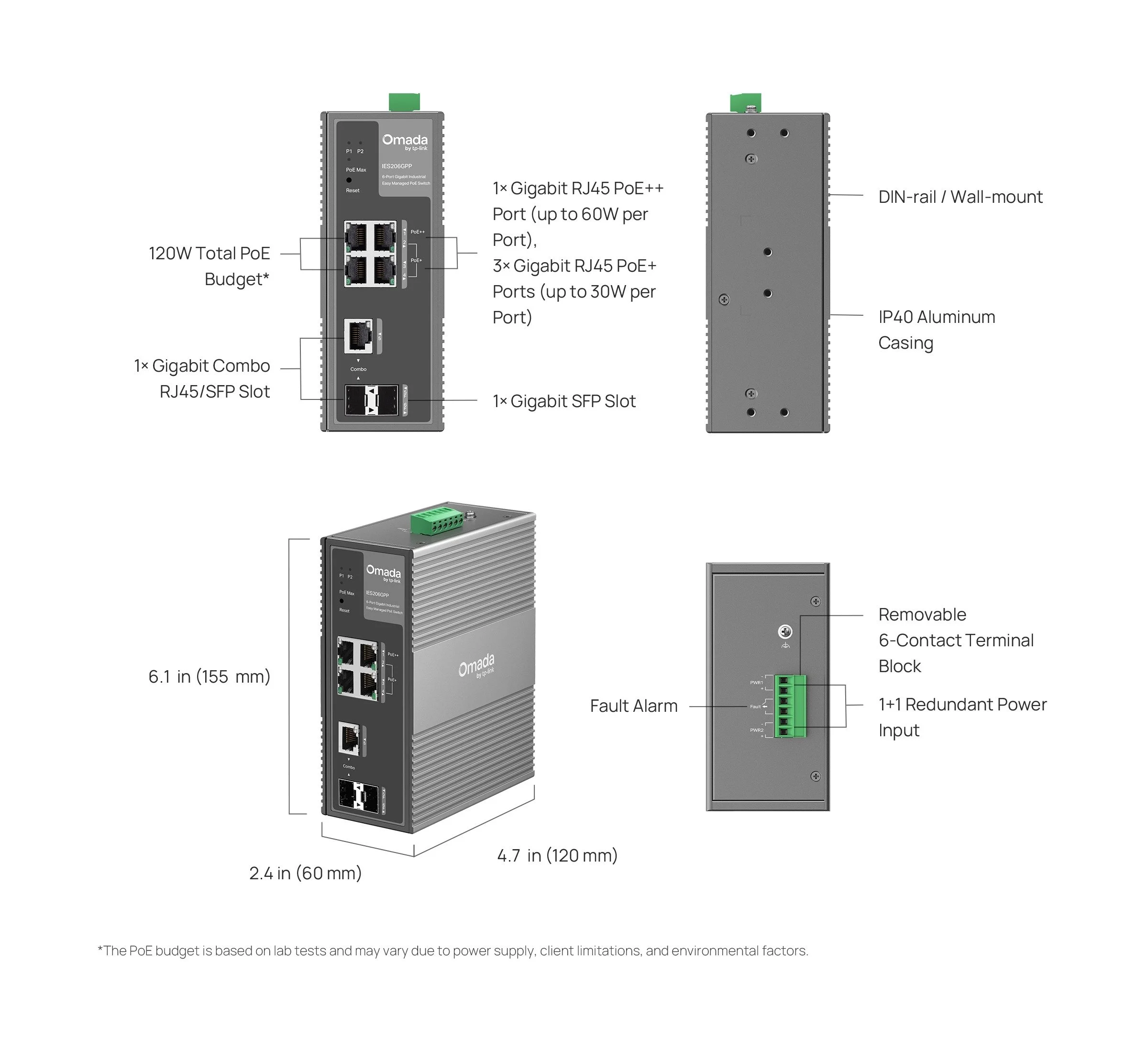

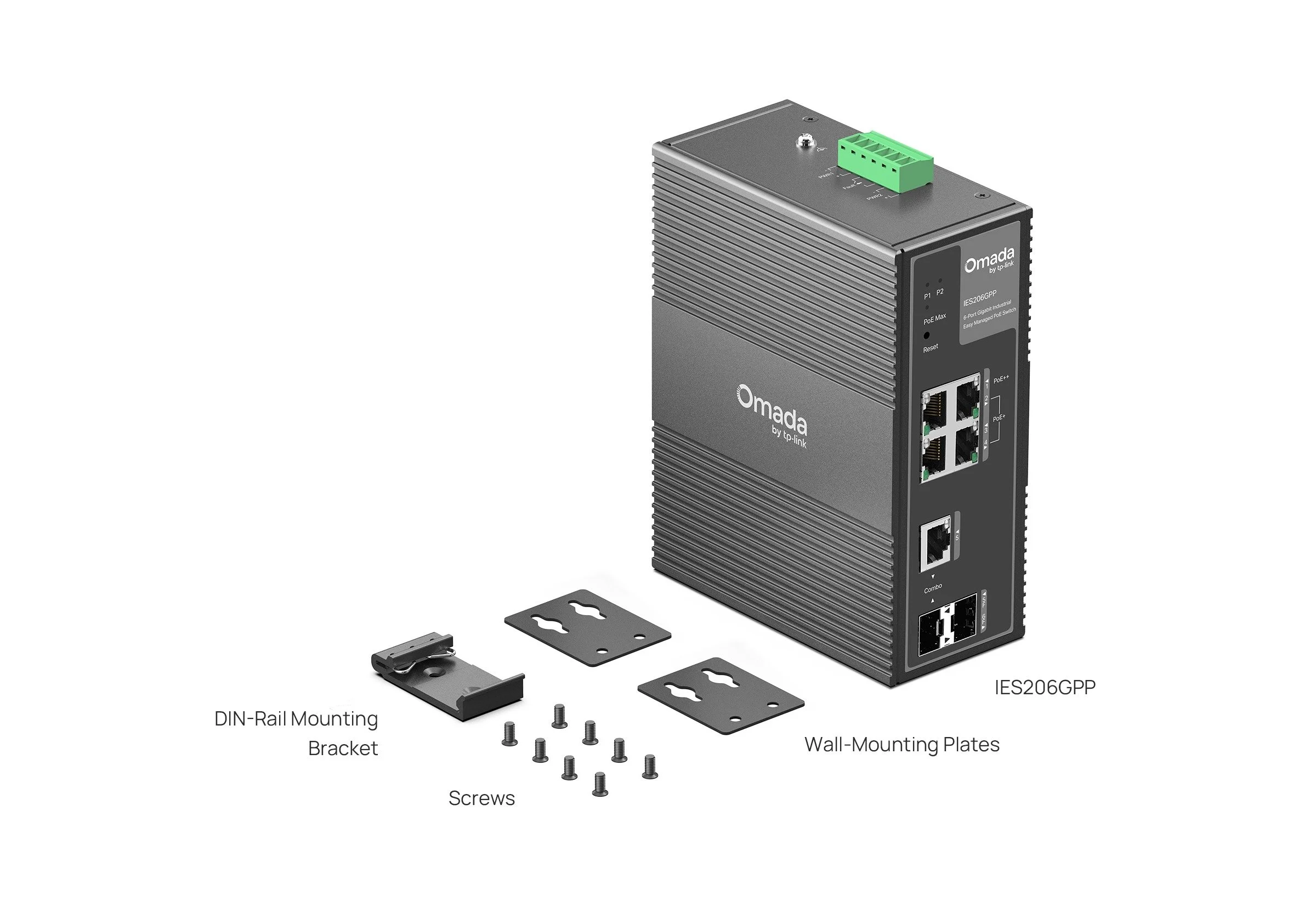

Brand: TP-Link | Model: IES206GPP | Ports: 4x Gigabit RJ45 (1x PoE++, 3x PoE+) + 1x Combo RJ45/SFP + 1x SFP | PoE: 802.3bt/at/af | PoE Budget: 120W | PoE++ per port: up to 60W | PoE+ per port: up to 30W | Power Input: 12–57VDC | Casing: IP40 Aluminum | Mounting: DIN-Rail + Wall

Industrial Design:

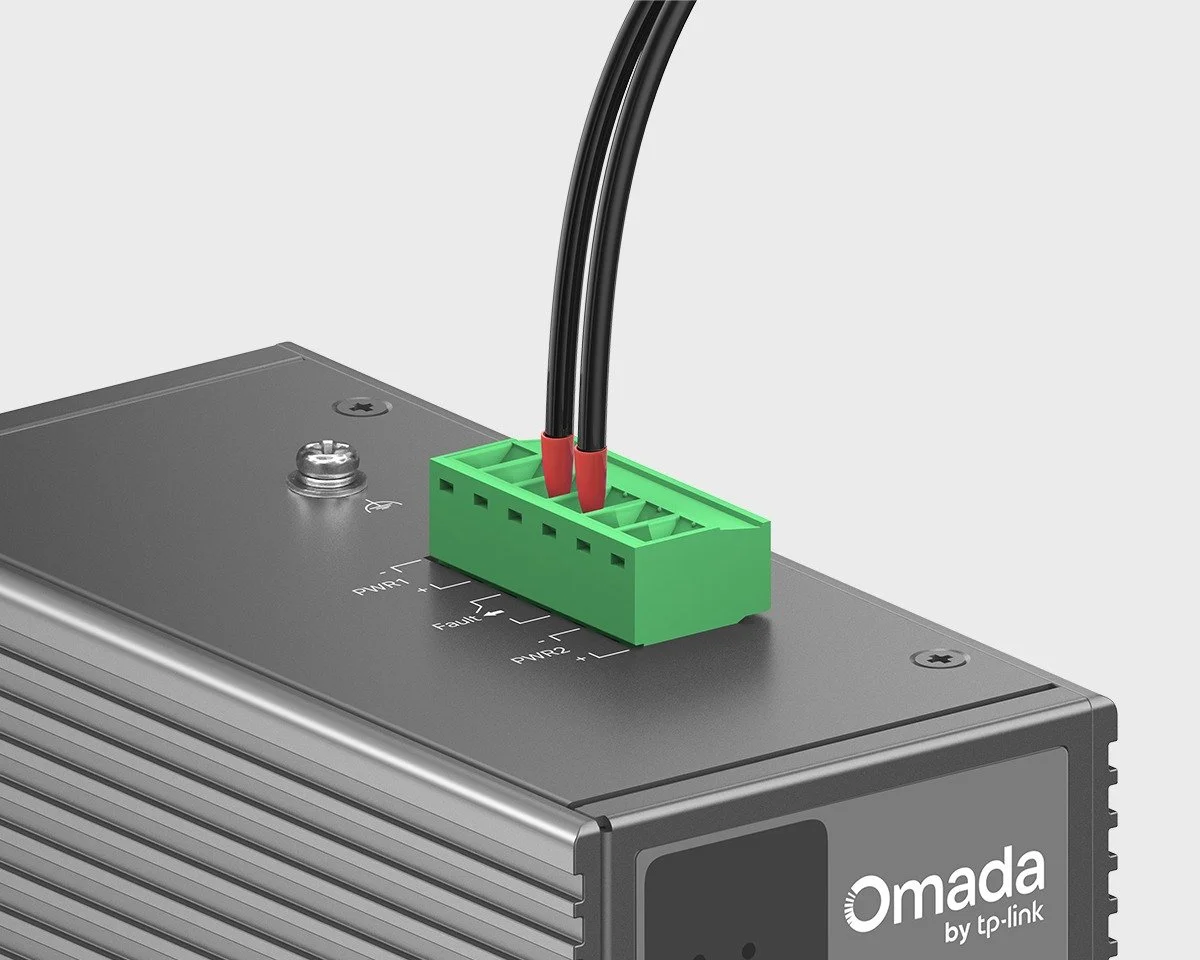

Operating Temp: -40°C to 75°C | Lightning Protection: 6KV | 1+1 Redundant Power Input | Long-Range PoE: up to 250m (820ft)

Features:

VLAN (32 groups, 4K VID) | QoS (8 Priority Queues, 802.1p/DSCP) | STP/RSTP | IGMP Snooping | Link Aggregation | Port Mirroring | Storm Control

Management:

Omada SDN | Omada App | Web UI | Zero-Touch Provisioning | Centralized Cloud Management

Certifications: FCC, CE, RoHS
