OC200

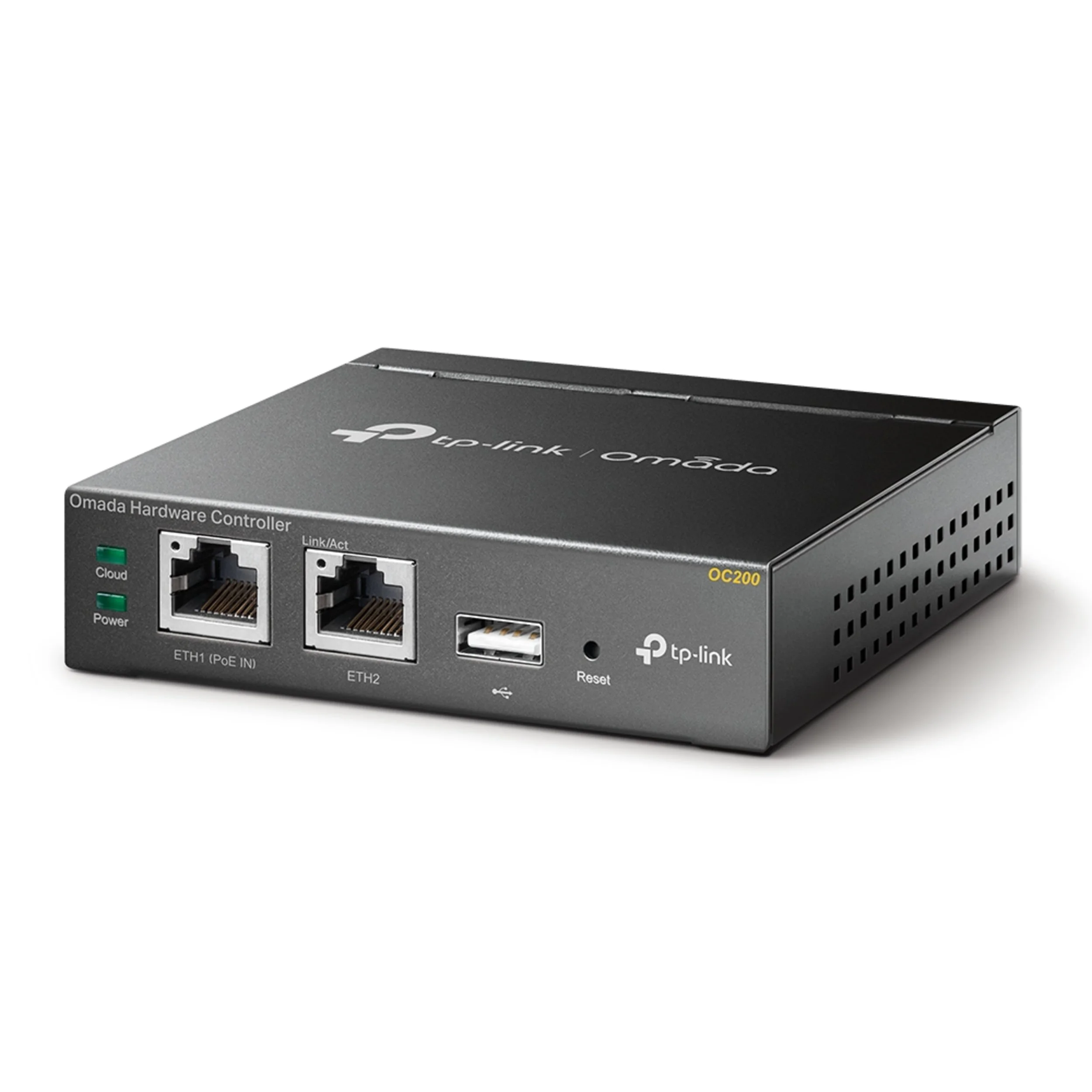

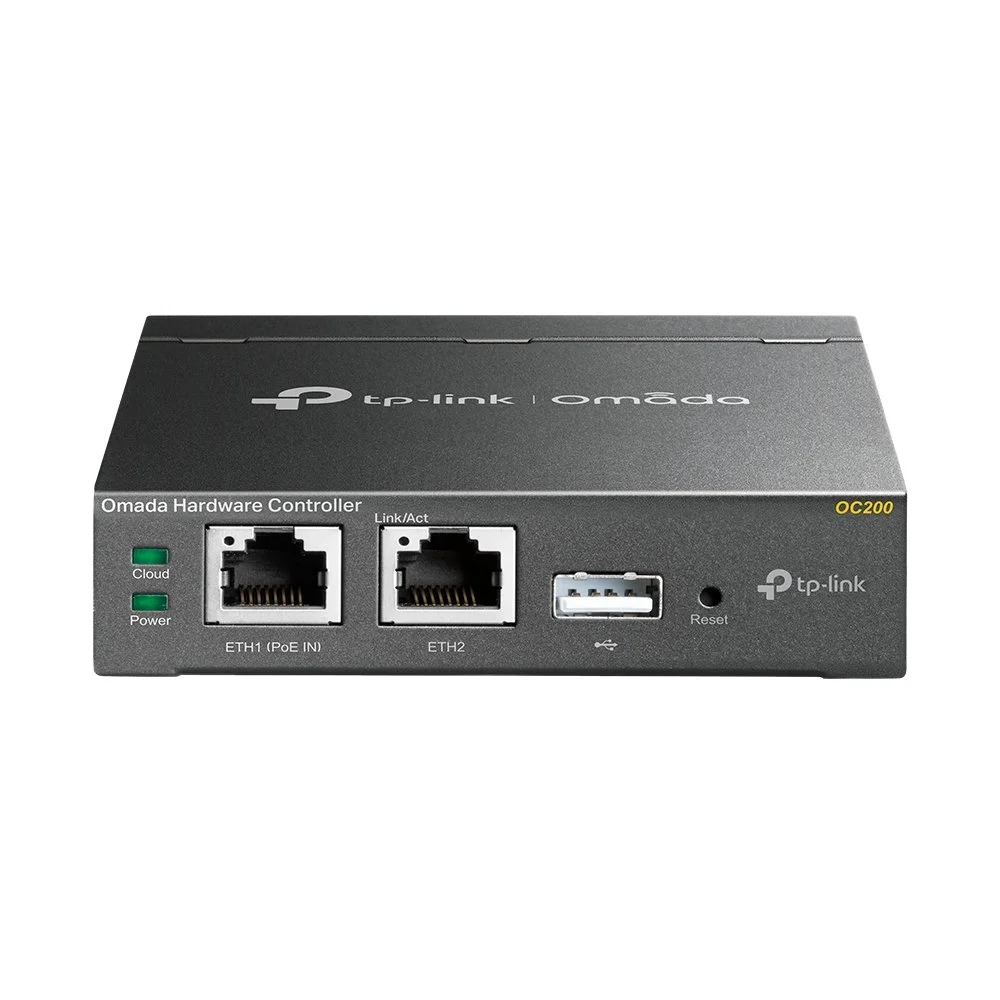

The OC200 is an Omada Hardware Controller providing centralized on-premises management for up to 100 access points, 20 switches, and 10 routers — with free cloud access, real-time monitoring, and flexible PoE or USB power supply.

Centralized Management | Up to 100 APs + 20 Switches + 10 Routers | Free Cloud Access | On-Premises Management | Real-Time Network Topology | WiFi Heatmap | PoE 802.3af/at | Metal Casing

Specifications:

Brand: TP-Link | Model: OC200 | Ports: 2x Fast Ethernet | USB: 1x USB 2.0 (Auto Backup) | Power: 802.3af/at PoE or Micro USB (DC 5V, min 1A) | Casing: Metal

Capacity:

Access Points: Up to 100 | JetStream Switches: Up to 20 | Omada Routers: Up to 10

Features:

Free Cloud Access | Omada App + Web UI | Real-Time Network Topology | WiFi Heatmap Simulator | Network Traffic Distribution | Abnormal Event Warnings | Batch + Multi-Site Management | Visualizable Network Reports | Auto Backup via USB

Management:

On-Premises + Cloud | Omada App | Web UI | Real-Time Dashboard | Network Condition Logs
