The SG3428XPP-M2 is an Omada 24-Port 2.5G L2+ Managed Switch with 500W PoE budget, 16x PoE+ and 8x PoE++ ports, 4x 10G SFP+ uplinks, and Omada SDN integration — built for high-power, high-speed enterprise network deployments.
500W PoE Budget | 16x 2.5G PoE+ + 8x 2.5G PoE++ Ports | 4x 10G SFP+ Uplinks | 802.3bt/at/af | Static Routing | Omada SDN | ACL | QoS | IPv6 | Rack Mountable
Specifications:
Brand: TP-Link | Model: SG3428XPP-M2 | Ports: 16x 2.5G PoE+ + 8x 2.5G PoE++ + 4x 10G SFP+ | Console: 1x RJ45 + 1x Micro-USB | PoE: 802.3bt/at/af | PoE Budget: 500W | Mounting: 1U 19-inch Rack | Case: Steel
L2+ Features:
802.1Q VLAN | QinQ | STP/RSTP/MSTP | IGMP Snooping | LACP | OAM | DDM | Static Routing
QoS: 802.1p/DSCP Priority
Security:
ACL | 802.1X | RADIUS/TACACS+ Authentication
Management:
Omada SDN | CLI | SNMP | Dual Image/Configuration | IPv6 | Centralized Management
The SG3428XPP-M2 is an Omada 24-Port 2.5G L2+ Managed Switch with 500W PoE budget, 16x PoE+ and 8x PoE++ ports, 4x 10G SFP+ uplinks, and Omada SDN integration — built for high-power, high-speed enterprise network deployments.
500W PoE Budget | 16x 2.5G PoE+ + 8x 2.5G PoE++ Ports | 4x 10G SFP+ Uplinks | 802.3bt/at/af | Static Routing | Omada SDN | ACL | QoS | IPv6 | Rack Mountable
Specifications:
Brand: TP-Link | Model: SG3428XPP-M2 | Ports: 16x 2.5G PoE+ + 8x 2.5G PoE++ + 4x 10G SFP+ | Console: 1x RJ45 + 1x Micro-USB | PoE: 802.3bt/at/af | PoE Budget: 500W | Mounting: 1U 19-inch Rack | Case: Steel
L2+ Features:
802.1Q VLAN | QinQ | STP/RSTP/MSTP | IGMP Snooping | LACP | OAM | DDM | Static Routing
QoS: 802.1p/DSCP Priority
Security:
ACL | 802.1X | RADIUS/TACACS+ Authentication
Management:
Omada SDN | CLI | SNMP | Dual Image/Configuration | IPv6 | Centralized Management

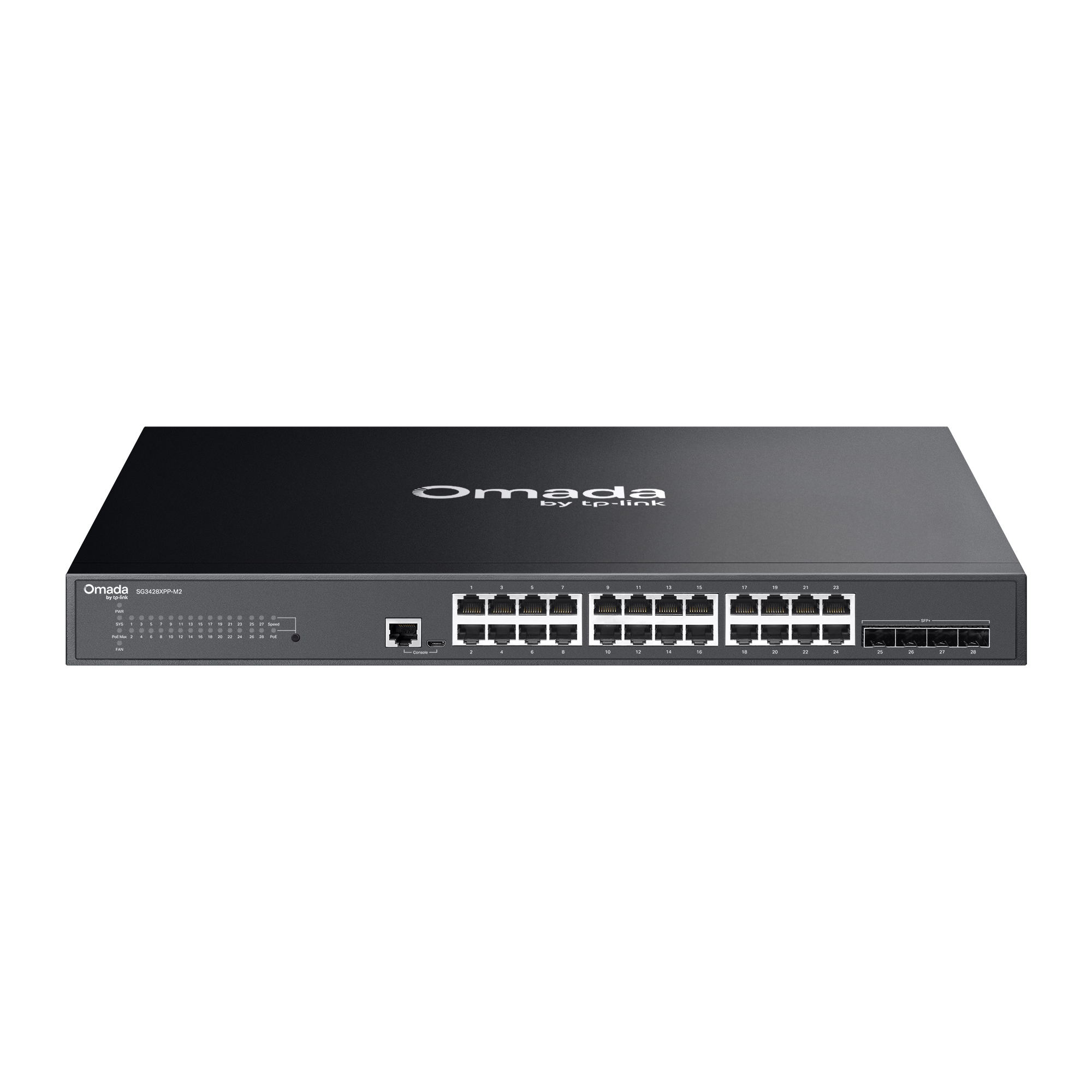

Image 1 of 5

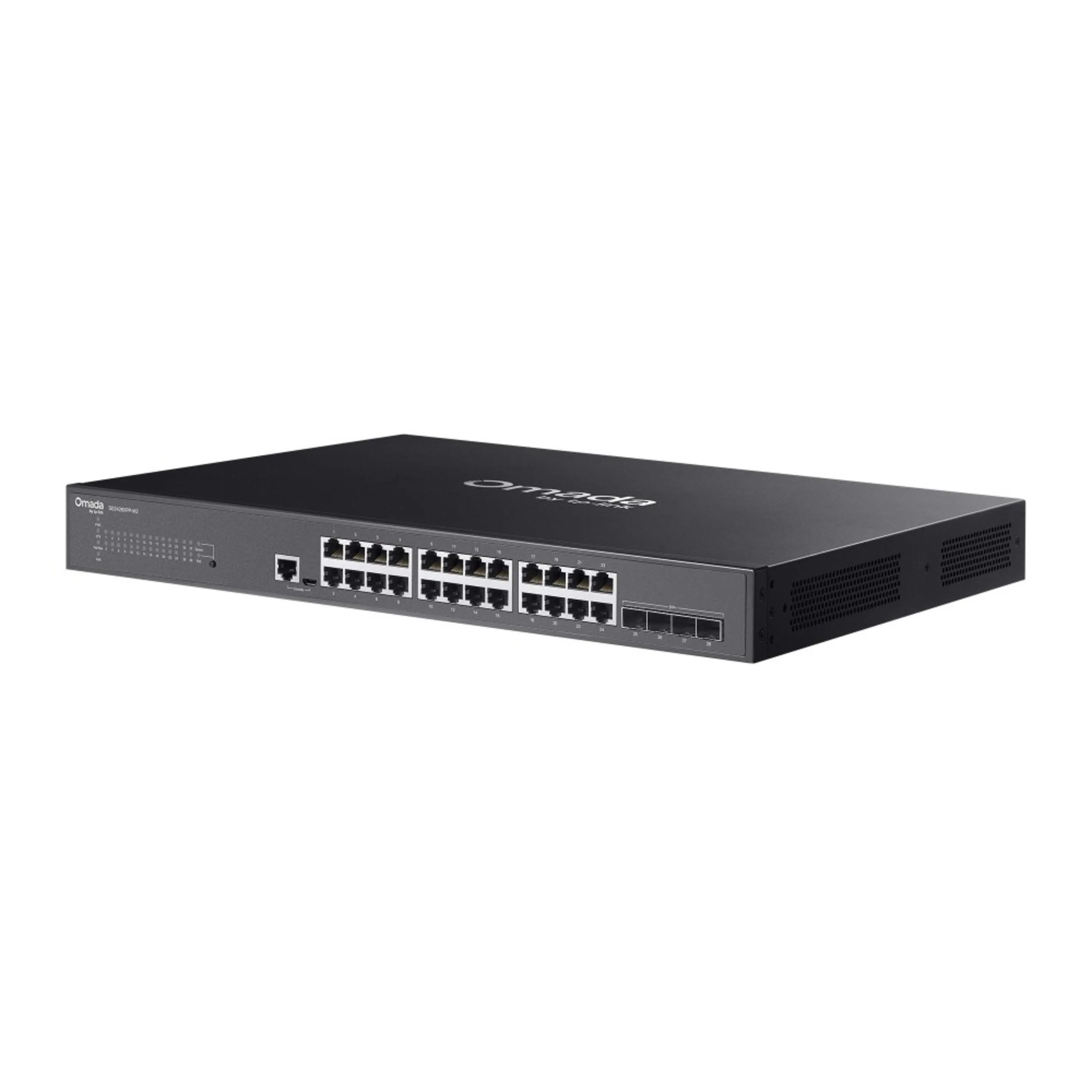

Image 2 of 5

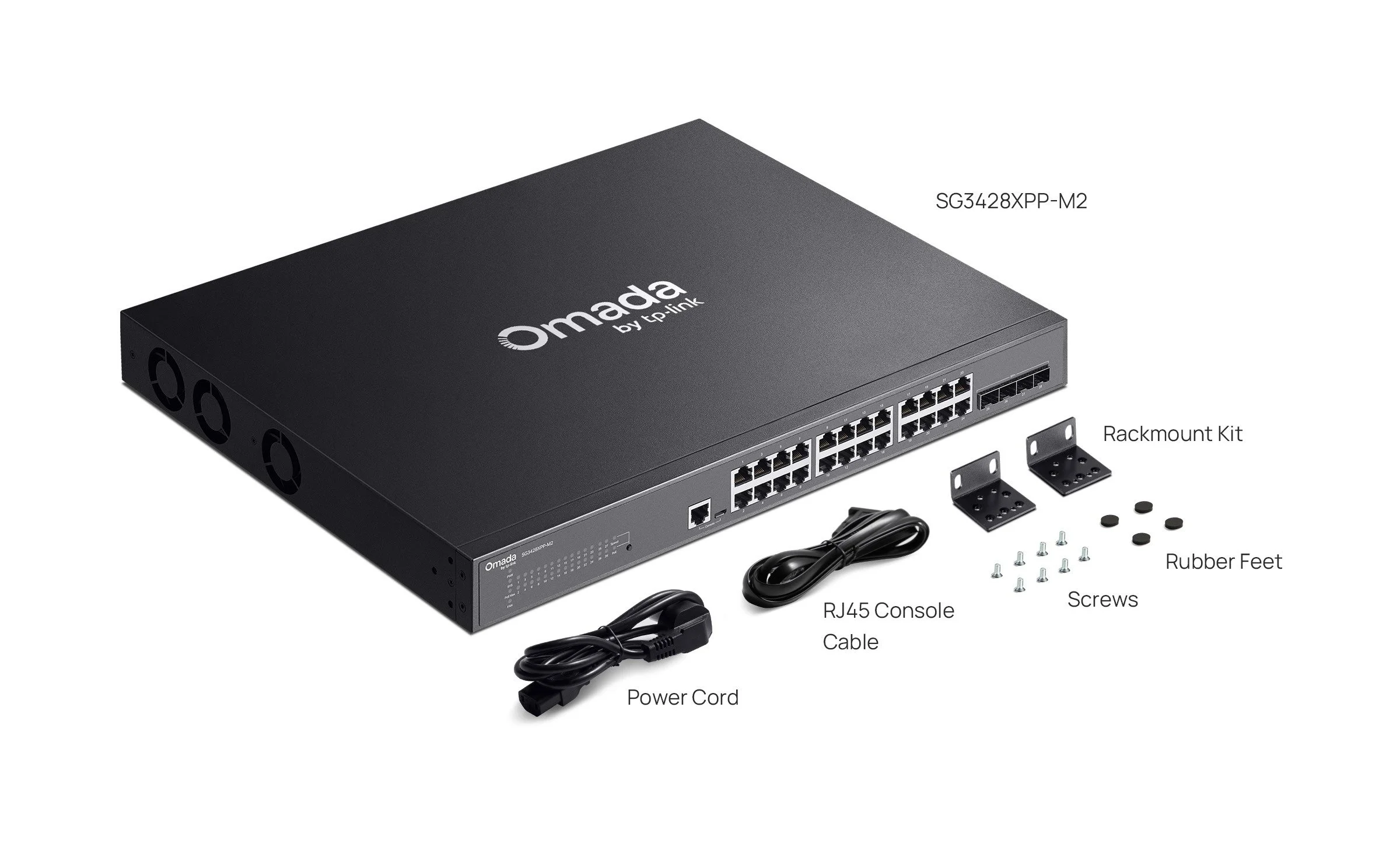

Image 3 of 5

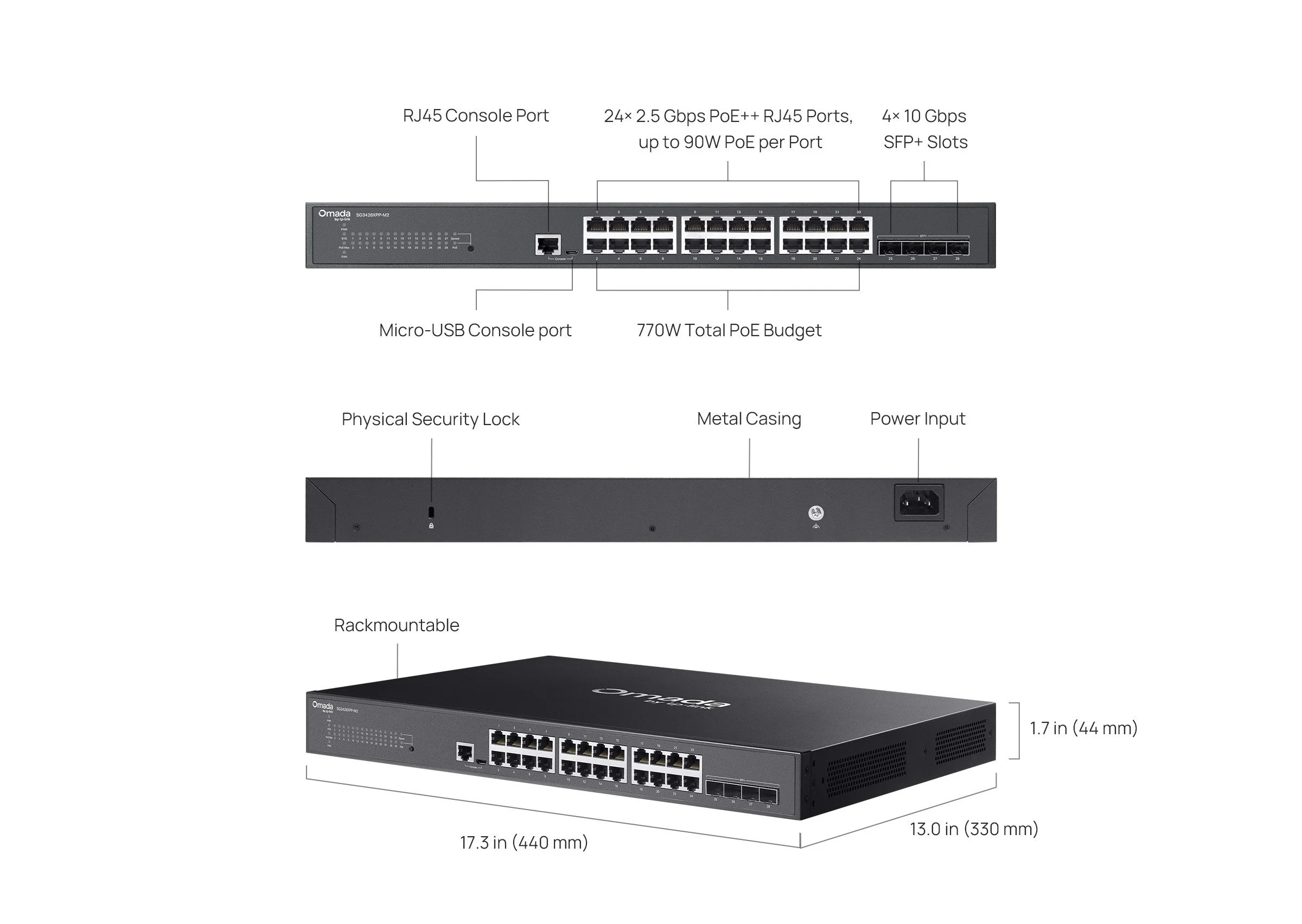

Image 4 of 5
