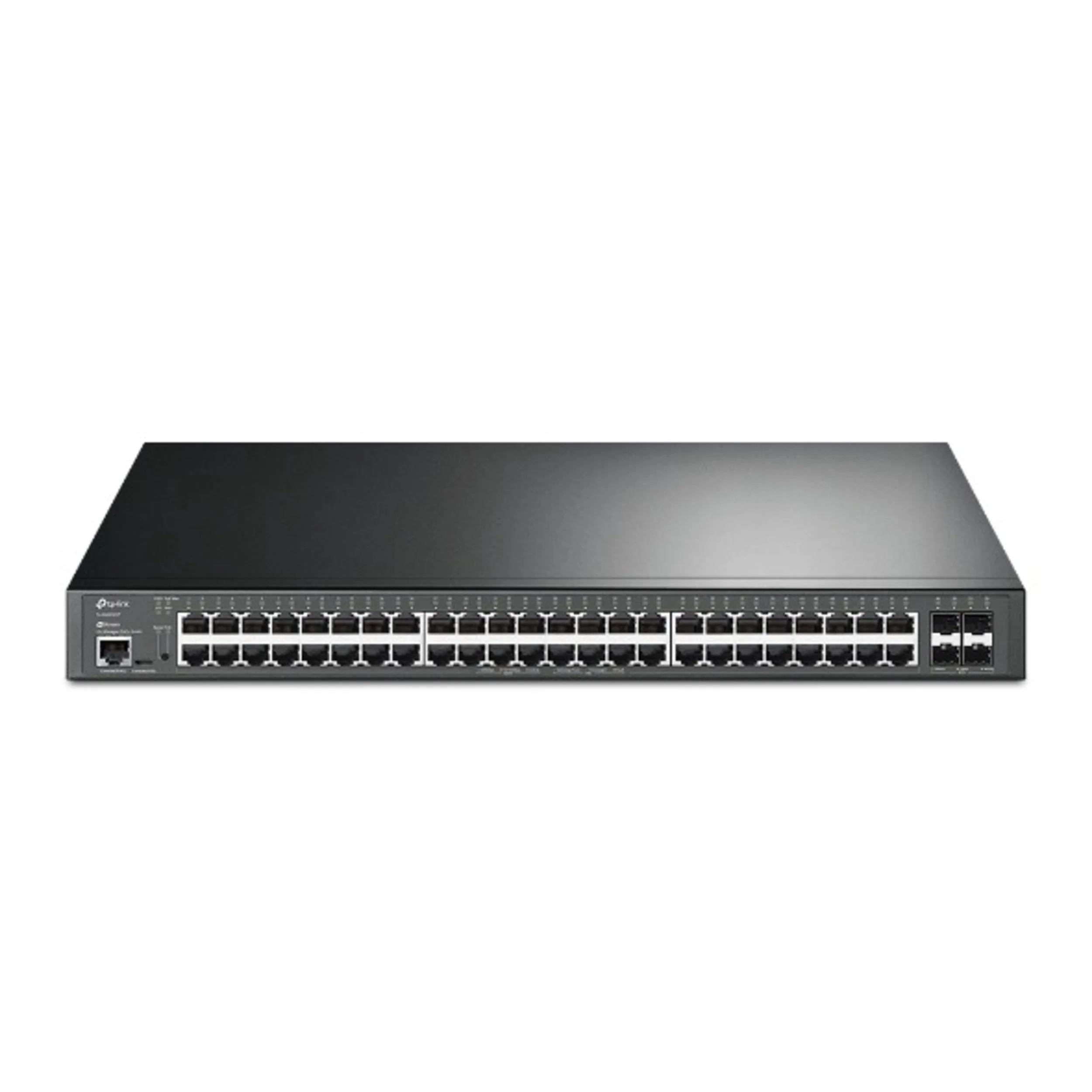

SG3452XP

The SG3452XP is a JetStream 52-Port Gigabit L2+ Managed PoE+ Switch with 500W PoE budget, 4x 10G SFP+ uplinks, Omada SDN integration, and enterprise-grade security — ideal for enterprise, campus, and ISP network deployments.

500W PoE Budget | 48x Gigabit PoE+ Ports | 4x 10G SFP+ Uplinks | 176 Gbps Switching | 130.9 Mpps Forwarding | Static Routing | Omada SDN | ACL | QoS | IPv6 | Rack Mountable

Specifications:

Brand: TP-Link | Model: SG3452XP | Ports: 48x Gigabit PoE+ RJ45 + 4x 10G SFP+ | PoE+: 802.3at/af, up to 30W per port | PoE Budget: 500W | Switching Capacity: 176 Gbps | Forwarding Rate: 130.9 Mpps | Mounting: 1U 19-inch Rack

L2+ Features:

802.1Q VLAN | QinQ | STP/RSTP/MSTP | IGMP Snooping | LACP | OAM | DLDP | DDM | Static Routing | sFlow | L2PT

Security:

IP-MAC-Port Binding | ACL | Port Security | DoS Defend | Storm Control | DHCP Snooping | 802.1X RADIUS Authentication

Management:

Omada SDN | Web GUI | CLI (Console, Telnet, SSH) | SNMP | RMON | Dual Image/Configuration | IPv6 | Zero-Touch Provisioning | Centralized Cloud Management
